Week 8 - Challenge 2 - Base Bracket Design
Objective-
Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Detailed Report-
Terms Used-
Class 'A' Surface- Class A surface can be physically touchable because it is the outside surface of an automobile and it gives aesthetic look to the product. these Class A surfaces are obtained by reverse engineering by using clay modeling. For this type of work, plastic product designers are assigned to work on it.
Class 'B' Surface- Class B surface are created by taking offset from the given class A surface. On this type of surface, we can do all engineering features like ribs, mountings, screw bosses, dog house, etc.
Class 'C' Surface- Class C surface is used to join Class A and Class B surfaces together.
- Draft Analysis- Draft analysis is the tool used to check whether the component is manufacturable within the given draft or not
Work on class A surface-
1) Check for the most suitable tooling axis direction.
2) Create a dummy tooling axis in Z direction-

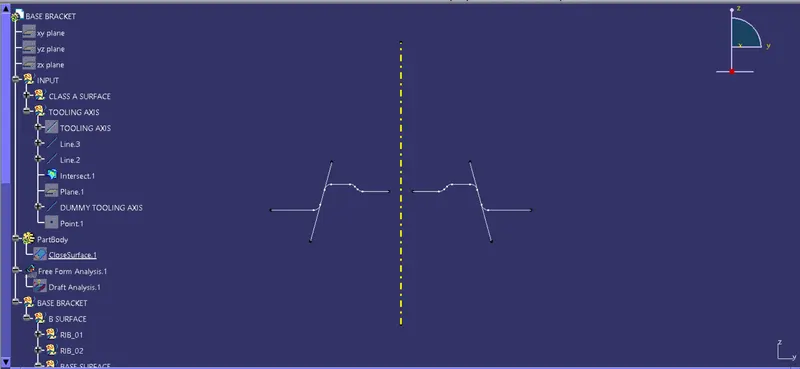

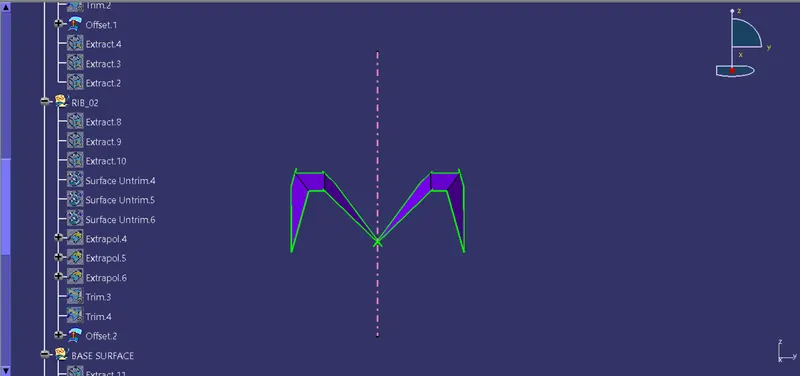

3) Create an intersecting curve to YZ plane on Class A surface-
4) To check if this profile crating problem or not, create a line on the curve.

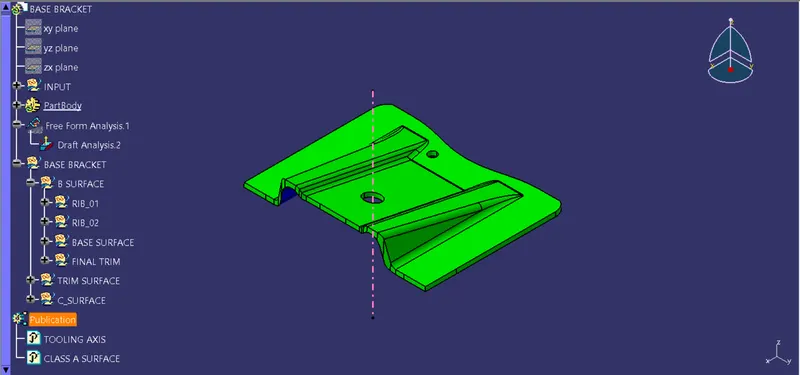

5) Make a tooling axis by bisecting two lines and publish the class A surface and tooling axis.

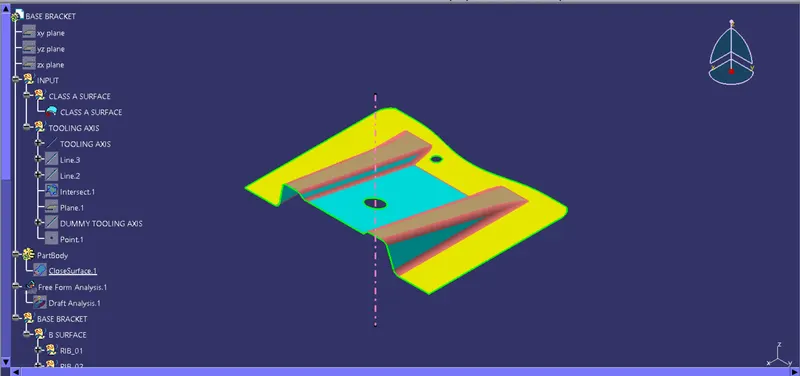

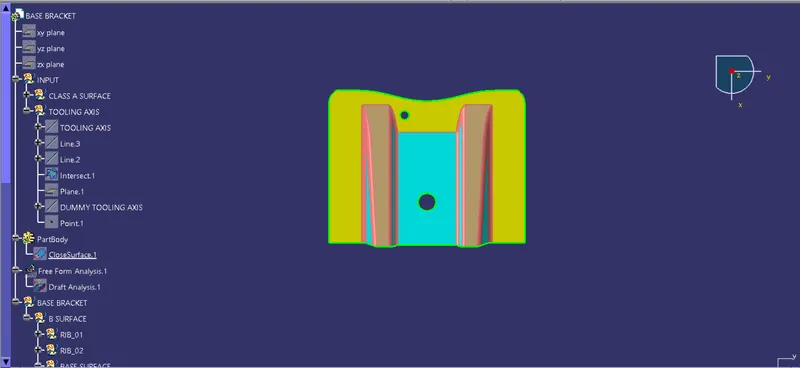

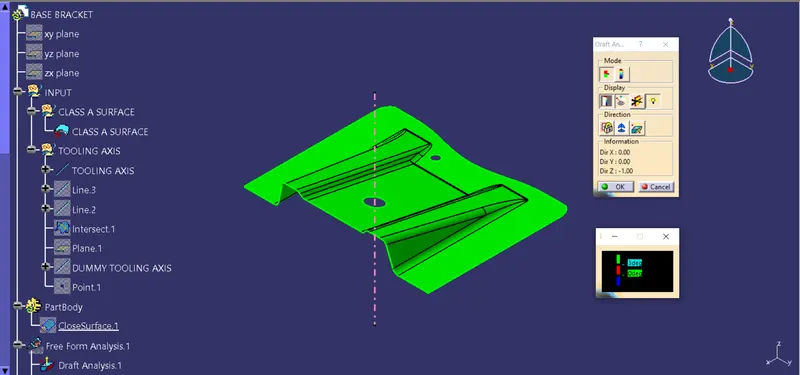

6) Draft Analysis checking-
Steps for class B Surface creation-

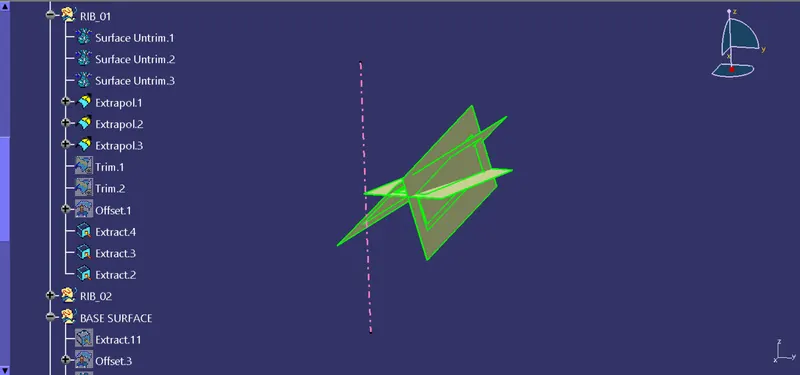

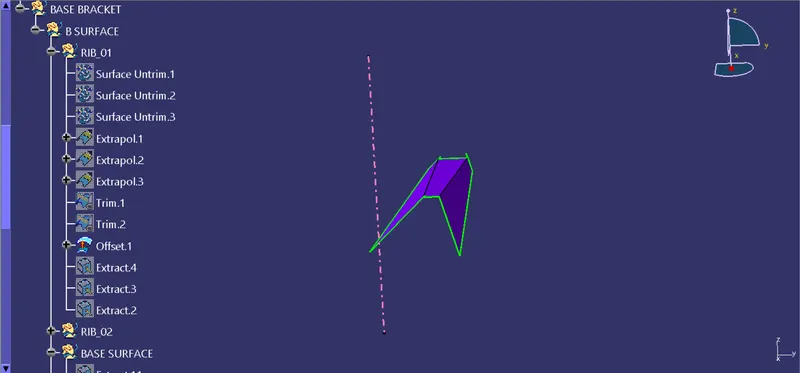

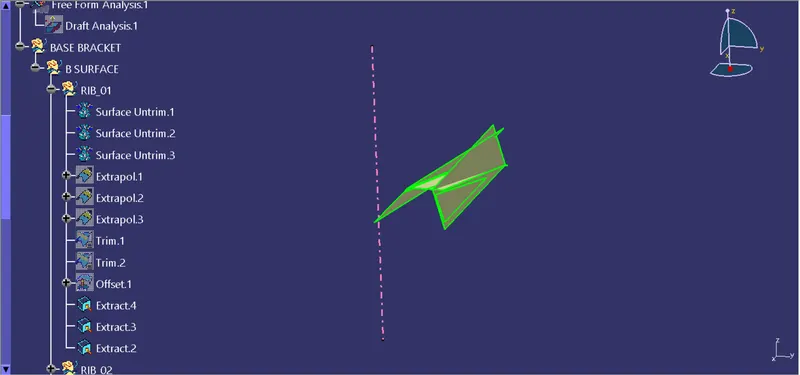

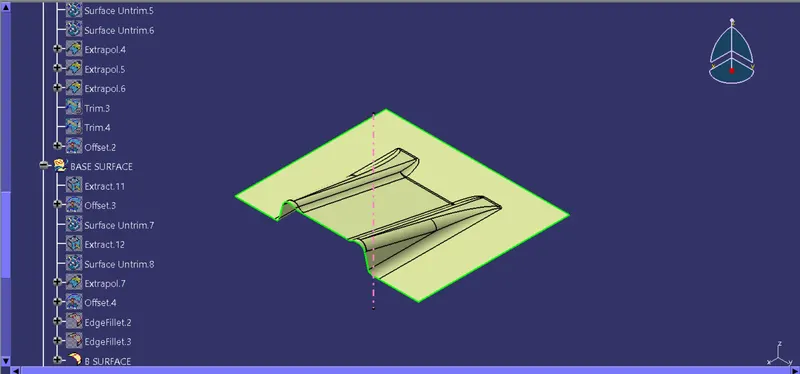

1) Extract surface of Rib without fillet, and then Un-trim it-

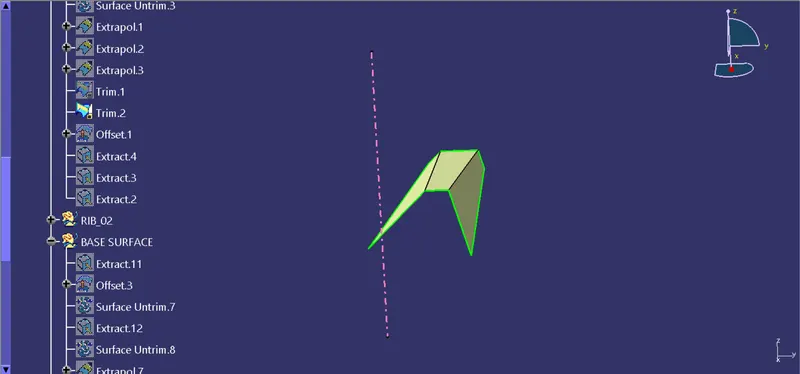

2) Extend the untrimmed surfaces.
3) As per requirement, trim the surfaces-
4) Offset the trimmed surface by 2.5 mm.
5) For creating second rid and remaining surface apply the same procedure-
6) Give the fillet by adding 2.5mm offset value-
Steps for class C Surface creation-

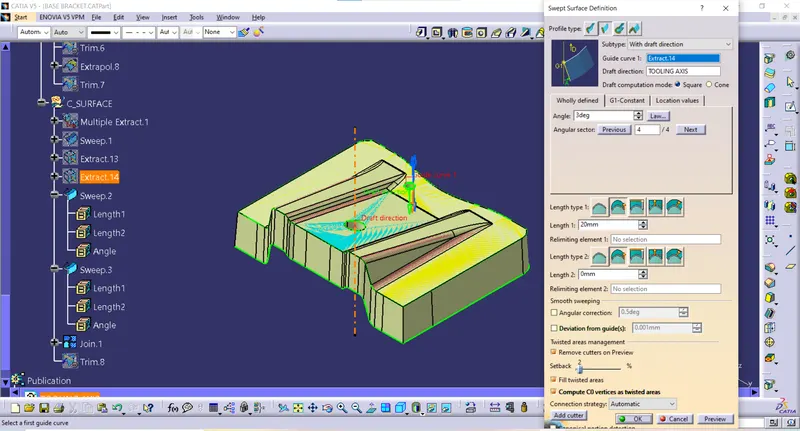

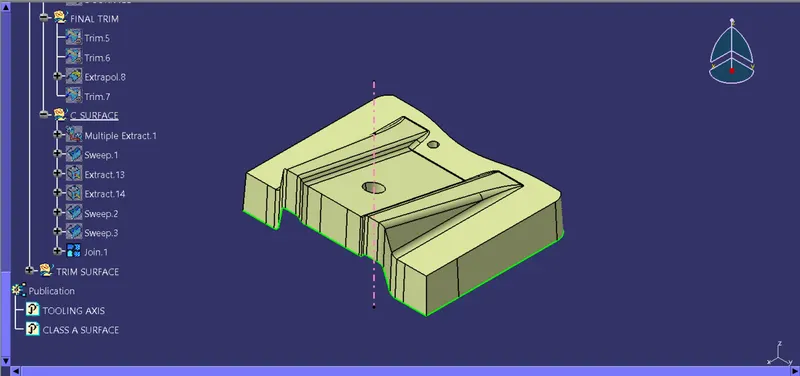

1) Create boundary of whole class A surface and then sweep it along the tooling axis with a draft angle of 3 degrees.
2) Join the class A surface with Sweep-
Making Of Plastic Componant-

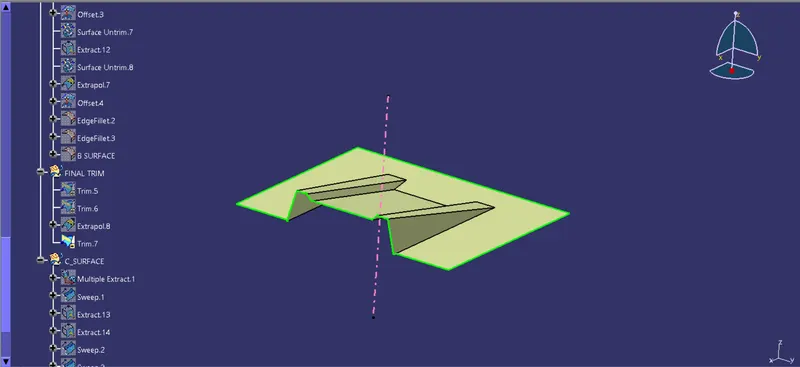

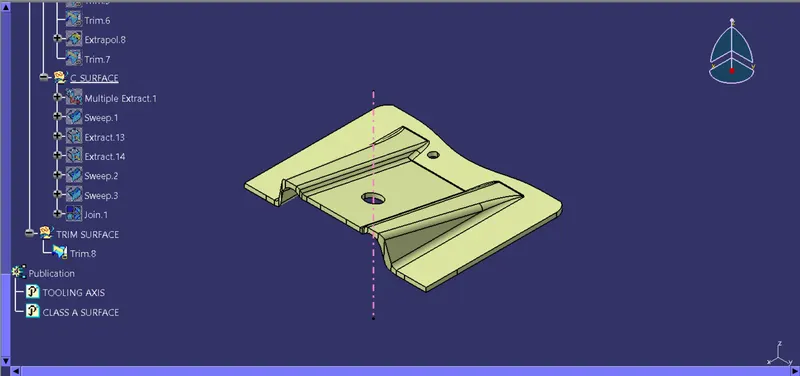

1) Trim the Class B surface with Joined surface-
2) Make it Closed Surface by going into Part Design-

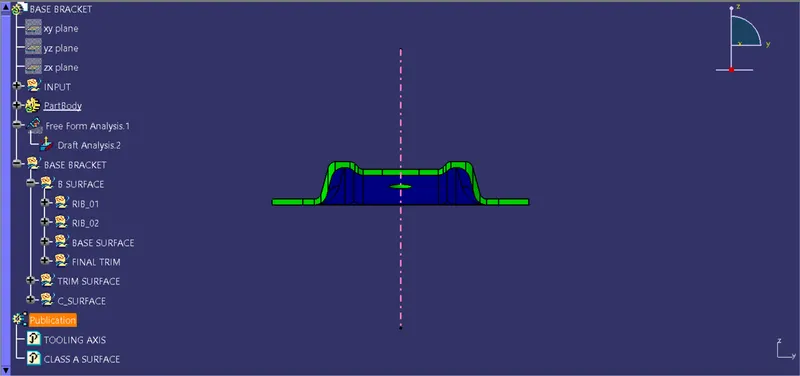

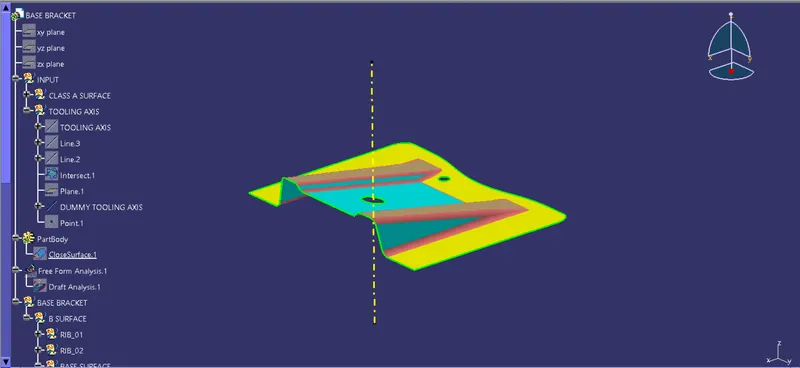

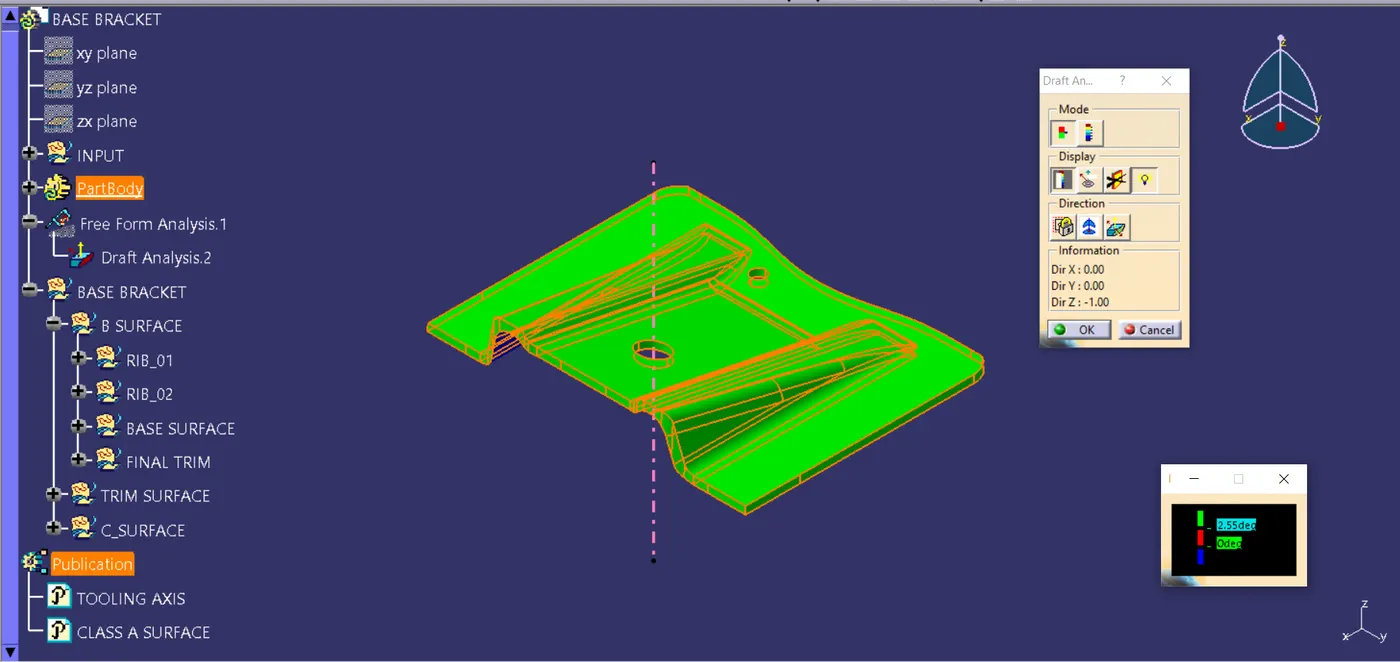

Draft Analysis-
- Differant views of part are as follows-

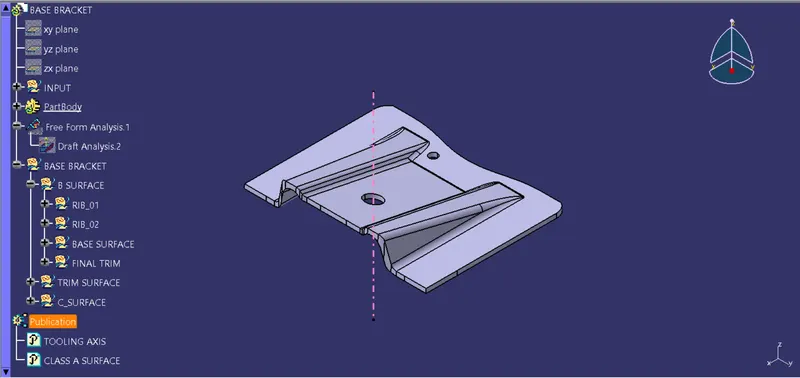

1) Isometric View-
2) Front View-

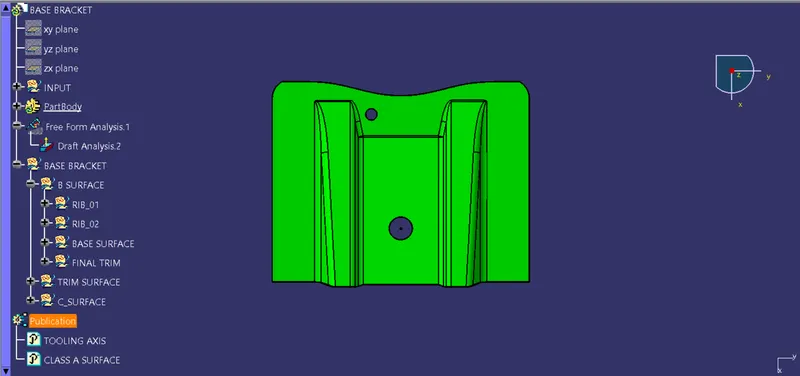

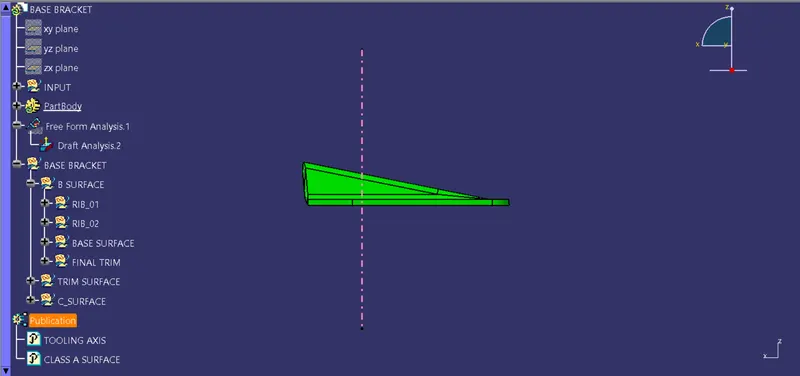

3) Side View-
4) Top View-
