Week 9 - Project - Master Section Development

AIM

To create CLASS B and CLASS C from the given CLASS A surface and Master Section, creating Solid-Body, Tooling axis and performing Draft Analysis.

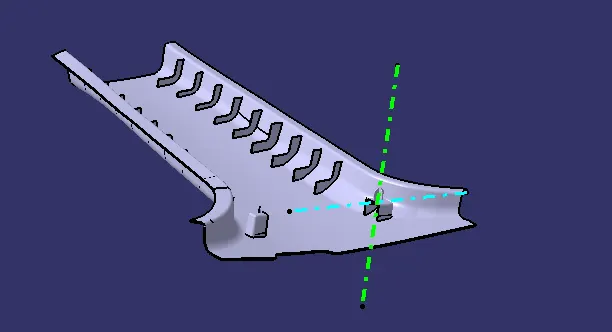

TOOLING AXIS AND LIFTER AXIS

GREENLINE represents the Tooling axis.

BLUELINE represents the Lifter axis for Dog house with a 4-way locator.

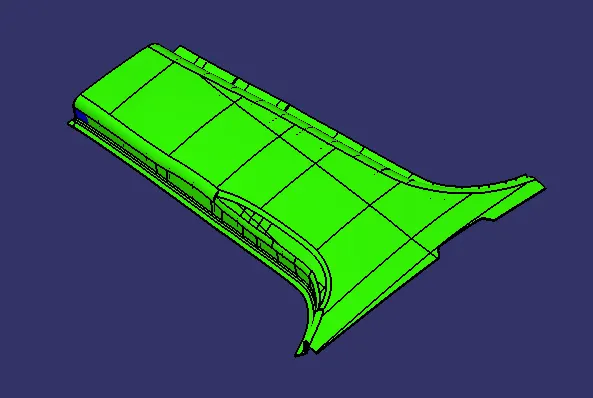

CLASS A SURFACE

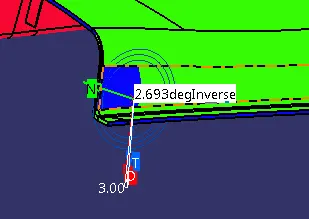

All areas are with a minimum draft of 3 degrees in the A SURFACE except the areas shown below.

It has a 2.693-degree draft.

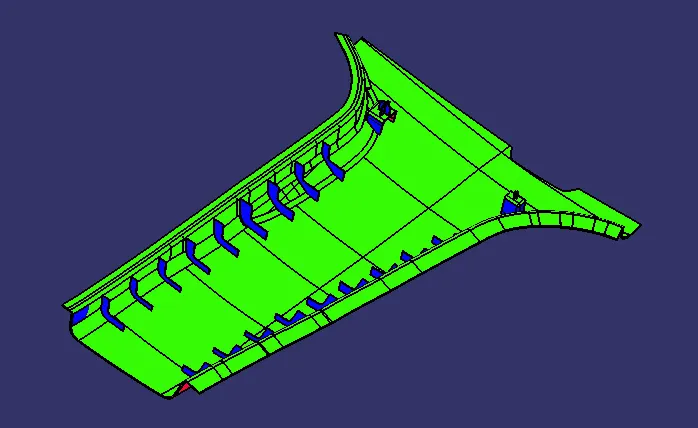

CLASS B SURFACE

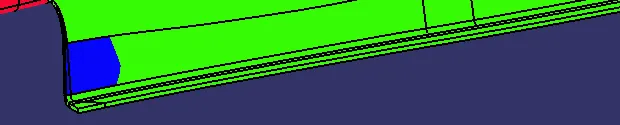

All areas are with a minimum draft of 3 degrees in the B SURFACE except the areas show below.

The first area has a 2.487-degree draft.

Then the second area has a 2.572-degree draft.

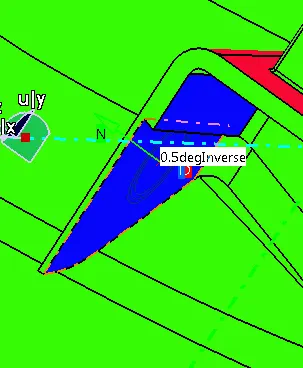

DOG HOUSE WITH A 4 WAY LOCATOR

Dog house with a 4-way locator has a 0.5-degree draft along the lifter axis.

CLASS C SURFACE

All areas are with a minimum draft of 2.9 degrees in the C SURFACE.

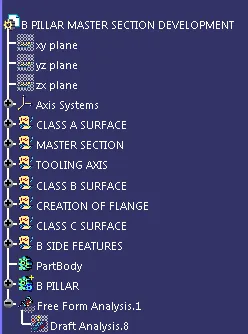

FEATURE TREE

CONCLUSION

CLASS B and CLASS C successfully created from the given CLASS A surface and Master Section.

Solid-body is successfully created using a Closed surface.

Draft analysis is successfully completed.
