Week 8 - Challenge 2 - Base Bracket Design

AIM

To create CLASS B and CLASS C from CLASS A surface, creating Solid-Body, Tooling axis and performing Draft Analysis.

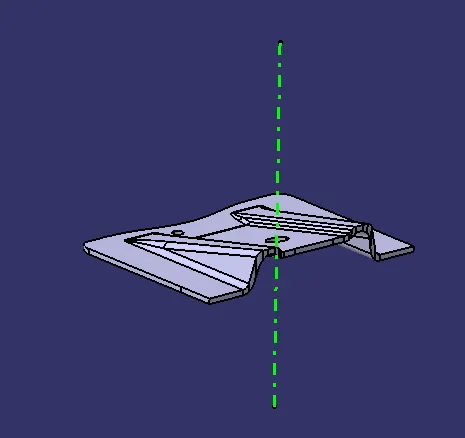

TOOLING AXIS

Tooling axis: The direction in which the mold or core and cavity opens is the tooling axis.

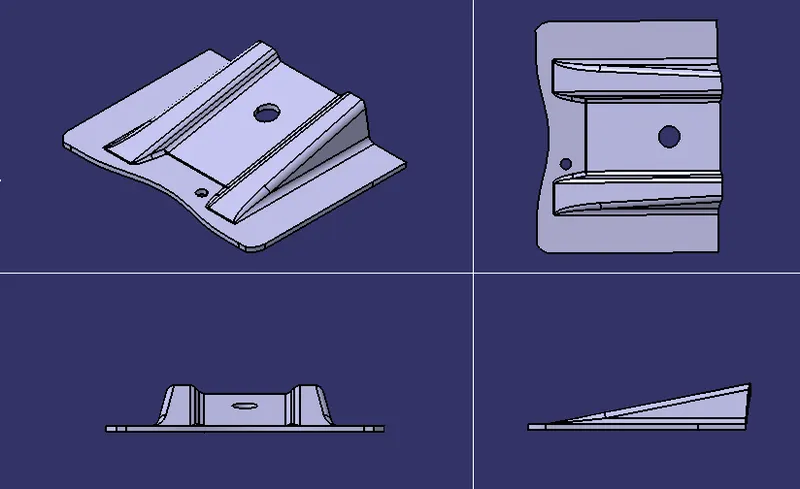

DIFFERENT VIEWS

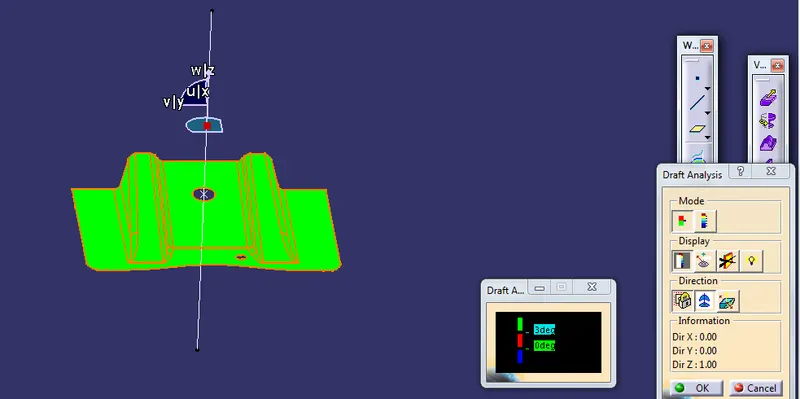

CLASS A SURFACE

All areas are with a minimum draft angle of 3 degrees.

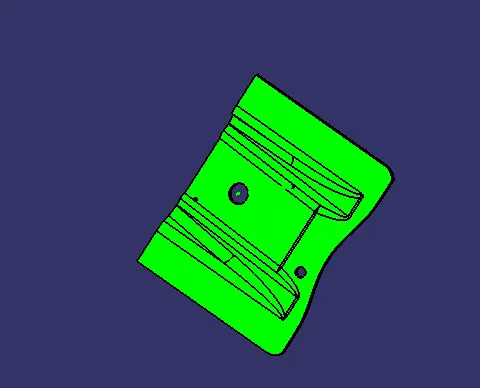

CLASS B SURFACE

All areas are with a minimum draft angle of 3 degrees.

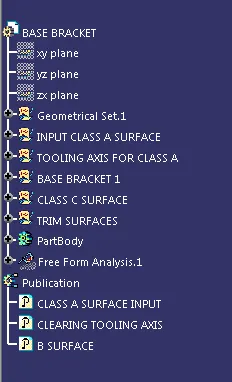

FEATURE TREE

CONCLUSION

CLASS B and CLASS C is successfully created from CLASS A surface.

Solid-body is successfully created using a Closed surface.

Draft analysis is successfully completed.
