Week 9 - Project - A pillar Design with Master Section
INTRODUCTION-
Draft Analysis is performed virtually in order to check the draft angle of the designed part for smooth ejection processes from the mold, when manufactured in the real environment. It performs the analysis on the basis of colors' ranges that dignifies and differentiate the surfaces through colors on the basis of their angles.
Tooling Axis is done in order to find the easiest possible direction of the part ejection from the mold, when manufactured in the real environment. For eg.- A part with holes can be easily ejected along the direction normal to it, hence tooling axis is taken normal to holes.

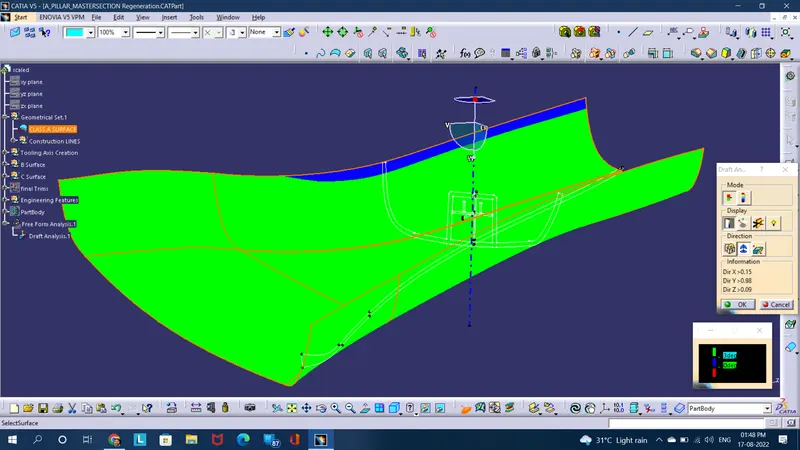

Class A surface-

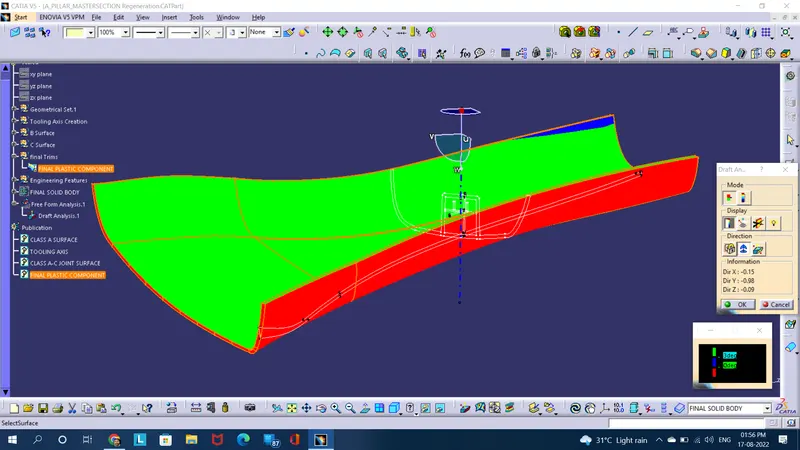

Final plastic component-

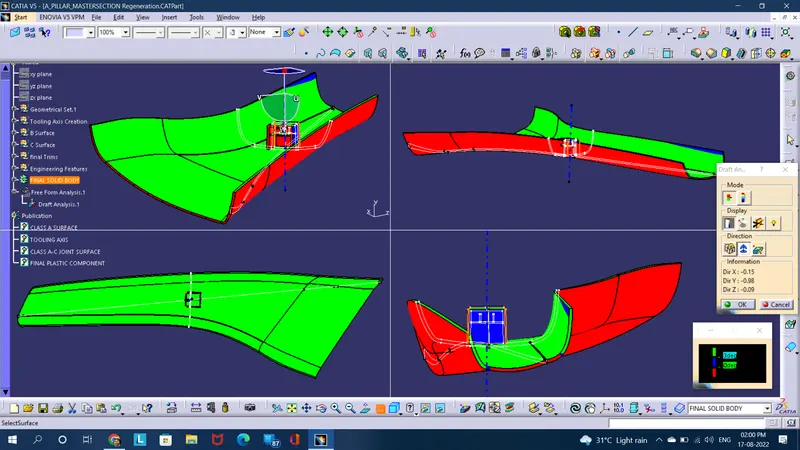

Solid body-
PROCEDURE-

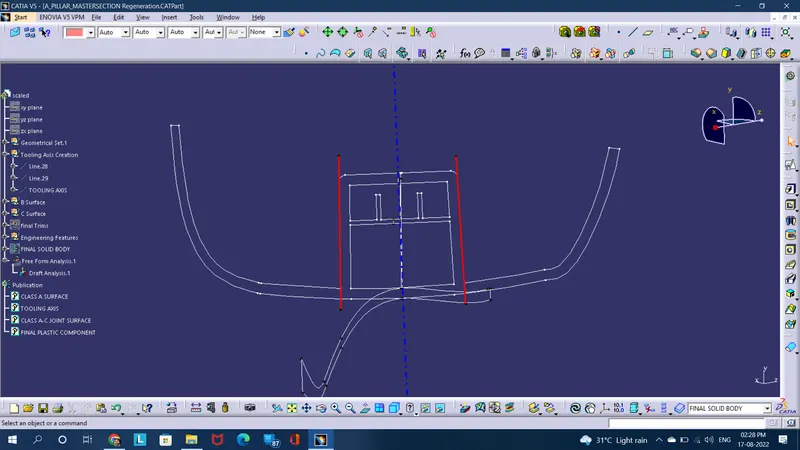

Tooling Axis creation-
- In this particular Project since master section is given so creation of tooling axis was directly considered with respect to it, by extending the lines from the drafted side of this cross-section, and create resulting tooling axis through bisecting method.
