Week 9 - Project - A pillar Design with Master Section

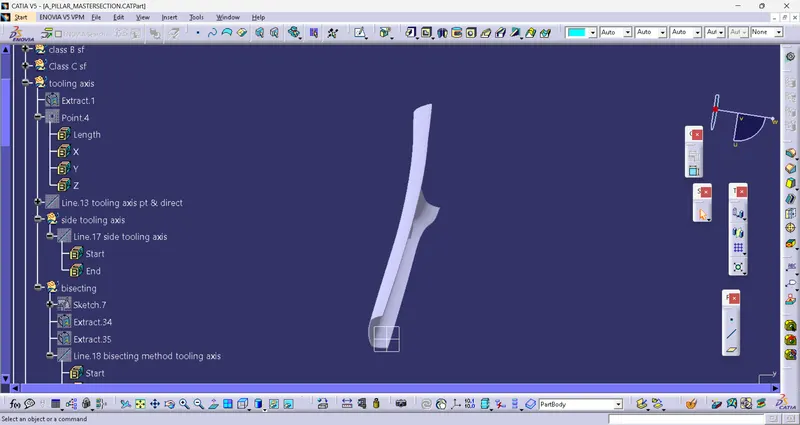

->3D

->

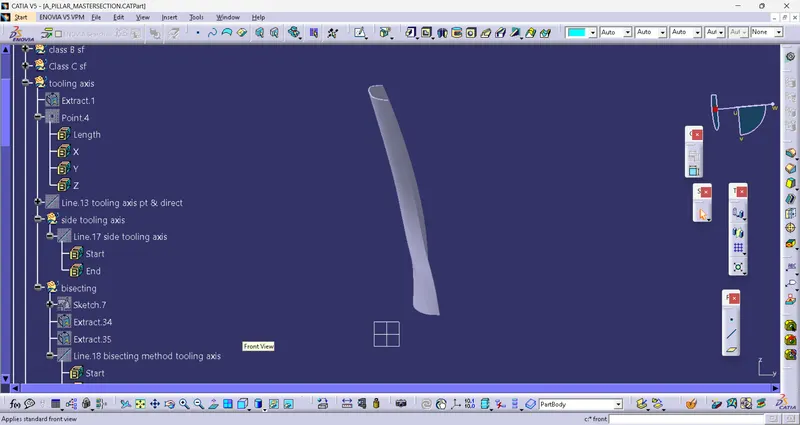

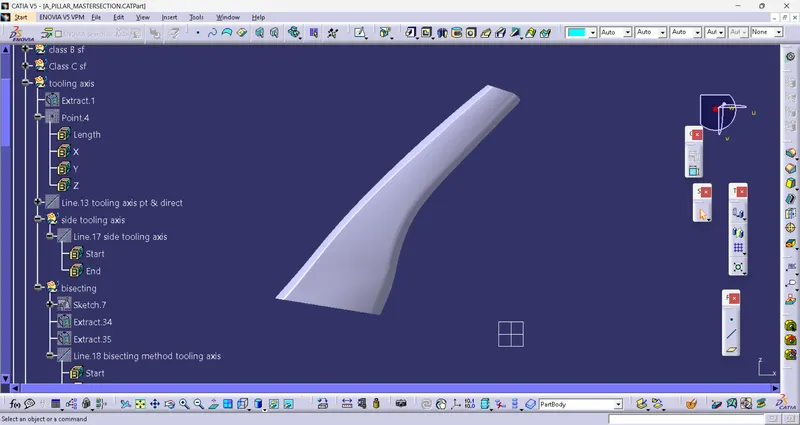

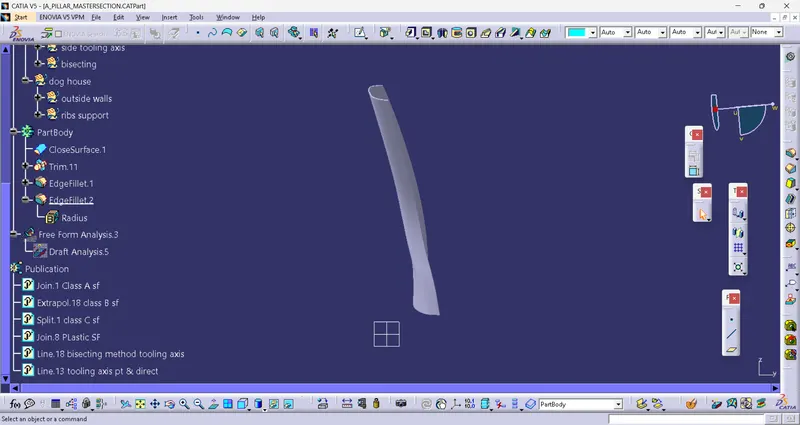

FV	SV	TV

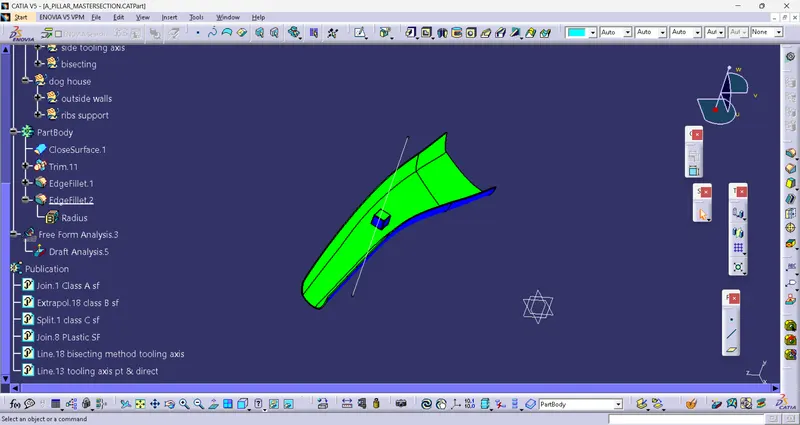

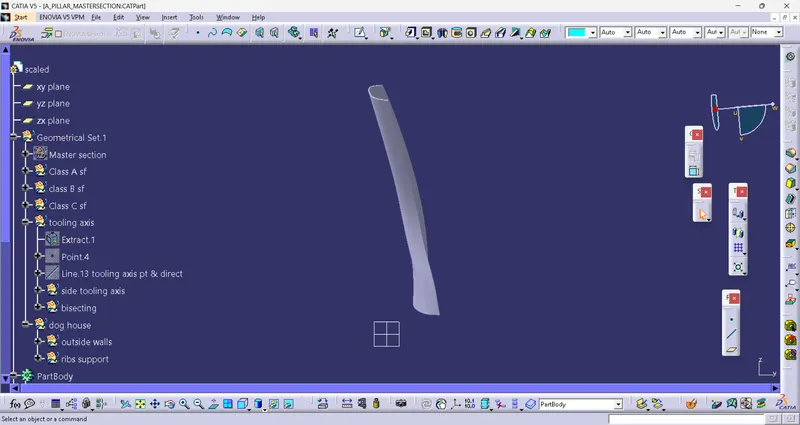

-> Tree Structure

->closed SF

As per discussion in 1 to 1 session only plastic surface is thicken using closed body , other surface can be thicken up directly.

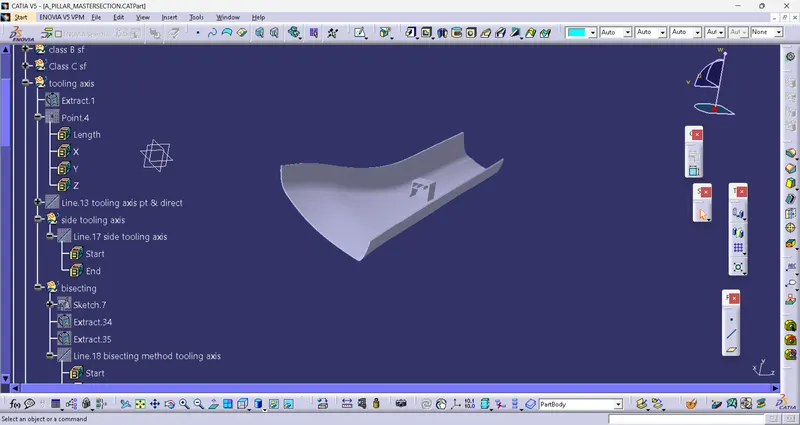

->Tooling axis creation:

Tooling axis is created with point on surface with either normal to surface or point and sirection method.Using both the above method the component is not getting clearing up , tehrefore we use bisecting line as main toooling axis.

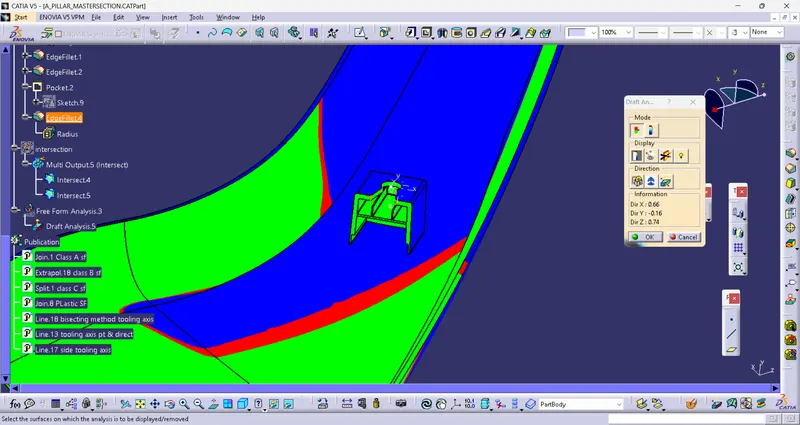

Tooling axis as point an directn, surface not getting cleared.

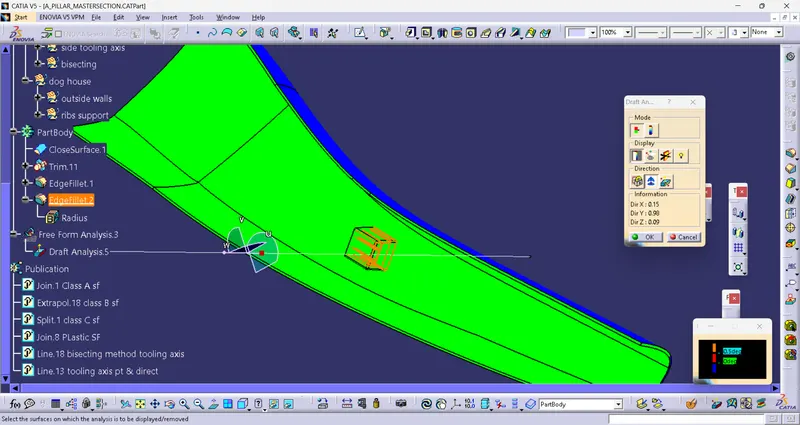

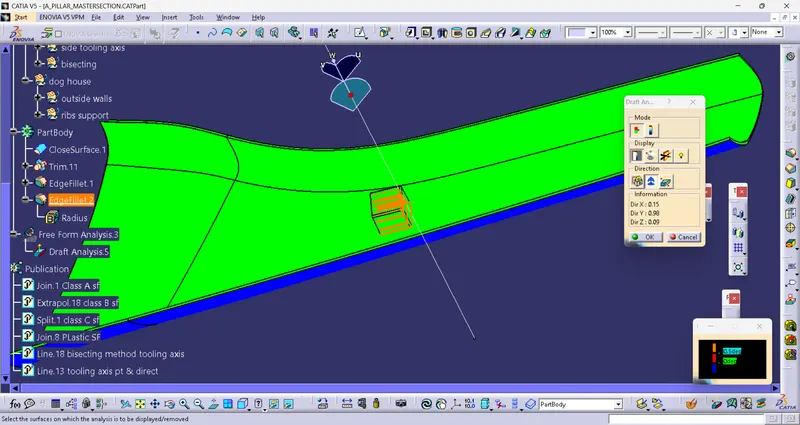

tooling axis using bisecting:

-. Side tooling axis:

It is created with normal to back surface of dog house,

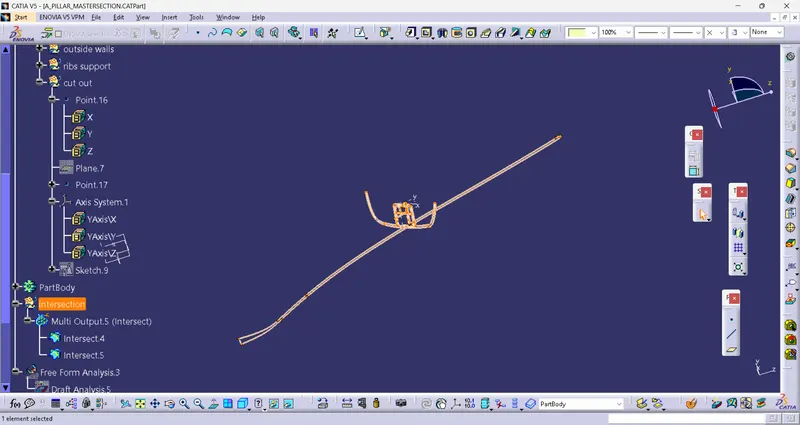

Matching of master section:
