Week 9 - Project - A pillar Design with Master Section

AIM:

To create A pillar with the help of master section

PROCEDURE:

first create the tooling axis with the help of master section

for creating the B surface offset the given A surface as per the master section then you will get the B surface

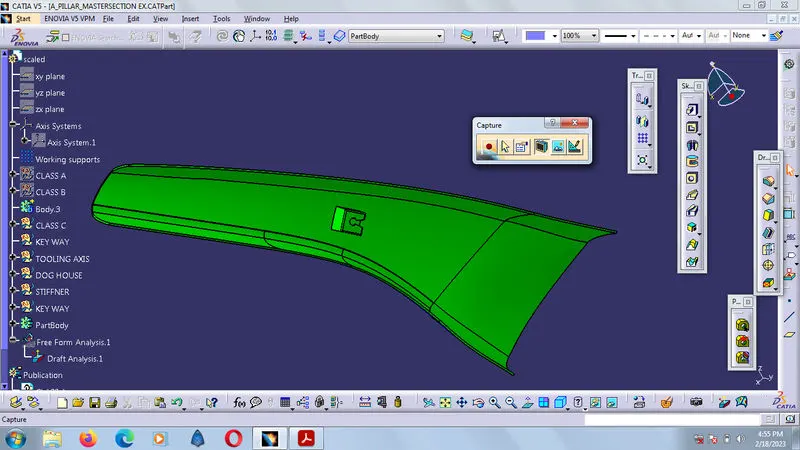

then create the C surface and join with A surface finally trim with the B surface it gives a geometry as output

make the output as solid body

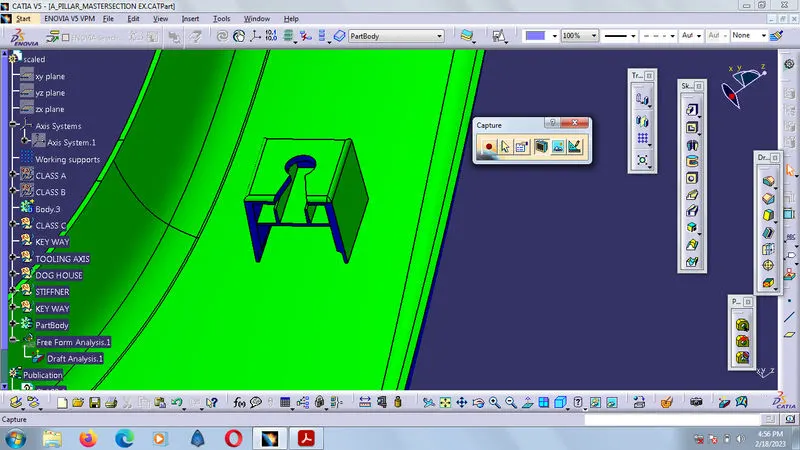

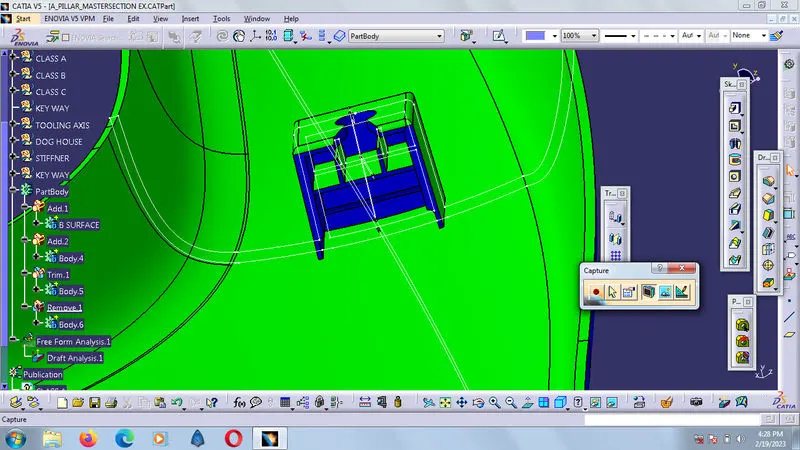

for creating the dog house with the help of master section

first create the axis system on a required point of the master section

then select required plane for projecting the dog house

after selcting the plane sketch the dog house profile from the projection of master section

make the solid body for the dog house also

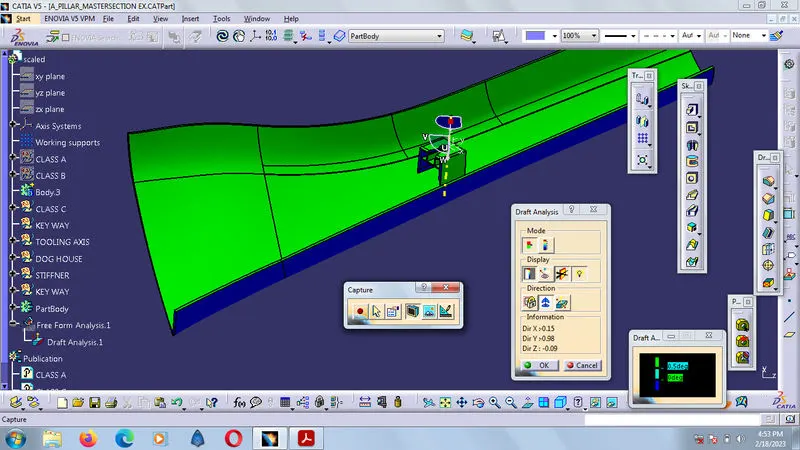

finally perform the draft analysis

RESULT:

thus the A pillar was created with the help of master section
