Week 8 - Challenge 6 - Core & Cavity Design

AIM:

   To create a core and cavity block for an switch bazel

PROCEDURE:

For creating the core and cavity block of an component.

First we have to identify the identify core side and cavity side of the component

 The A surface is the core side and the B surface is the cavity side,Then

Create a parting surface on B surface by extrapolating A surface we will get the

Parting surface by intersecting the parting surface  with the component we will get

The parting line.

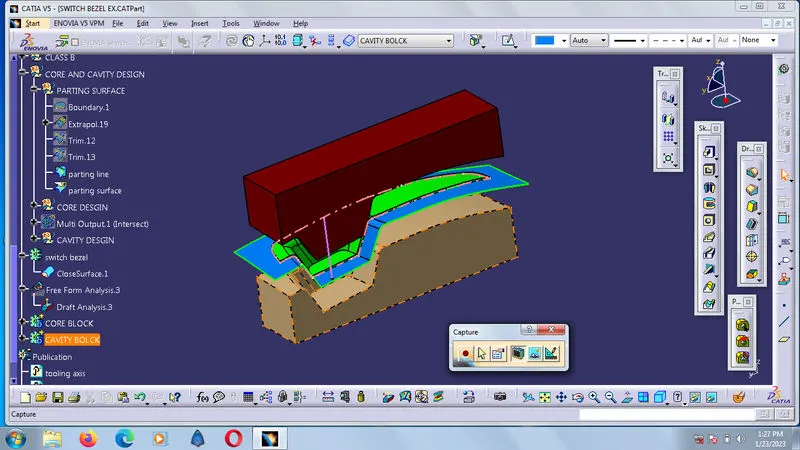

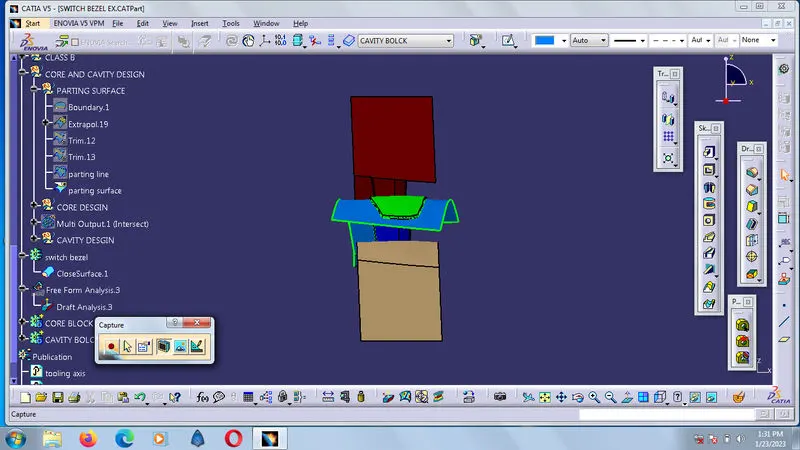

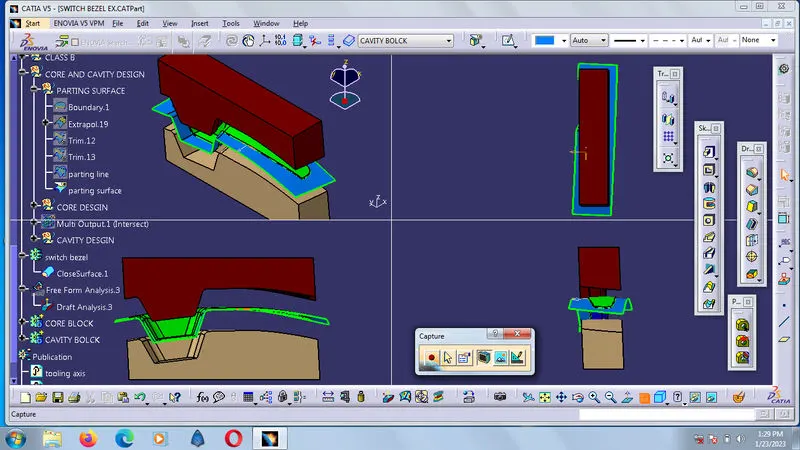

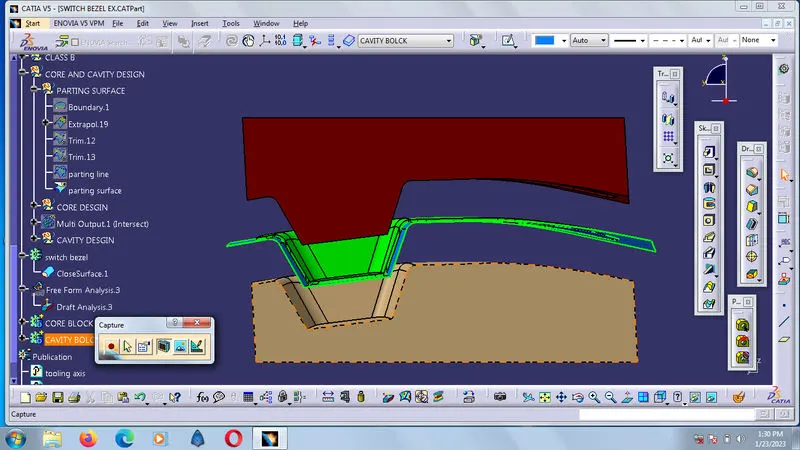

Then create a block for core and cavity. By triming the component having the parting surface

Wth the created block we will get the core and cavity,for the core block we should trim A surface with block . for the cavity block trim with the B surface.
