Week 9 - Project - A pillar Design with Master Section

MASTER SECTIION

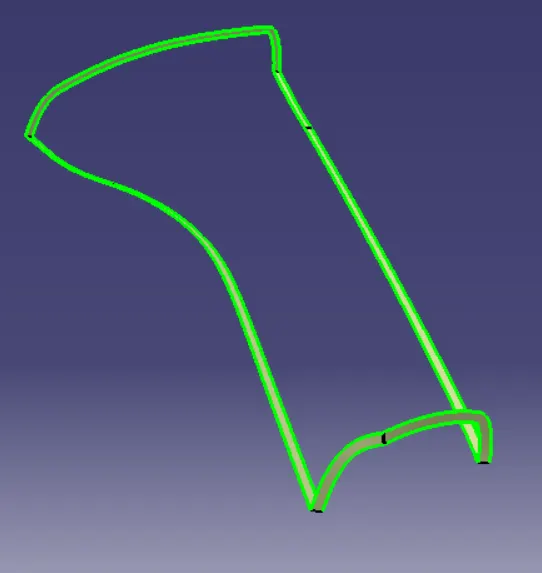

                   REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

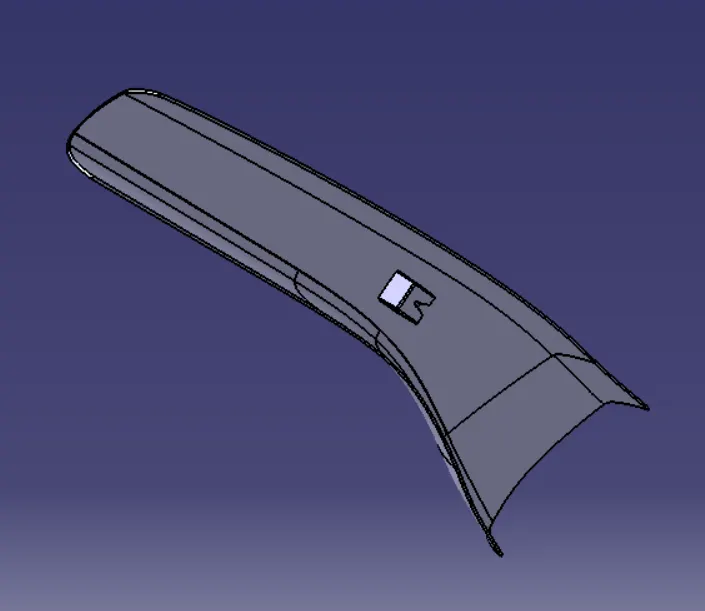

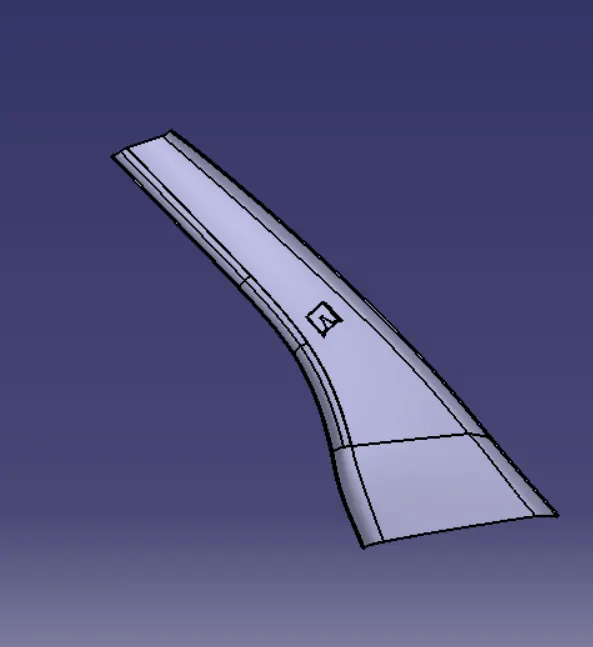

CLASS A SURFACE

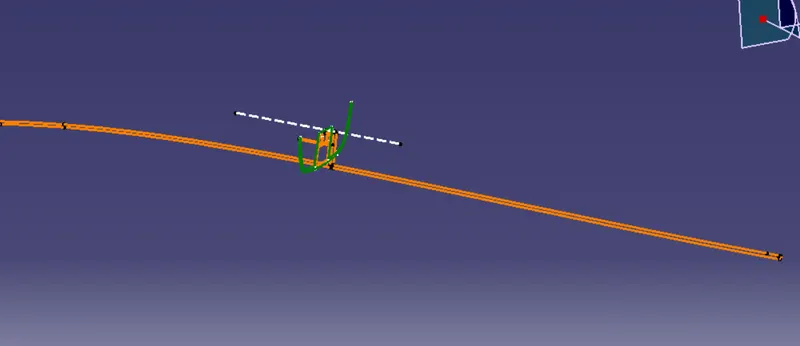

TOOLING AXIS

BISECTING METHOD

This method is used for the generation of the tooling axis for that purpose first we need to decide the direction of molding and then we create one dummy tooling axis for the reference to the purpose.

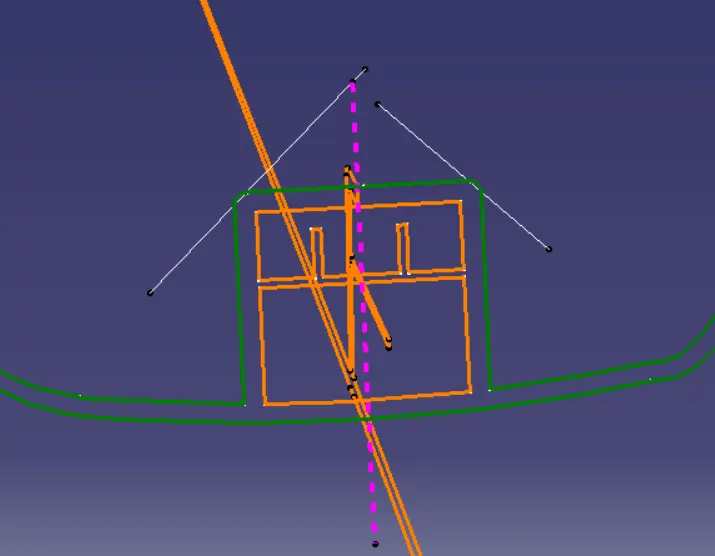

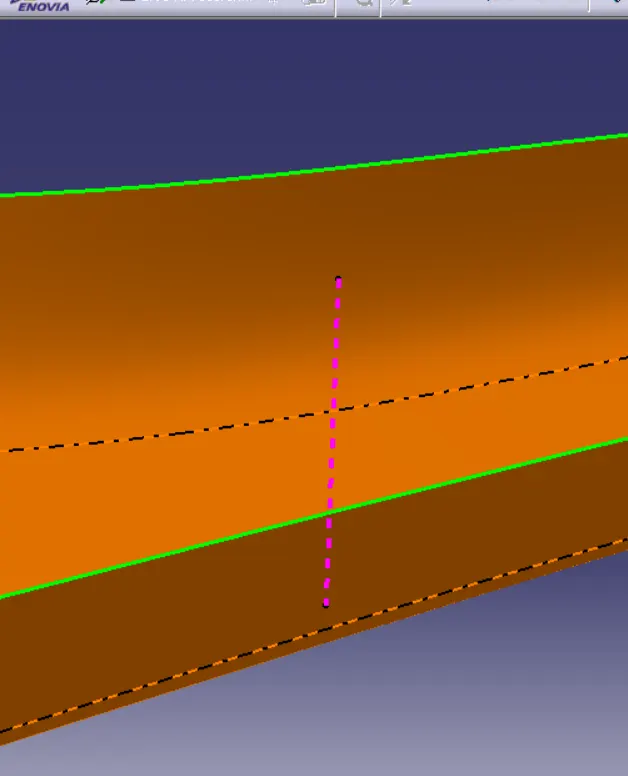

In this method, we select the surfaces which can create problems and take intersections in the x and y-direction. By using these curves we draw two lines and then draw a bisecting line from these two lines in the x-direction and y-direction.

If it is done in x-direction then it is called a tooling axis clearing x-direction and if in y then tooling axis clearing y-direction.

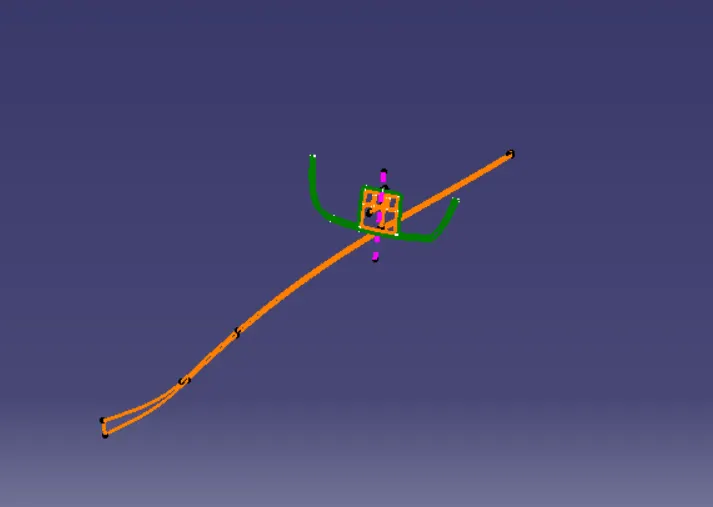

After completing this we need to draw a final line bisecting this two tooling axis in the X and Y directions to get our final output.

DRAFT ANALAYSIS

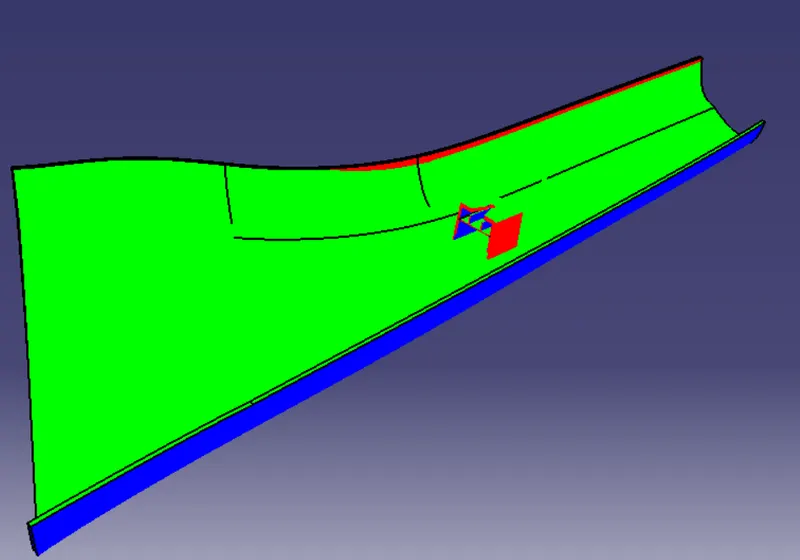

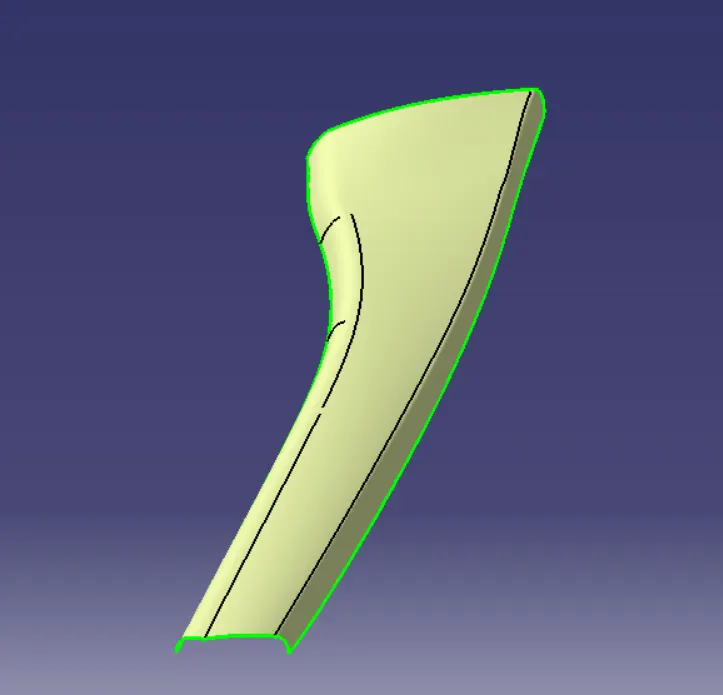

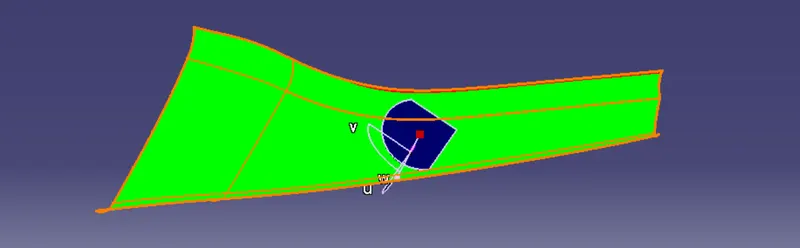

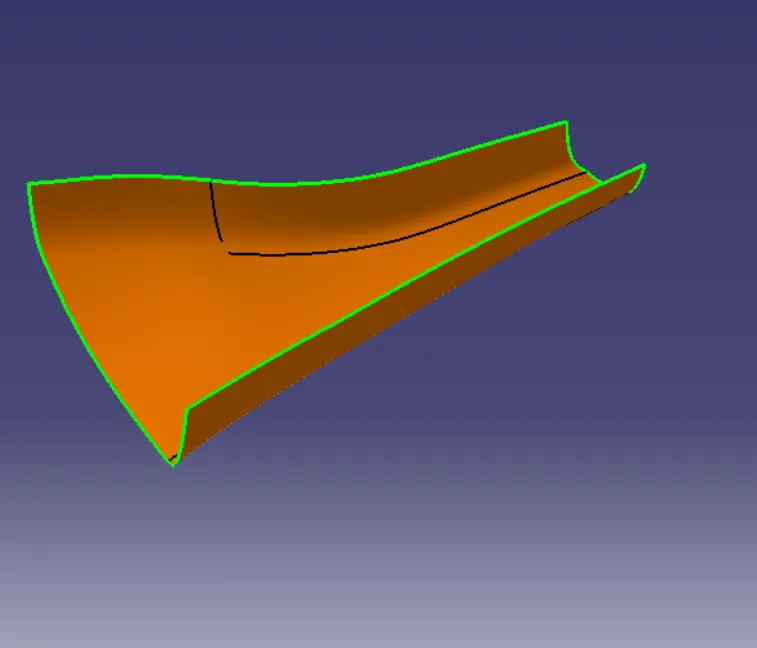

        Draft analysis for class A surface

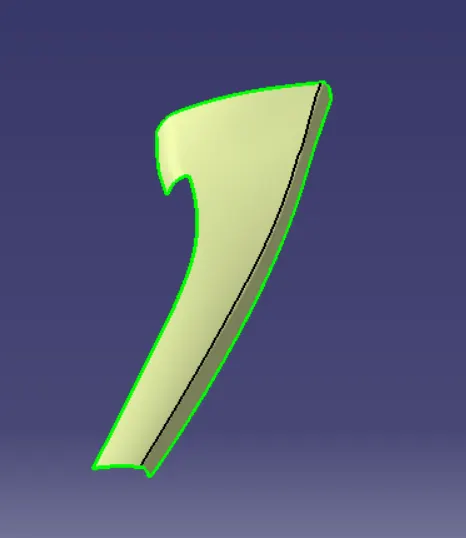

CLASS B SURFACE

 Create B surface offset form the class A surface as per master section.

missing surfaces create with swept surface.et's join the surfaces & create the class B surface.

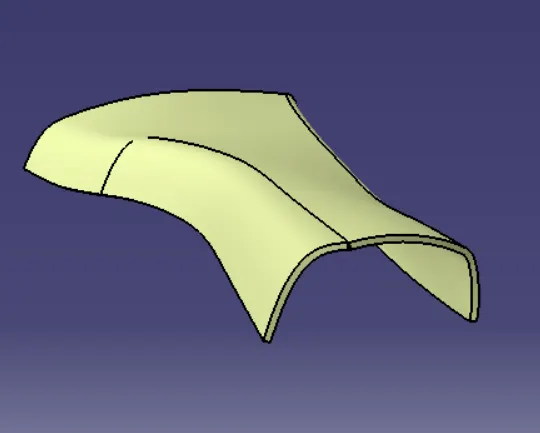

CLASS C SURFACE

 create the surface with swept & multi section surfaces.

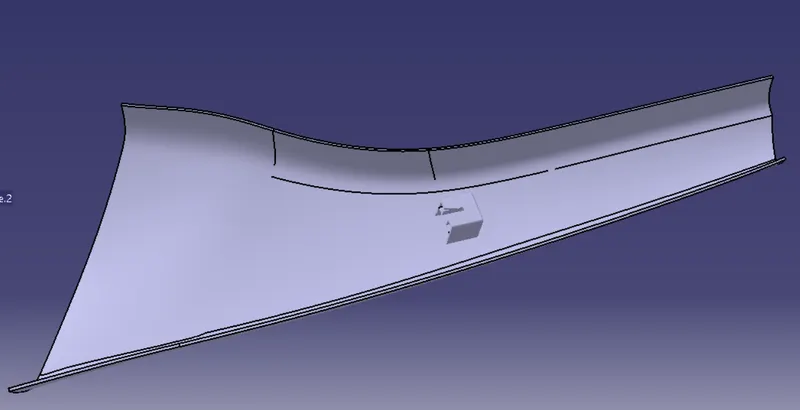

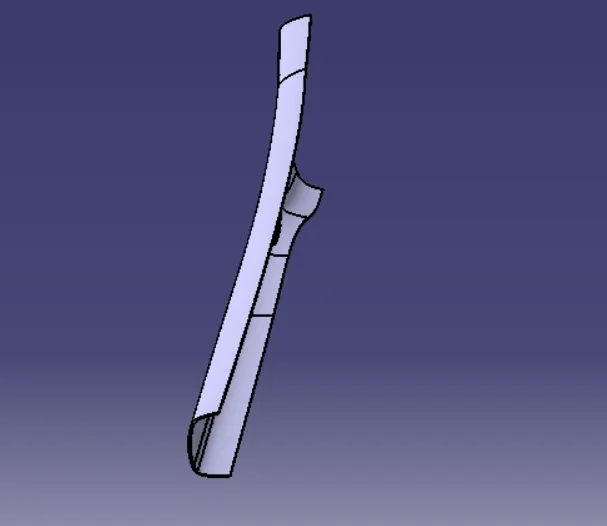

FINAL SURFACE

Join the surfaces without any boundary.

SIDE CORE AXIS

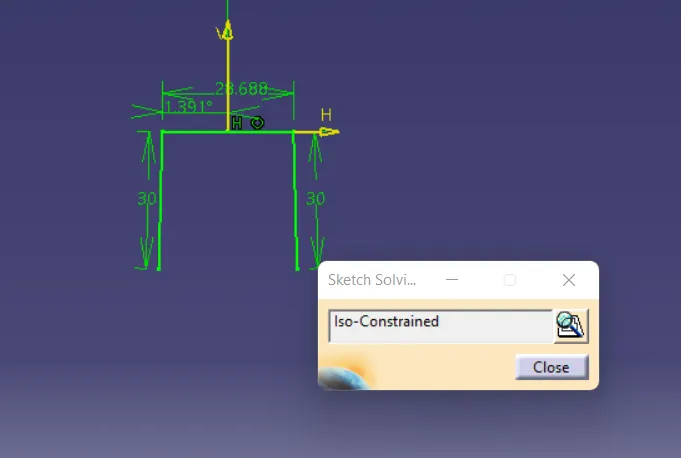

      create side core axis using master section.

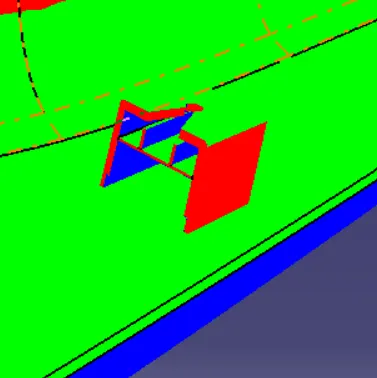

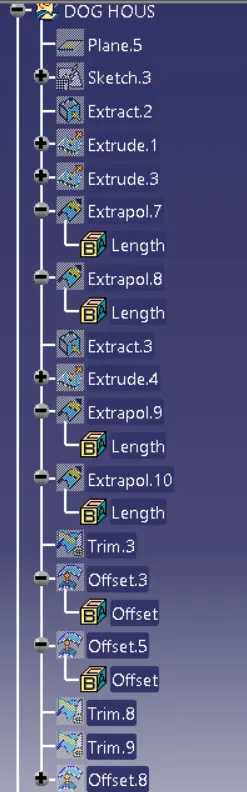

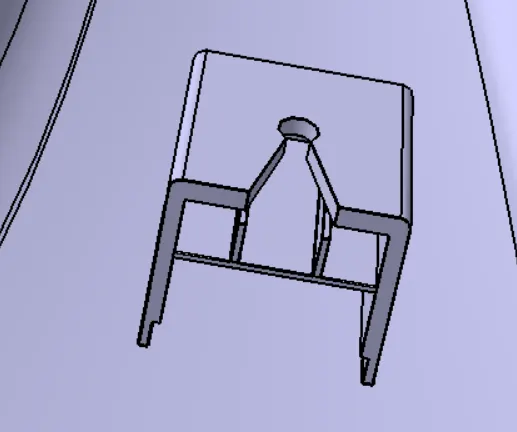

DOG HOUSE & RIBS

  Create the dog house & ribs as per master section.

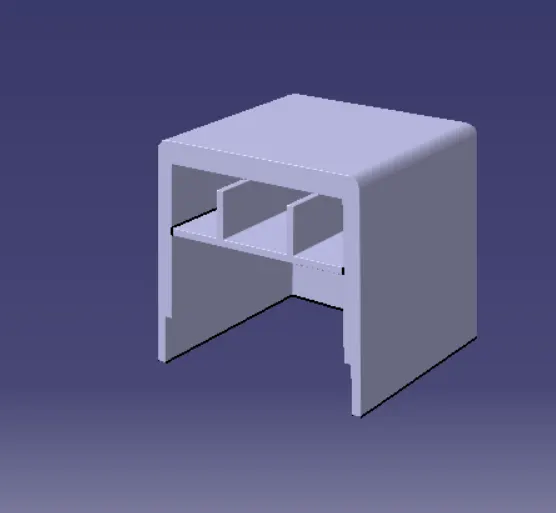

DOG HOUSE

GIVEN FILLETS TO THE DOG HOUSE & RIBS AS PER MASTER SECTION.

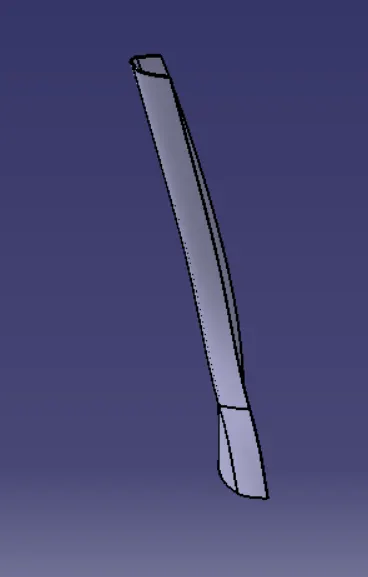

DRAFT ANALYSIS FOR SOLID SURFACE

ISOMETRIC

FRONT

SIDE

TOP

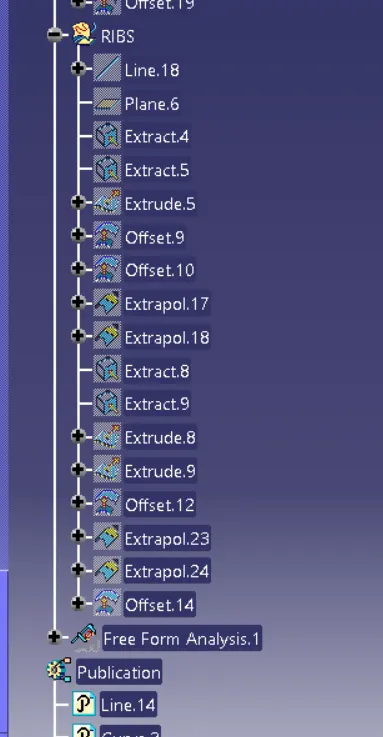

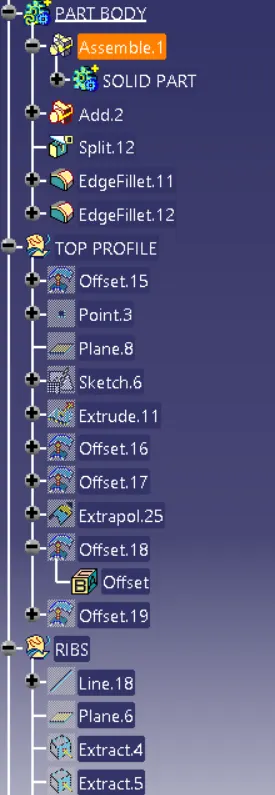

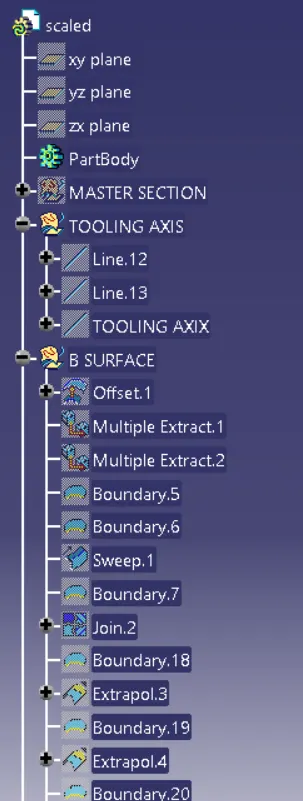

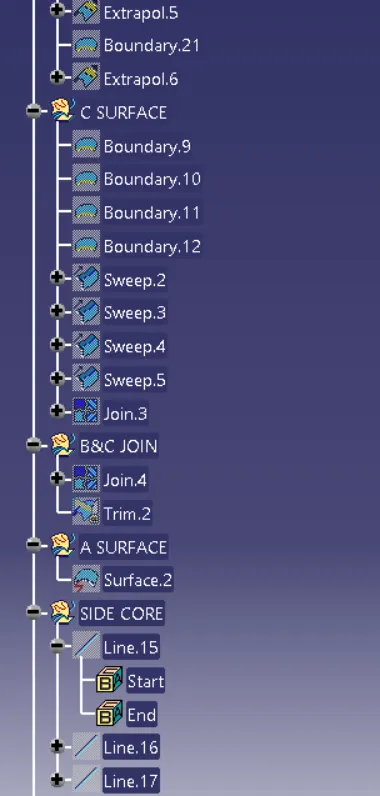

TREE STRUCTURE
