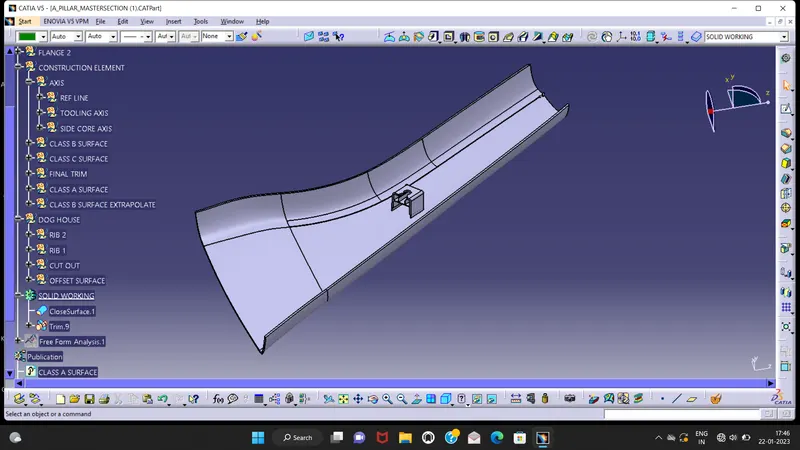

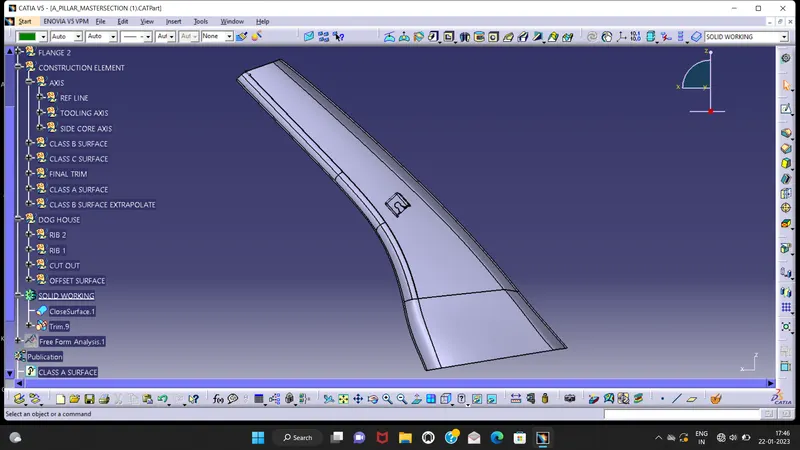

Week 9 - Project - A pillar Design with Master Section

AIM

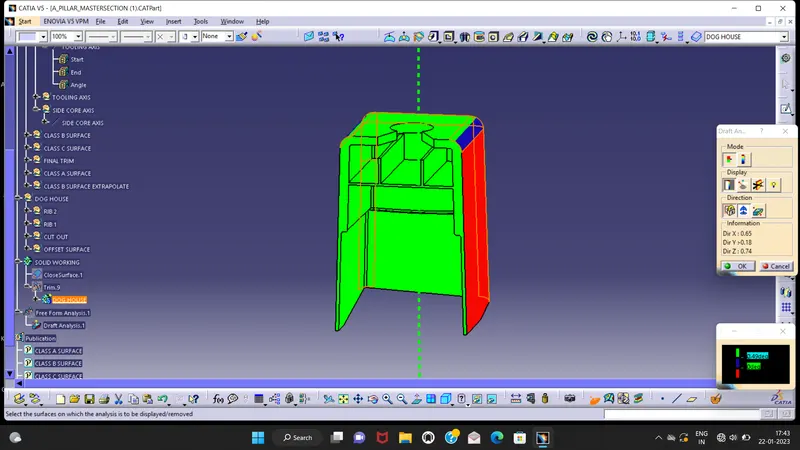

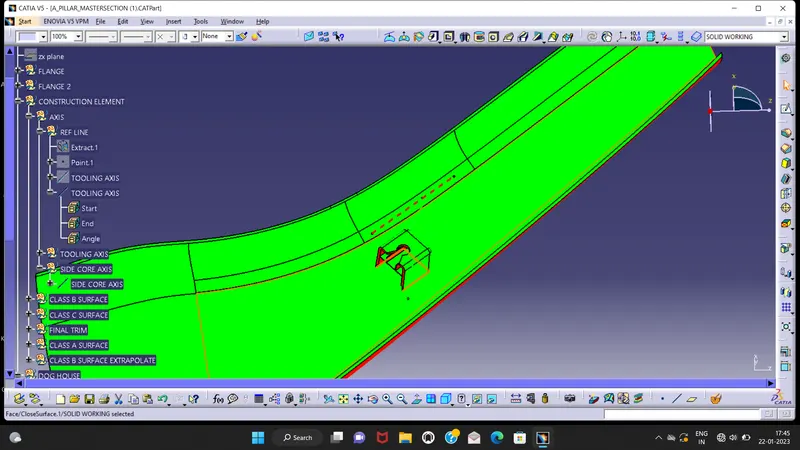

Create the Pillar, Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

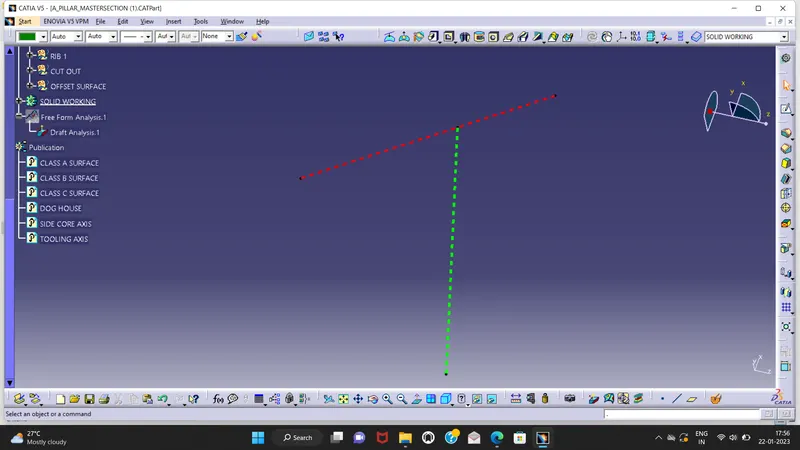

TOOLING AXIS

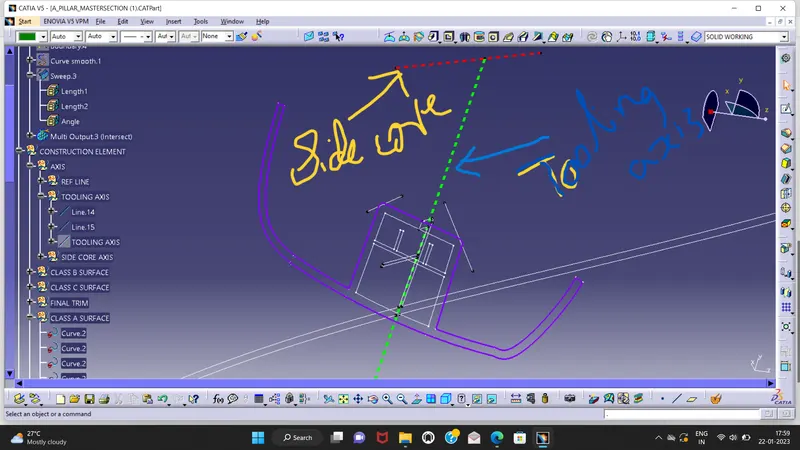

Tooling axis which is created by the consideration of master section.we want to create a line between popoint to point of two edges of master section. then create a bisecting line between two line.We want to create a side core axis of dog house for draft analysis.

DOG

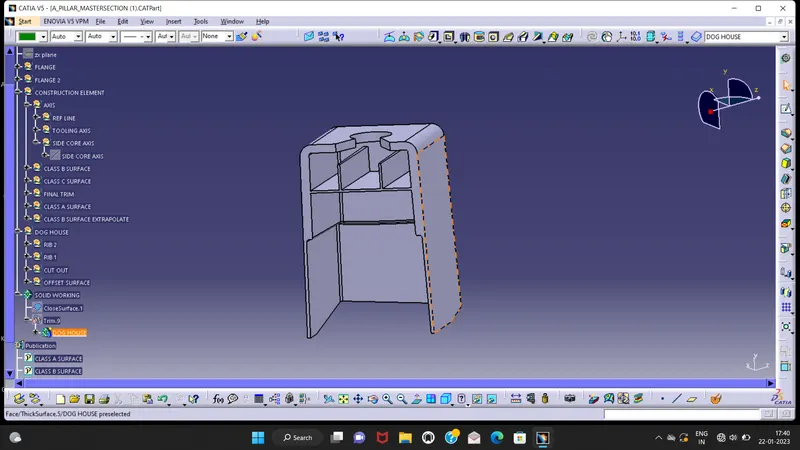

DOG HOUSE:

DOG HOUSE

• Create sketch for a dog house, and pad it.
• Then pad this sketch, now shell the pad with 2.5 mm.

RIBS

• Now create a ribs is inside a dog house, create a sketch for a ribs,use master section.
• Then pad this sketch . Next use add with dog house, get a ribs for the body.
