Week 8 - Challenge 6 - Core & Cavity Design

OBJECTIVE

TO CREATE A CORE AND CAVITY UNDER THE STANDARD CONDITION.AND DRAFT ANALYSIS SHOULD BE CREATE A FINAL PRODUCT.

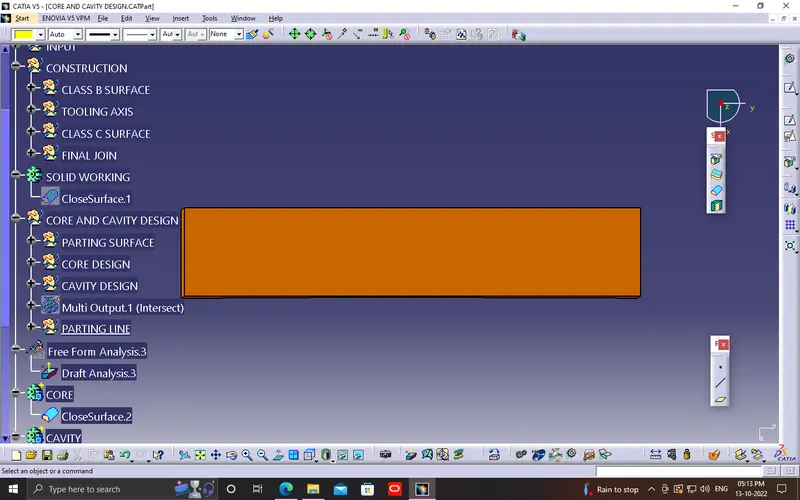

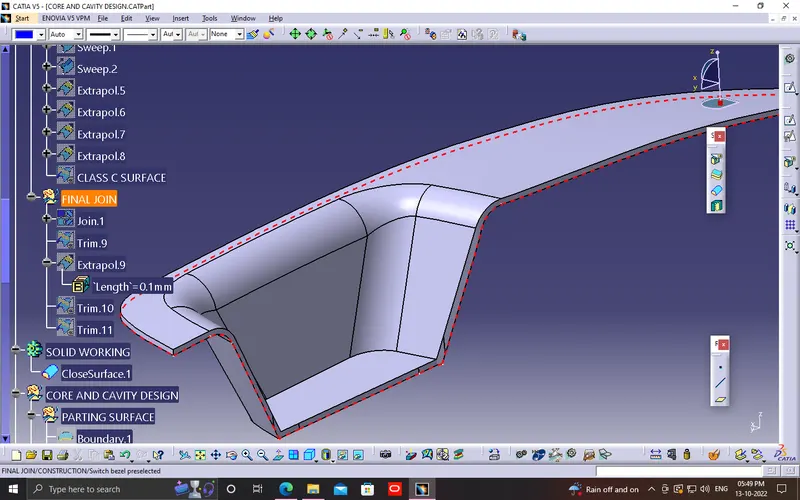

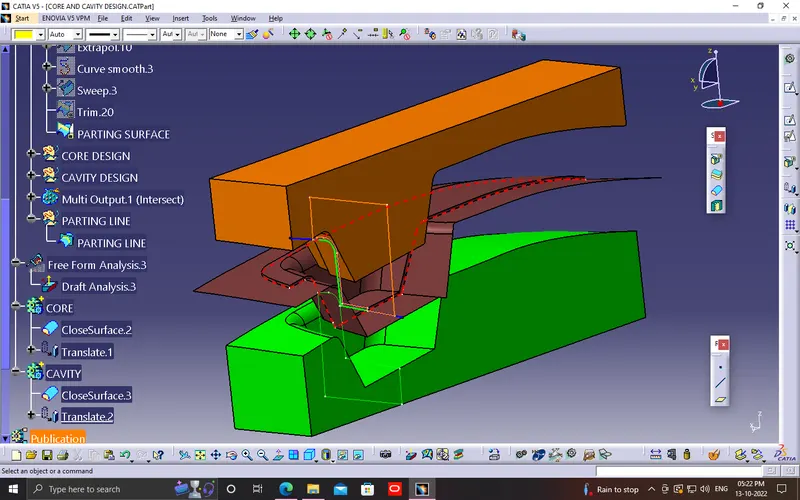

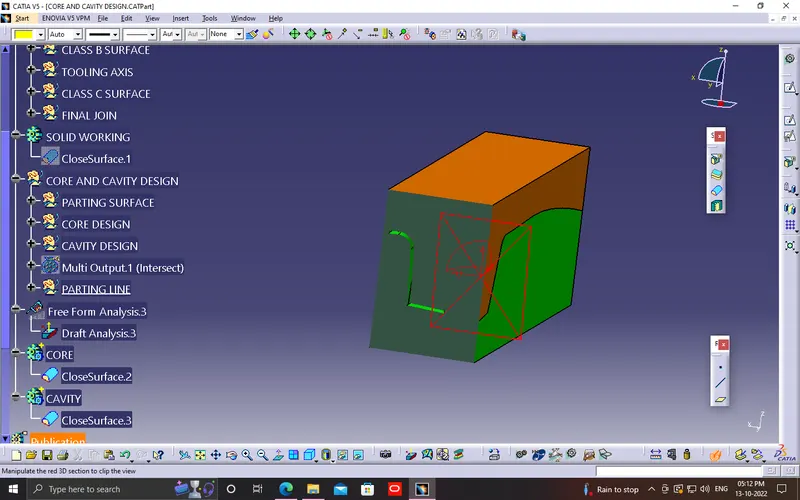

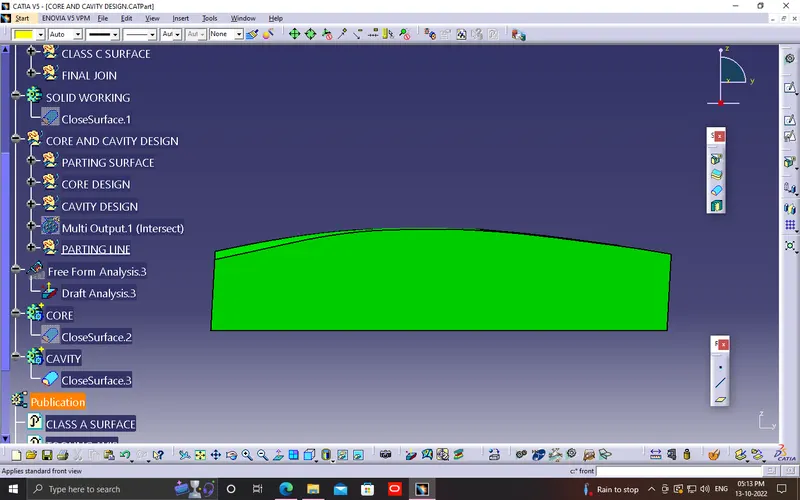

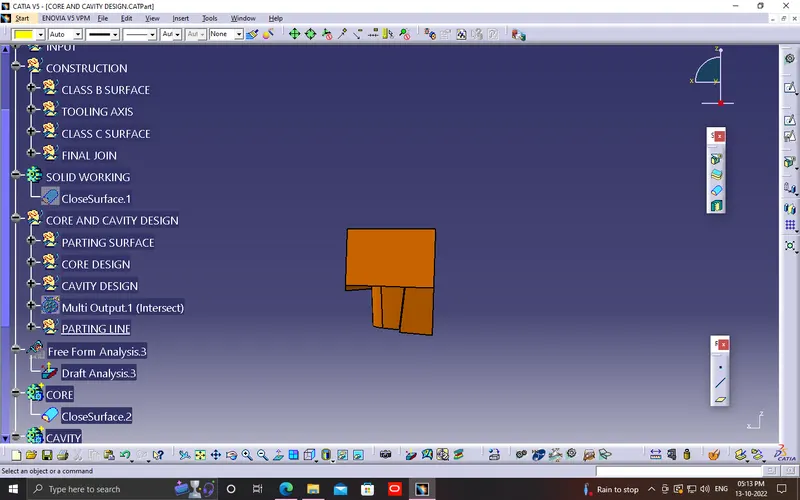

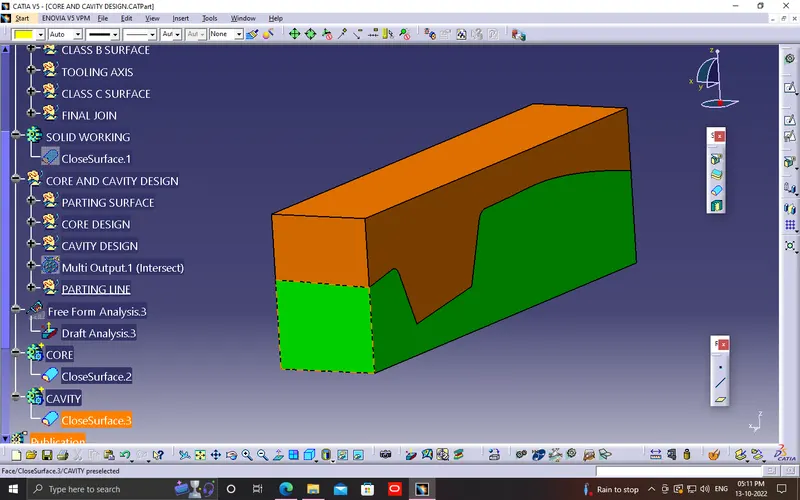

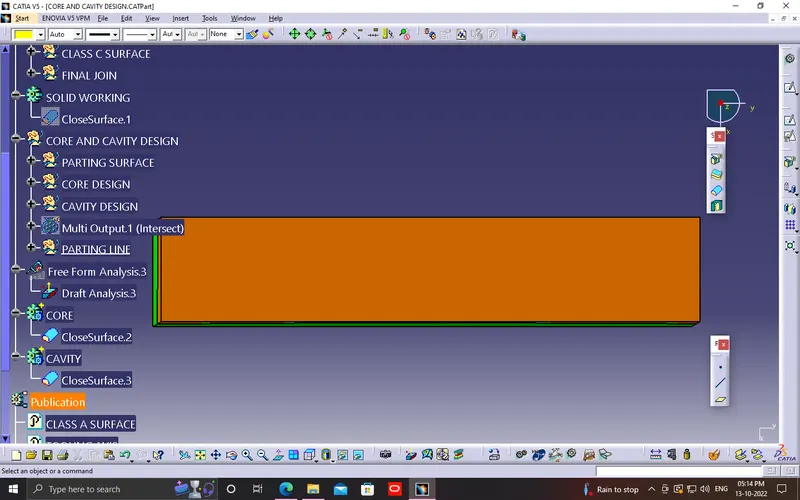

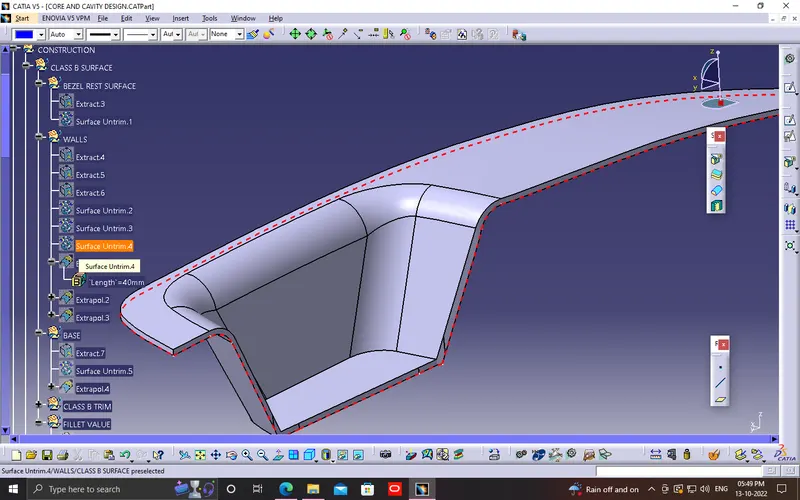

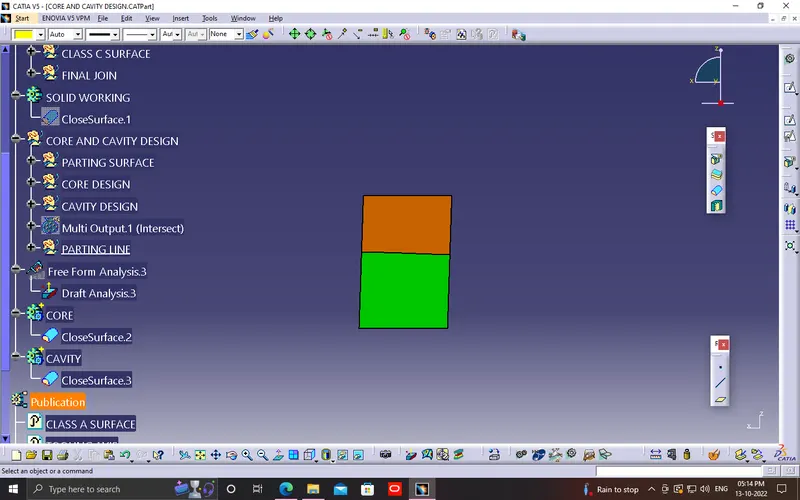

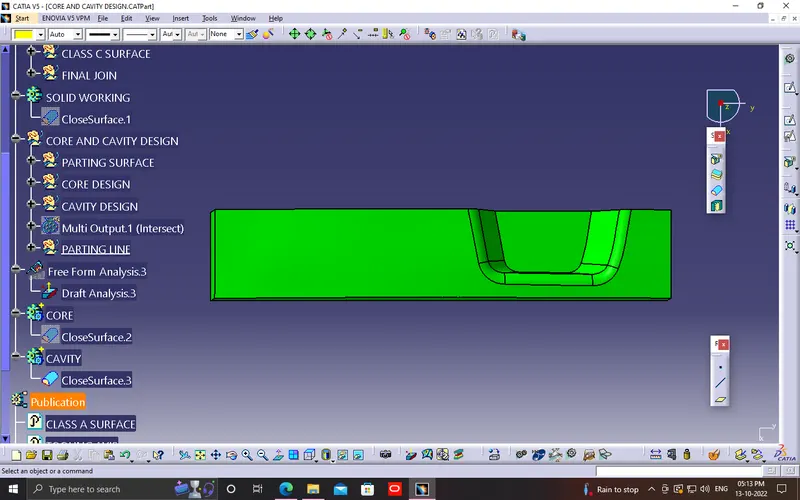

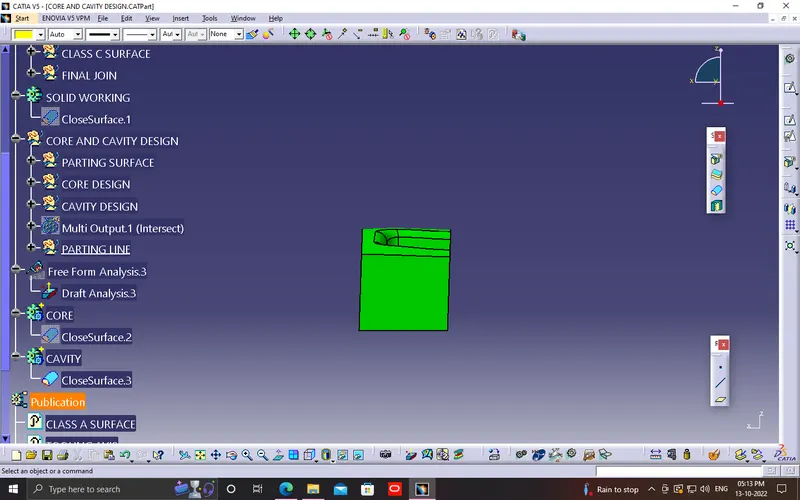

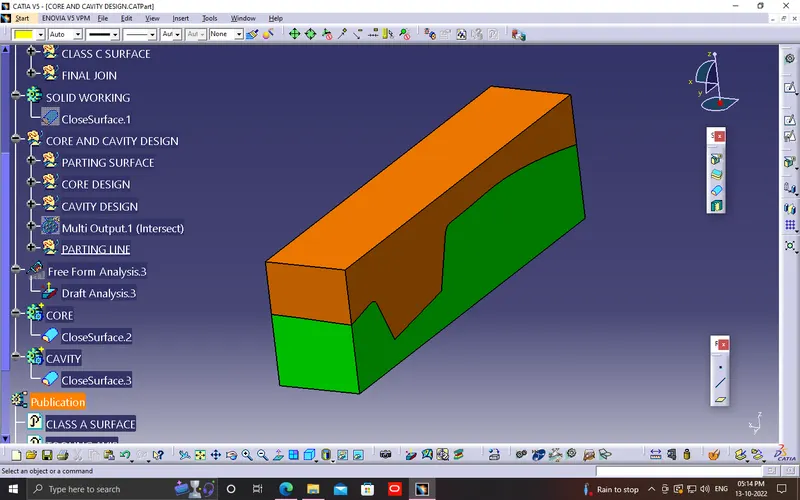

CLASS A ,CLASSB AND CLASSC AFTER CREATE A CORE AND CAVITY USING THE SURAFACE A AND B.FIRST I CREATE A BOUNDARY ON CLASS A AND CREATE A EXPLOPOLATE ON CLASS A SURAFCE .USING TRIM COMMAND TO TRIM ACLASS A AND CLASS C. CORE IS DEFINE THE INTERNAL PART OF THE SWITCH BEZEL .CAVITY IS DEFINIE THE EXTERNAL PAT OF THE SWITCH BEZEL.WE MUS CREATE APRODUCTION UNDER THE MANUFACTURRING CONDITION.MORE DEFECT SHOULD BE GENERATE IN MANUFACTURING PROCESS.DRAFT ANAYSIS SHOULD BE IN MORE THAN 3 DEGREE

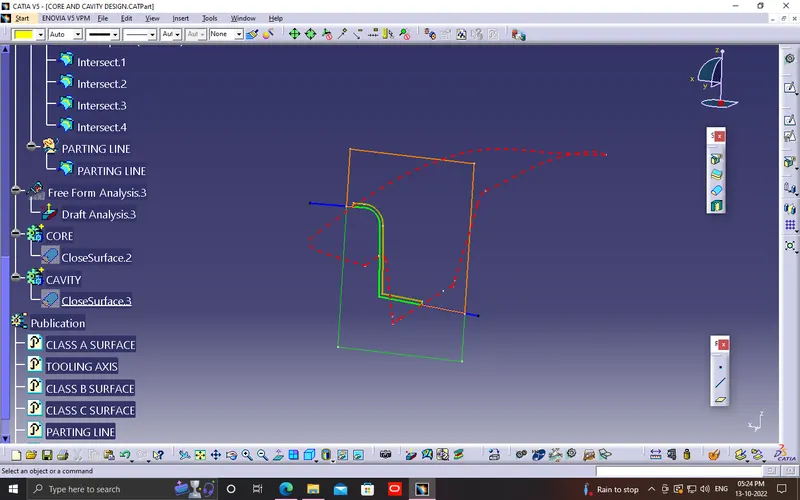

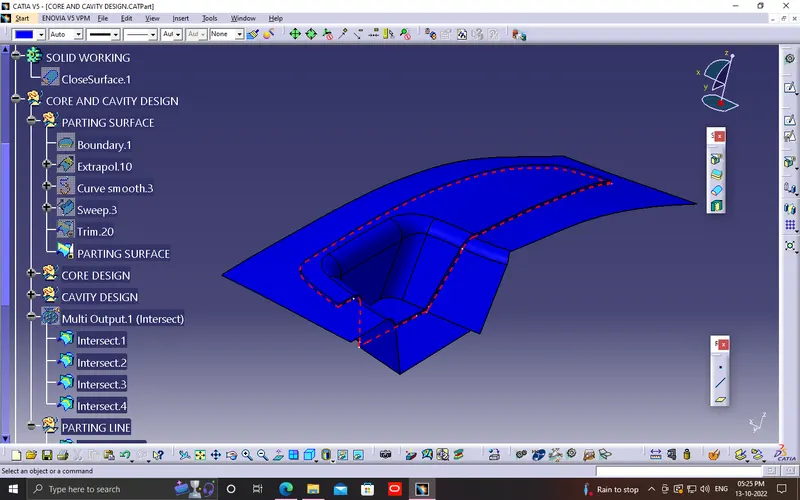

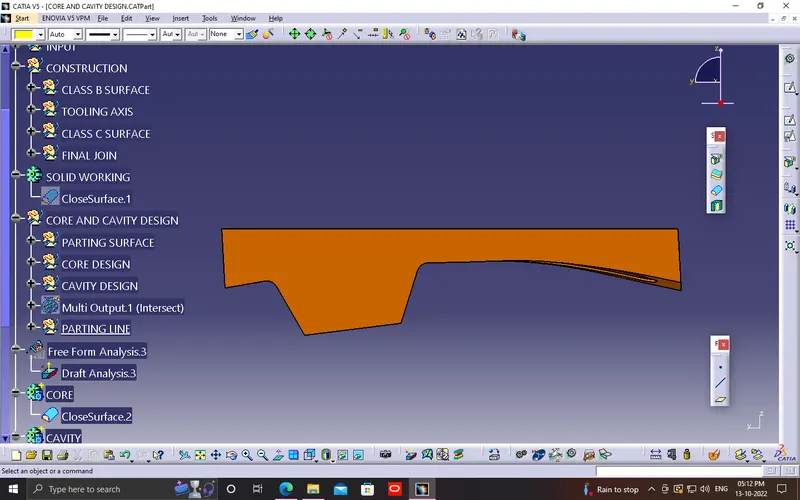

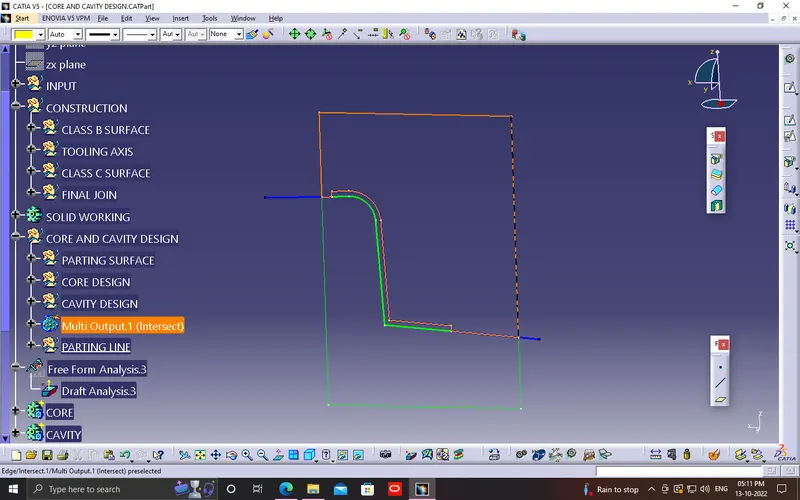

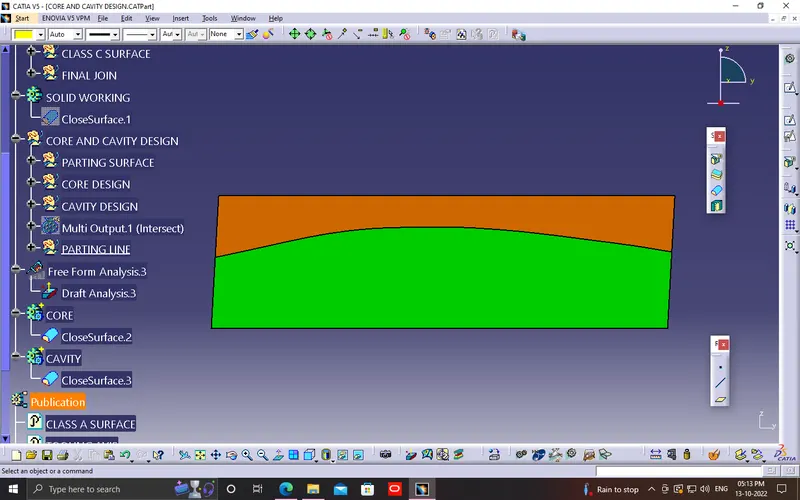

HERE I MENTION A CORE CAVITY PARTING SURFACE PARTING LINE ALSO
