Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM

TO CREATE A CLASS B CLASS C,TOOLING AXIS,RIB,AND SREW BOOSS IN GIVEN CLASS A SURFACE

CLASS B SURFFACE

FIRST WE DO A THING OF OFFSET 3MM IN GIVEN CLASS A SURFACE.THEY HAVE SOME PATCHES IN CLASS B SURFACE.MANY WAYS TO SOLVE THE PATCHES BY THR WAY OF EXTRACT THE SURFACE AND USE EXTRAPOLATE TO TRIM TO SOLVE A PATCHES OR USE MULTISECTION TOOLS TO SOLVE THE PATCHES.

CLASS C SURFACE

FIRST WE EXTRACT THE BOUNDARY OF CLASS ASURFACE.NEXT USE SWEEP DRAFT DIRECTION TO DRAFT OF 3MM USING THE TOOLING AXIS DIRECTION.

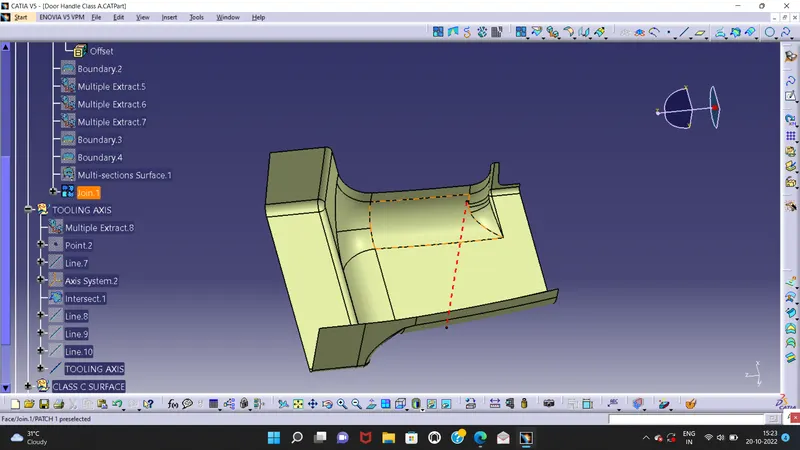

TOOLING AXIS

TOOLING AXIS IS CREATE IN THE FORM OF X AND Y AXIS DIRECTION LINE.WE CREATE A EXTRACT OF FLAT SURFACE.THEN CREATE A LINE NORMAL TO SURFACE.THEN BISECTING THE TEO LINE CREATE A TOOLING AXIS LINE

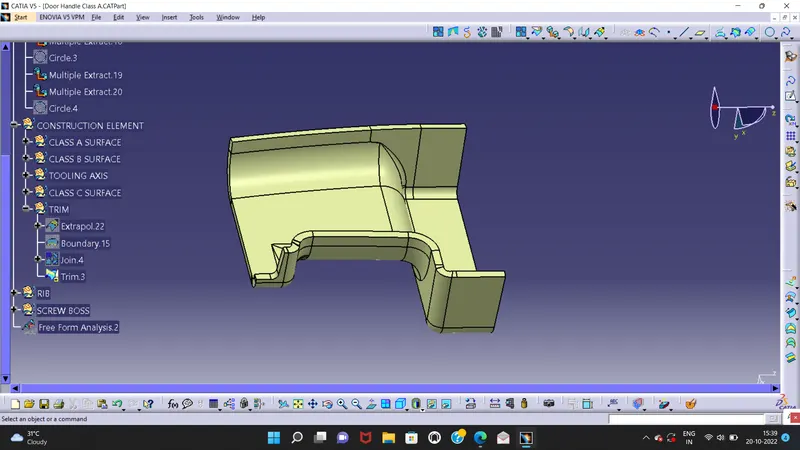

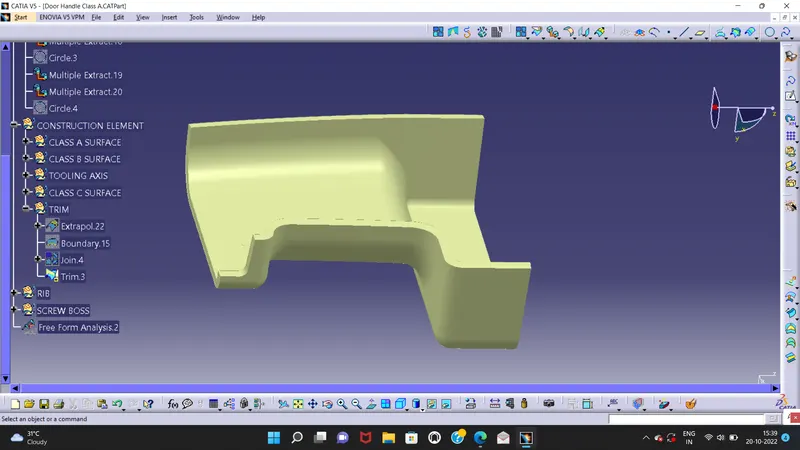

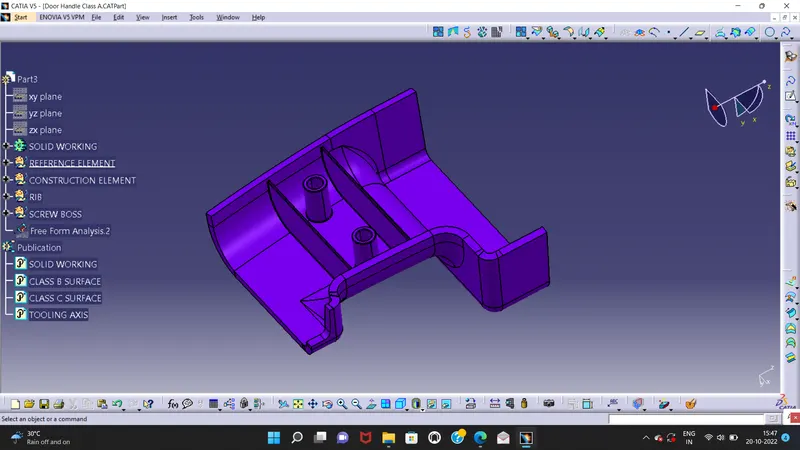

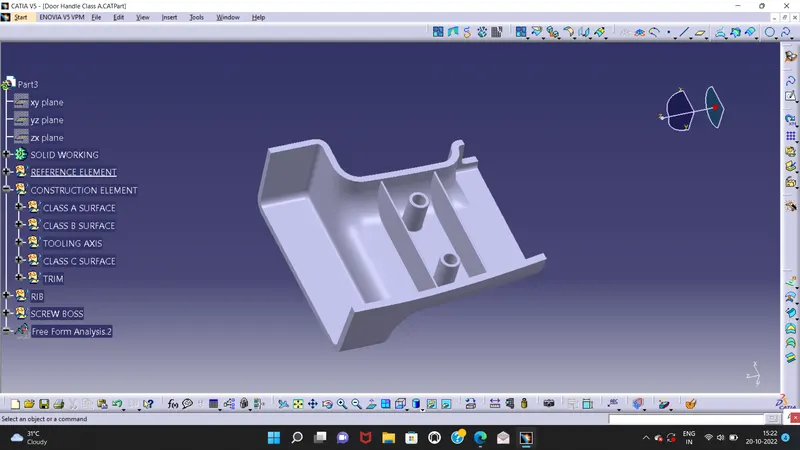

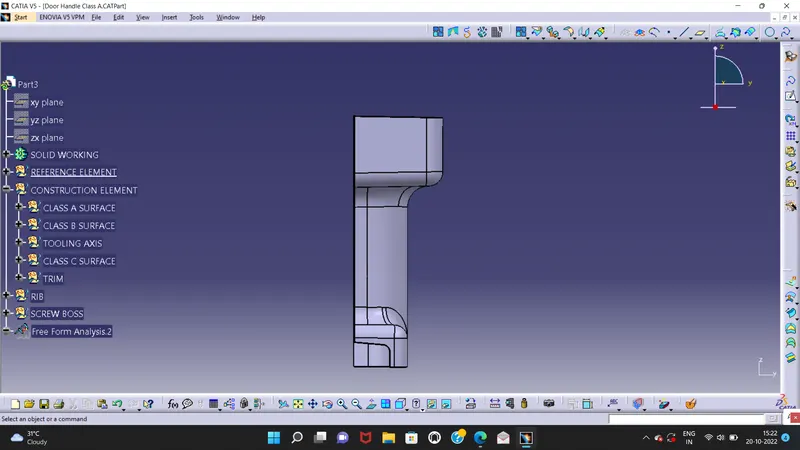

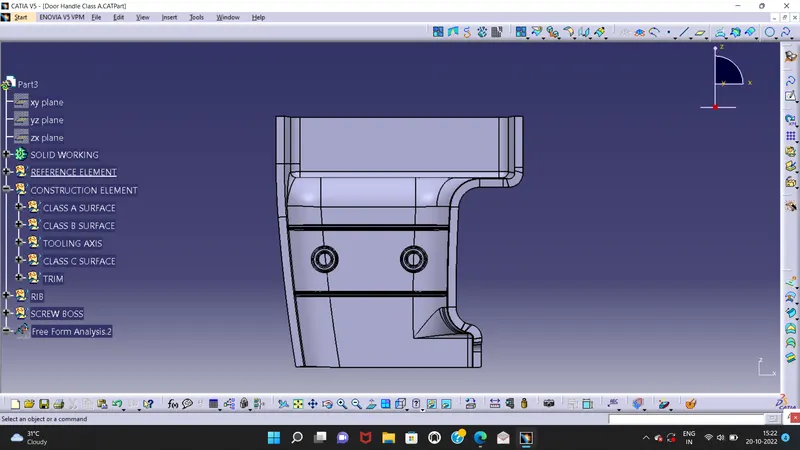

FINAL PRODUCT .

WE HAVE JOIN THE CLASS A AND CLASS C SURFACE.AND USE EXTRAPOLATE THE CLASS B SURFACE .FIANLLY WE HAVE TO TRIM THE JOIN AND CLASS B SURFACE.

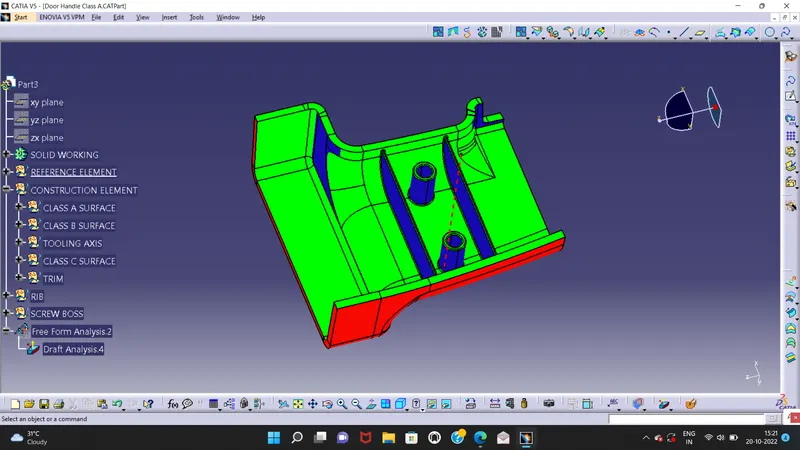

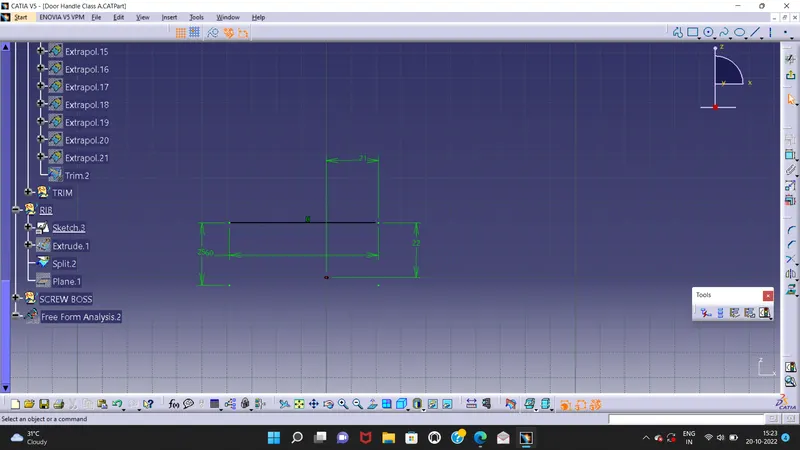

RIB

RIB CAN USED TO STIFFNESS OF THE PRODUCT.USE THE STANDARD CONDTION TO CREATE A RIB

FILLET MUST BE IN 0.125MM

RIB HEIGHT IN 5*THICKNESS OF THE PRODUCT

RIB DRAFT SHOULD BE IN 0.5DEGREE

THE UPPER WIDTH OF RIB MUST BE IN MORE THAN 0.75

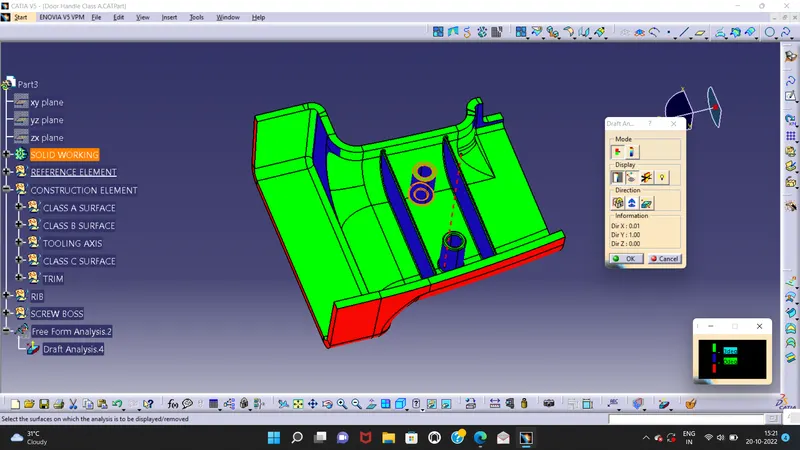

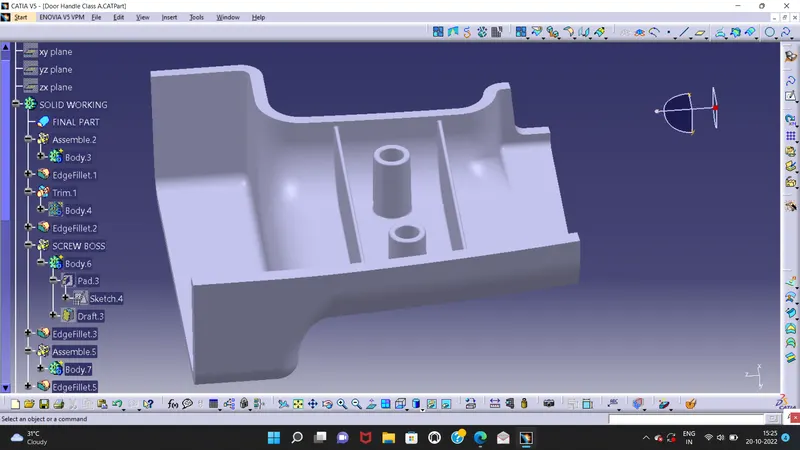

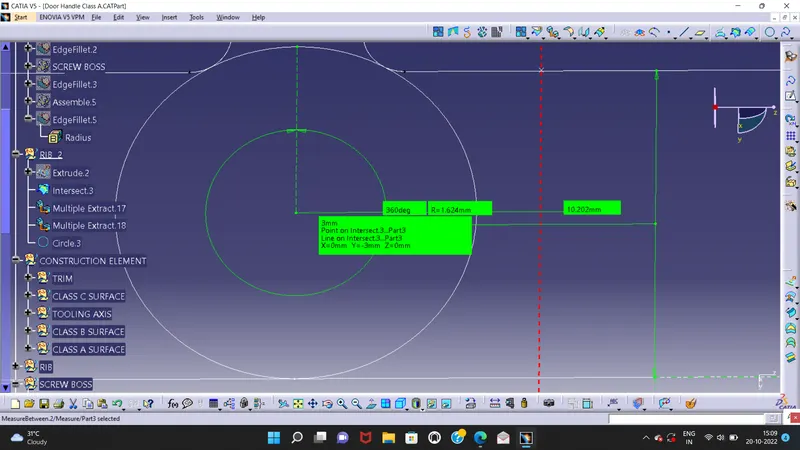

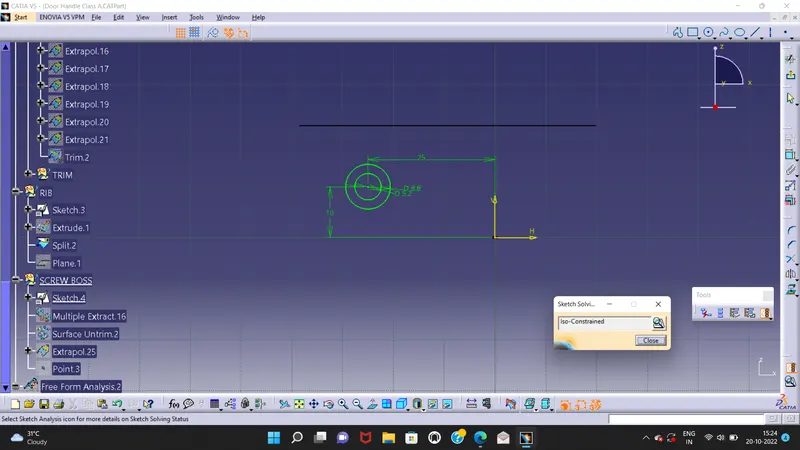

SCREW BOSS

SCREW BOSS IS ALSO CREATE IN OUR INDUSTRAIL STANDARD CONDITION

NOMIANL THICKNESS OF IS 0.6*THICKNESS OF THE PRODUCT.
