Week 9 - Project - A pillar Design with Master Section

A PILLAR WITH MASTER SECTION :

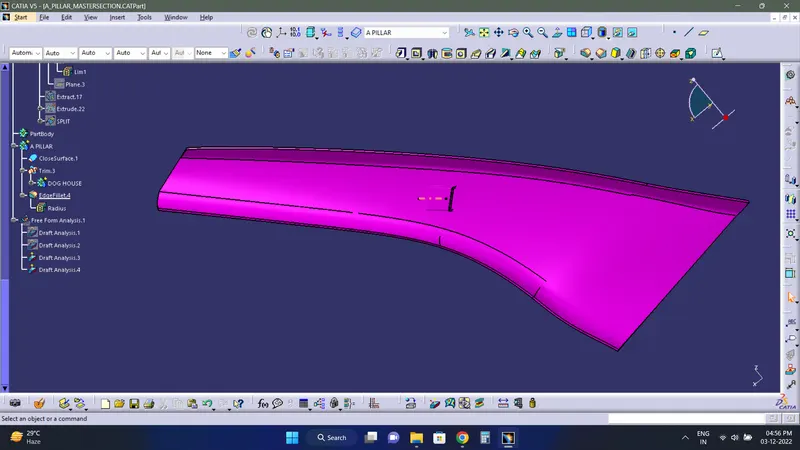

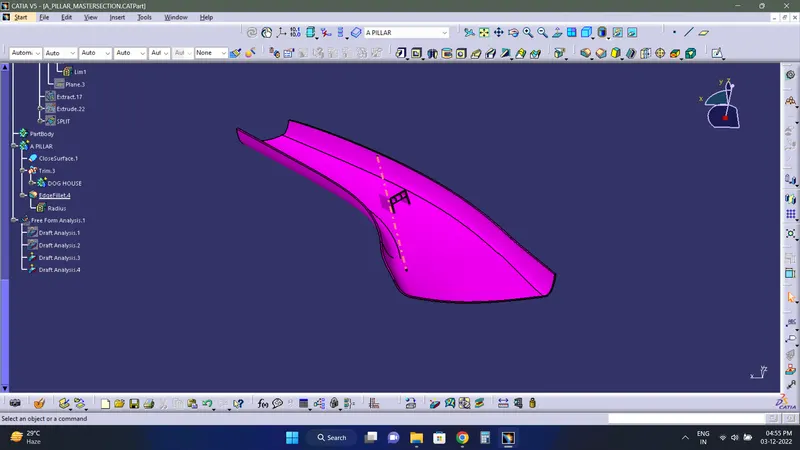

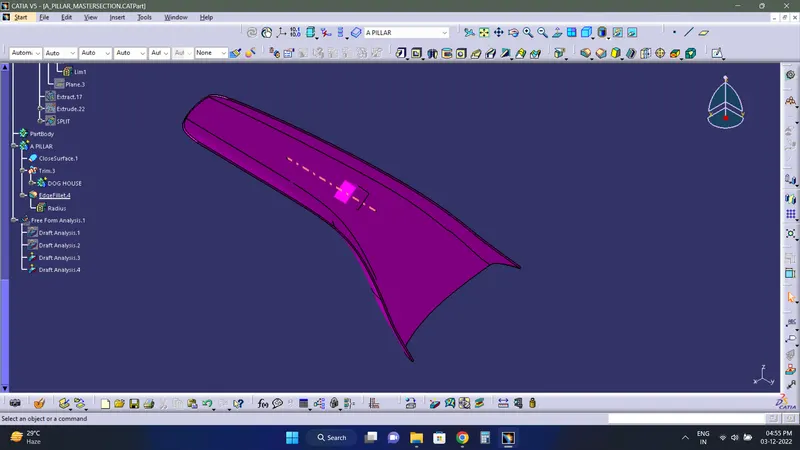

SOLID MODEL :

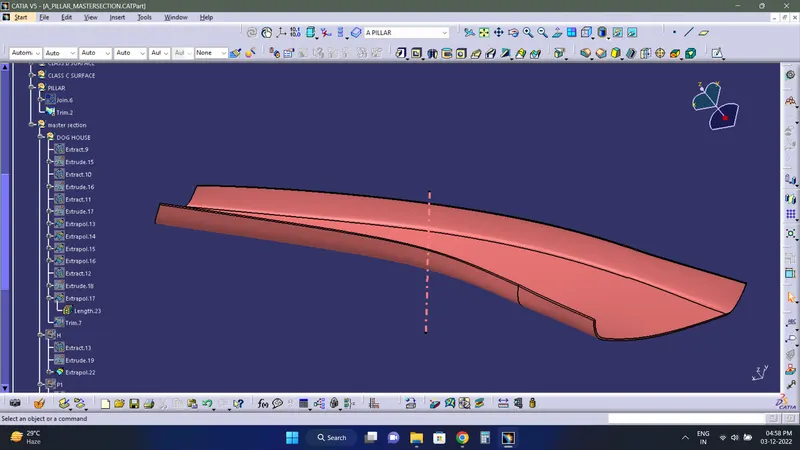

SURFACE MODEL :

TOOLING AXIS :

CLASS A SURFACE DRAFT ANALYSIS :

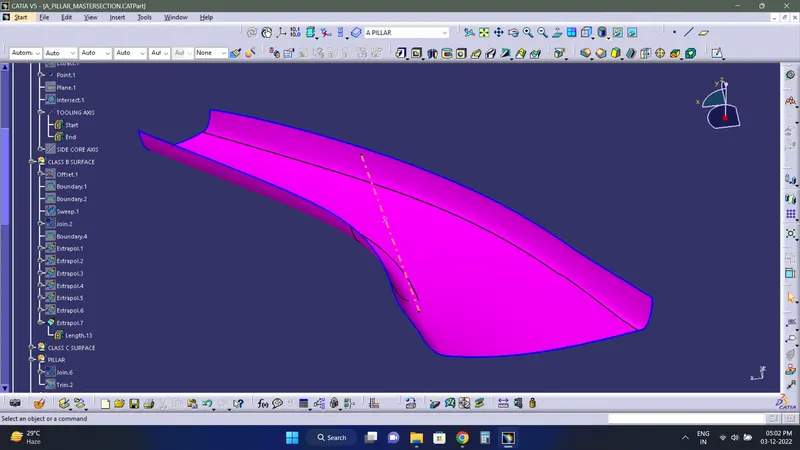

CLASS B SURFACE :

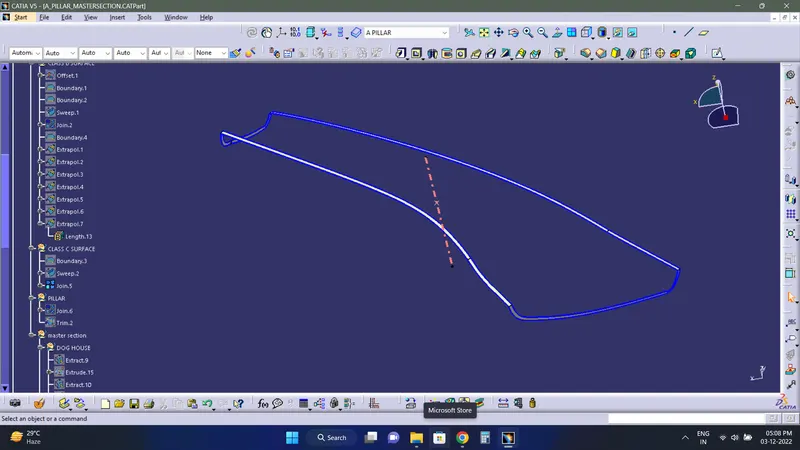

CLASS C SURFACE :

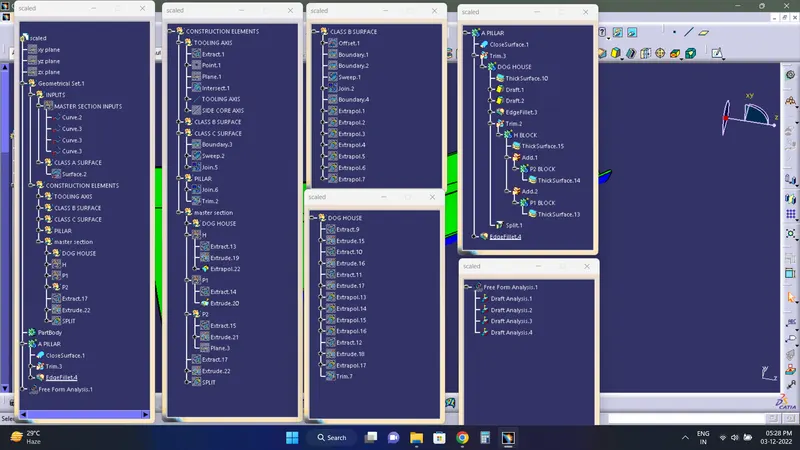

TREE STRUCTURE :

WORK REPORT DETAILS :

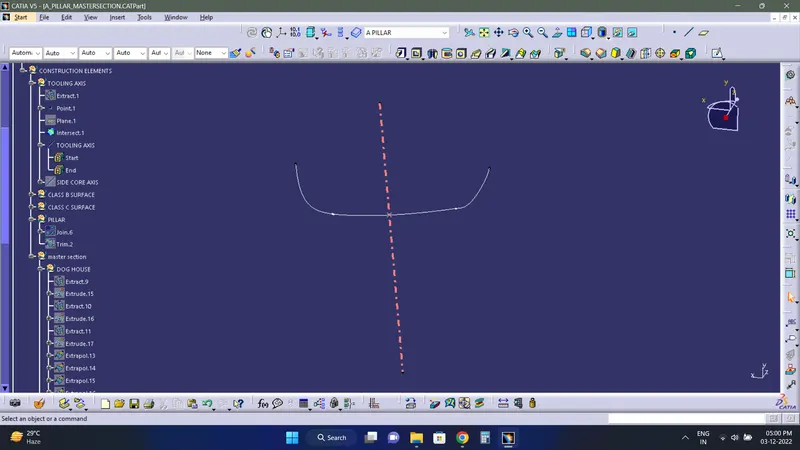

TOOLING AXIS : Y AXIS IS MAIN TOOLING AXIS OF THIS PART , X AXIS OR CURVE 2 OF MASTER SECTION IS SIDE CORE AXIS FOR DOG HOUSE .

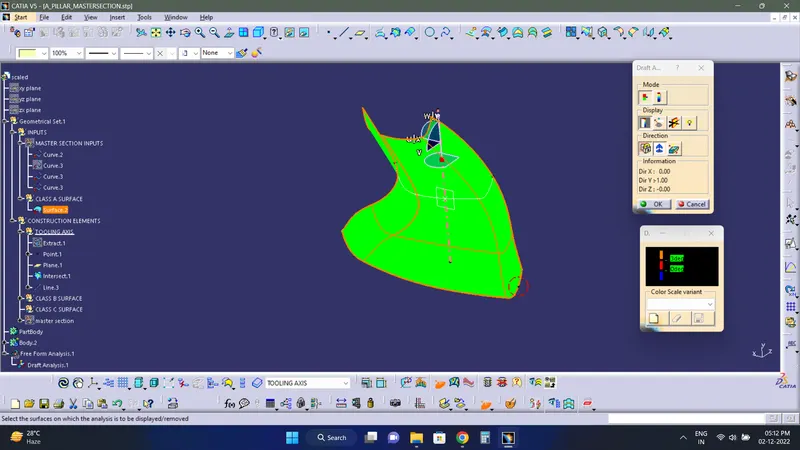

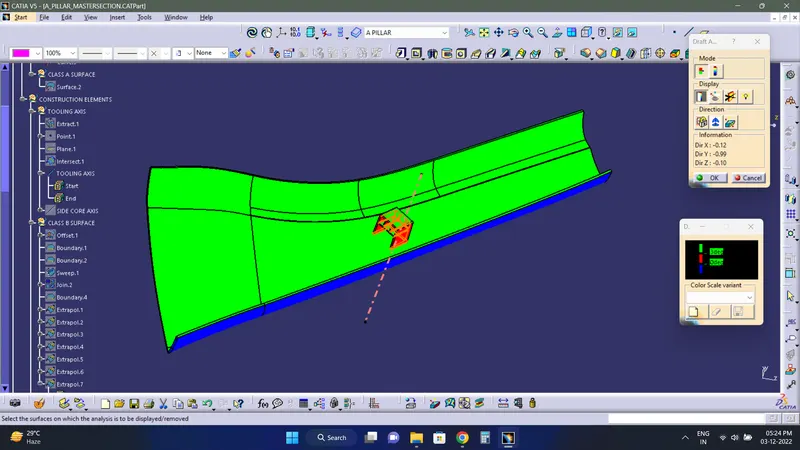

CLASS A SURFACE DRAFT ANALYSIS : ALL THE SURFACE OF CLASS A IS ABOVE 3 DEGREE DRAFT ANGLE AS SHOWN IN IMAGE BELOW .

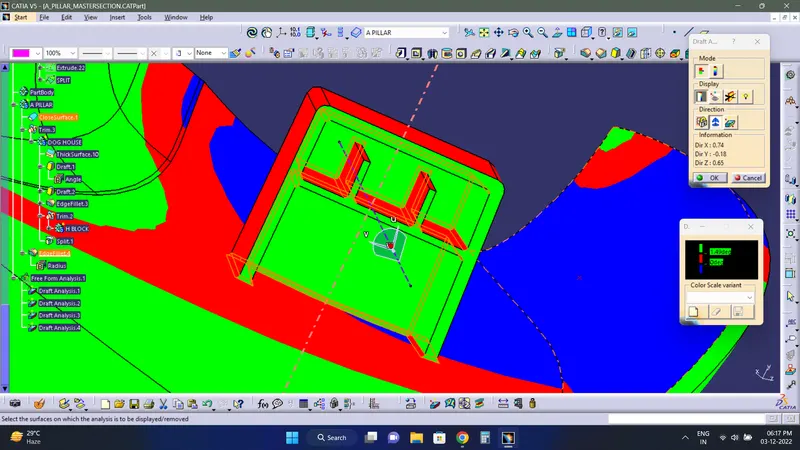

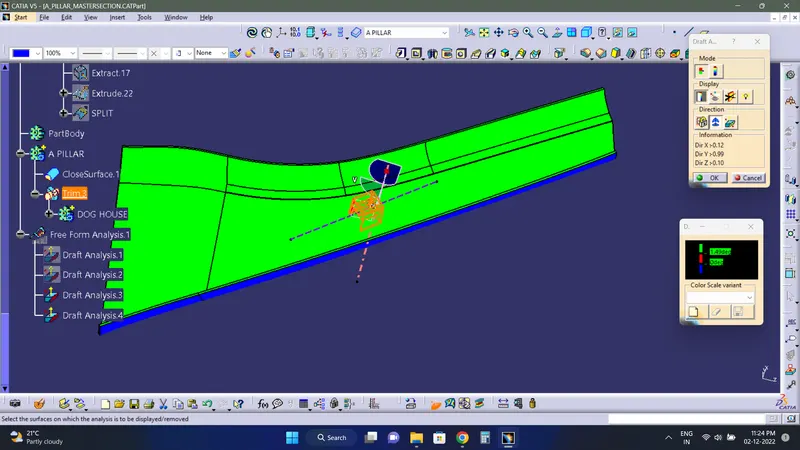

A PILLAR WITH MASTER SECTION : ALL THE SURACE OF A PILLAR IS CLEARING THE 3 DEGREE DRAFT ANGLE EXPECT THE DOG HOUSE I,E.. DOG HAS 1.5 DRGREE DRAFT ANGLE . AS SHOWN IN IMAGES BELOW

NOTE : 1.49 DEGREE ANGLE IS TAKEN TO CLEAR 1,5 DEGREE DRAFT FOR DOG HOUSE.

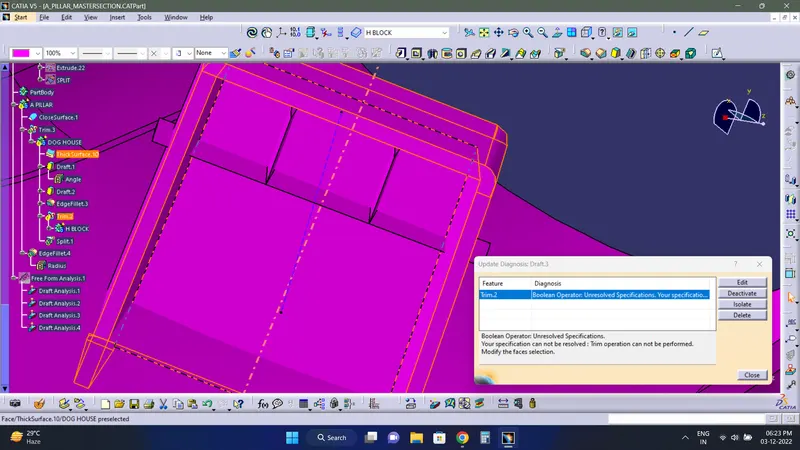

AS SHOWN IN ABOVE IMAGE THAT THE DOG HOUSE INTERNAL FEATURE ARE NOT CLEARING THE 1.5 DEGREE DRAFT BECAUSE IF WE DRAFT INTERNAL FEATURE THE MAJOR SURFACE WILL LOST AS SHOWN IN BELOW IMAGE
