Week 9 - Project - A pillar Design with Master Section

A PILLER MASTER SECTION.

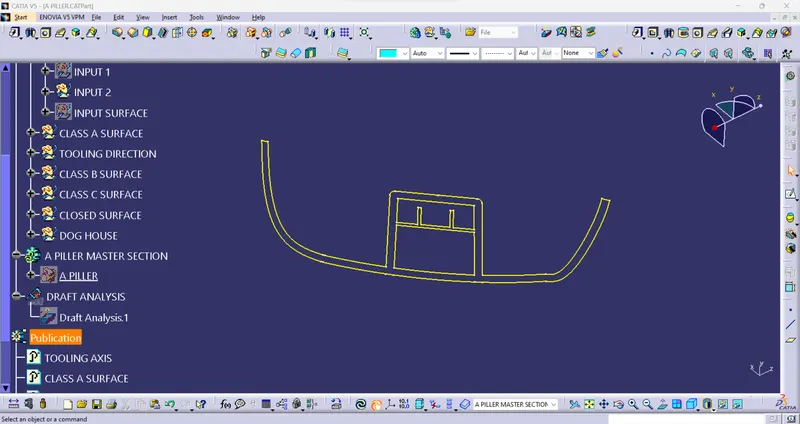

• Master section also provide feasiblity for how mach gap and its dimension what are needed to the part and also conside the Design for manufacturing and Design for analysis

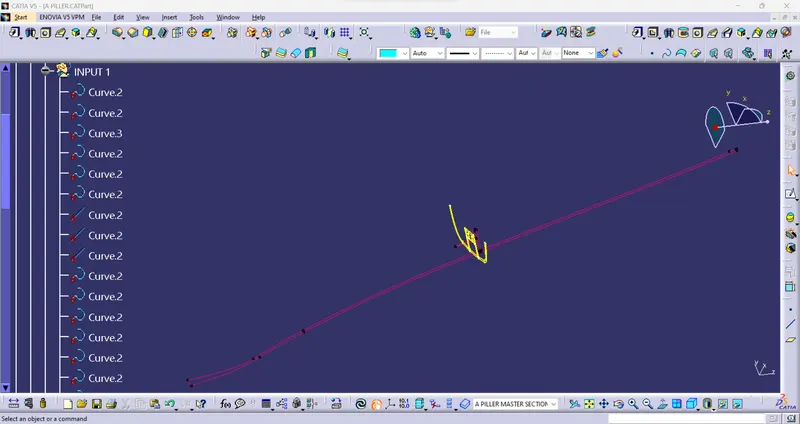

• Two input are provided the master section to develop the pink line is mensioned how much length and dimension of the dog house.
• Yellow input mensioned how much thickness for the mastersection
• To develop the master section for the A piller about this input based and develop to conside the B side feauture rules also.

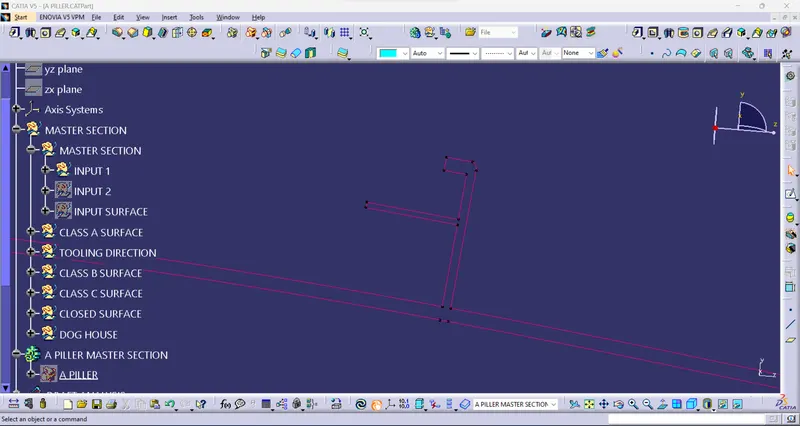

INPUT 1

INPUT 2

Tooling Axis:

• Tooling Axis is a line in which the core & cavity is open.
• create an intersection on both sides to check the center of the axis
• To create a point using the surface to generate the line to the center of the tooling axis.
• To change the name to Tooling axis.

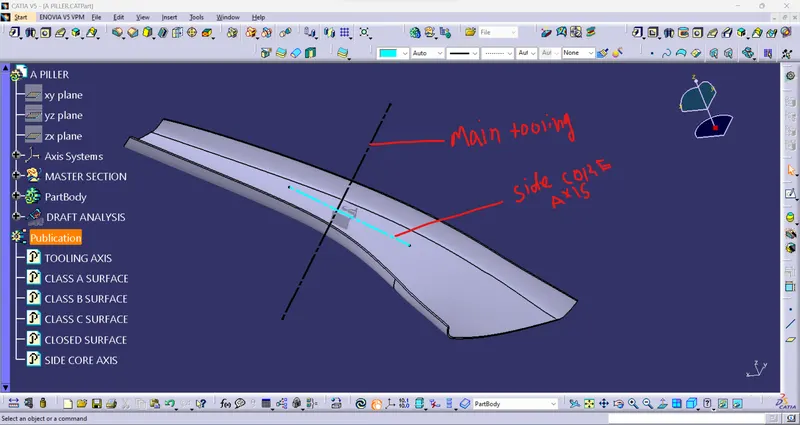

SIDE CORE AXIS:

• Tooling axis for dog house.
• To create tooling axis for the given master section direction.

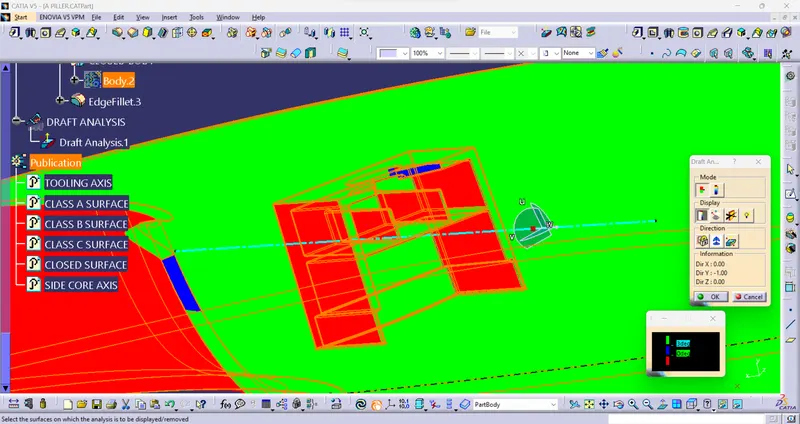

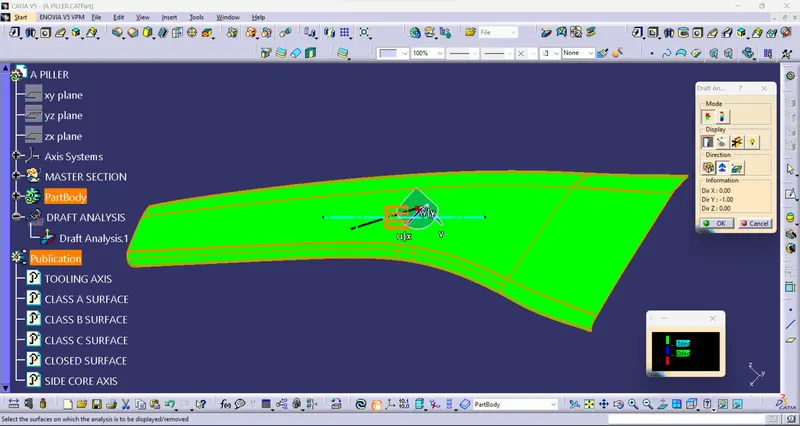

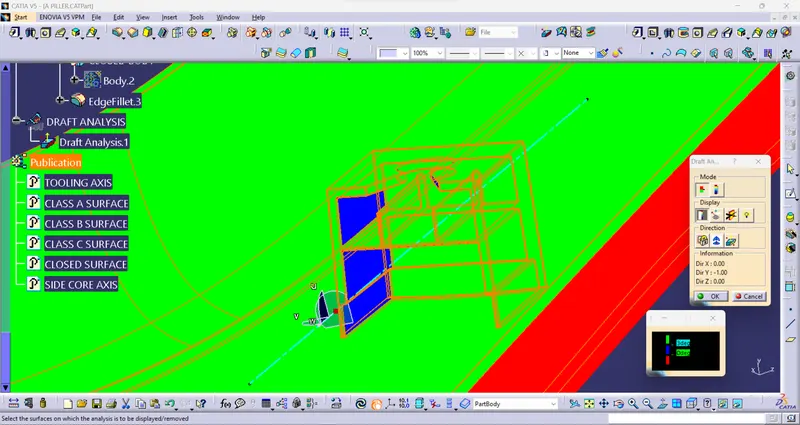

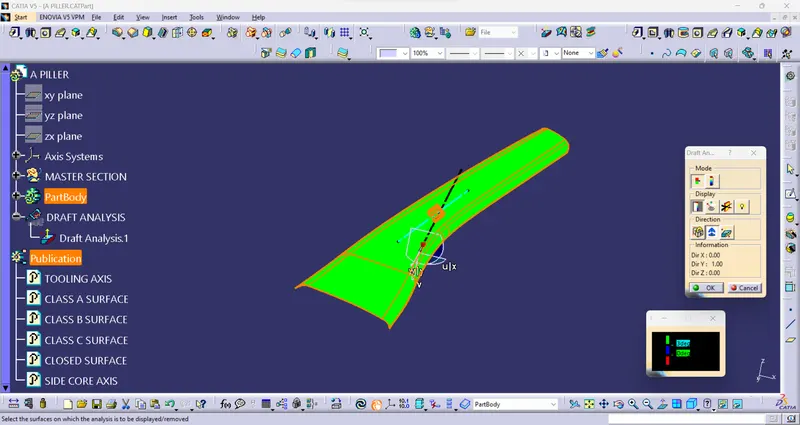

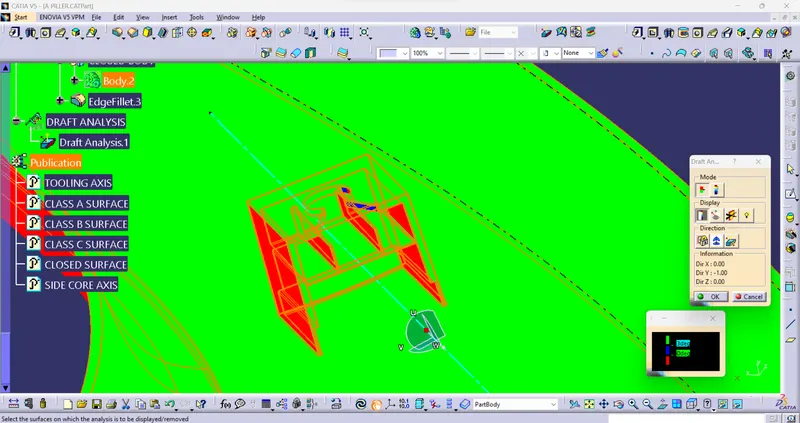

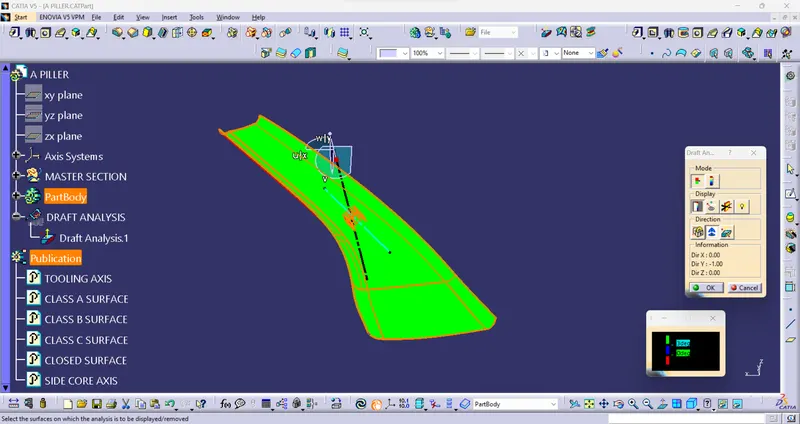

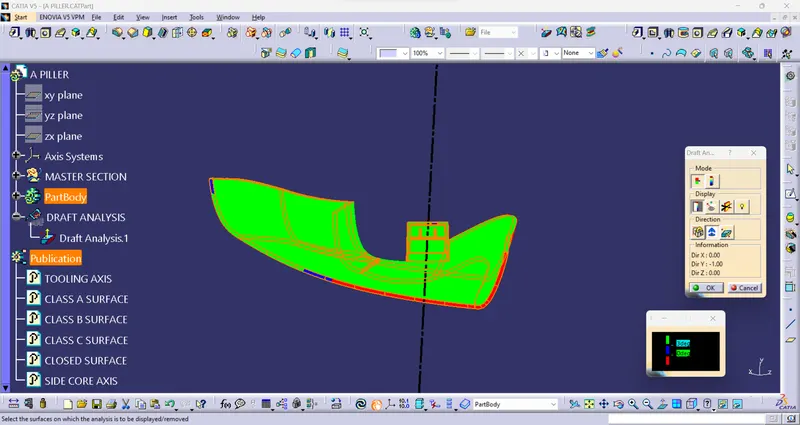

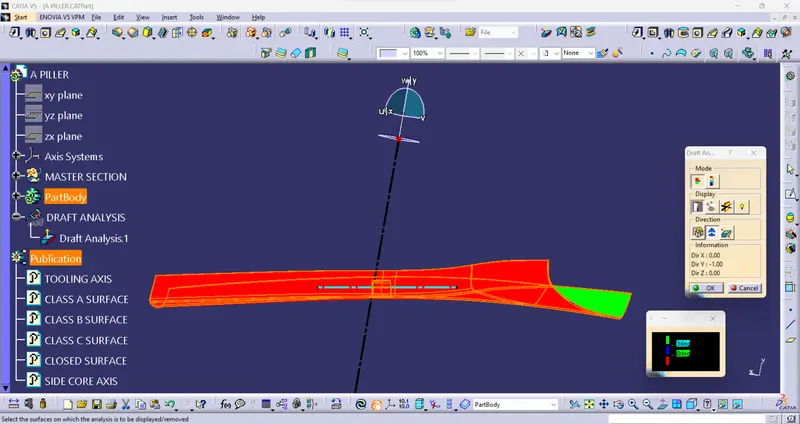

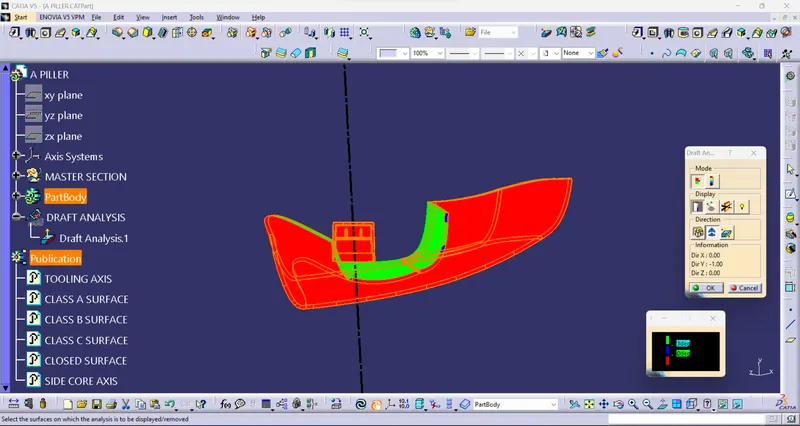

Drafting Analysis

• Analysis of the draft angle of the completed solid model.
• I am using this command to check the possibility of the draft angle for tooling direction.
• The green color in the correct body or possible side.
• Blue is between the 0 to 3° angle.
• Red is a negative angle not possible.
• This draft analysis uses the tooling direction to analyze all the angles of the solid surface.

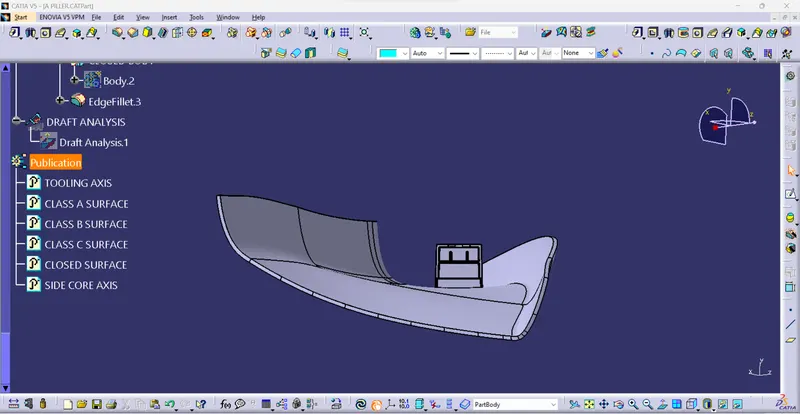

• VIEWS:

Surface modeling :

Class A surface:

• class a is an input to get stylish.
• check the class A surface to fully closed surface or not.
• the use to create class B surface.

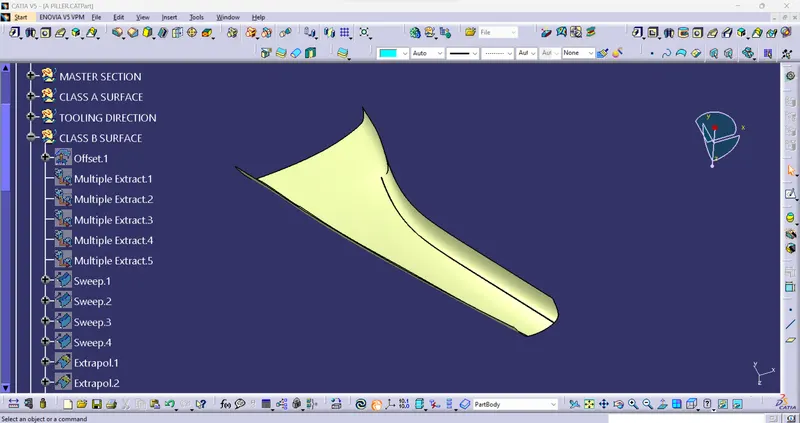

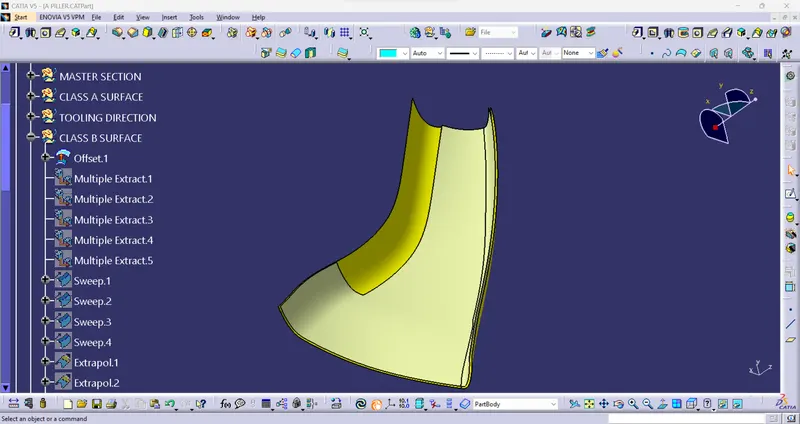

Class B surface:

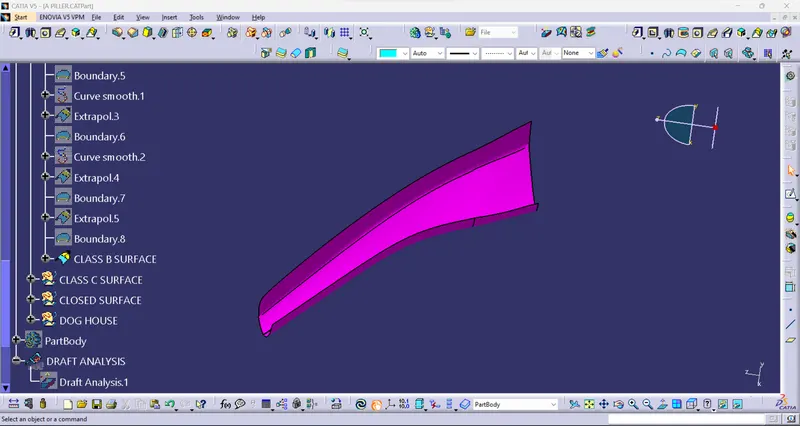

• Class B surface has Extracted the surface from the class A surface.

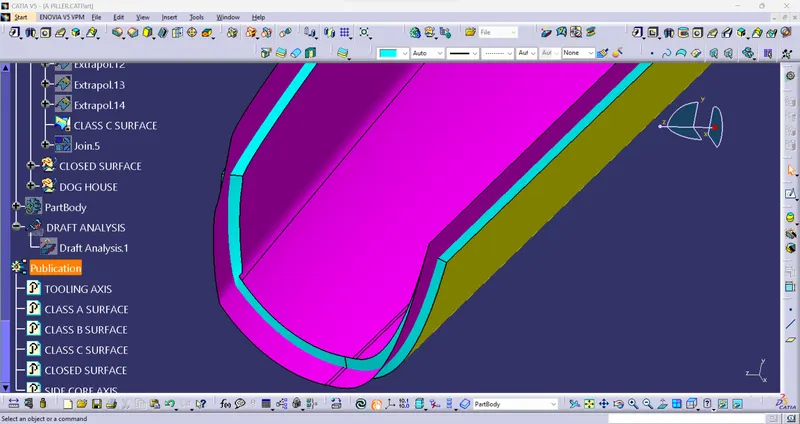

• First, offset the surface for a 2.5mm thickness based on the master section.
• To develop the surface using sweep to create one surface.
• Finally, create a class B surface

Class C Surface:

• Create class C surface used to Sweep to refference surface command to close the surface then trim the body.
• Both A and C surface join. and trim the Class B suface.
• To get the closed surface.

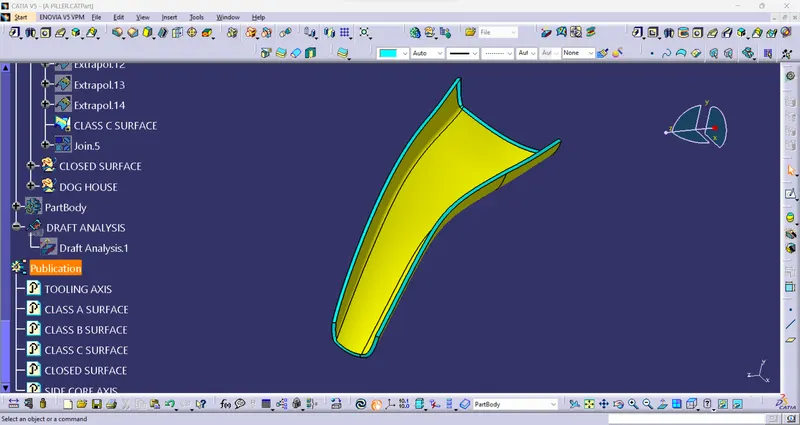

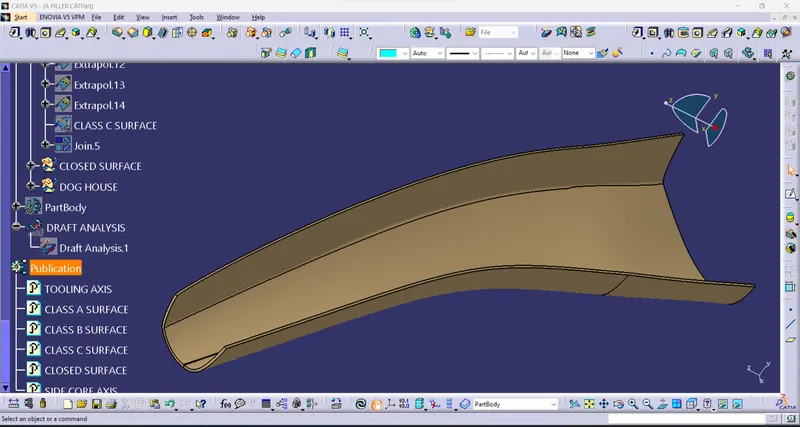

Closed Surface:

• Trim both class c and class B surfaces to get the closed surface.

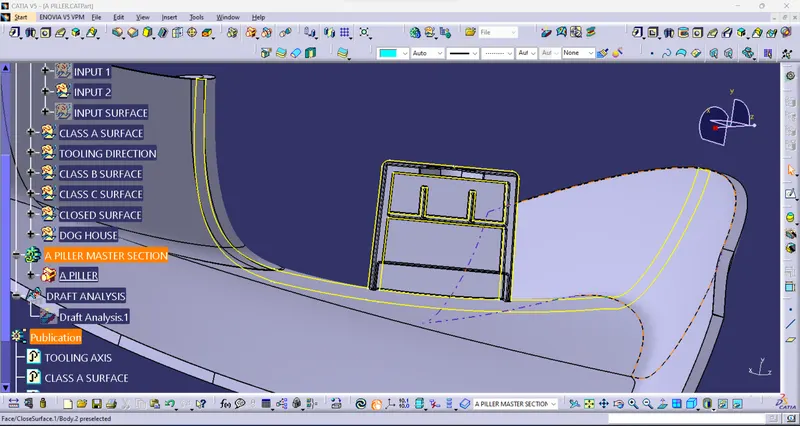

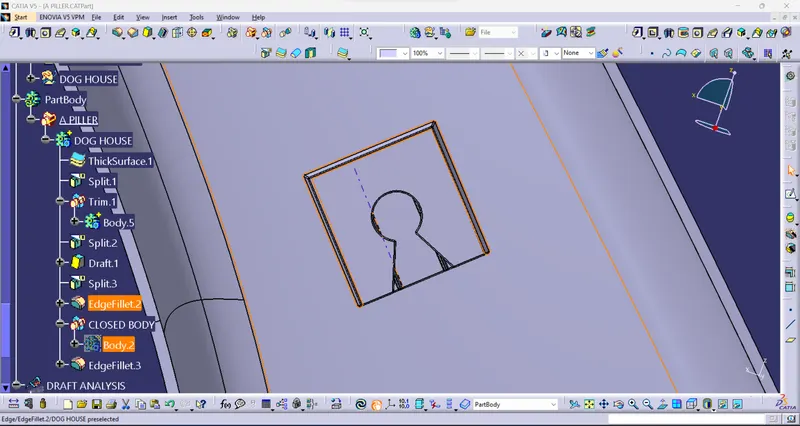

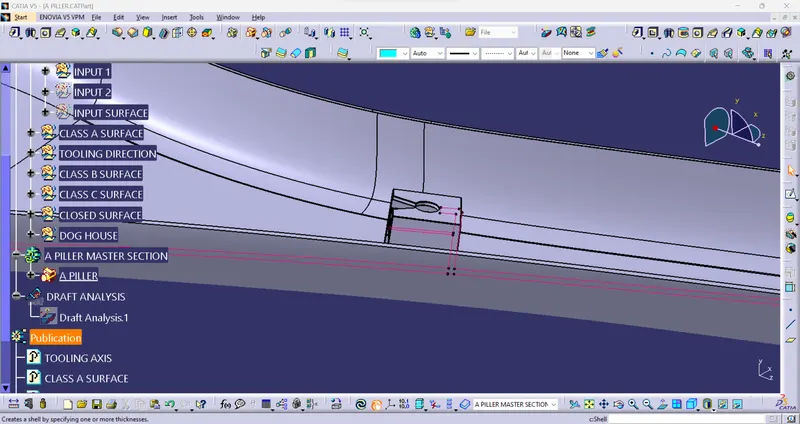

DOG HOUSE FOR MASTER SECTION:

• Dog house develop by using master section dimension based.

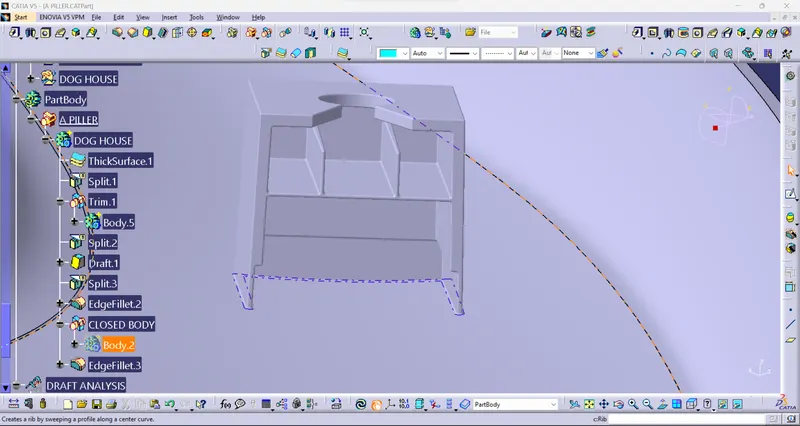

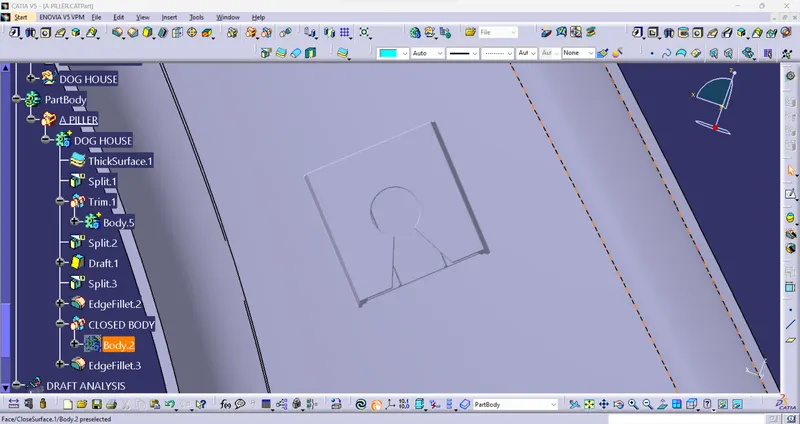

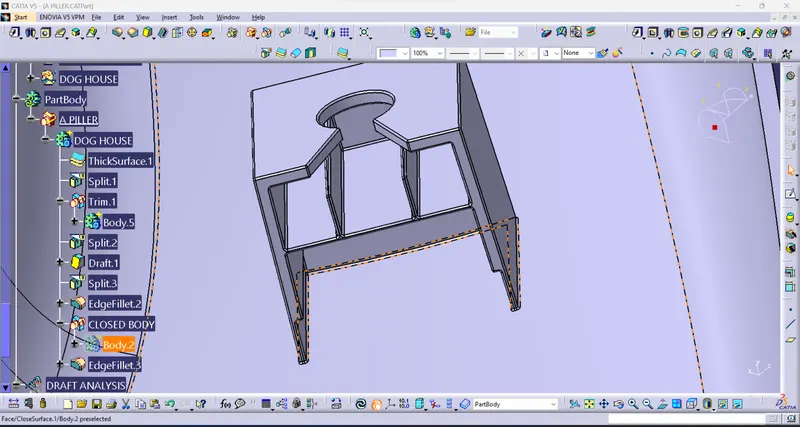

Dog House:

• The dog house is a feature to avoid shink marks.
• Solve length issue.
• have a provision for screw bosses.

Dog house guidelines:

• draft
• dog house walls
• part surface
• bottom of doghouse
• wall thickness
• height and width

DRAFT ANALYSIS SIDE CODRE

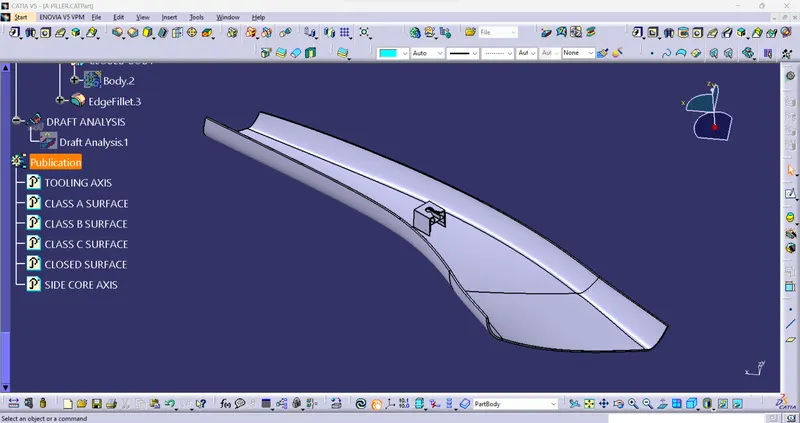

A PILLER MASTER SECTION SOLID BODY

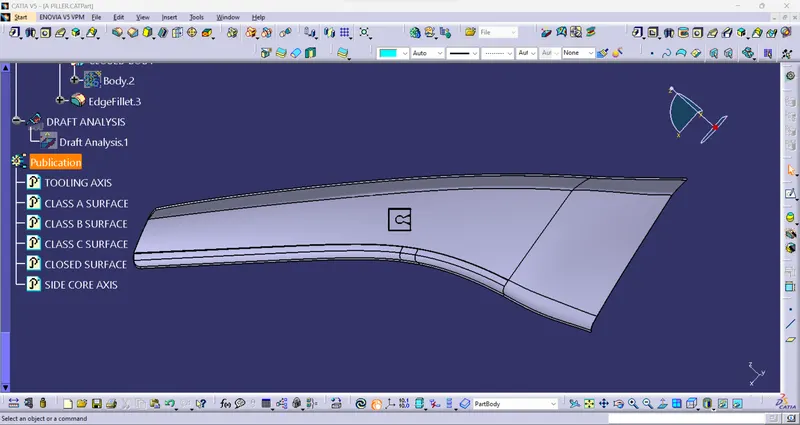

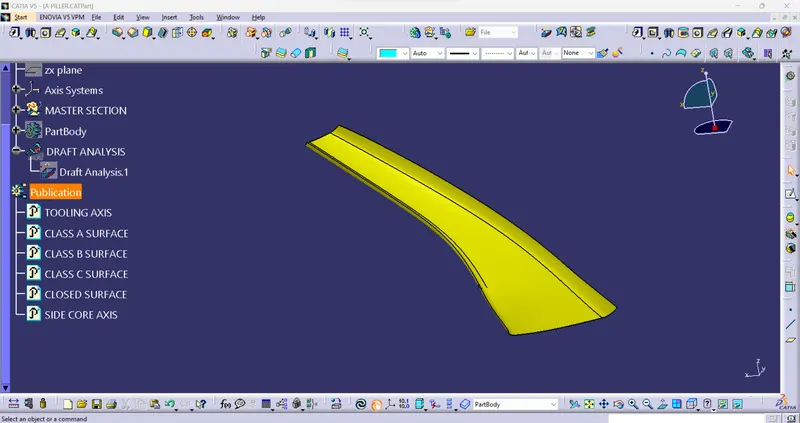

• The completely developed master section closed surface are to generated for closed solide body.

VIEWS :

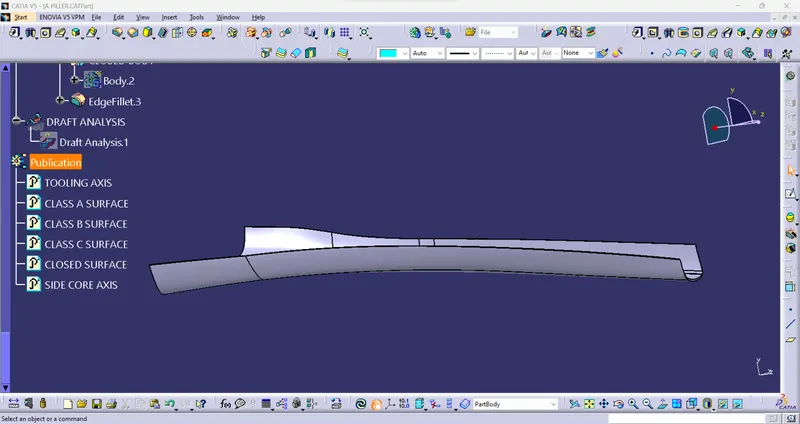

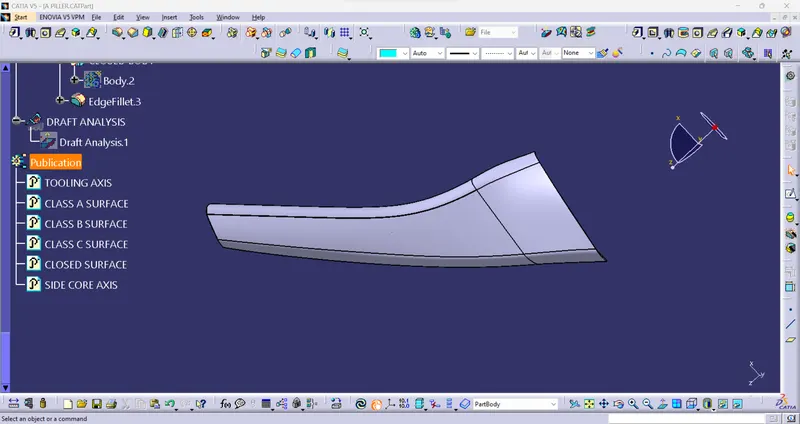

ISOMETRIC VIEW:

TOP VIEW:

FRONT VIEW:

SIDE VIEW:

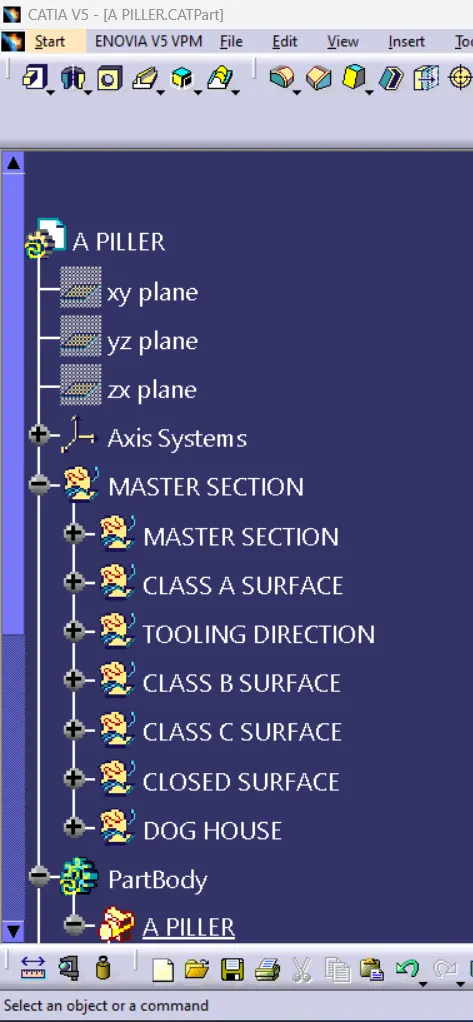

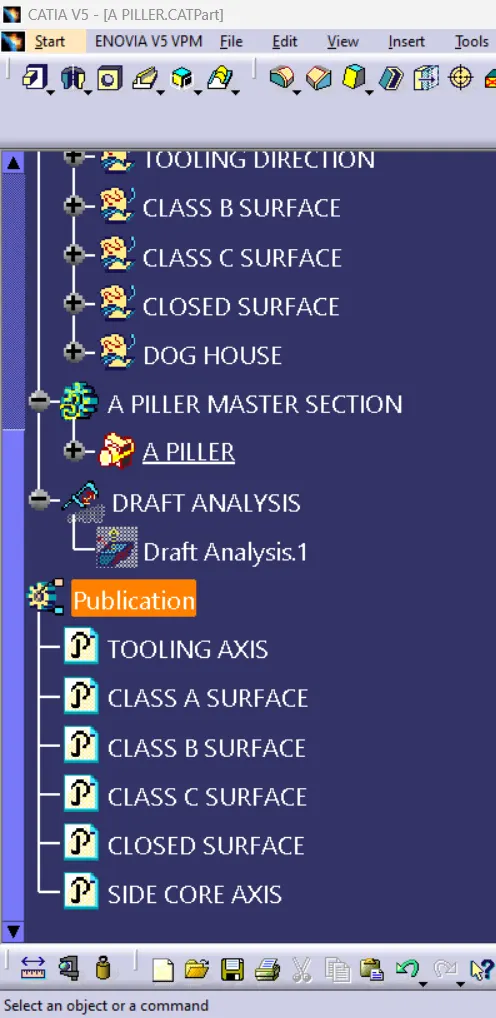

TREE MANAGEMENT:
