Week 9 - Project - A pillar Design with Master Section

Report:

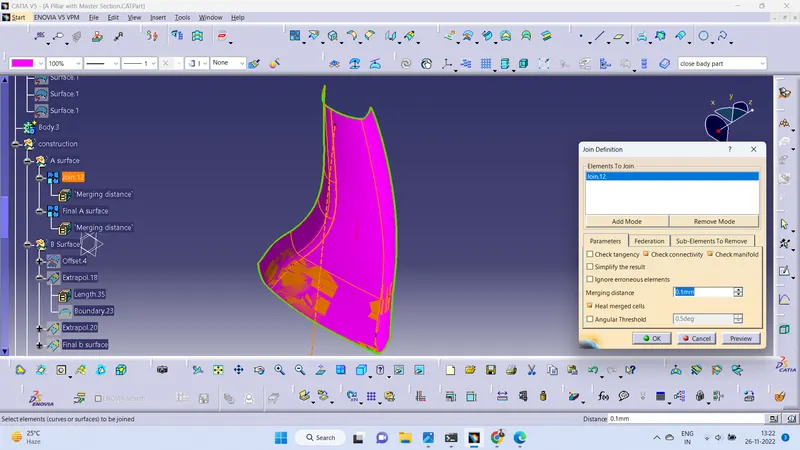

Firstly there is some problem in improving Surface A so i have to give 0.1 mm Merge distance in Join 2

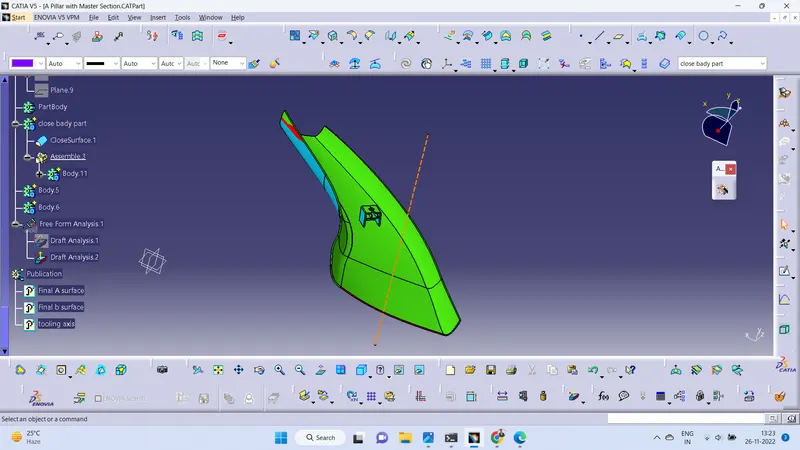

After that make surface b and c. and then close body After that I work on B side Features, as follow master section, extract master section and complete the design.

there is an problem in Draft analysis some part have red patched which due to problem with A surface. image is paste below

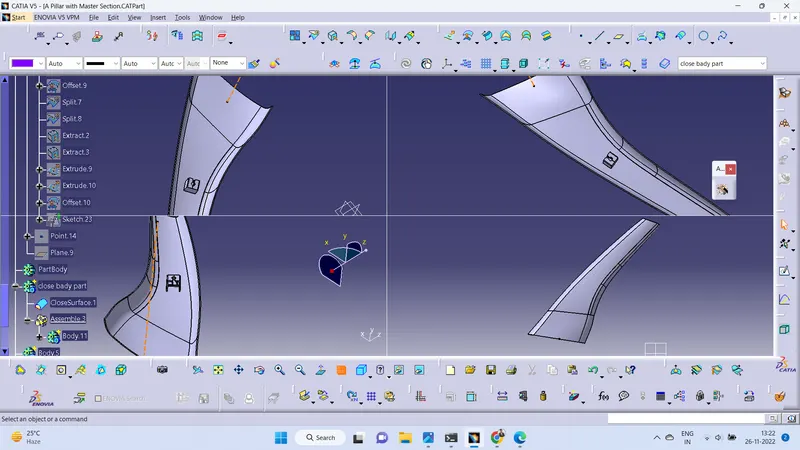

All view in one frame
