Week 9 - Project - A pillar Design with Master Section

DRAFT ANALYSIS;

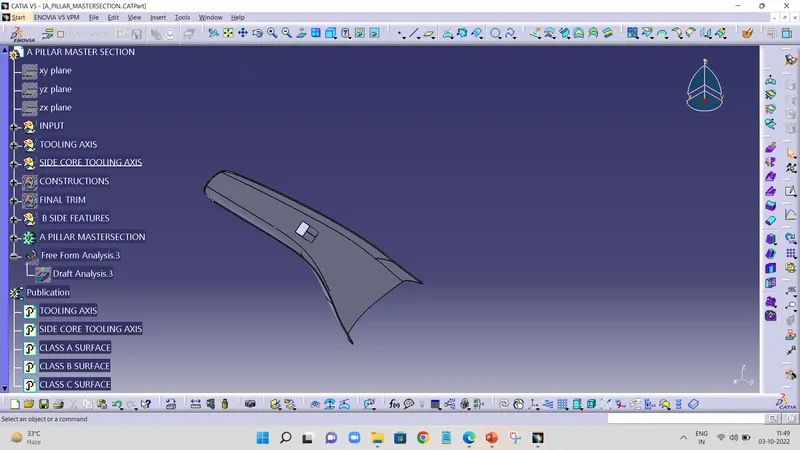

• GO TO INSERT TOOLBAR THEN ANALYSIS AND THEN SELECT THE FEATURE DRAFT ANALYSIS OPTION
• TO ENSURE THE SURFACE IS MATERIAL MODE
• TO USES THE COMPASS TO DEFINE THE NEW CURRENT DRAFT DIRECTION
• TO ENSURE THE COMPASS IS POSITIONING THE TOOLING AXIS
• TO ANALYSIS UNDER THE RUNNING POINT AND ENSURE THE DIMENSIONS
• TO ENSURE THE DRAFT ANGLE 3 DEGREE

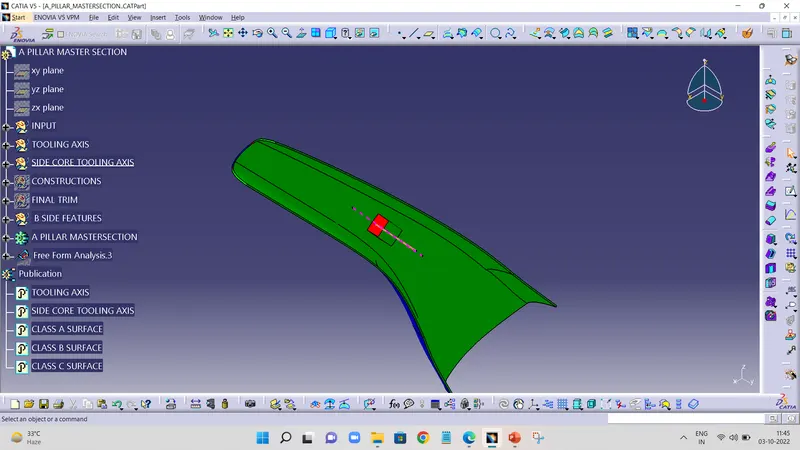

• TO ENSURE THE SURFACE THE DRAFT ANALYSIS COLOUR GIVEN ANALYSIS REPORT
• IF GREEN COLOUR MEANS DRAFT ANGLE IS ABOVE 2.9 DEGREE
• IF RED COLOUR MEANS DRAFT ANGLE IS BELOW 0-2.9 DEGREE
• IT BLUE COLOUR MEANS DRAFT ANGLE IS 0 AND MINUS VALUE

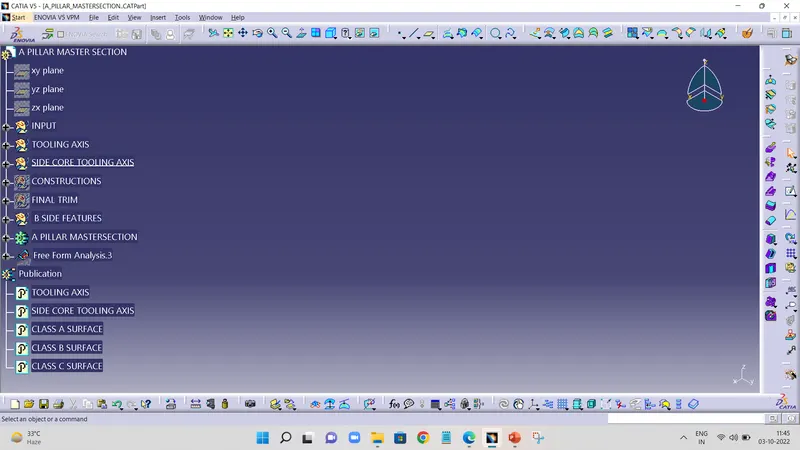

• TOOLING AXIS;

  • TO CREATE THE POINT AND CREATE THE LINE FOR DUMMY TOOLING AXIS.
  • TO CREATE AXIS SYSTEM AND SELECT FIRST INTERSECT YZ PLANE TO CREATE THE DUMMY LINE
  • TO INRESECT ZX PLANE THEN CREATE ANOTHER DUMMY LINE
  • TO CREATE BISECTING LINE BETWEEN TWO DUMMY LINE AND SET TOOLING AXIS
