Week 9 - Project - A pillar Design with Master Section

Pillar design with master section

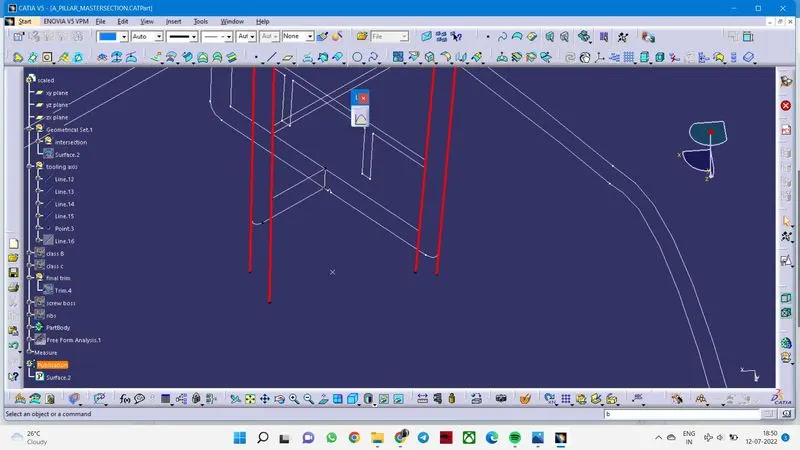

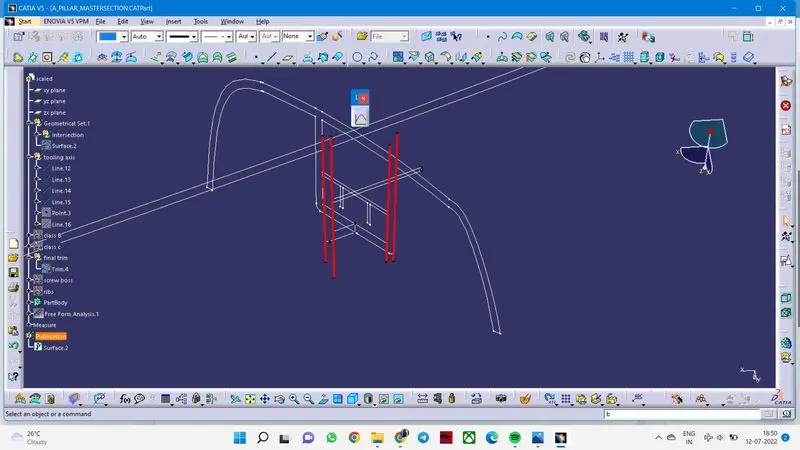

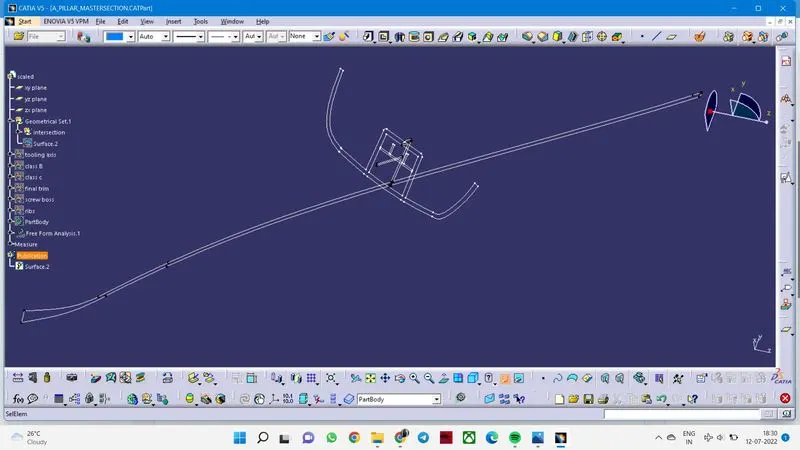

Create the tooling axis y using the master section

first, create the lines

then, set the middle point

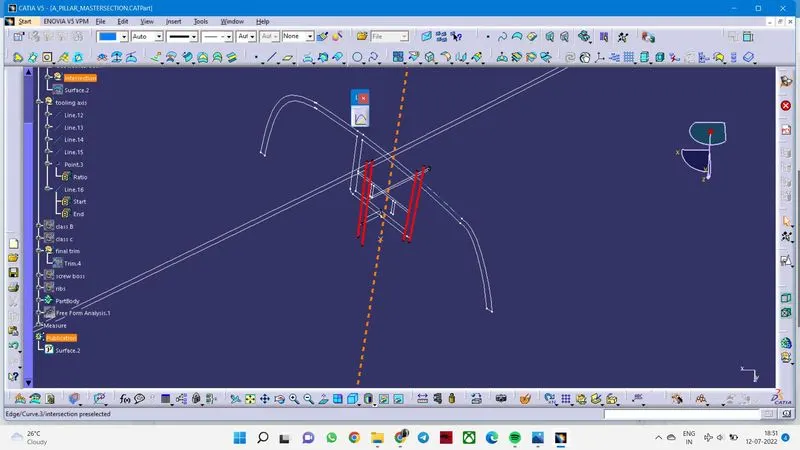

and finally, by using bisect line, drew a kine through that point

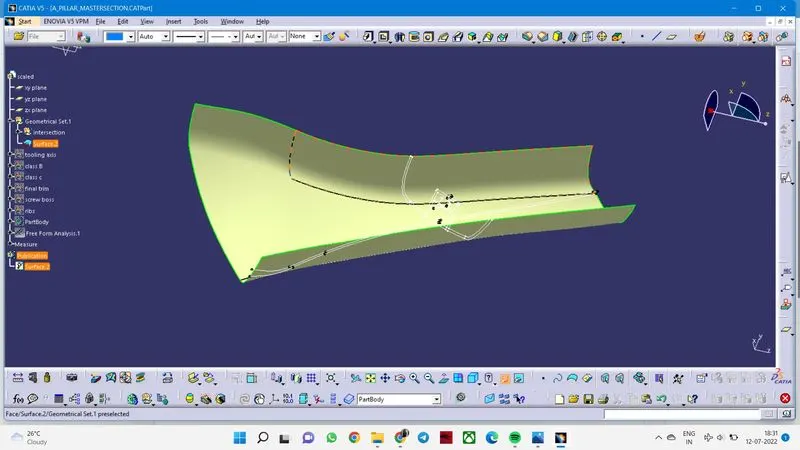

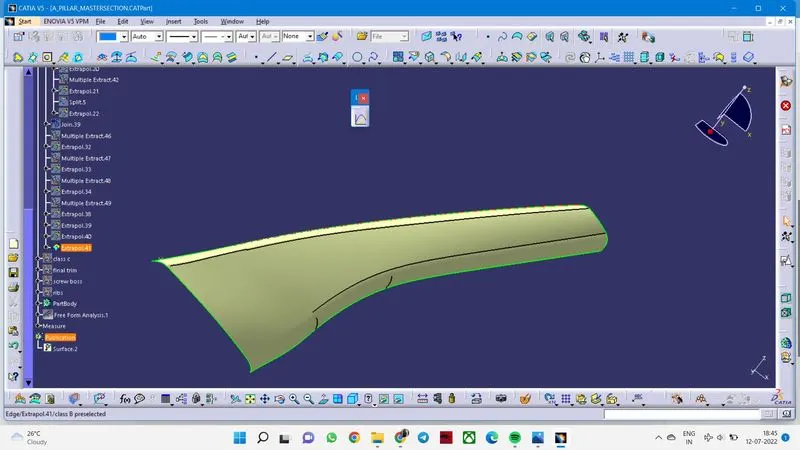

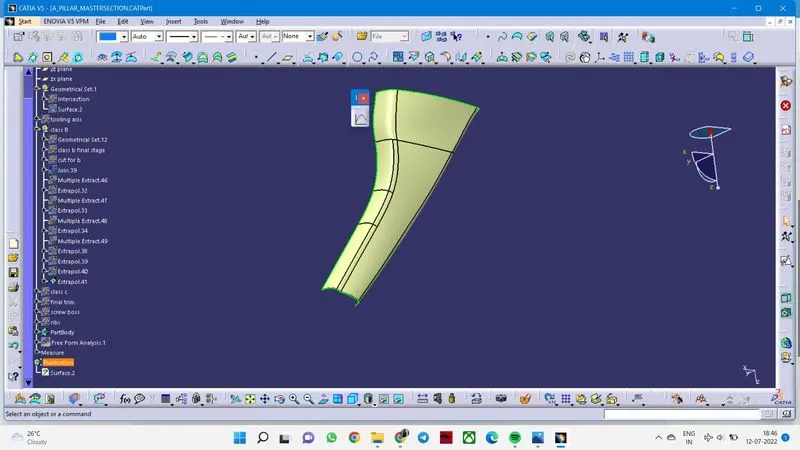

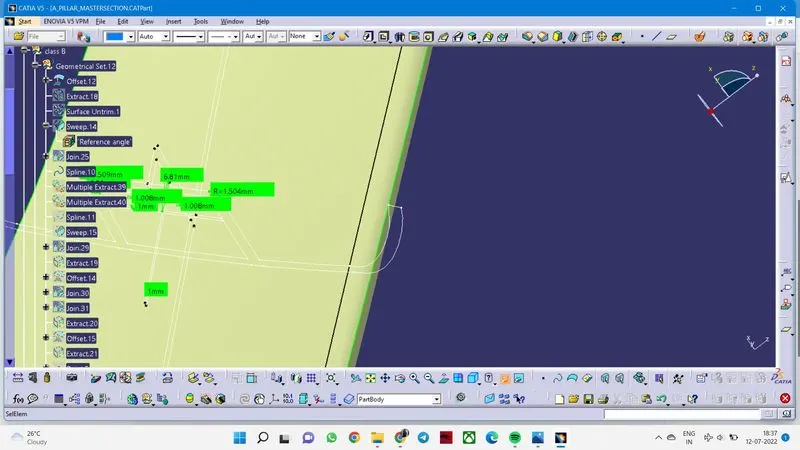

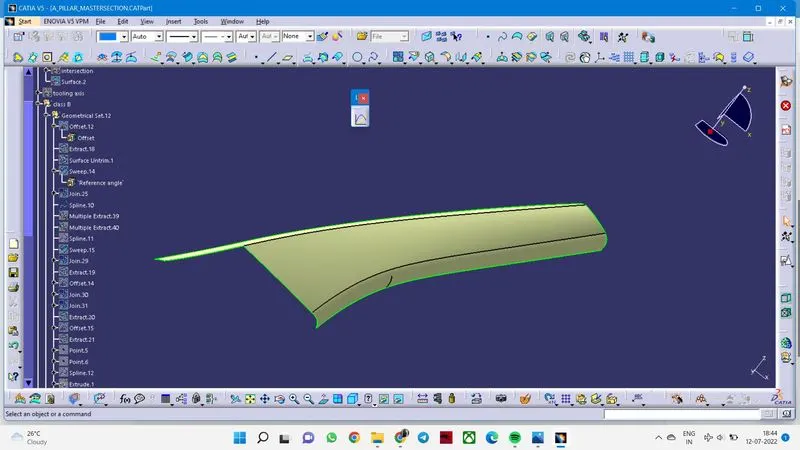

CLASS B from CLASS A ( offset )

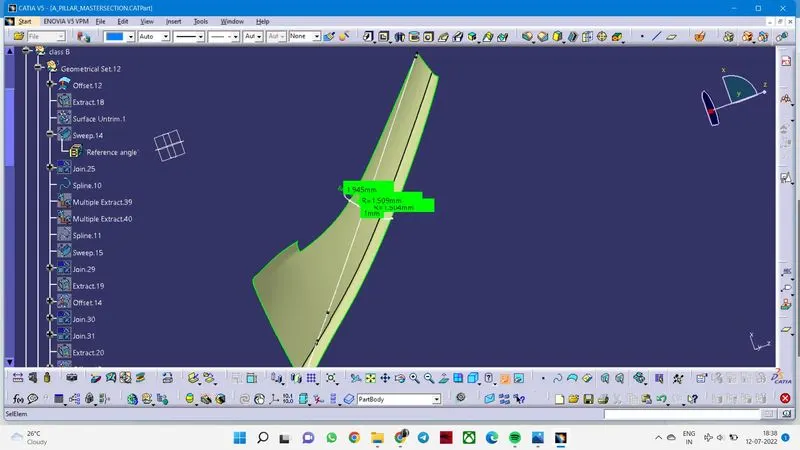

Offset value measured from master section

offset = 2.5mm ( this value is correct for the master section)

when offseted , there were many open surfaces

I corrected it by using surface tools

extract, multiple extracts, trim, extrapolate , boundary,spline, join , split, and different sweep methods are tried

fixed the issue.

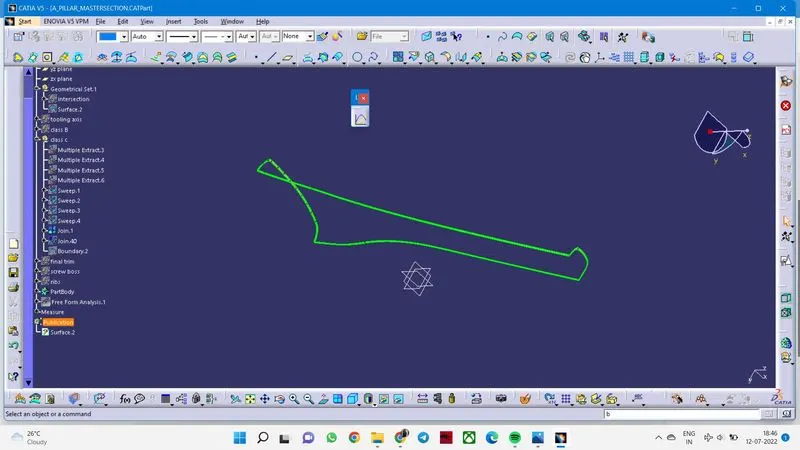

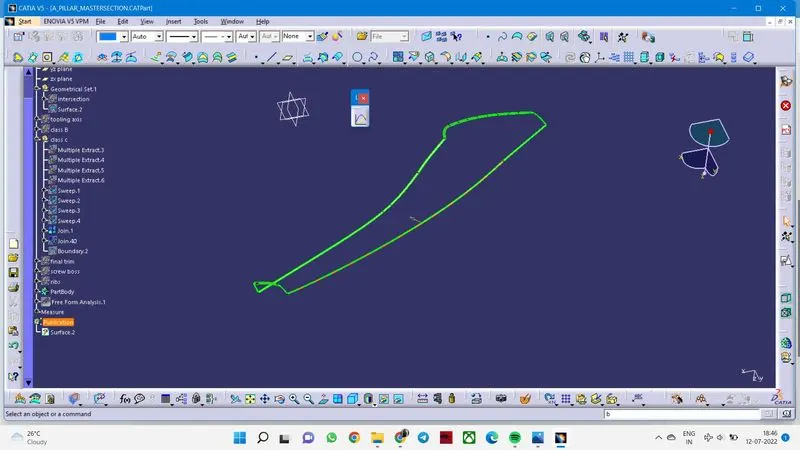

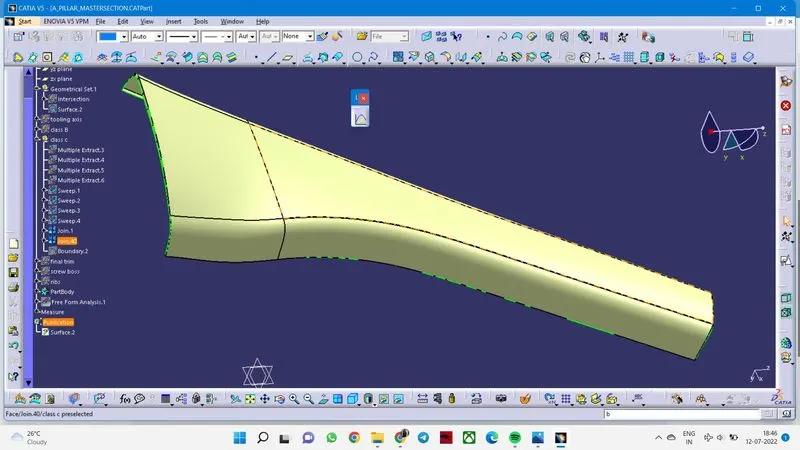

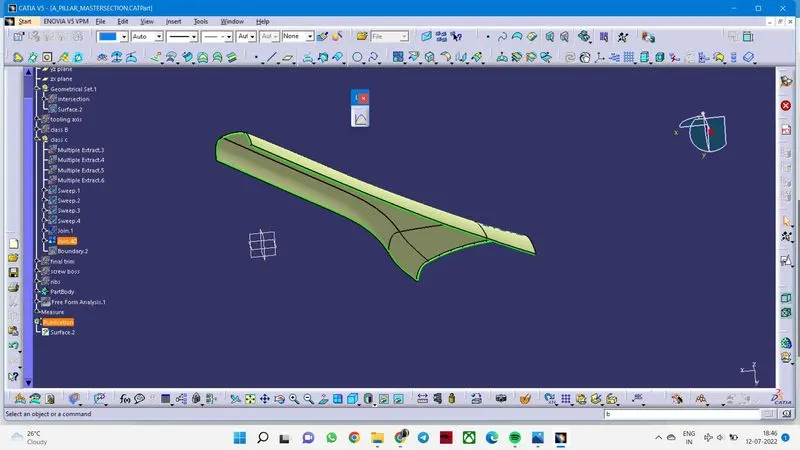

Created CLASS C from CLASS A

by using multiple extracts, take the boundary, then sweep it to the required length

finally, it joins with the class A

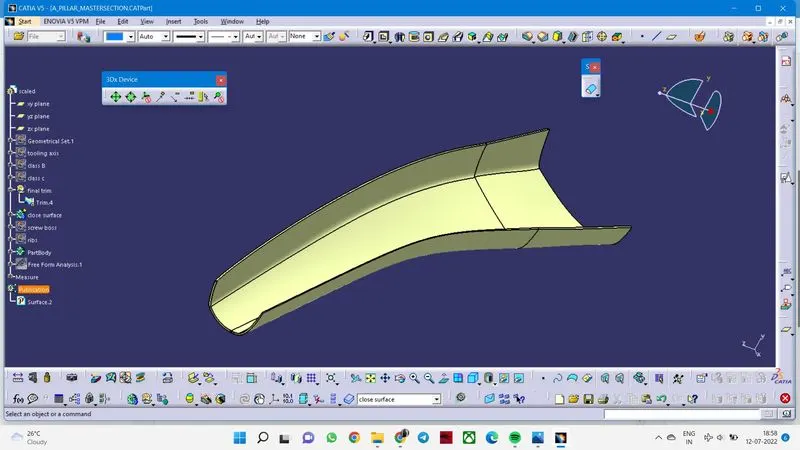

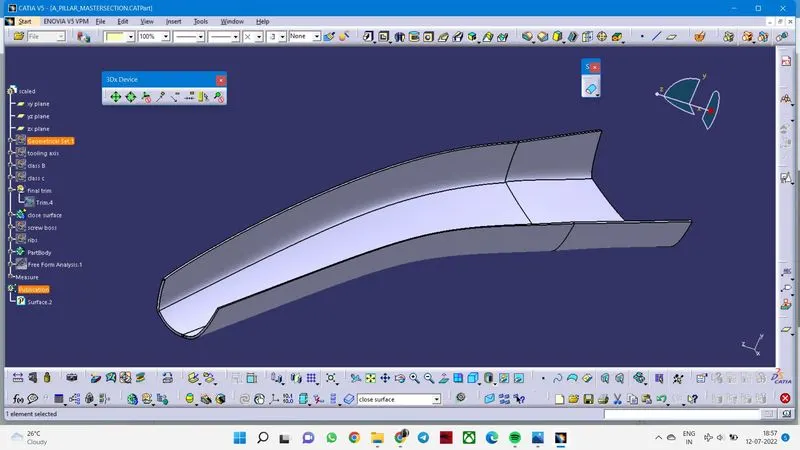

created close surface

trim class A and class C

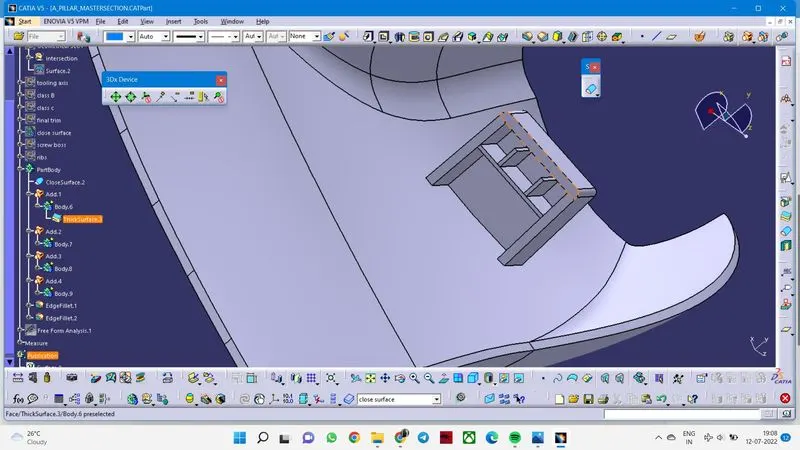

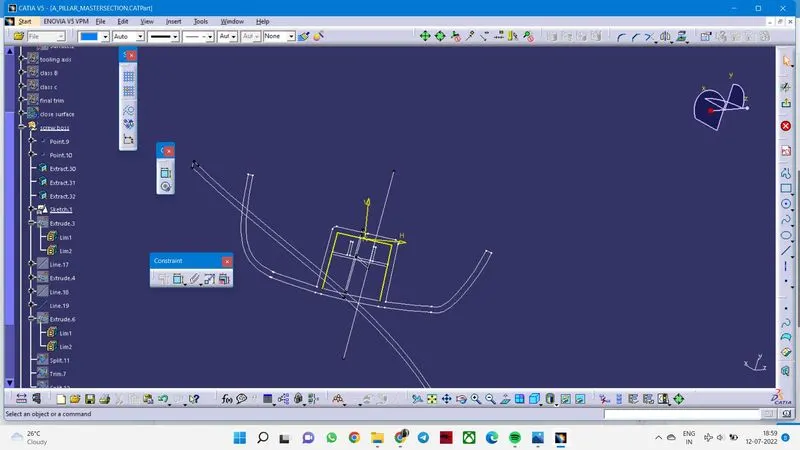

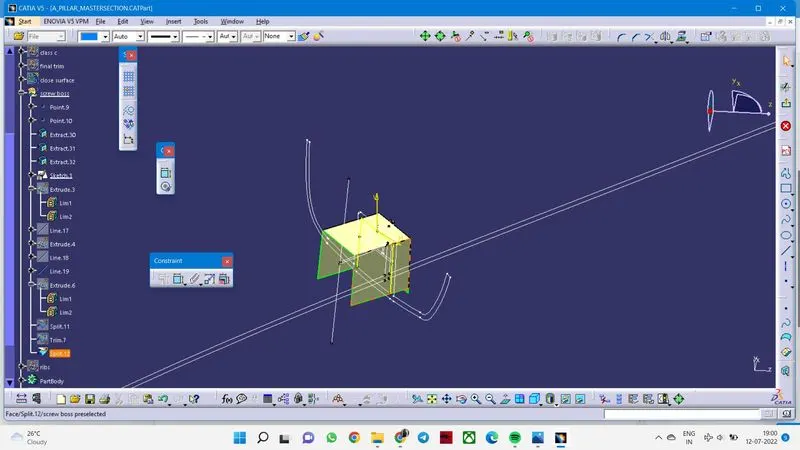

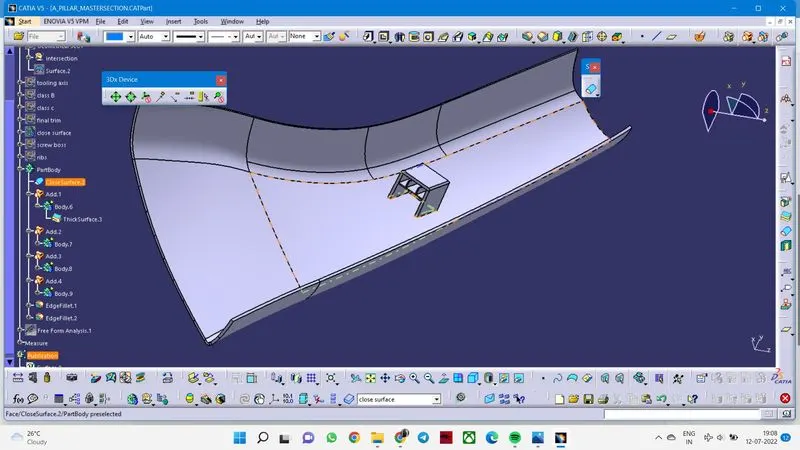

Started the creation of SCREW BOSS

created a plane parallel to the master section

created the point

extract line from the master section

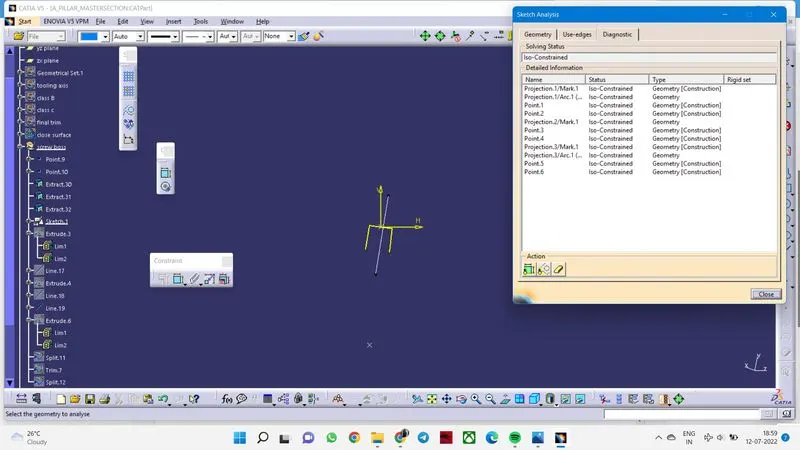

sketch it

extrude the line in the surface workbench

trim and split are used to get proper dimension

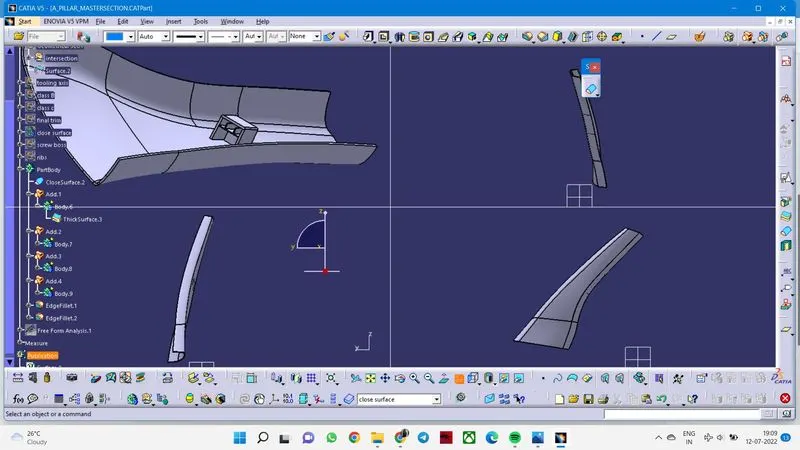

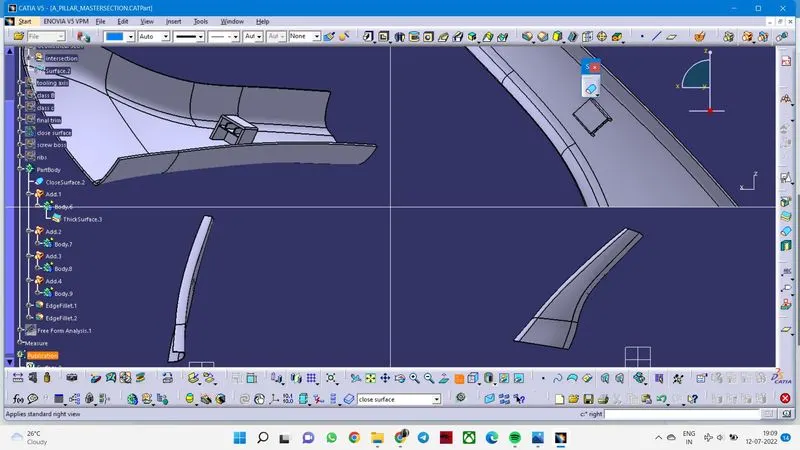

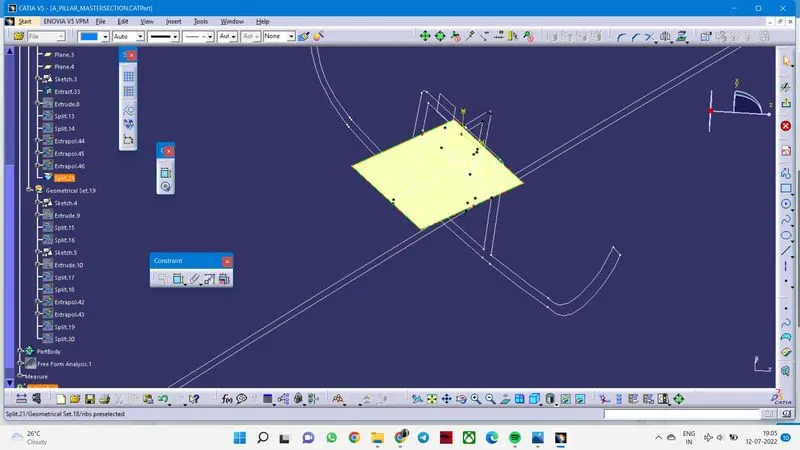

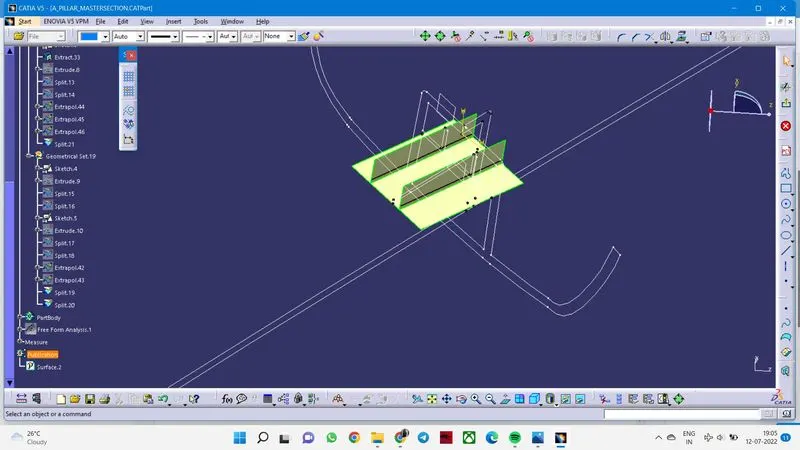

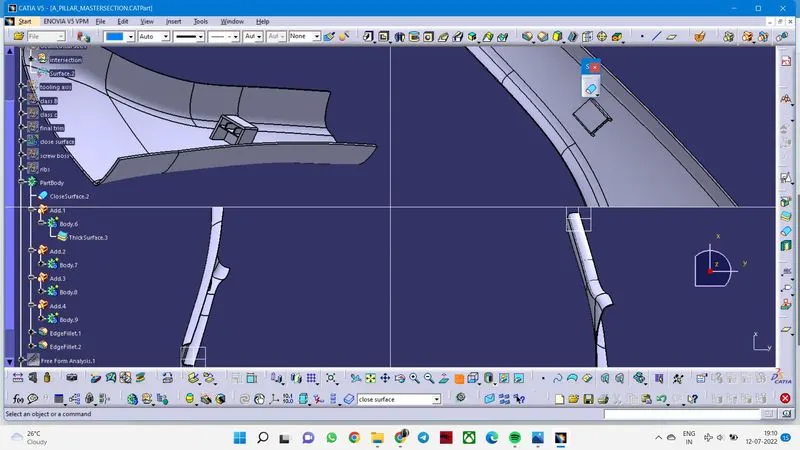

create the ribs by using the same methods

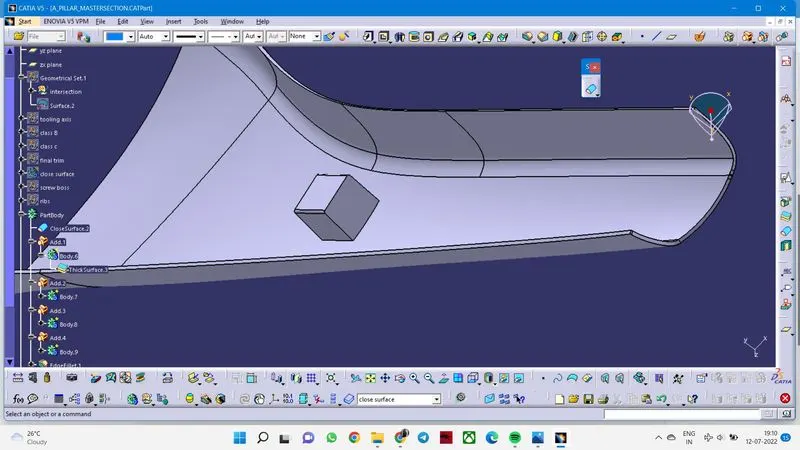

by using thick surface tool

make it all thick as a part

also measured the dimensions from the master section to get the proper thickness value

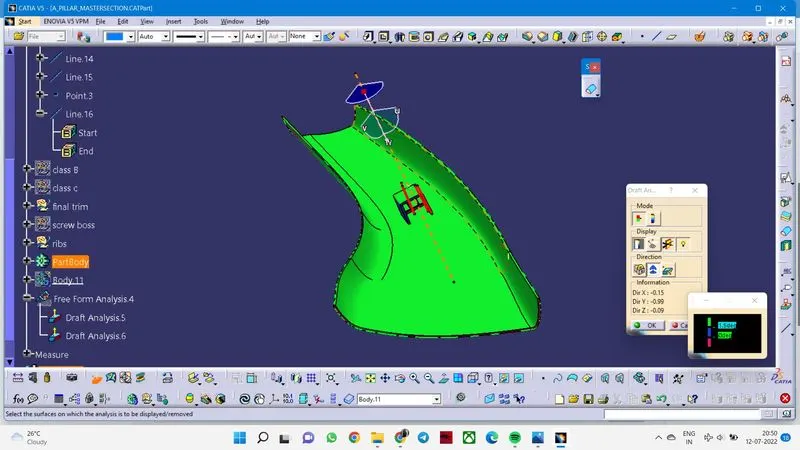

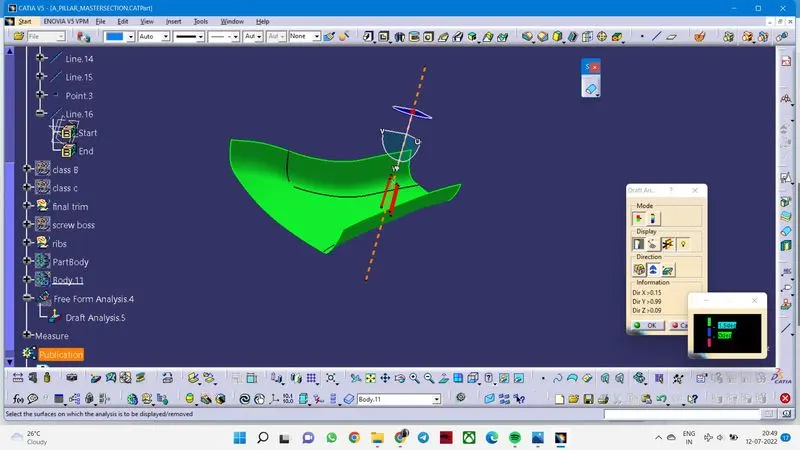

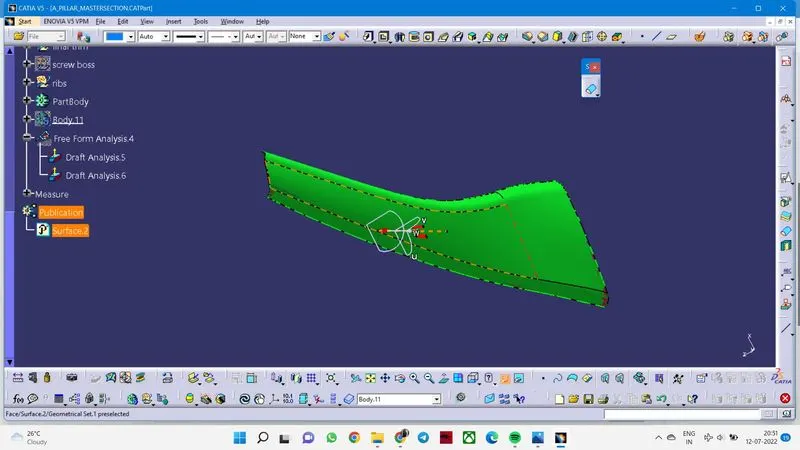

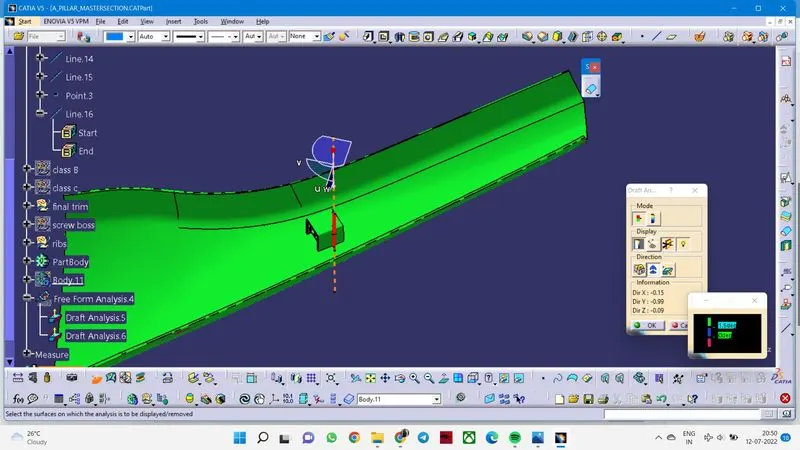

Conducted draft analysis
