Week 9 - Project - A pillar Design with Master Section

REPORT

DRAFT ANALYSIS

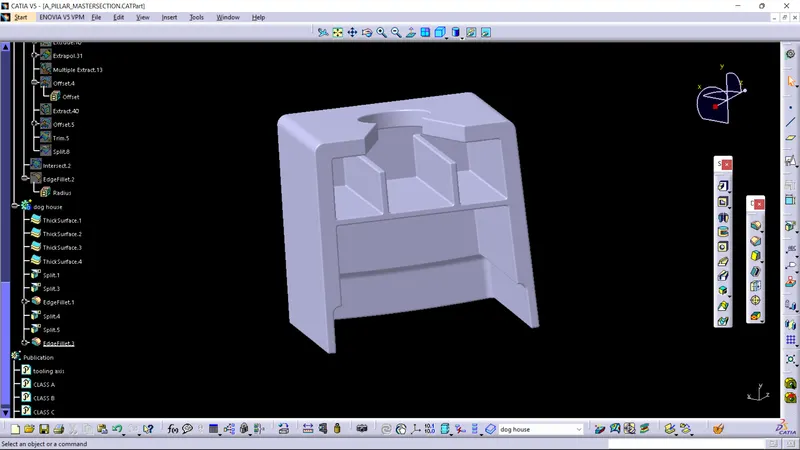

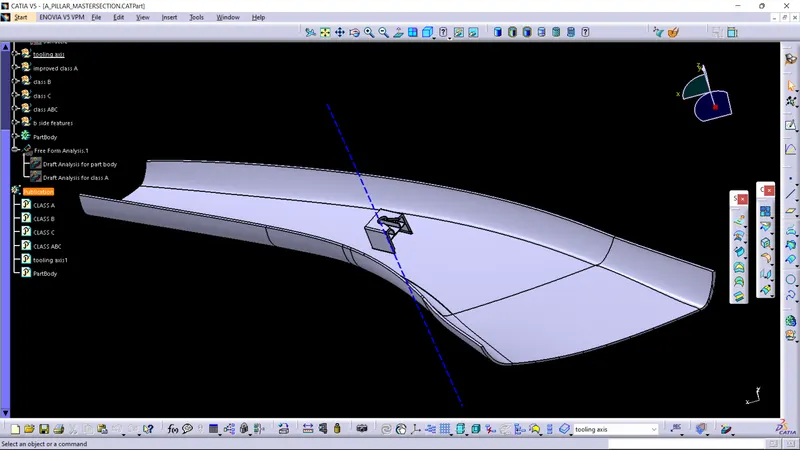

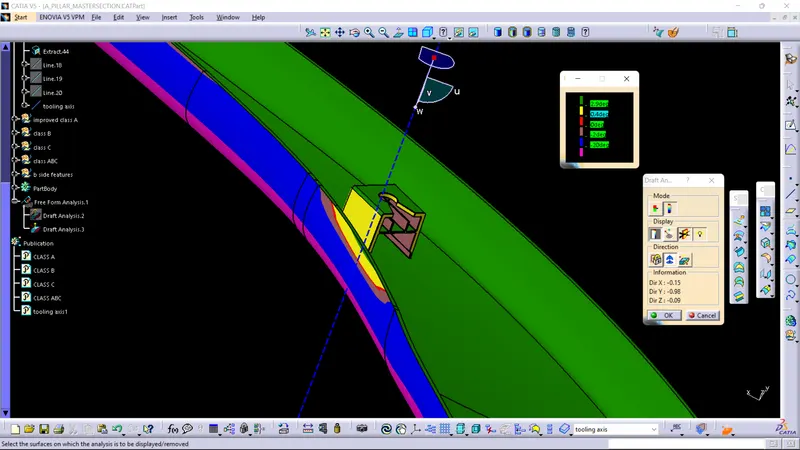

The tooling axis is created along the Y axis and also improved class A surface is created but after creating B side features and taking draft analysis deviation happened in the dog house so I have altered the tooling axis with a bisecting method with reference to the dog house, 3 degrees draft is given to the component and for B side features no draft angle is given because it has already given in the master section.
