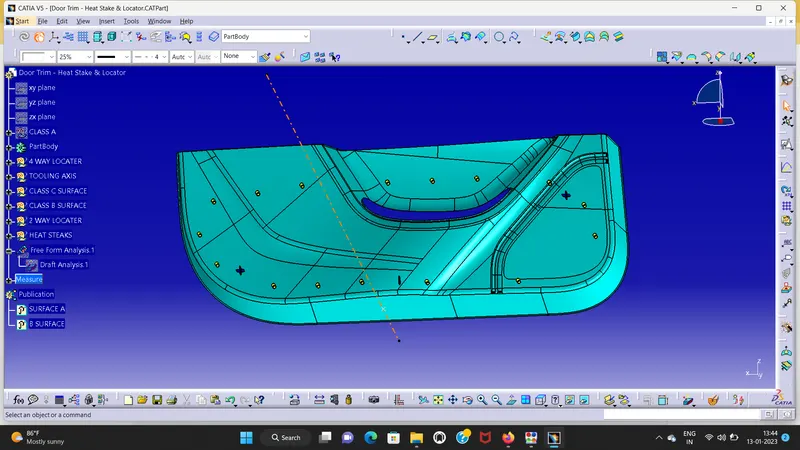

Week 9 - Project 1 - Door Trim Lower with Engineering Features

AIM:To creat a Door Trim lower plastic component through the given class A surface .To begin with, the tooling axis for the given class A surface should be meeting the draft angle requirements and performing the draft analysis on the model at the end .

D esign the Heat stakes and the locators considering the rule .

TOOLING AXIS : To creat tooling axis extract the flat surface and take point and creat the line .TOOLING AXIS is used to analysis the part which we are creating.

CLASS B SURFACE:TO creat a class B surface class A surface is offset to 2.5mm and we have to work on the patches by using the multisection features if required 2.5mm is the thickness of the component

CLASS C SURFACE: Class C is nothing but connecting the part of class A and B UNHIDE CLASS A and take the boundary of it and now boundary elects all corner of class A and use sweep commands to creat class C surface.

Then trim the class b to join A+C this will make sure that we get a closed surface. we can check it using the boundary toll if it gives on error that means that the component is closed.

Then we go to the part design workbench and use to closed surface tool to creat a solid body . hence we created the final plastic component.
