Week 9 - Project 1 - Door Trim Lower with Engineering Features
Objective

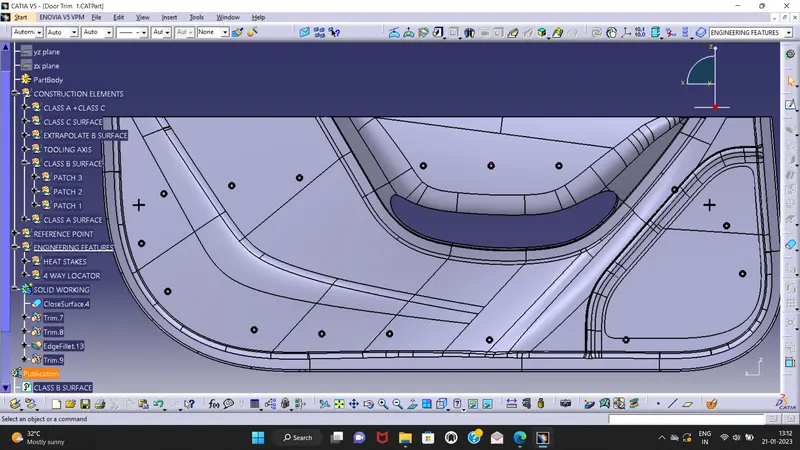

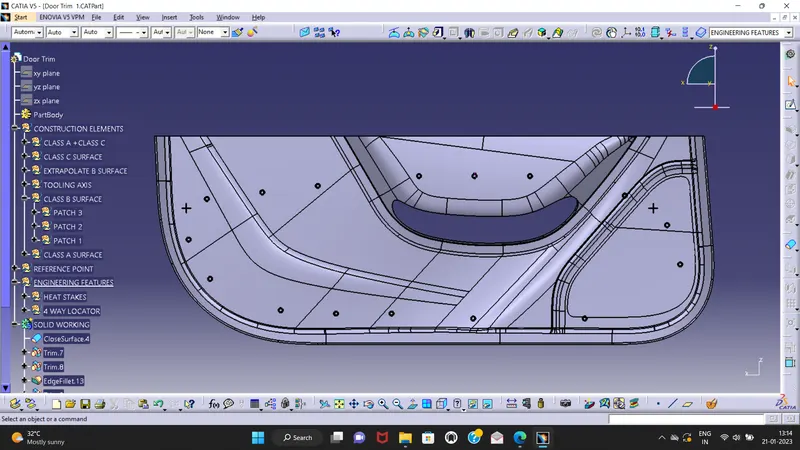

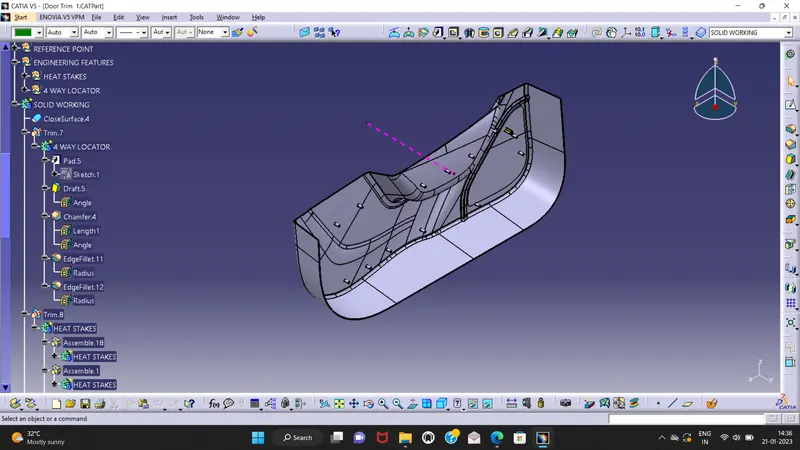

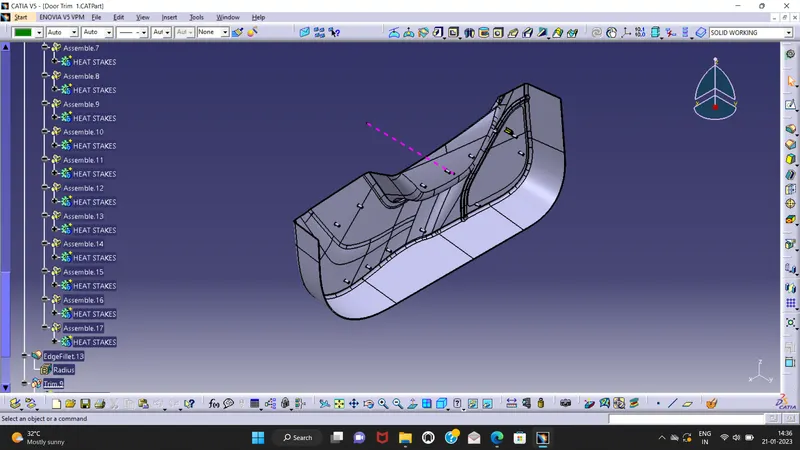

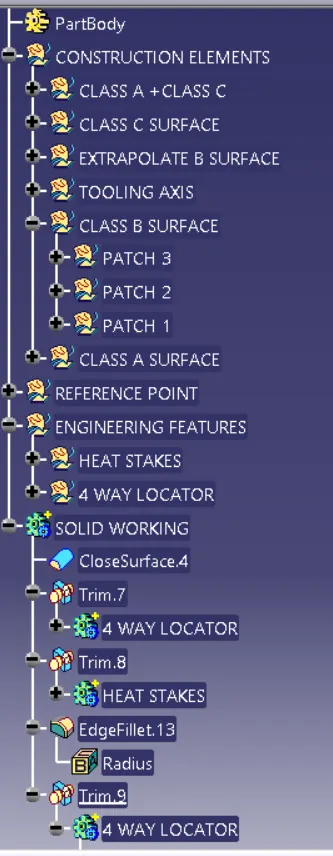

Designing engineering features for door trim lower part according to standards using CATIA V5.

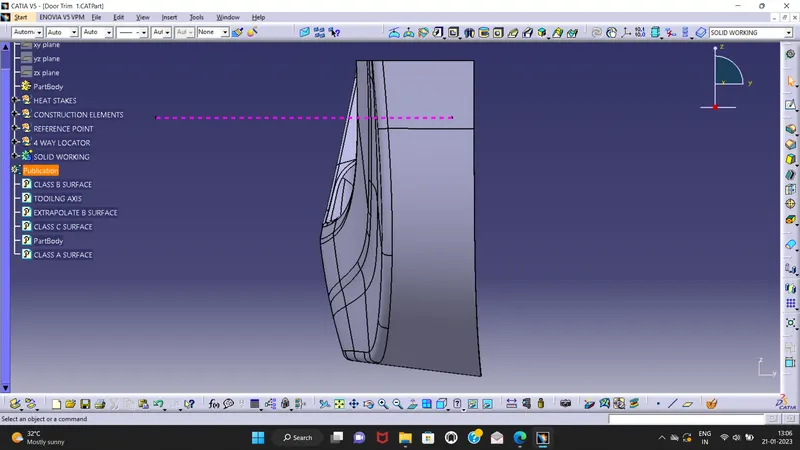

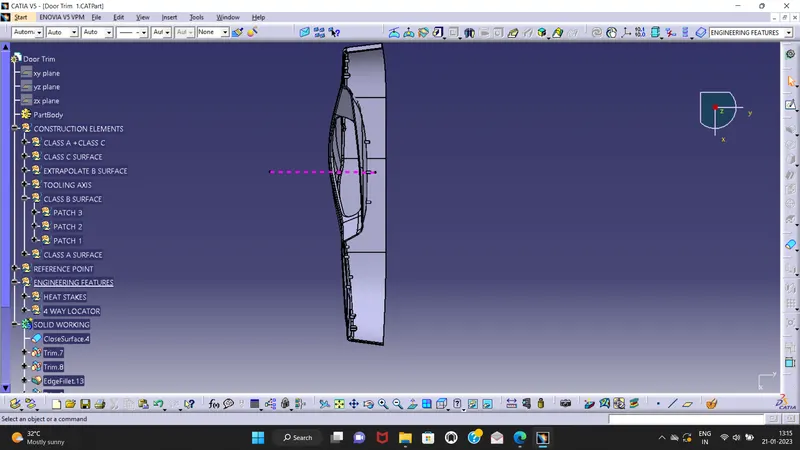

tooing axis:
Front view
top view
right view:
Draft Analysis
It is a technique which is used to find the angle between the component and tool travel direction, in order to enable easy removal of part from the tool we must provide proper draft angle,
we must analyse draft angle for Class A, Class B, Class C surface
Class A surface is the outer surface of a component, Class B is the underside of the component and Class C being the side part of a component.

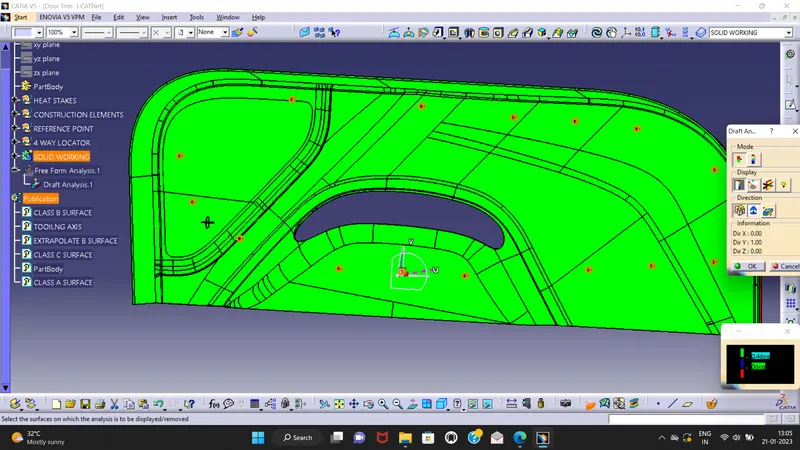

draft analysis:

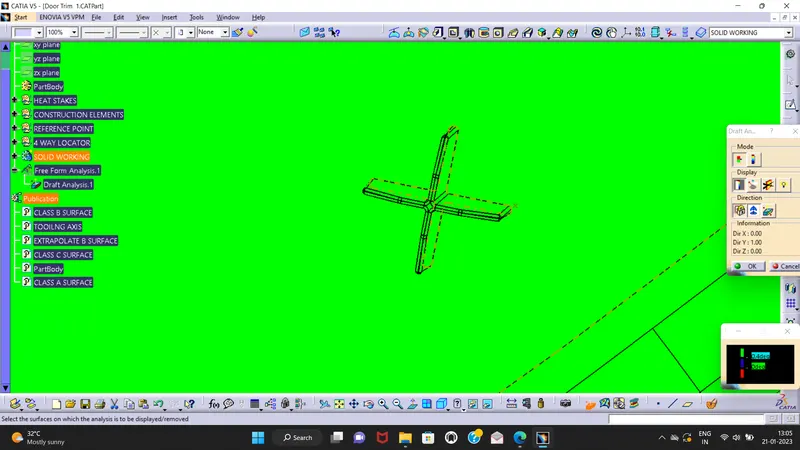

draft anlaysis of 4 way locator:

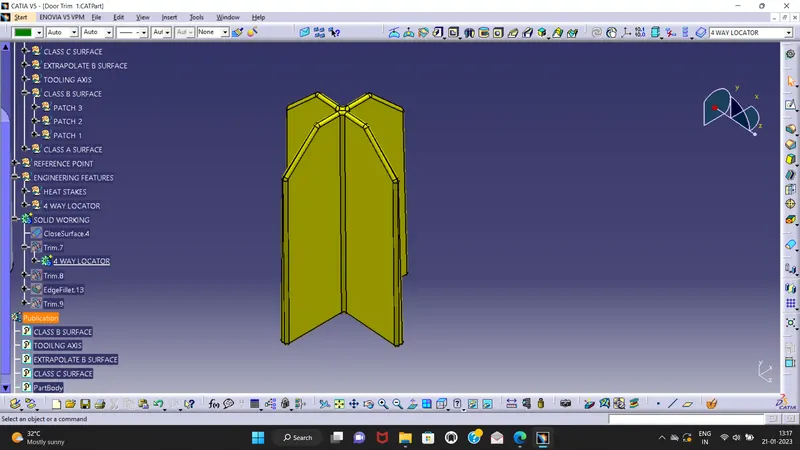

4way locator:
