Week 9 - Project 1 - Door Trim Lower with Engineering Features

Aim :

Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules.

Given Data :

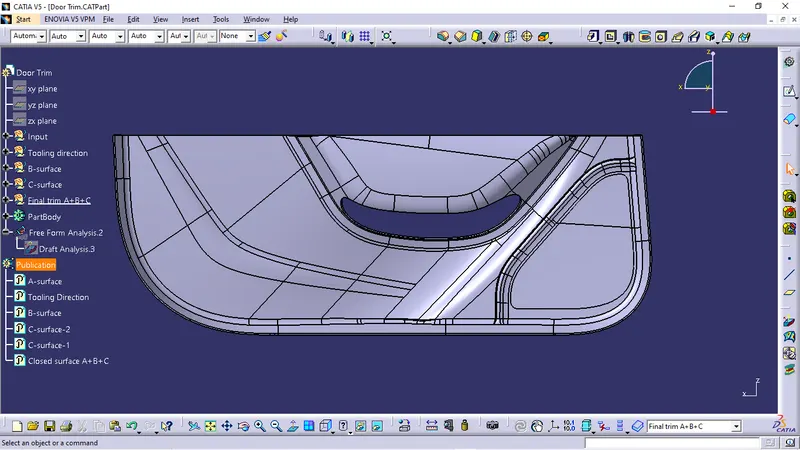

Class A surface with Heat stake position points and Refenrence image.

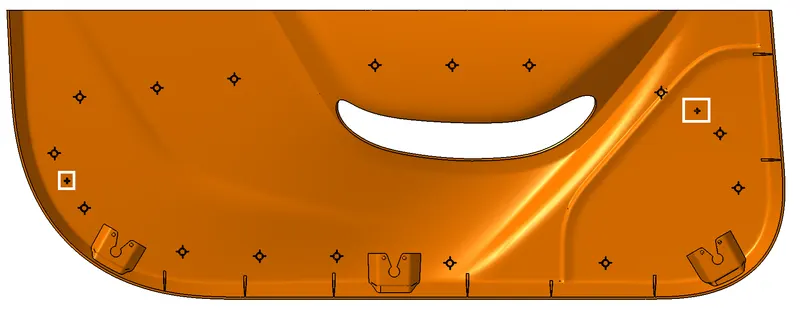

Reference Image for locators position :

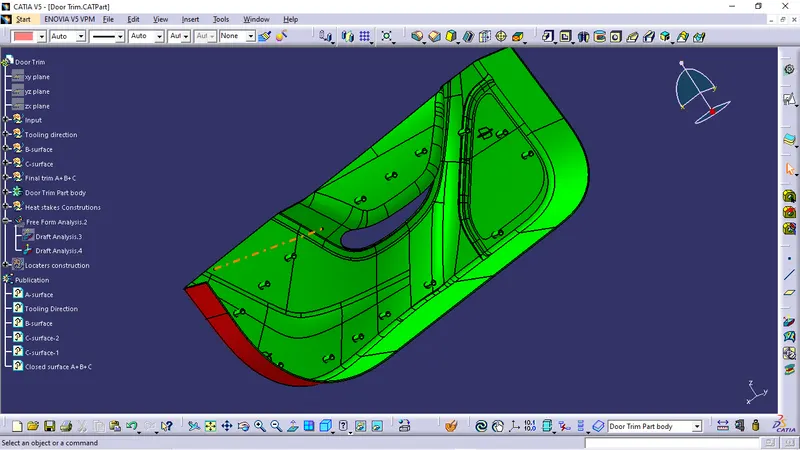

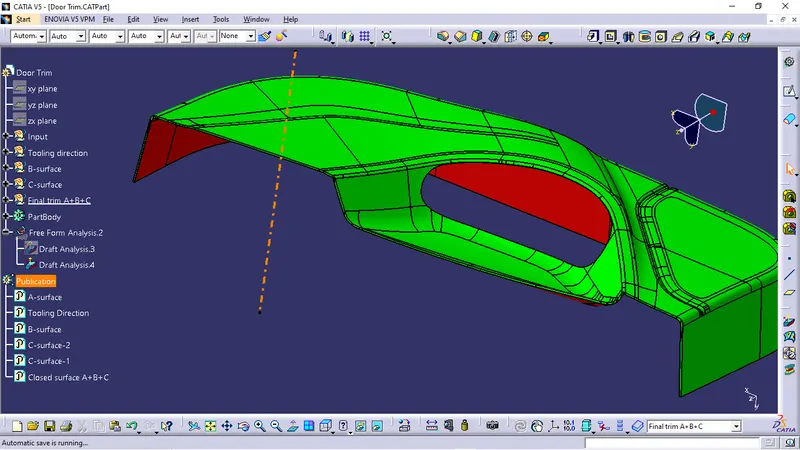

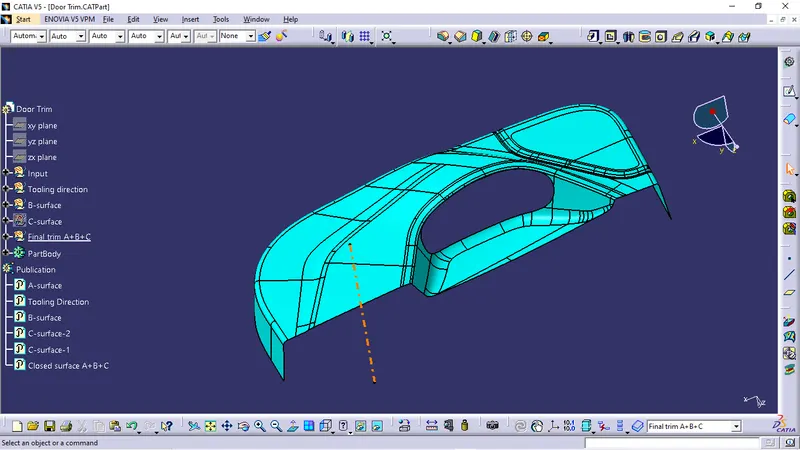

Tooling Axis :

Orange centre line is tooling axis.

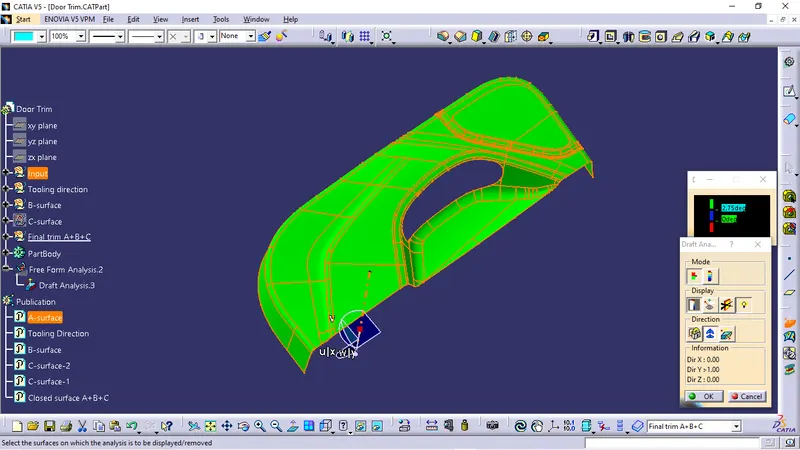

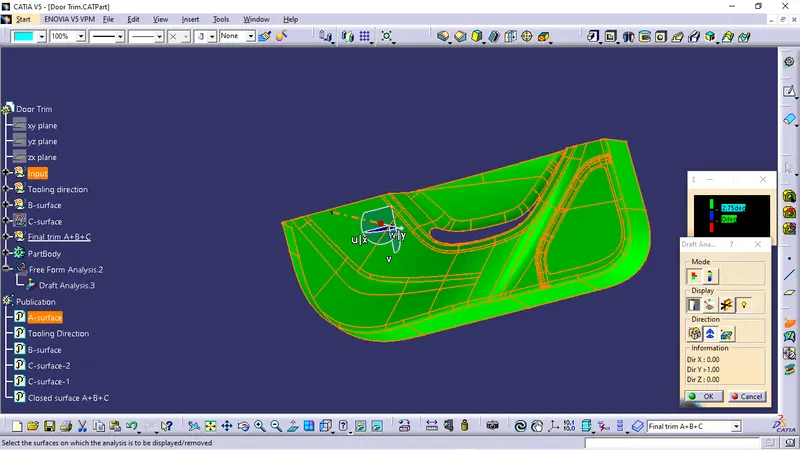

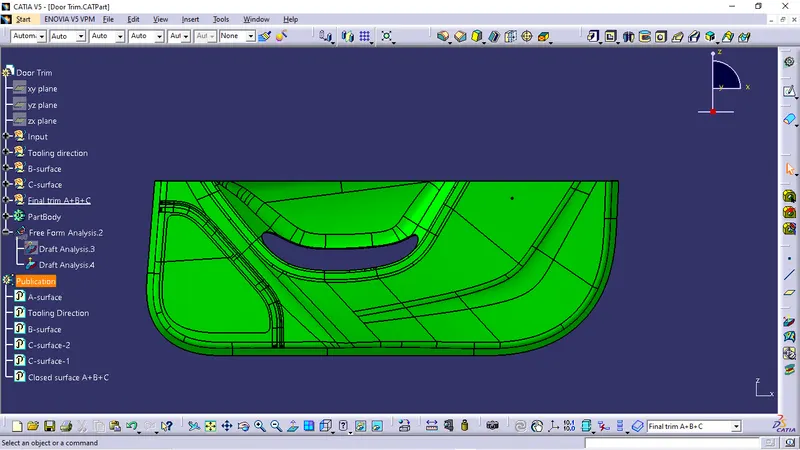

Draft Analysis :

Draft analysis done to class A surface to check wheather it passes as per our tooling direction or not. Draft angle is 3degree.

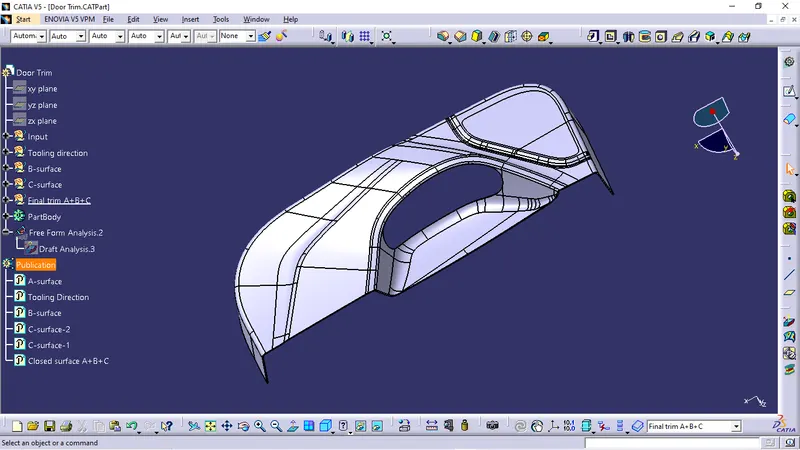

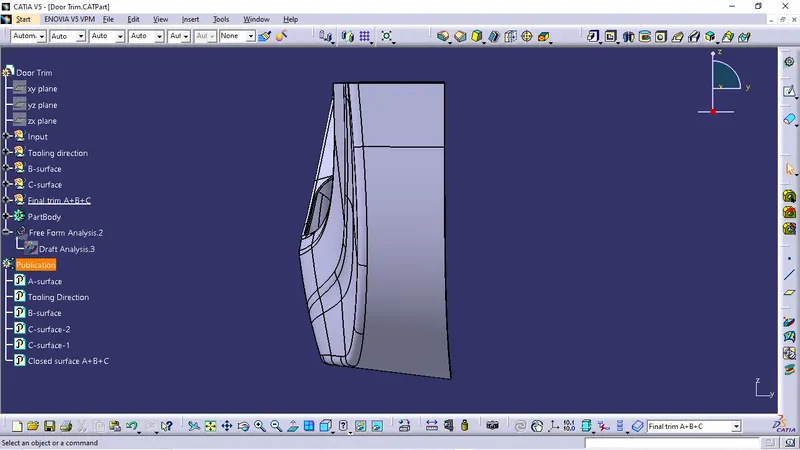

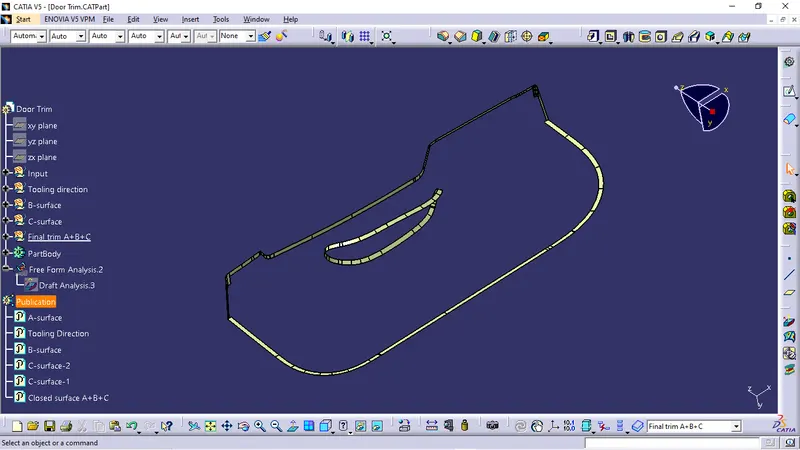

Class B surface :

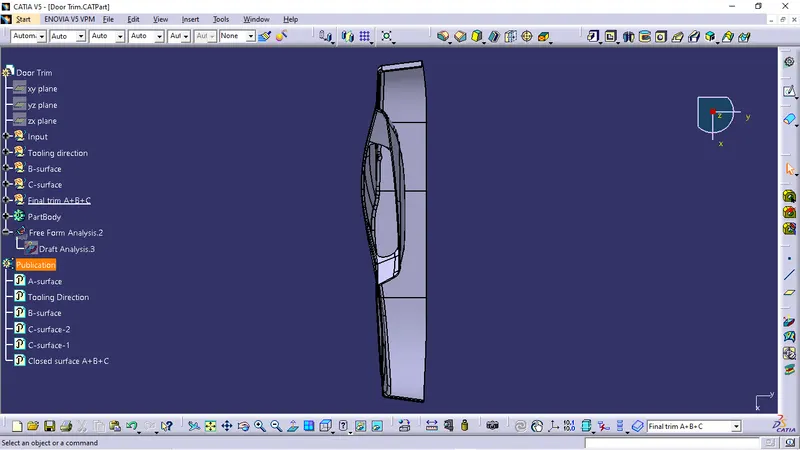

Class C surface :

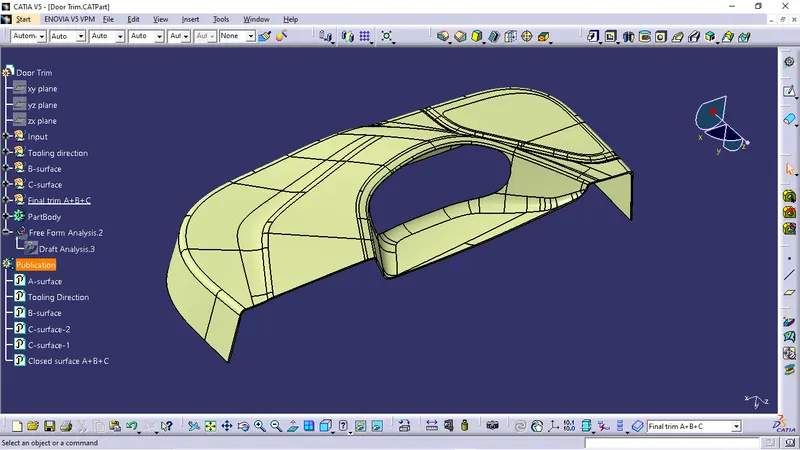

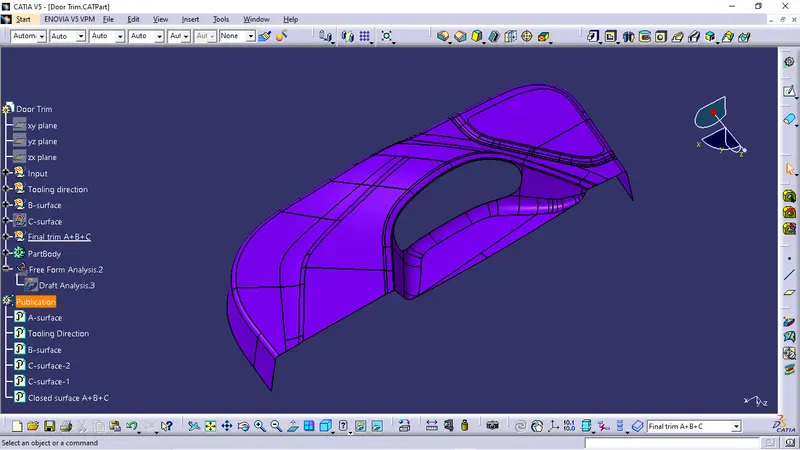

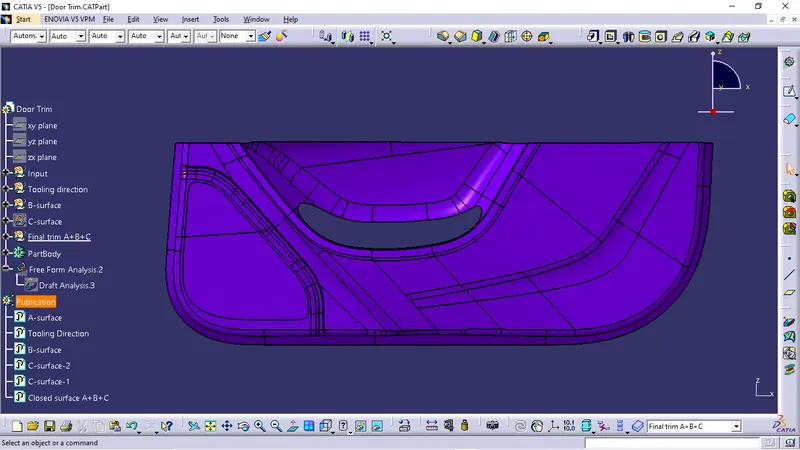

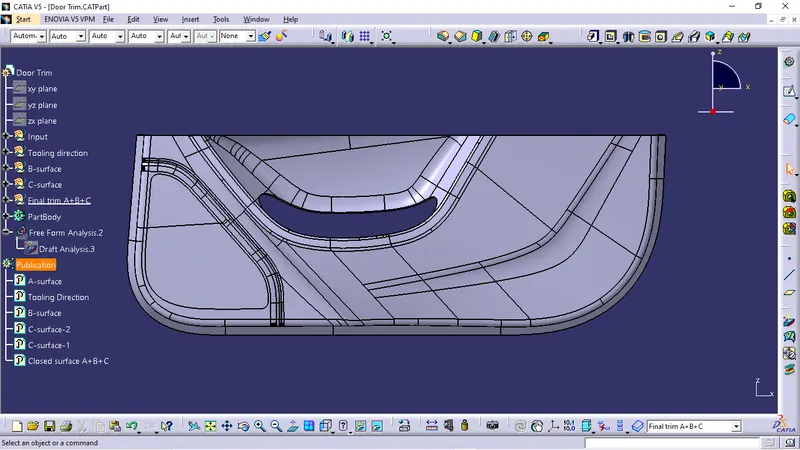

Class A+B+C surafce :

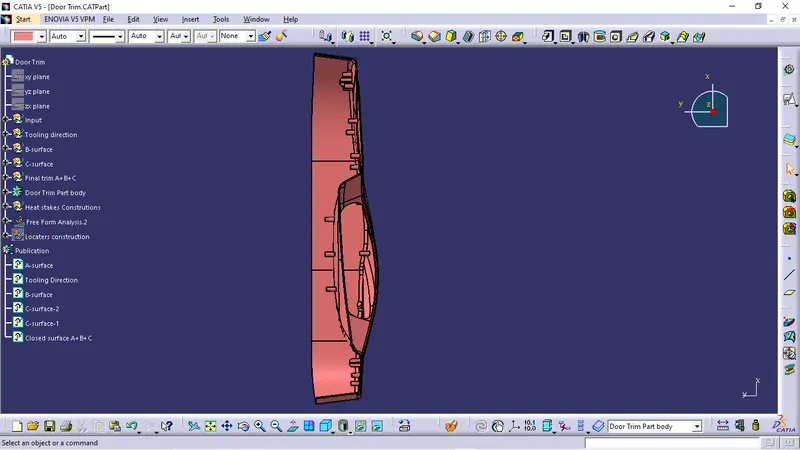

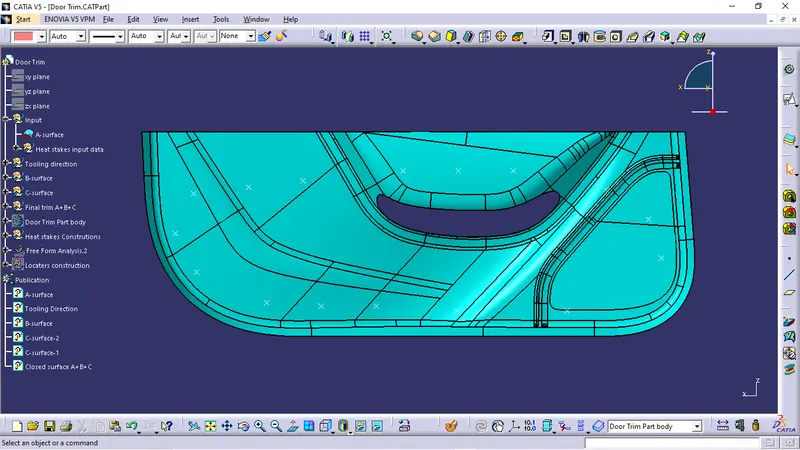

Part Body :

Converting the closed surface to part body.

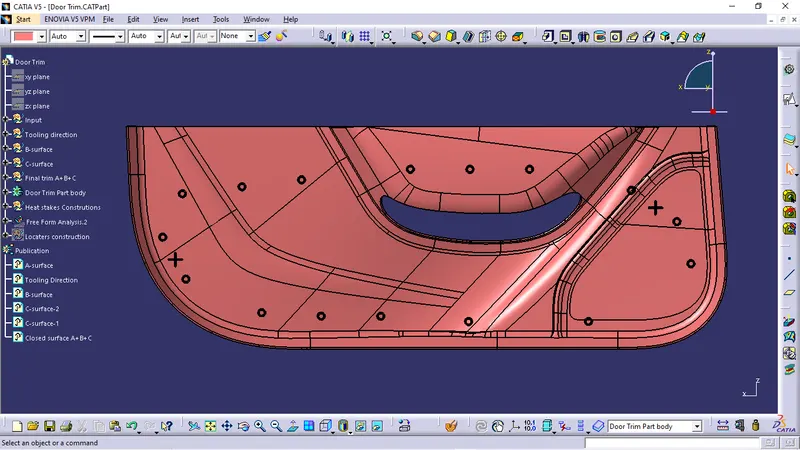

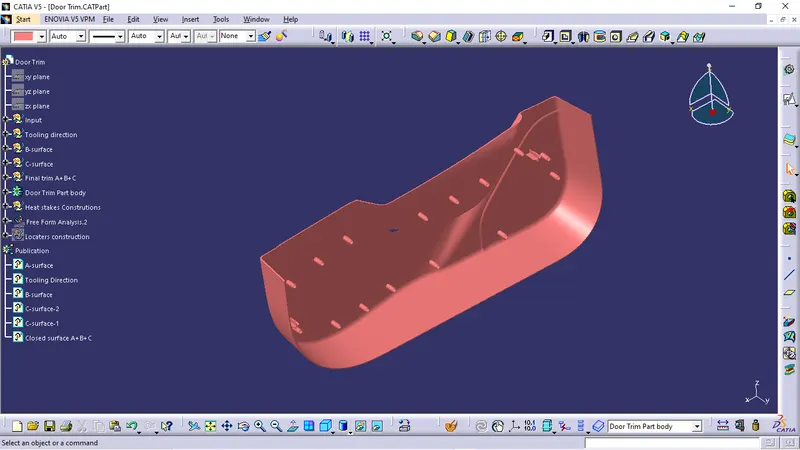

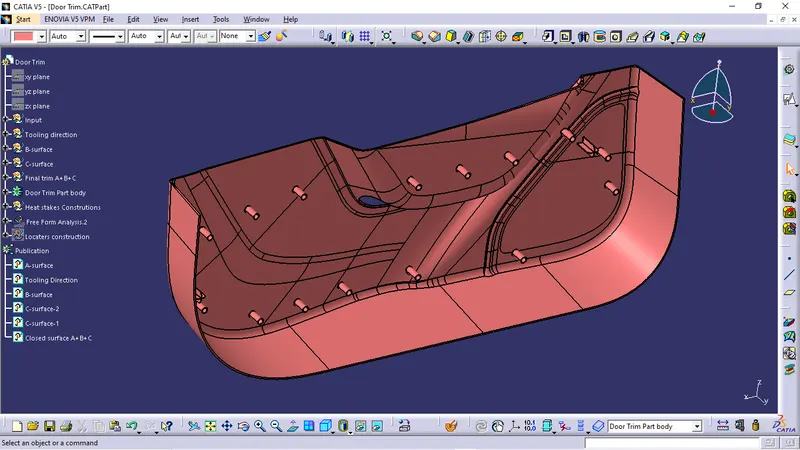

Locaters  & Heat Stakes :

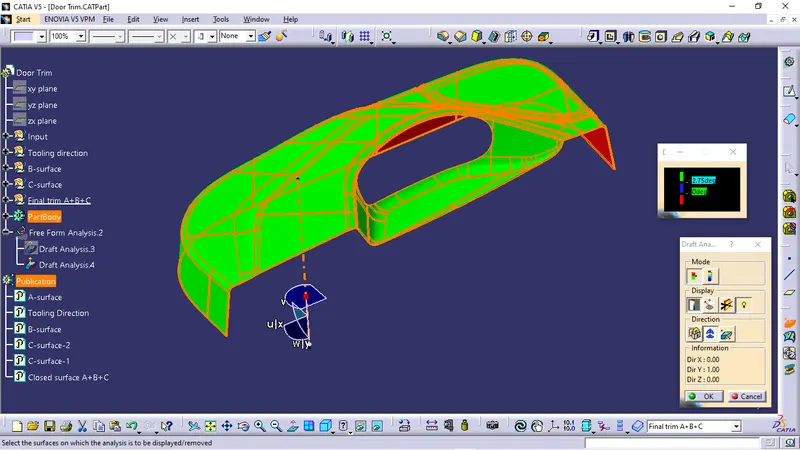

Draft Analysis :

Draft analysis done to part body along tooling axis with 2.75 degree draft angle for outer body and 0.5 degree draft angle for locators and heat stakes along full body.
