Week 9 - Project 1 - Door Trim Lower with Engineering Features

Screenshots of the Draft analysis report for both the given Class-A surface:

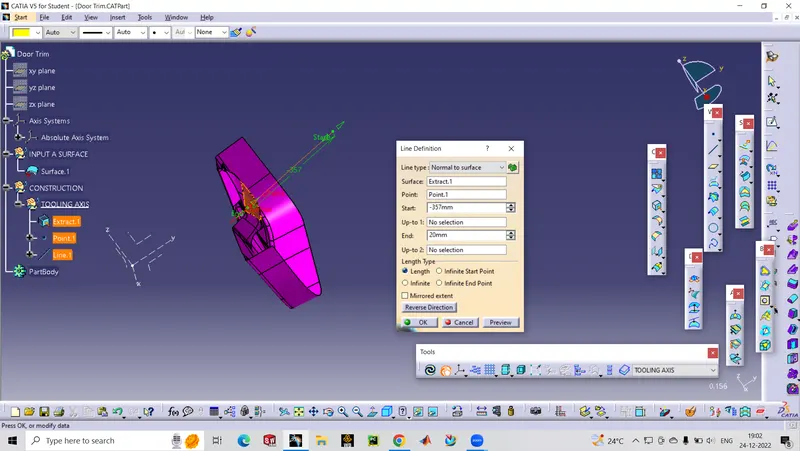

Tooling Axis taken here using the surface extracted from one of the face and a point created with zero coordinate on that surface.

now a line created normal to surface through point and it is the tooling axis.

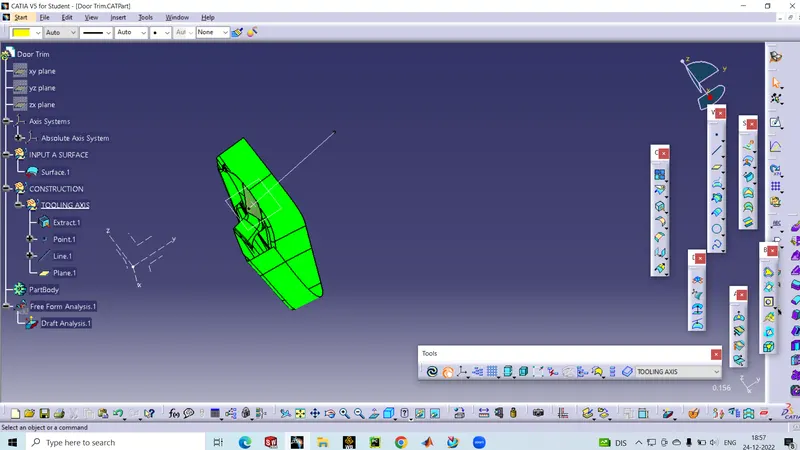

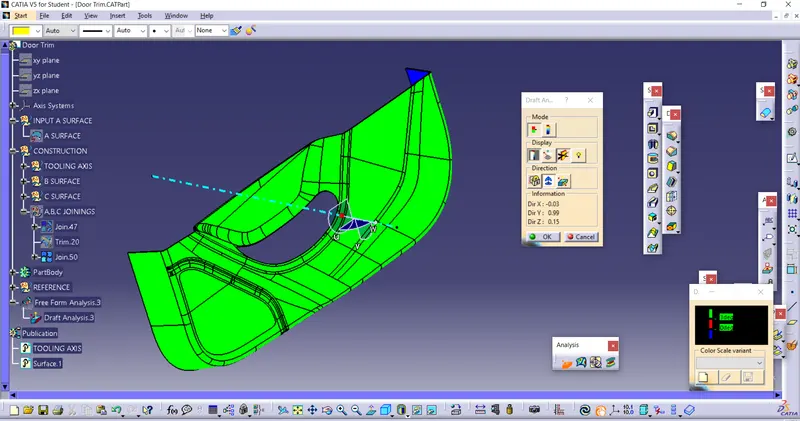

using this tooling axis I did the draft analysis and class A surface is coming in green color.

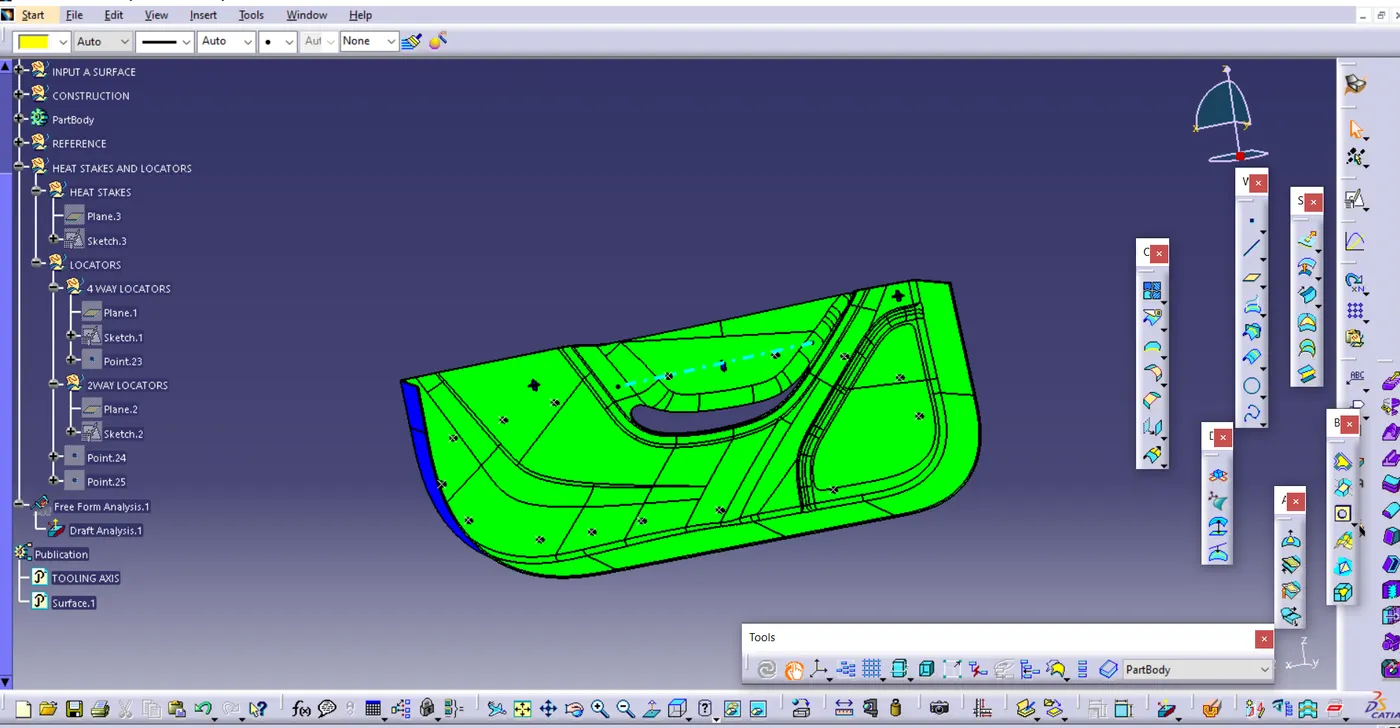

The final output of the DOOR TRIM of the A,B,C surfaces after Joining.

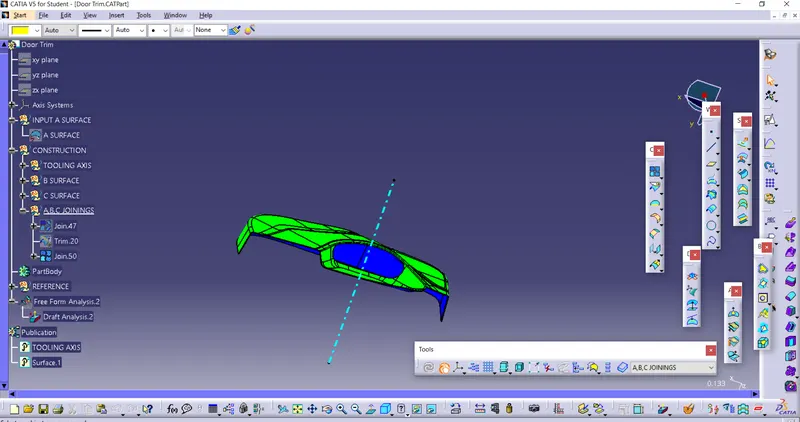

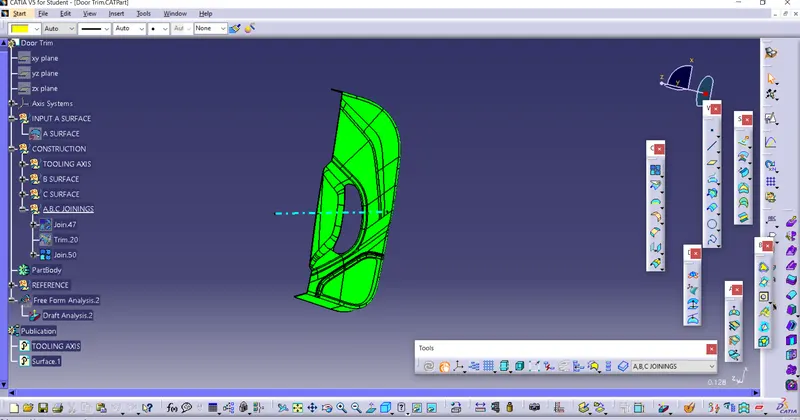

The Final part body Draft analysis using Tool axis given below.

Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Create the Heat Stakes and the locators considering the design rules mentioned in the video for the door applique.

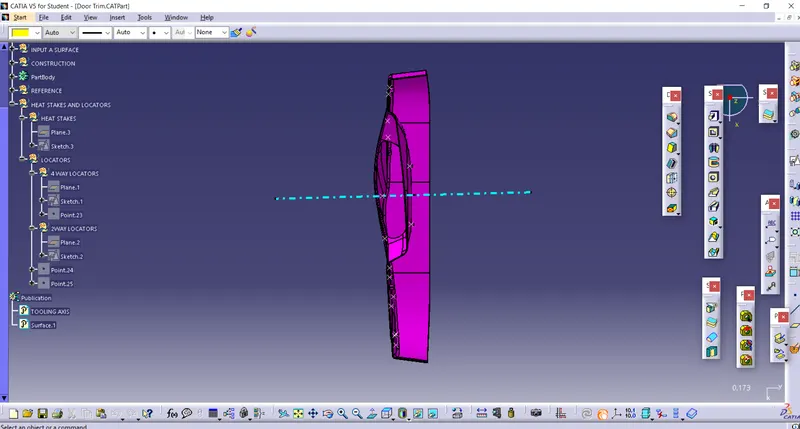

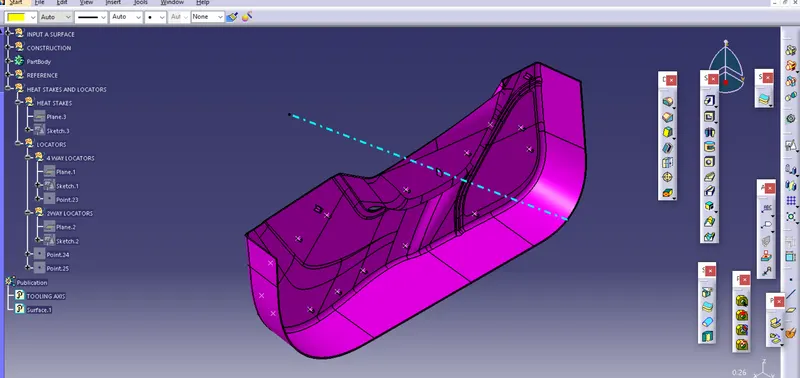

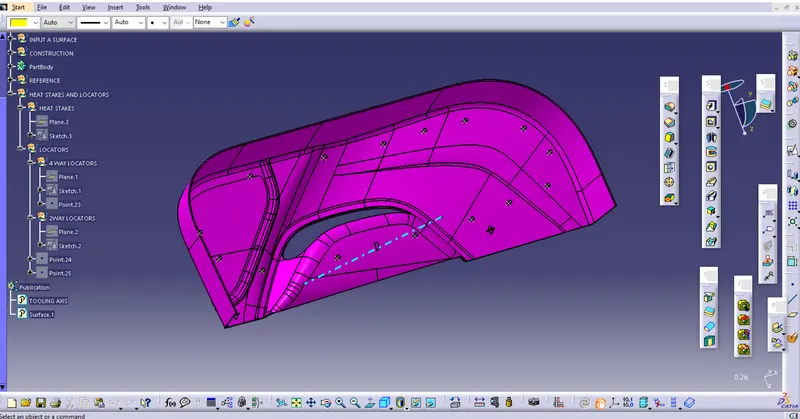

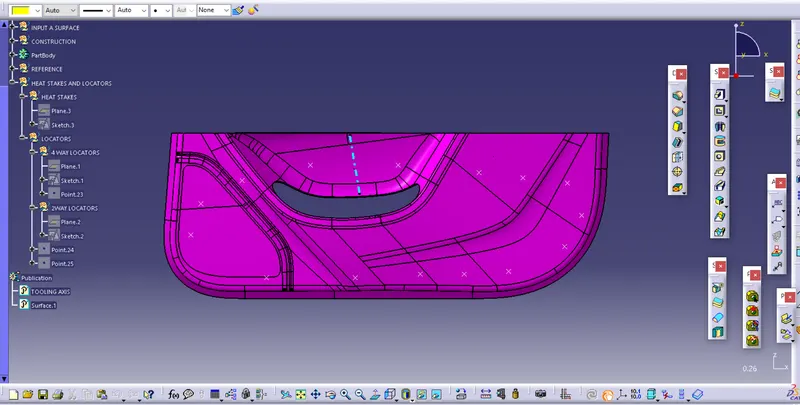

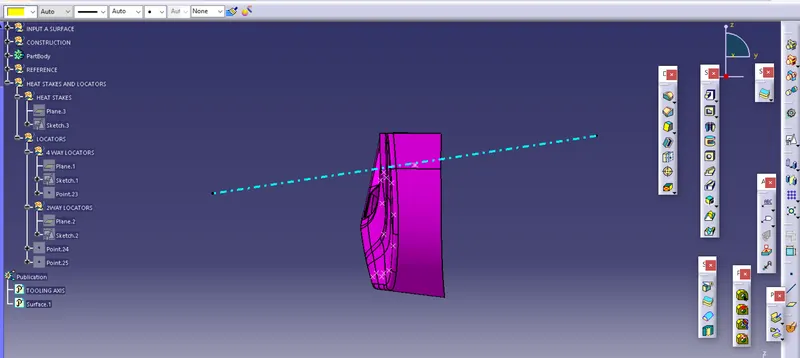

• Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View)
