Week 9 - Project 1 - Door Trim Lower with Engineering Features

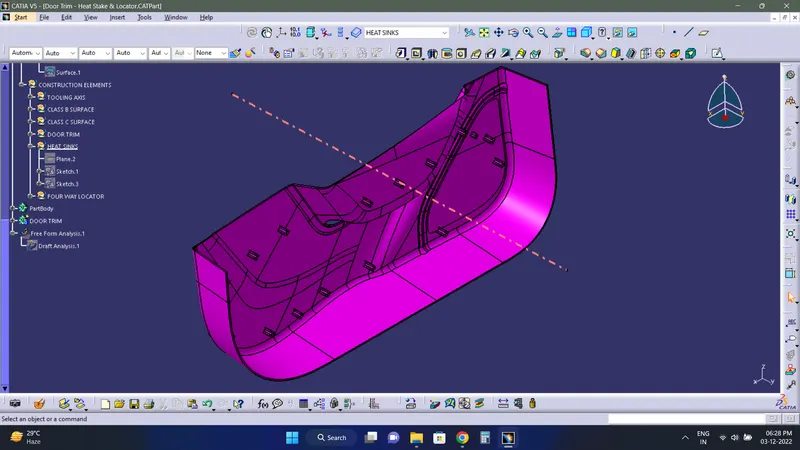

DOOR APPLIQUE :

SOLID MODEL :

SURFACE MODEL:

TOOLING AXIS :

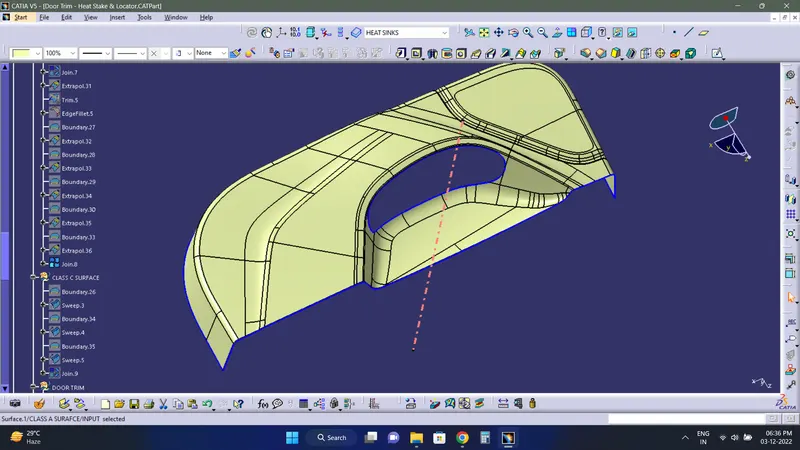

CLASS A SURFACE :

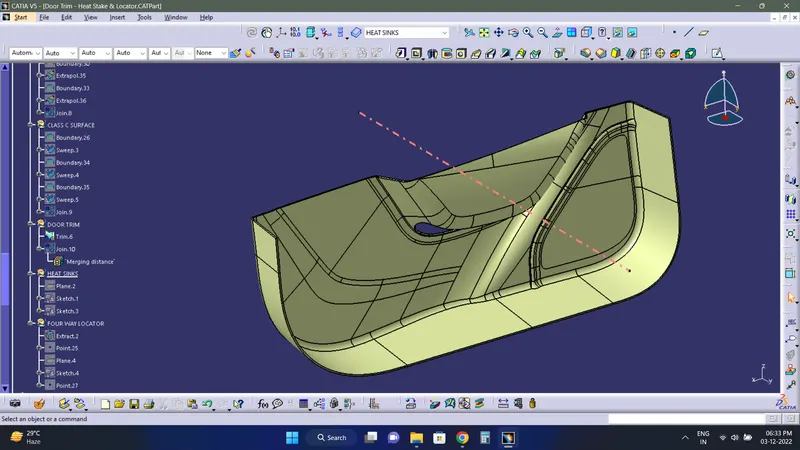

CLASS B SURFACE :

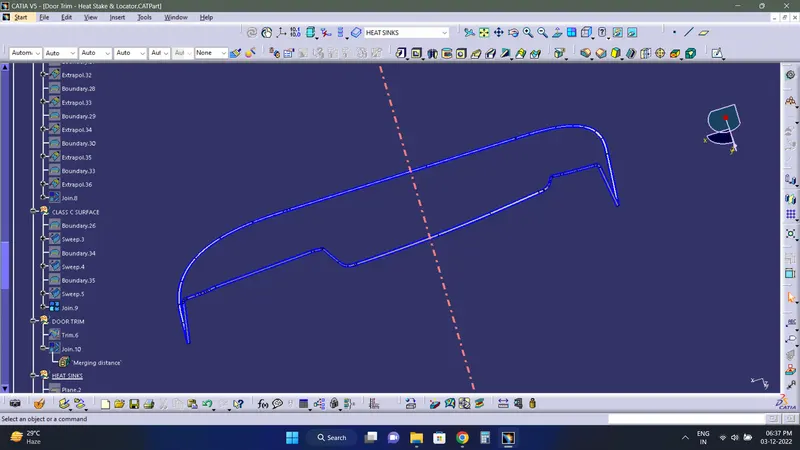

CLASS C SURFACE :

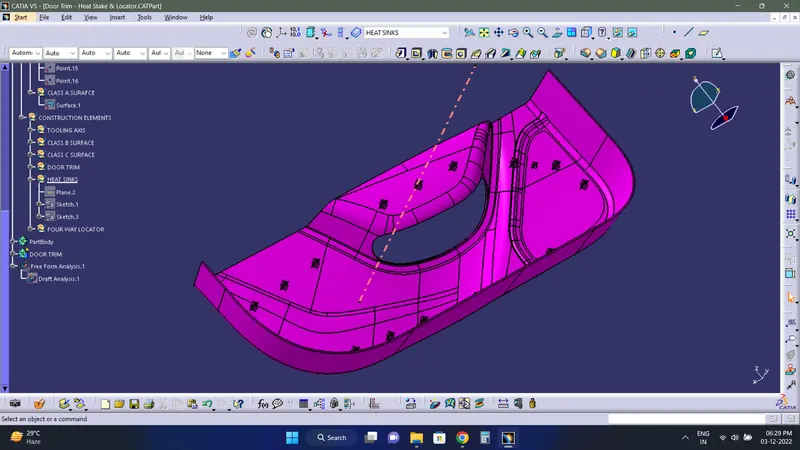

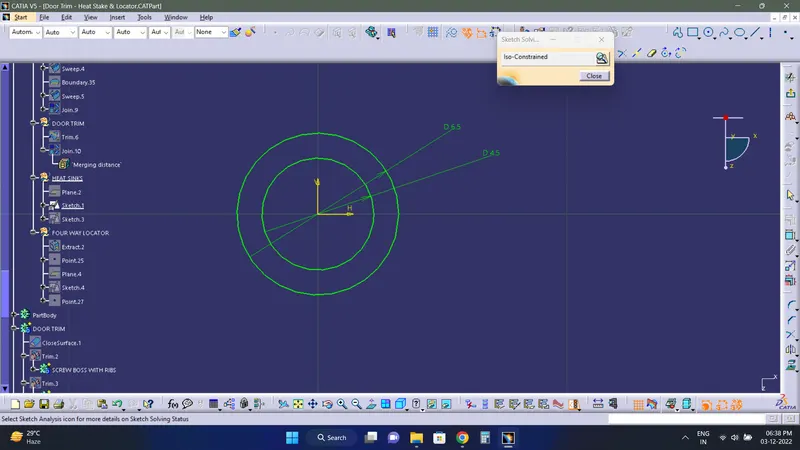

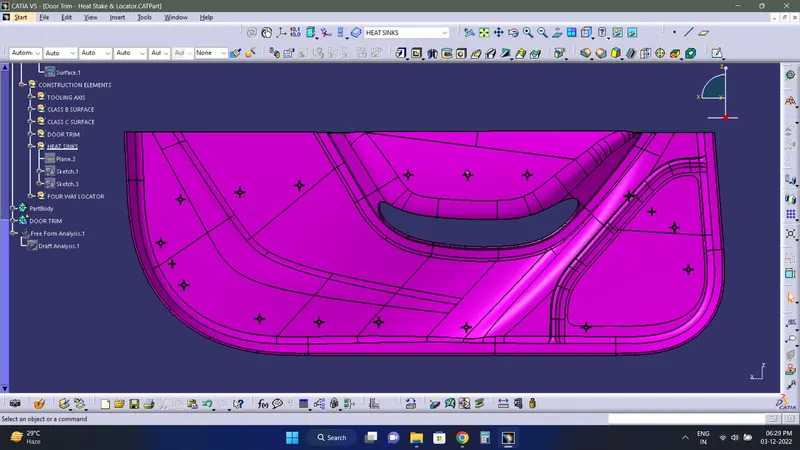

HEAT SINK :

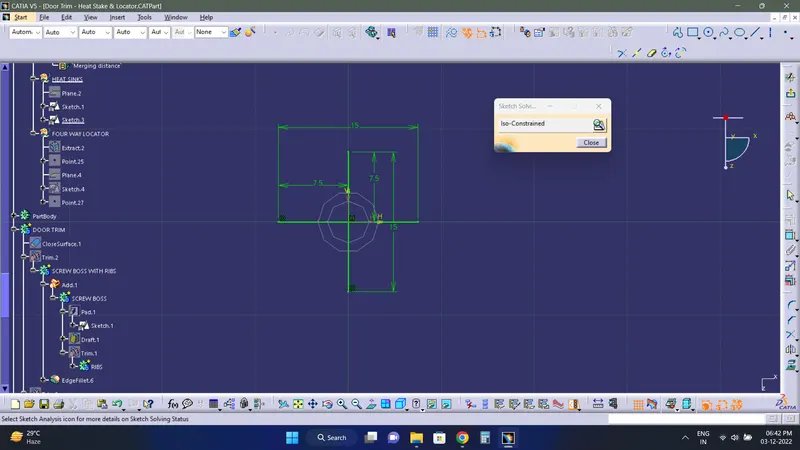

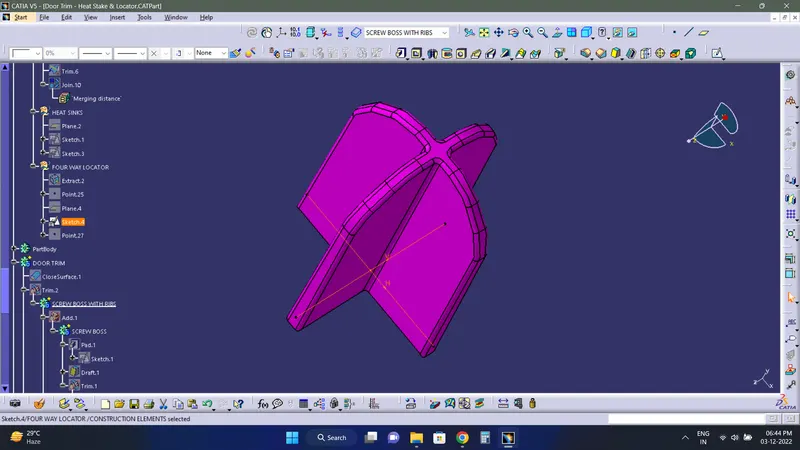

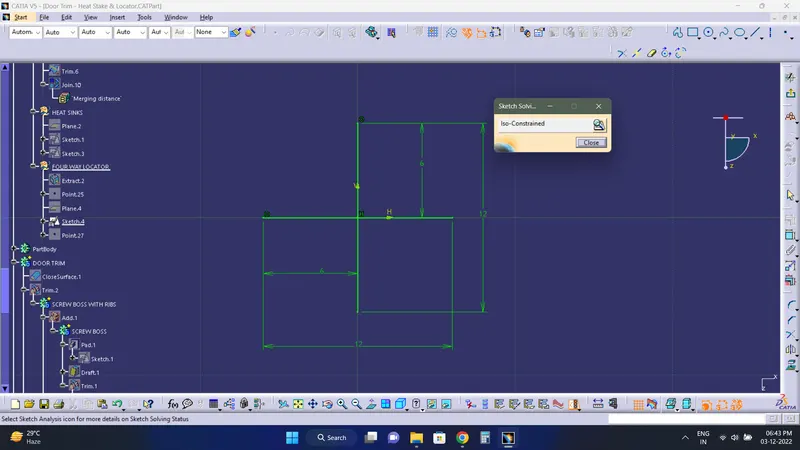

FOUR WAY LOCATOR :

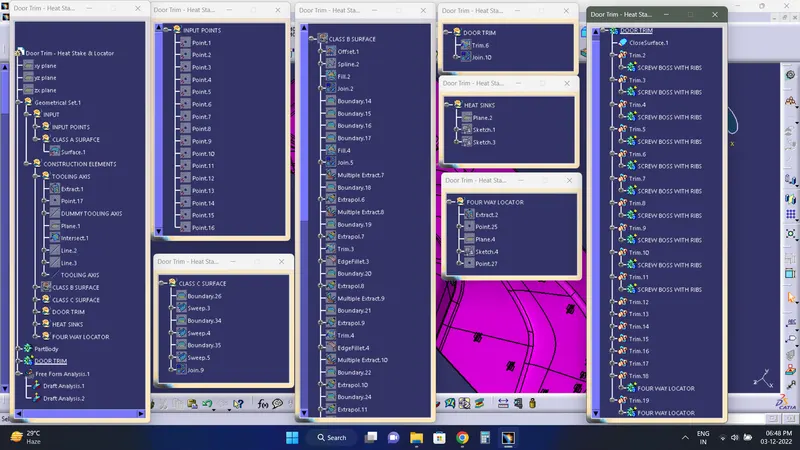

TREE STRUCTURE:

WORK REPORT DETAILS :

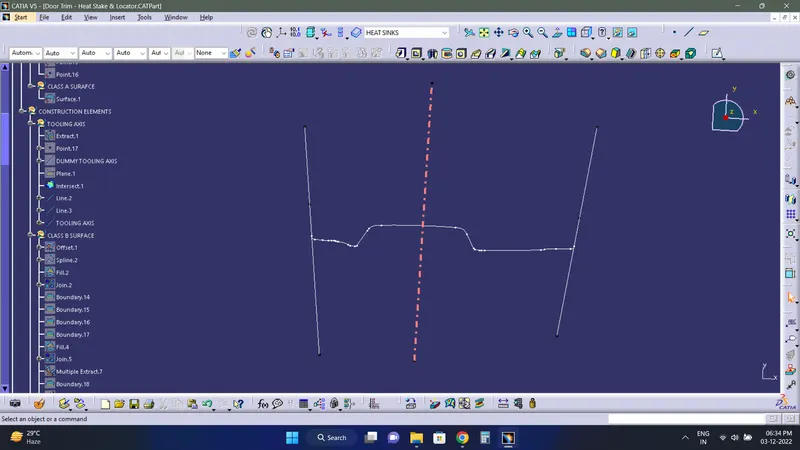

TOOLING AXIS : Y AXIS IS THE MAIN TOOLING AXIS OS THE PART

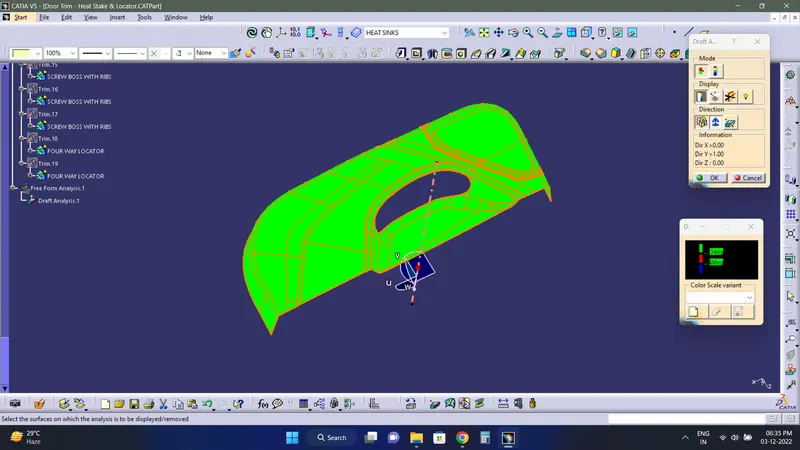

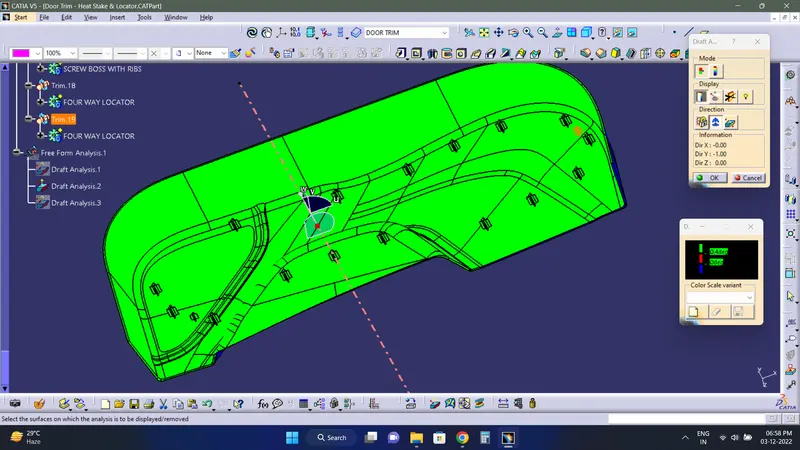

CLASS A SURFACE DRAFT ANALYSIS : ALL THE SURFACES OF CLASS A CLEARS THE 3 DEGREE DRAFT ANGLE ,AS SHOWN IN IMAGE.

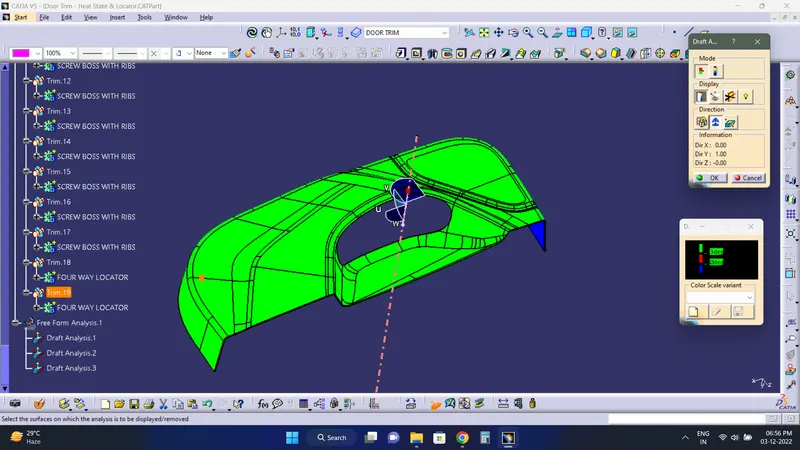

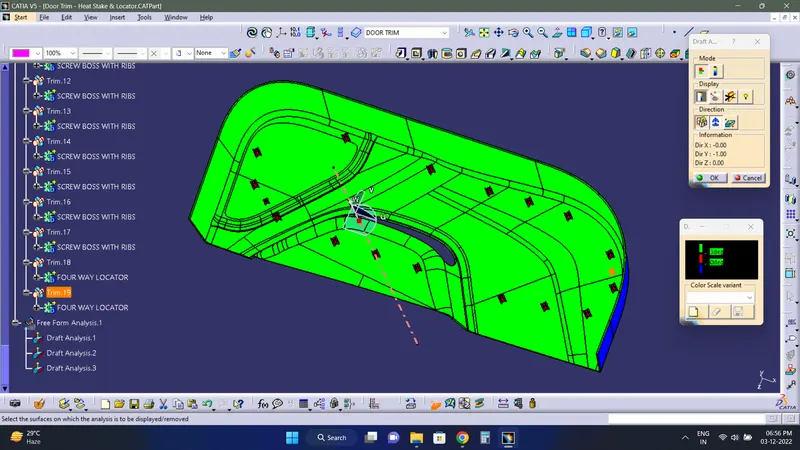

DOOR APPLIQUE SURFACE DRAFT ANALYSIS : ALL THE SURAFCE OF DOOR APPLIQUE CLEARS THE 3 DEGREE DRAFT ANGLE EXCEPT MEACHANICAL FEATURE OF THESE PART HEAT SINK AND FOUR WAY LOCATORS DUE TO 0.5 DEGREE DRAFT IS GIVEN TO THOSE FEATURES AS SHOWN IN BELOW IMAGES .

NOTE : HERE 0.4 DEGREE DARFT ANLE IS TAKEN FOR 0.5 DEGREE DRAFT FOR HEATSINK AND LOCATORS .
