Week 9 - Project 1 - Door Trim Lower with Engineering Features

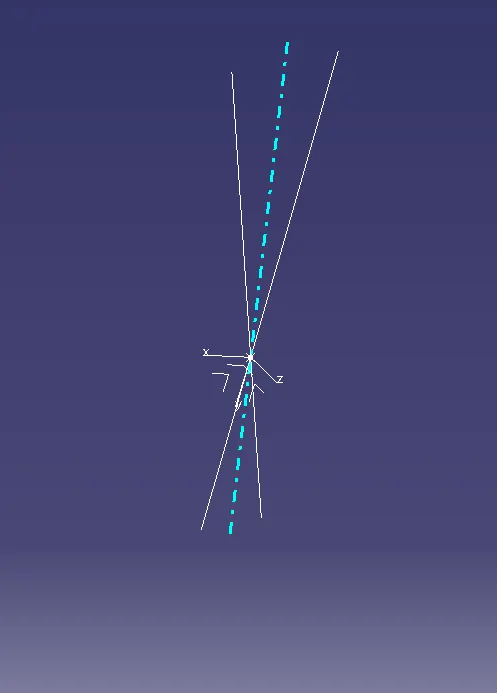

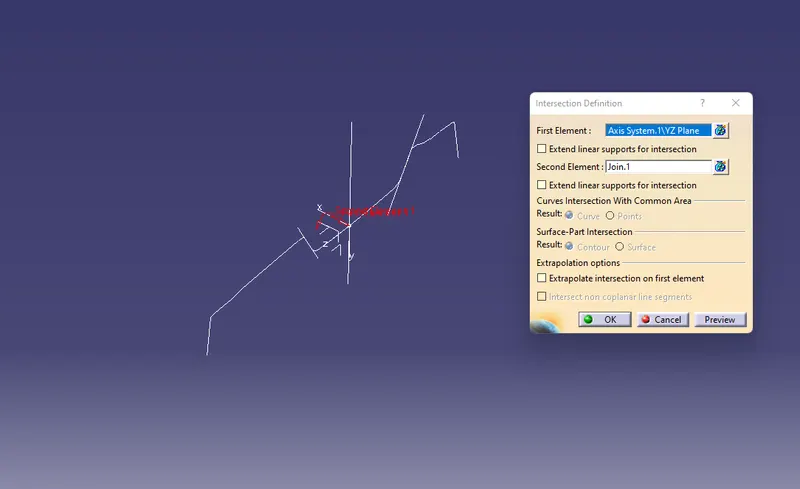

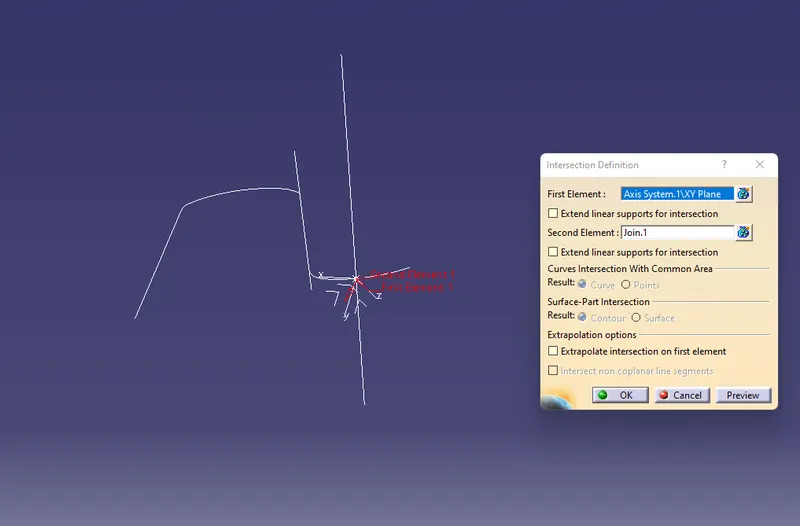

Tooling axis is created by bisecting the tooling axis in both x and y direction which are created by extened and bisecting lines of the inetersection of the class a surfce with both xz and yz planes

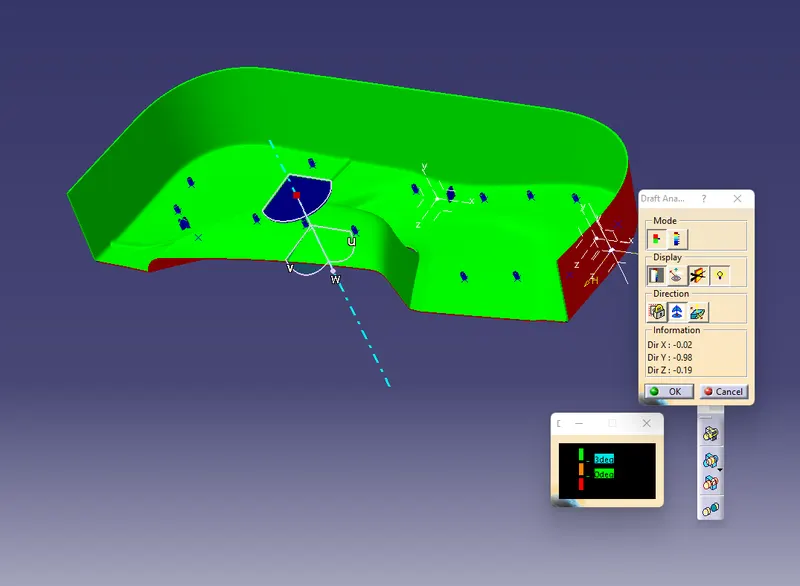

draft analysis report

draft analysis made on the CLASS A and final plastic componant by aligning the compass with the tooling direction and byclicking the componant will give the report of the CLASS A and final componant

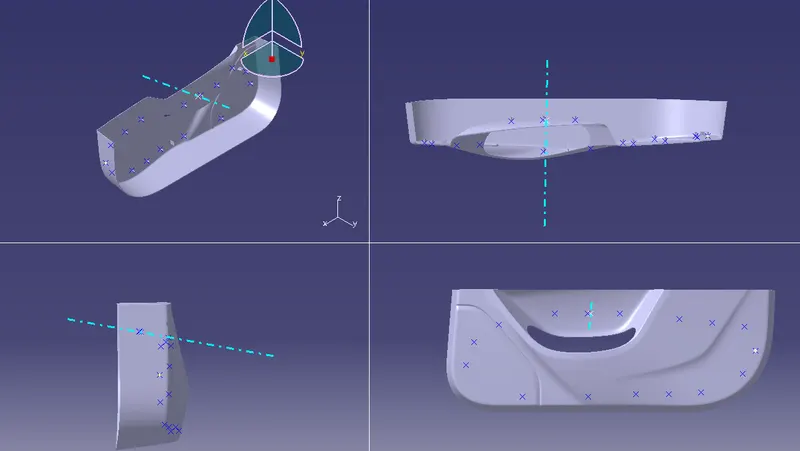

3d image of final product

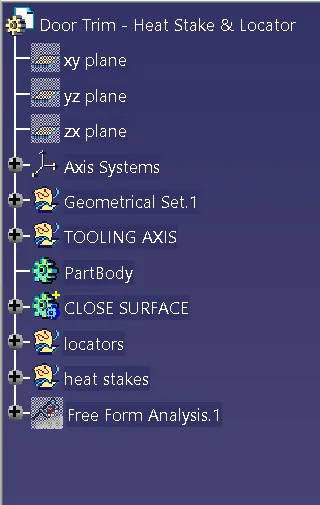

tree structure
