Week 9 - Project 1 - Door Trim Lower with Engineering Features

The initial step is to check for any discontinuity in the class A surface model using Join or Boundary option.

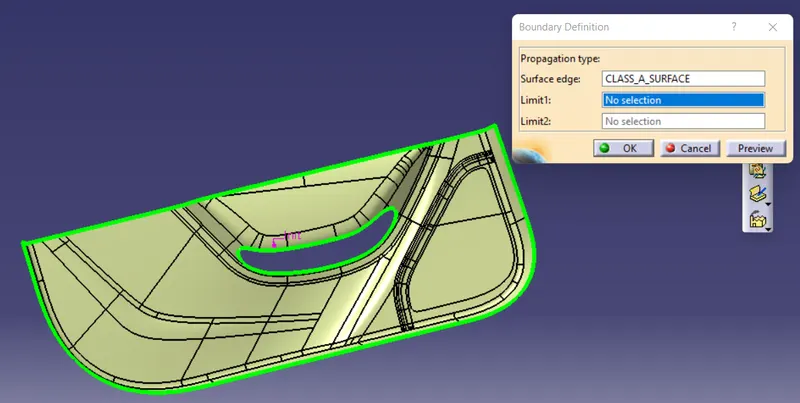

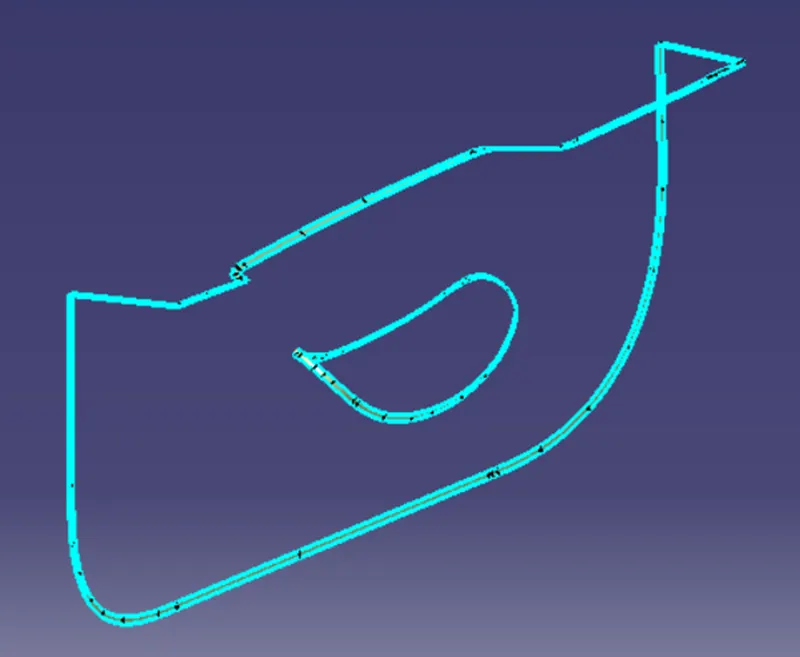

Here only the outer boundary line is found. There is no discontinuity between the surfaces.

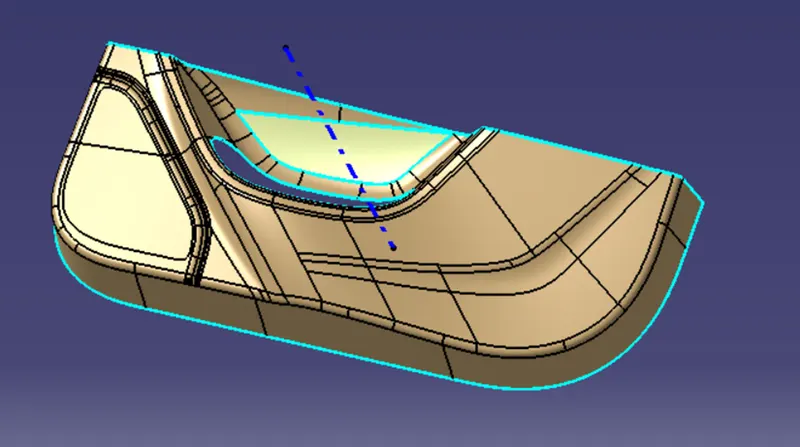

The next step is to define the tooling direction. Here the Bezel bin is more suitable for defining the tooling axis.

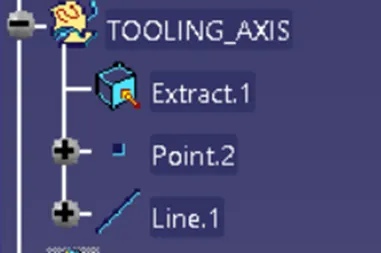

There is an flat face which is on the surface. Extracting that flat face and create a point on the surface. Draw a line perpendicular using that point.

Draft analysis on Class A surface:

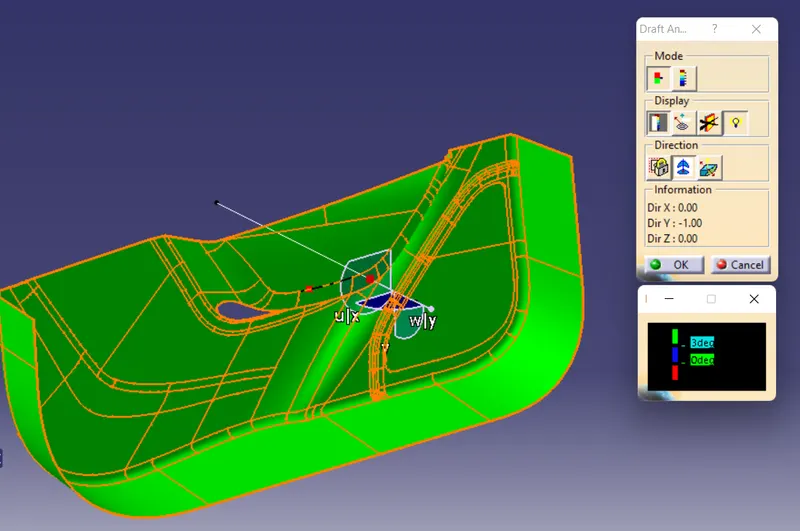

Draft analysis is performed on class A surface to check the draft angle's of each faces.

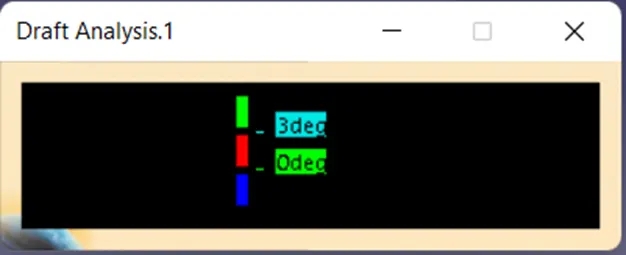

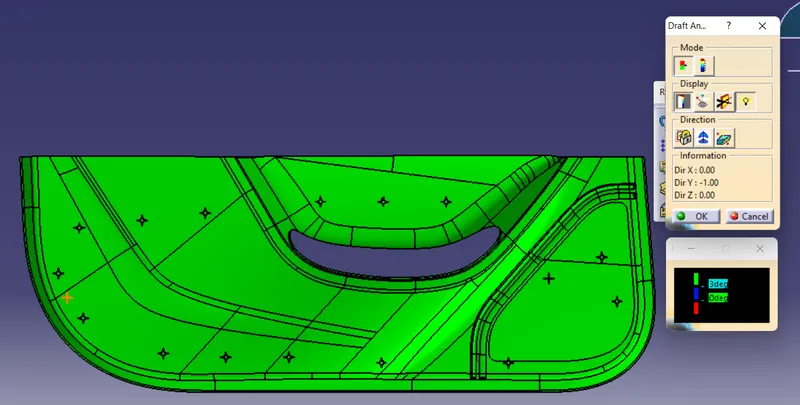

Green color on the class A surface denotes- Draft angle 3 degrees and above.
Other codes on the dialog box

Class_B_Surface_creation:

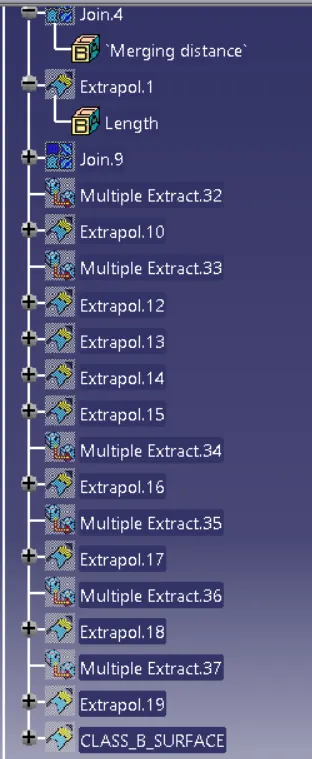

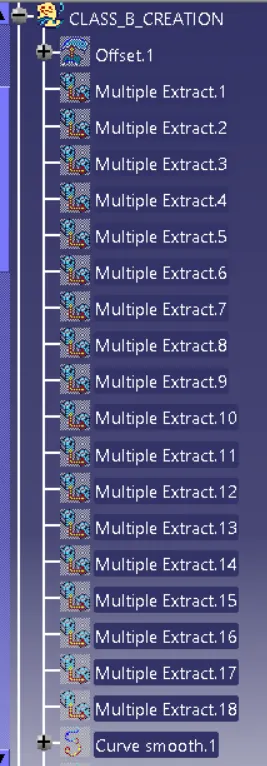

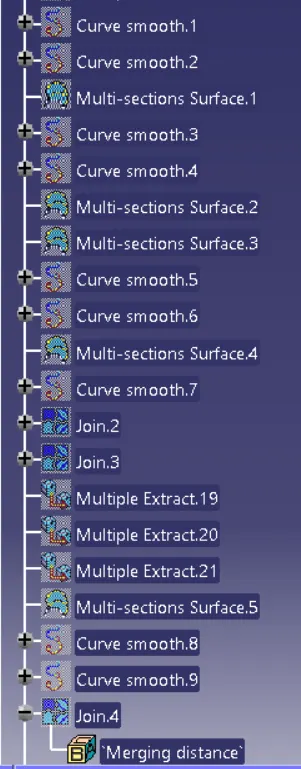

Offsetting Class A surface inward some faces were missed while offsetting. Those surfaces were created using multi section, sweep options

Class_C_Surface_creation:

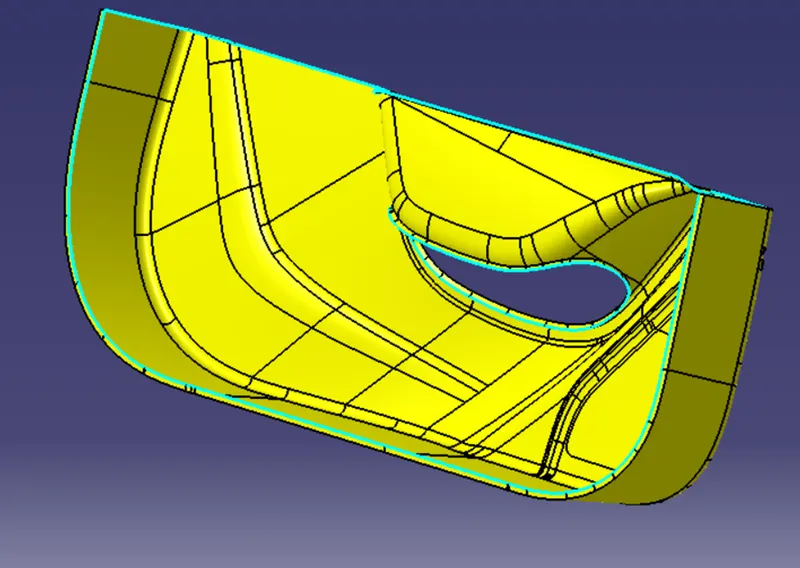

Class C surface is used to close class A and Class B to form a closed surface.

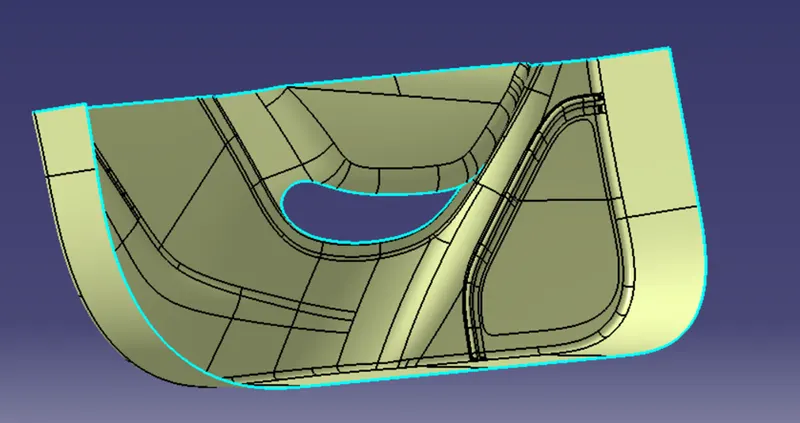

Joining Class A& Class C surface and trim with Class B surface to create a closed surface

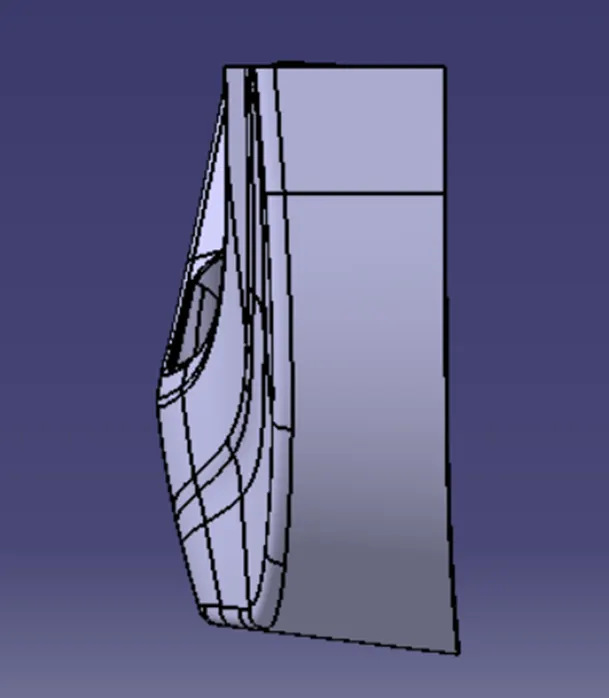

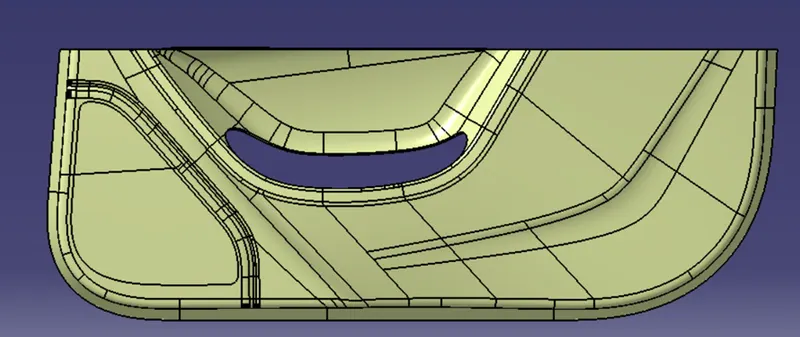

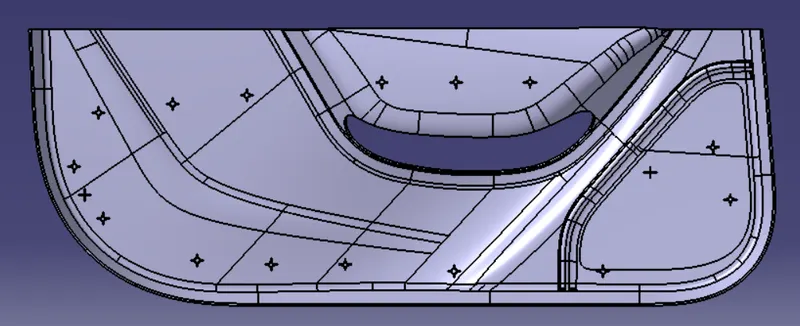

Final Closed surface

Creating a solid model:

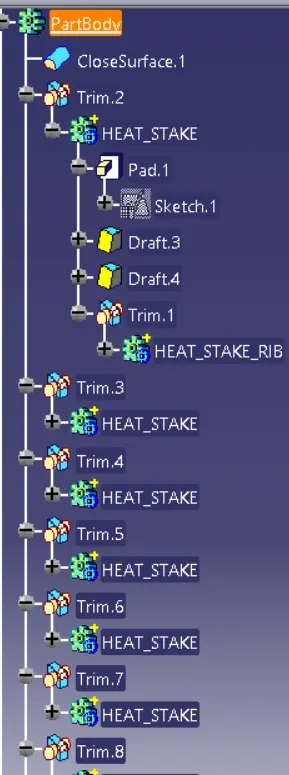

Using the closed surface option in part modeling to form a solid model.

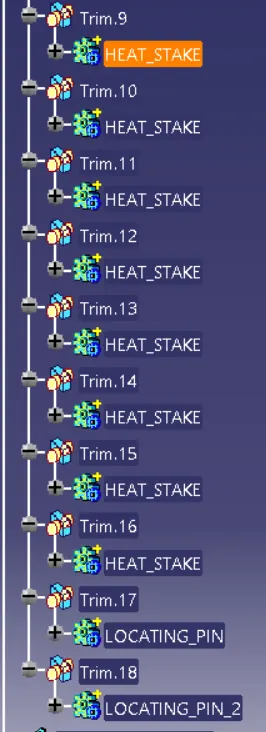

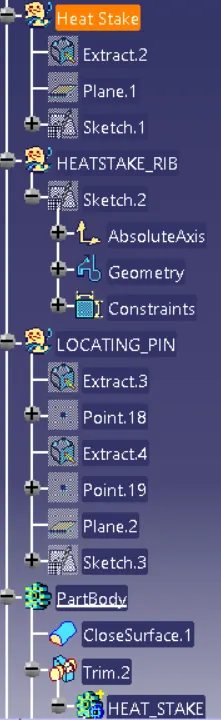

Heat stakes and 4-way locating pin is placed on the marked area.

Draft analysis on the finished component:

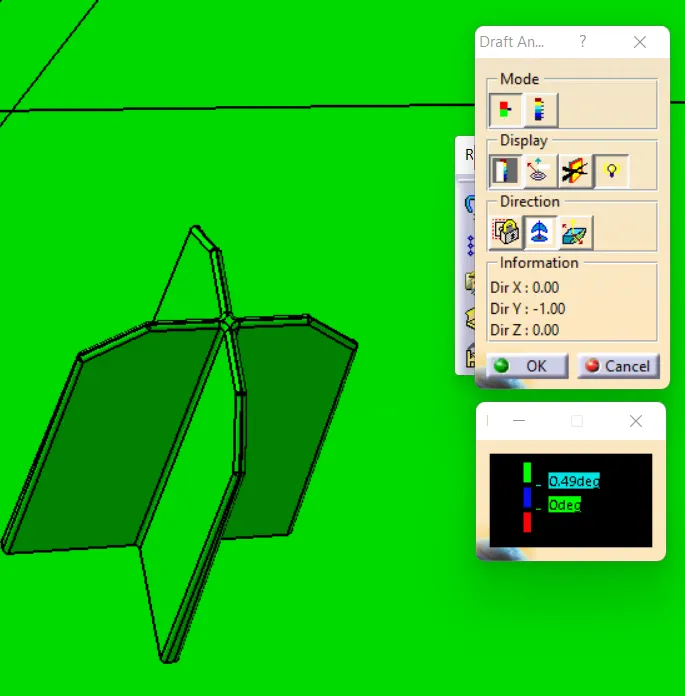

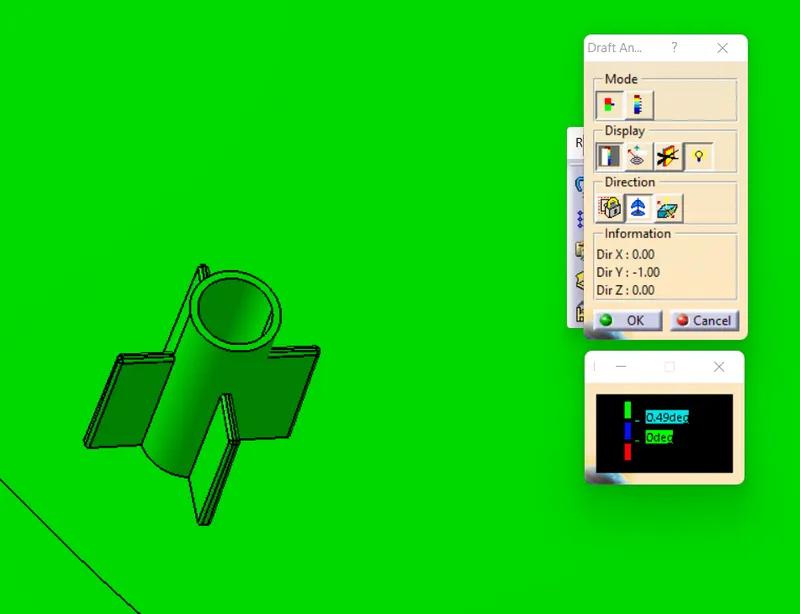

Draft analysis on engineering features:
