Week 9 - Project 1 - Door Trim Lower with Engineering Features

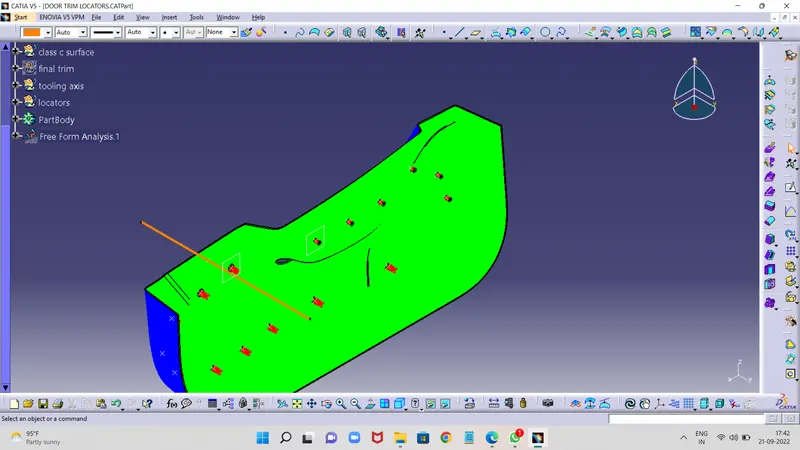

DRAFT ANALYSIS;

• GO TO INSERT TOOLBAR THEN ANALYSIS AND THEN SELECT THE FEATURE DRAFT ANALYSIS OPTION
• TO ENSURE THE SURFACE IS MATERIAL MODE
• TO USES THE COMPASS TO DEFINE THE NEW CURRENT DRAFT DIRECTION
• TO ENSURE THE COMPASS IS POSITIONING THE TOOLING AXIS
• TO ANALYSIS UNDER THE RUNNING POINT AND ENSURE THE DIMENSIONS
• TO ENSURE THE DRAFT ANGLE 3 DEGREE
• TO ENSURE THE SURFACE THE DRAFT ANALYSIS COLOUR GIVEN ANALYSIS REPORT
• IF GREEN COLOUR MEANS DRAFT ANGLE IS ABOVE 2.9 DEGREE
• IF RED COLOUR MEANS DRAFT ANGLE IS BELOW 0-2.9 DEGREE
• IT BLUE COLOUR MEANS DRAFT ANGLE IS 0 AND MINUS VALUE

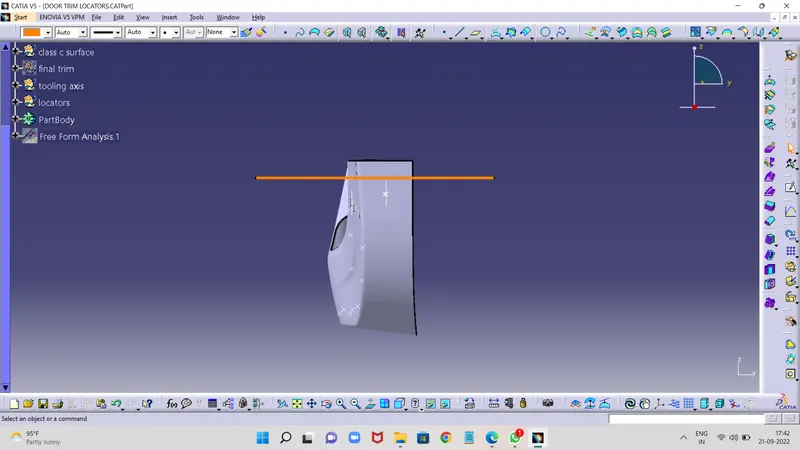

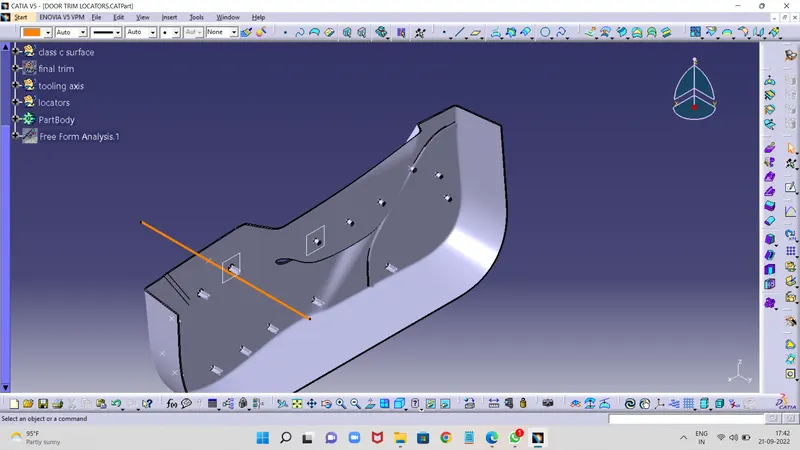

TOOLING AXIS;

• TO CREATE THE POINT AND CREATE THE LINE FOR DUMMY TOOLING AXIS.
• TO CREATE THE LINE FOR TOOLING AXIS
