Week 9 - Project 1 - Door Trim Lower with Engineering Features

DOOR TRIM LOWER

Aim: To Create the Door trim lower component through the given Class-A surface.

Objectives:

• Creation of Tooling axis with appropriate draft angle.

• Creation of other surfaces (eg, B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface and Solid model hence created.

Draft

The draft is the amount of taper for moulded or cast parts perpendicular to the parting. line. Draft angles are a design consideration that makes it much easier for a part to release cleanly from a mould. A draft angle is calculated as a degree measurement (or, less often, an inch or millimetre measurement) from the vertical axis of a mould, and it helps account for thermoplastic shrinkage, a practical reality of the injection moulding process for most materials.

Draft angles are generally a requirement of injection moulding design (though there are a select few soft materials, like nylon, that can get away with draft angles of zero). The draft should be a part of the design for manufacture, and all stakeholders and contributors should be aware of its need at the outset of the design process. This includes product designers, design engineers etc and this allows considerations for design requirements to be taken into account. Any draft is always better than no draft.

Importance of Draft:

By accounting for thermoplastic shrinkage during the cooling process, draft angles significantly reduce friction between the finished, cooled part and the side of the mould, Not only does this create a much easier release process, but it also offers several other benefits, depending on the design of the part which is as follows:

• Reduces the chance of damage to the part due to friction during the release.

• Reduces wear and tear and chances of damage to the mould.

• Ensures a uniform, smooth, unscratched finish when required.

• Ensures the integrity and uniformity of other surface finishes and textures.

• Reduces overall cooling time by lessening or eliminating the need for unconventional ejection setups.

• Most, if not all, of these benefits, offer either direct or indirect overall production cost reductions.

Procedure for creation of Solid model:

The image below shows the given class A surface for which a solid model is to be created.

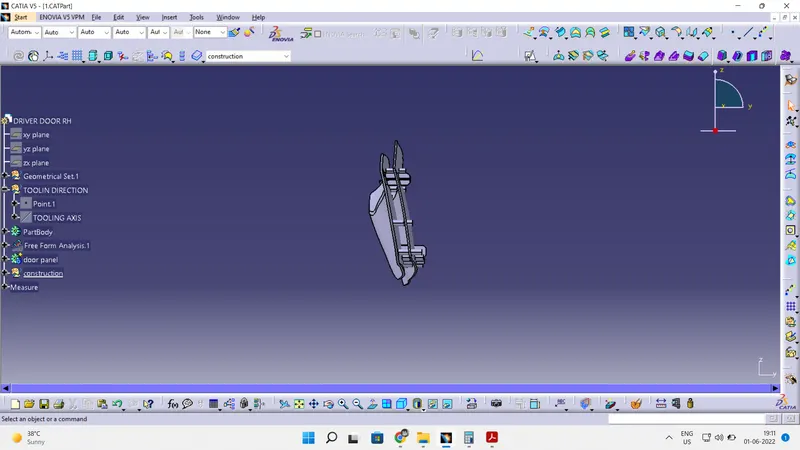

Tooling Axis creation:

It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.

By analysing the component the most easily ejectable direction is somewhere close to the Z direction,(might be inclined to it) so we have made a sketch on the YZ plane of Axis System) to create a bisecting line considering the 2 faces which might be difficult to be tooled.

Creation of Class - B and C surface

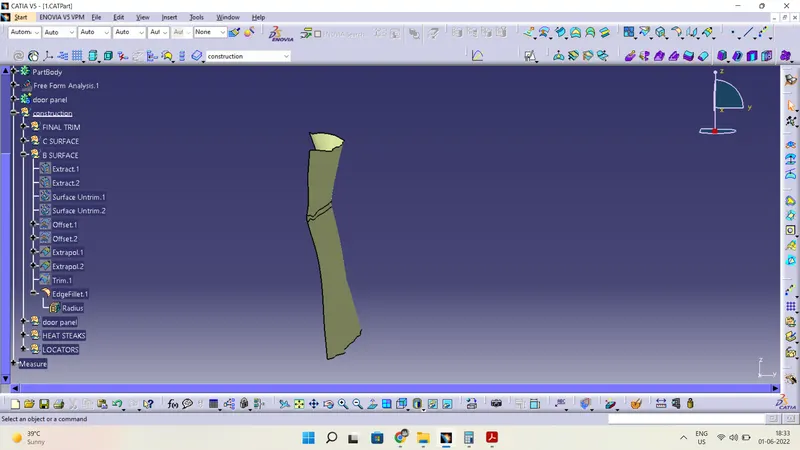

Extracting the class - A surface without the fillets and then trimming and extrapolating them to join them, and after that offset the surface to 2.5 mm thickness which forms as the Class - B surface.

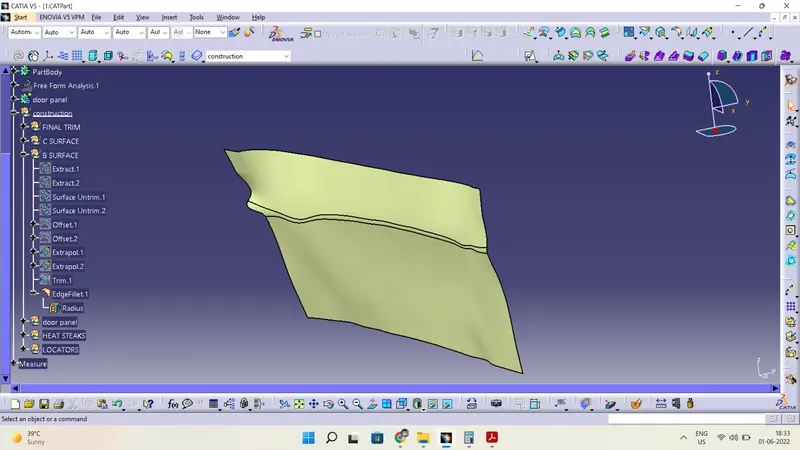

Class - B surface

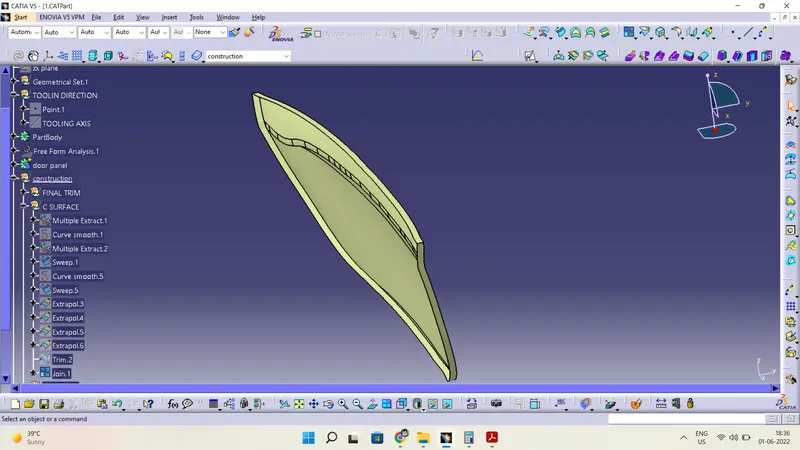

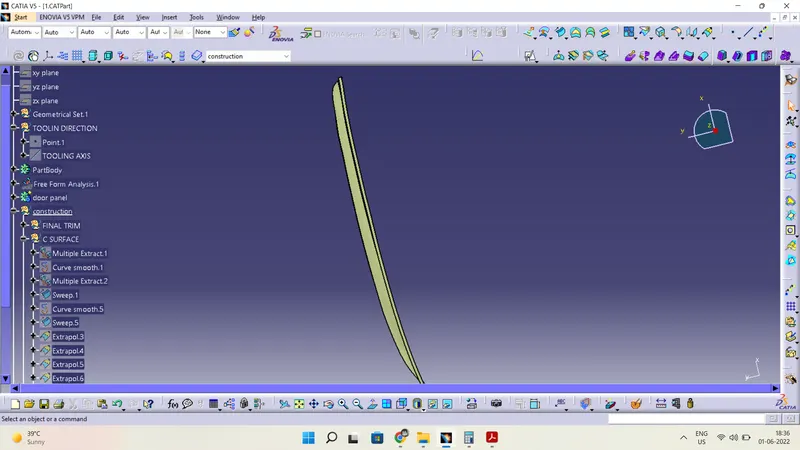

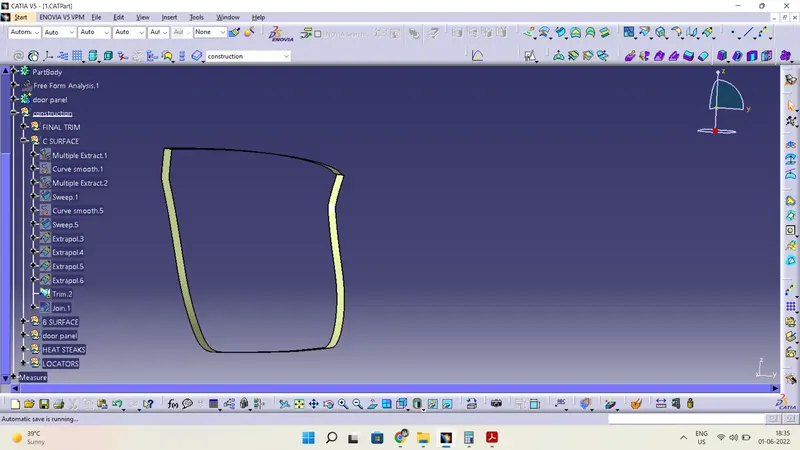

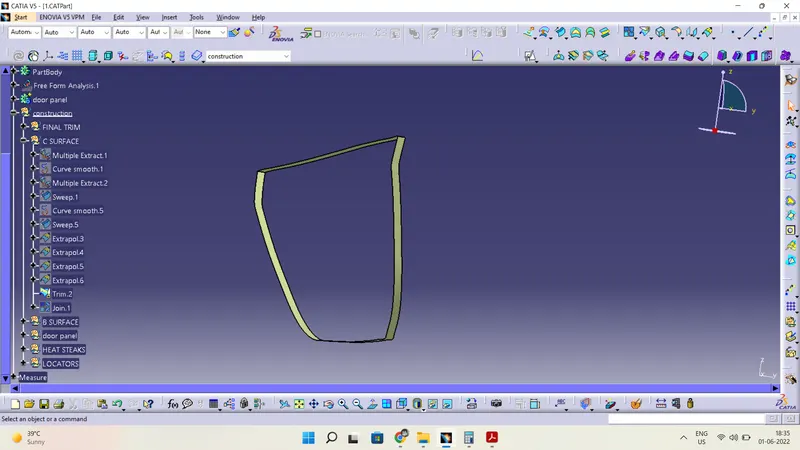

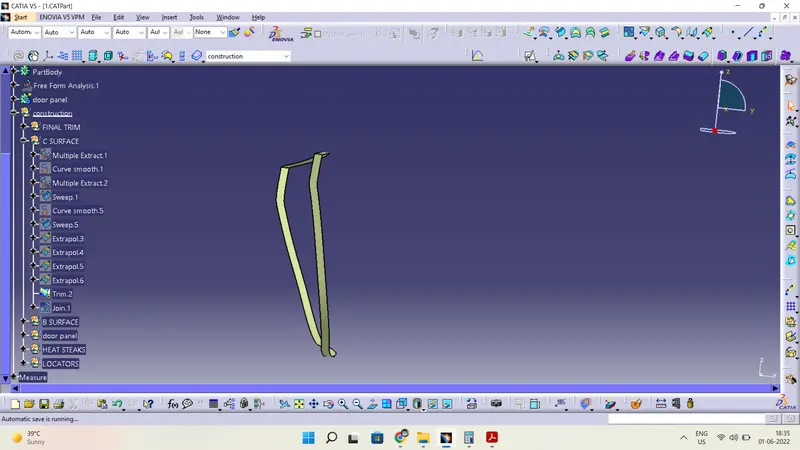

Class - C surface

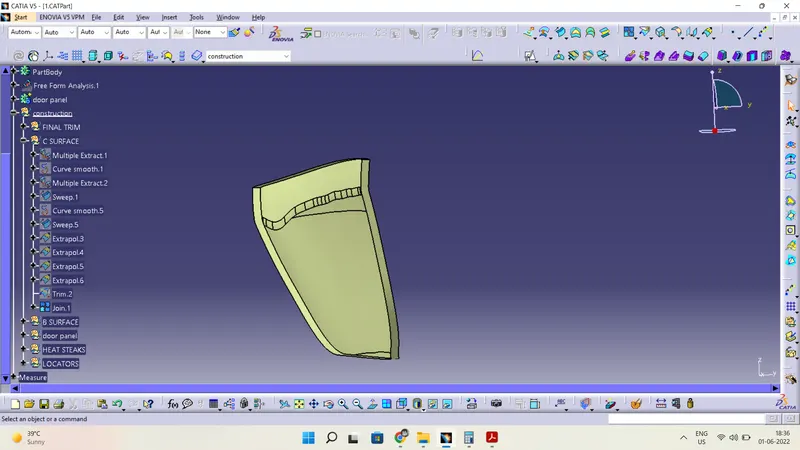

Join with Class-A

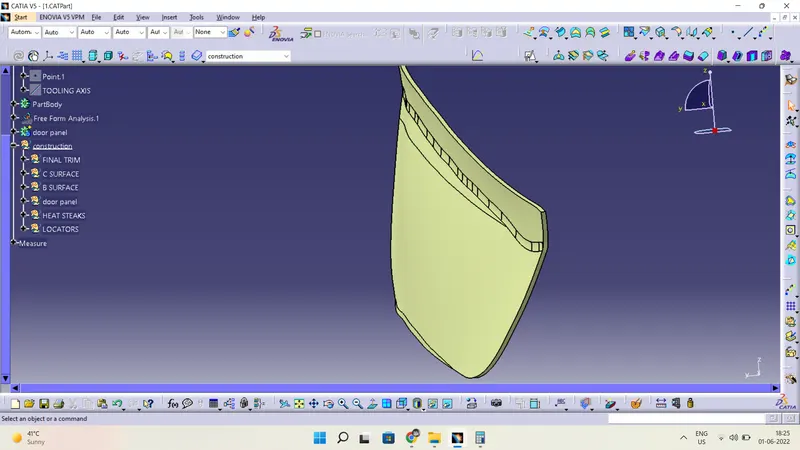

Final Surface

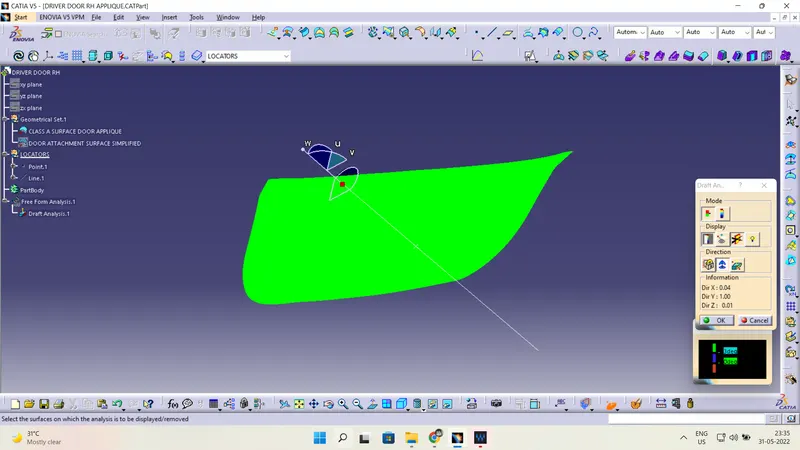

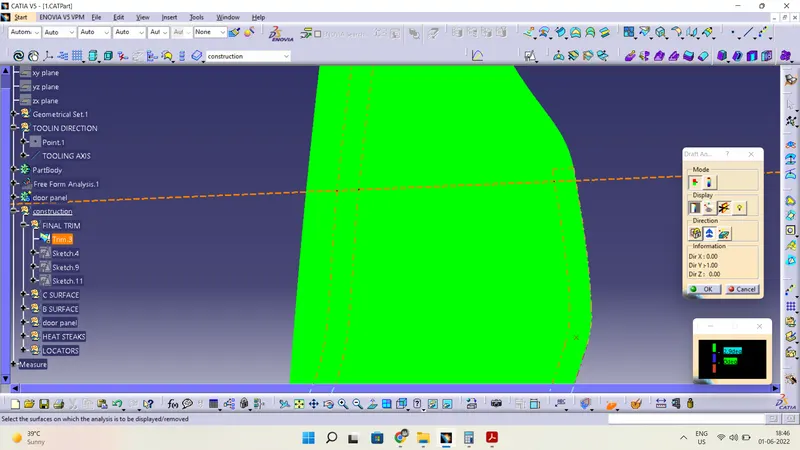

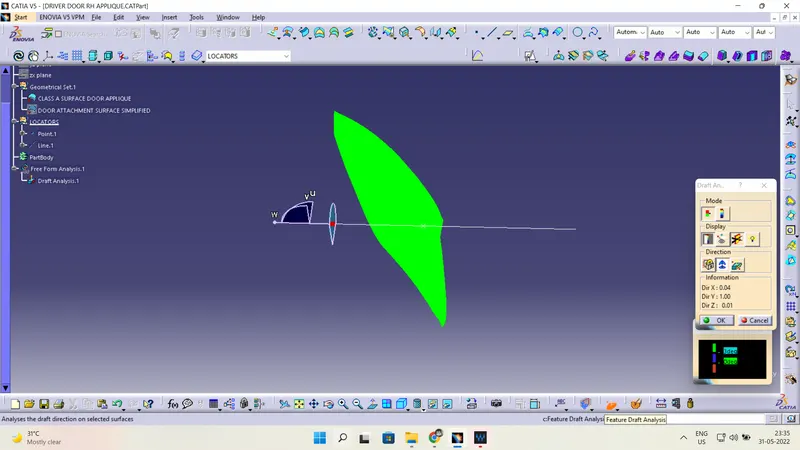

Draft Analysis of Class-A Surface

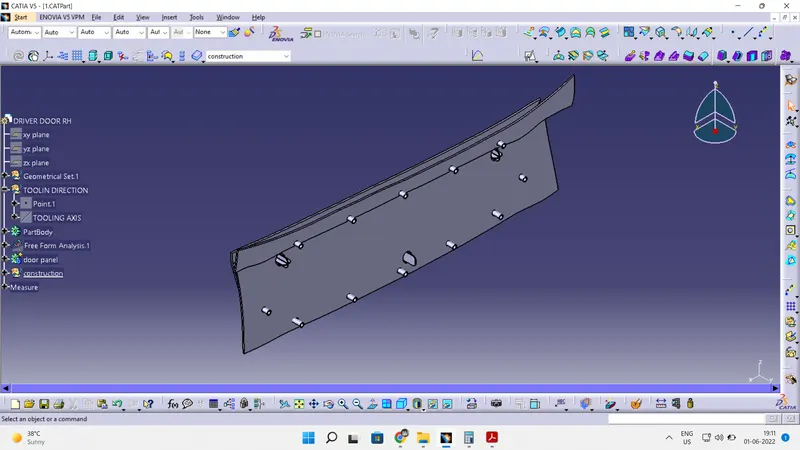

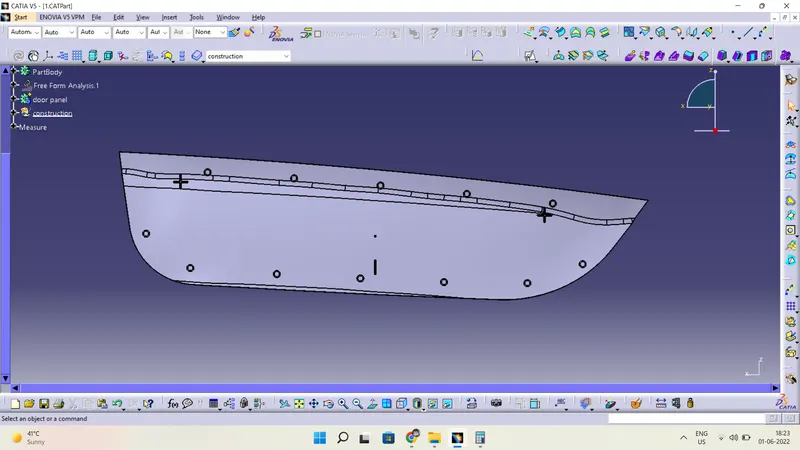

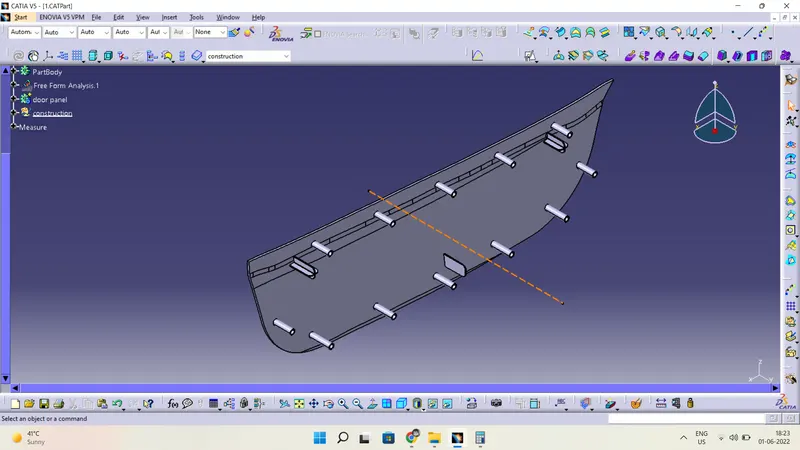

Creation of 4-way, 2 way, Heat Steaks Locators

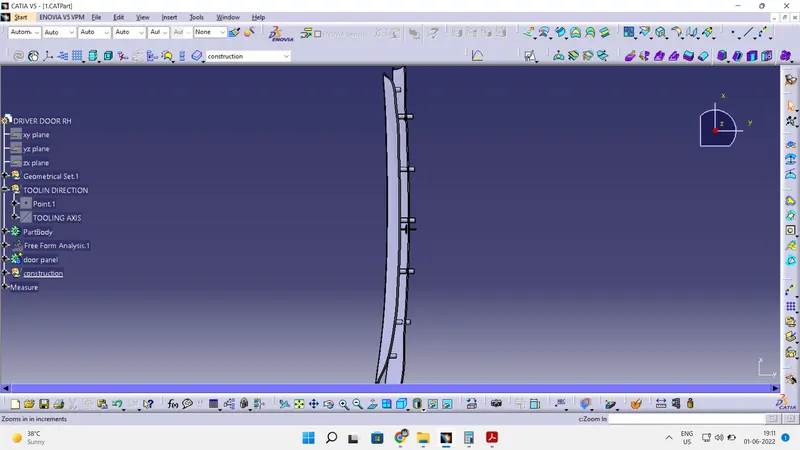

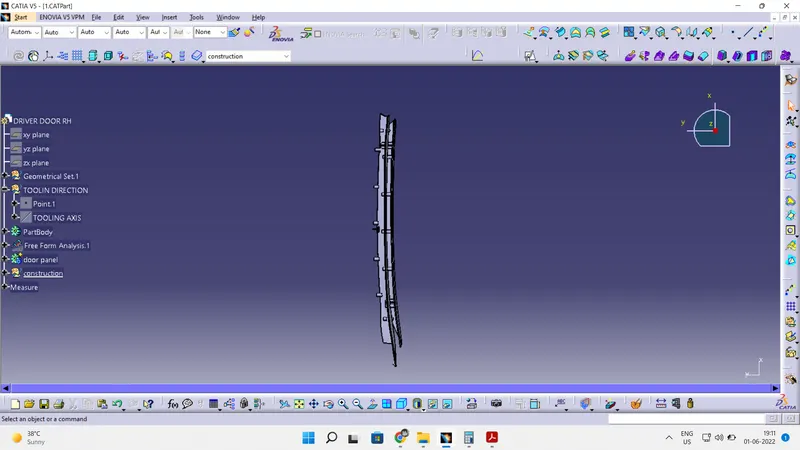

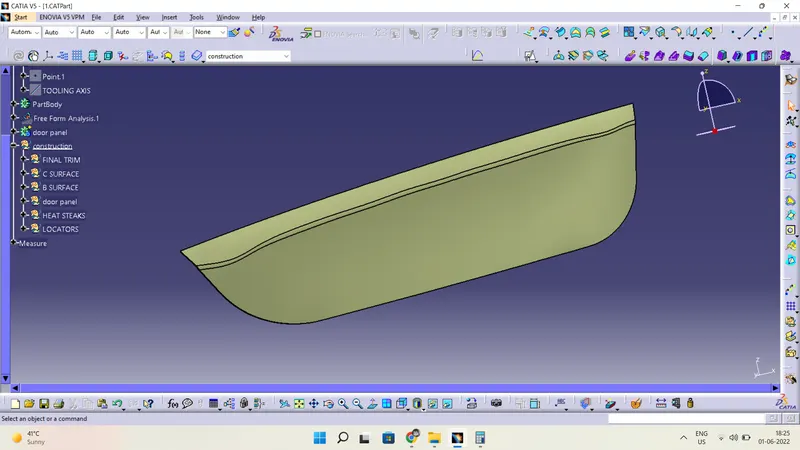

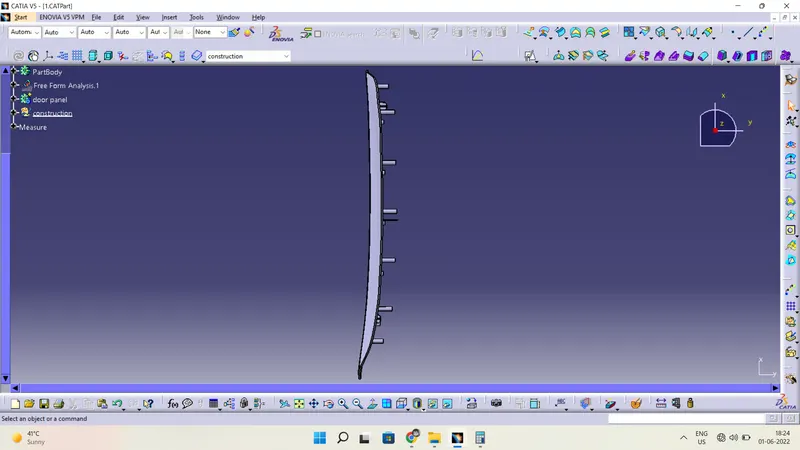

Final Surface

Draft Analysis Report

When a plastic component is made, we can observe a draft angle given on each side from the base that is lesser than 90 degrees. This is because in the criteria of making a plastic material the mold should release the material when finished. if the mold surfaces are 90 degrees the material won't release from the mold because of friction due to the contraction of material when cooled.

To resolve this problem CAD engineers maintain a standard rule to design the plastic mold or die in such a way that there is no problem while ejecting the plastic component. So a minimum of 3 - 10 degrees of draft angle is given to every plastic component while designing.
