Week 9 - Project 1 - Door Applique Design with Engineering Features

REPORT

The tooling axis is craeted in the center of the given class A surface by using the point on surface.The first draft analysis show the given Class A surface is drafted in 3 deg.The second draft analysis is taken for the solid applique surface and its also properly drafted in 3 deg .The third analysis shows the heat stakes and locator are drafted in 0.3 deg.

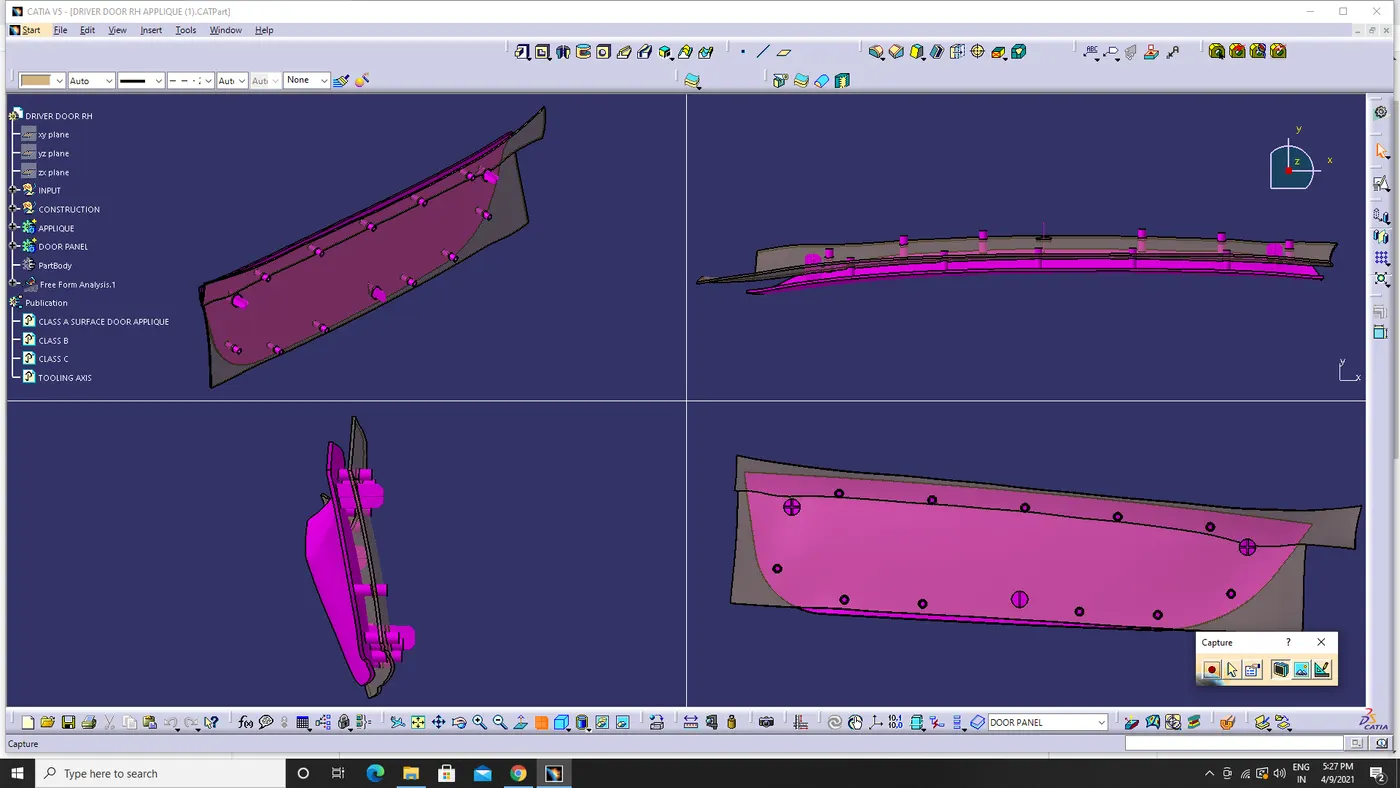

SCREENSHOT
