Week 9 - Project 1 - Door Applique Design with Engineering Features

Door Applique Design with Engineering Features

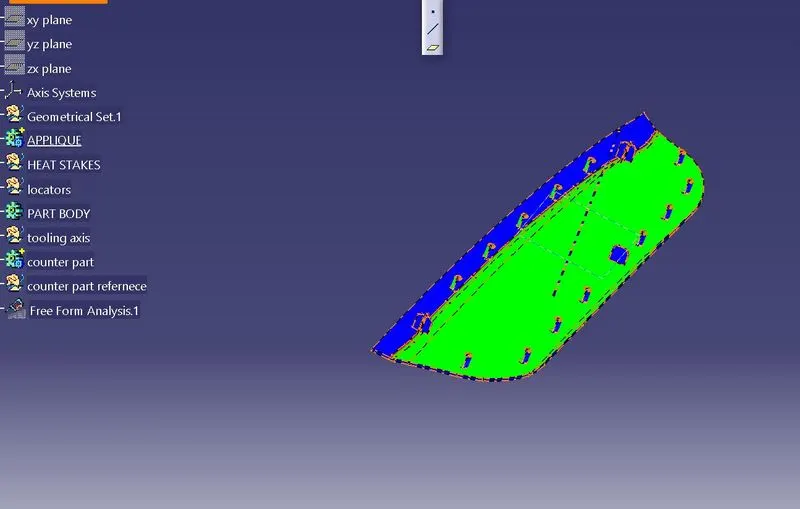

draft analysis is performed on the door applique.

min draft of 0.5 deg is mainatined on b side features.

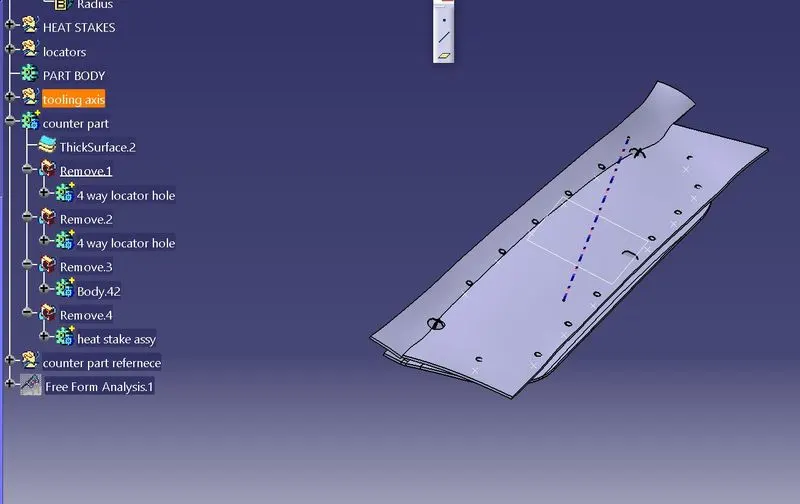

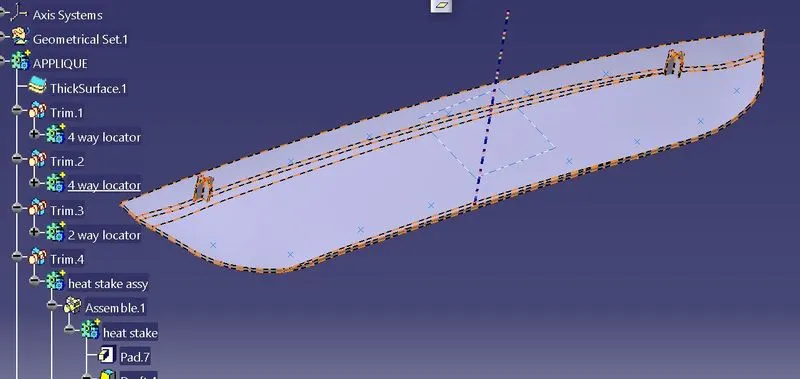

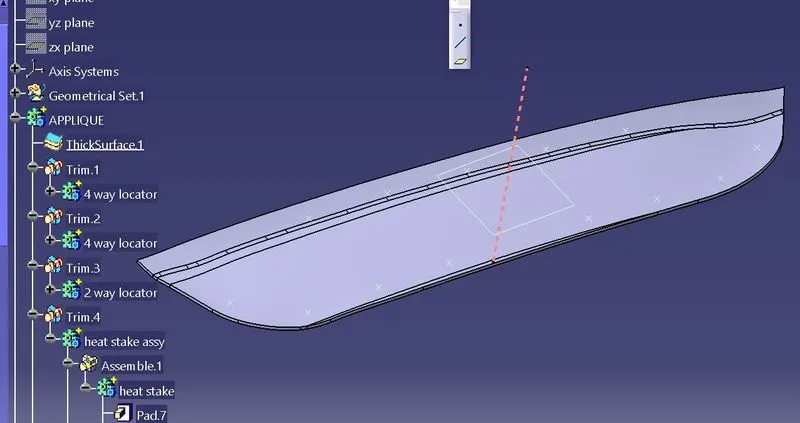

and tooling axis is created noramla to the a surfaes ac enclosed .
