Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

• Report
• A detailed report should be done explaining the draft analysis and the tooling axis creation.
• An explanation should be given on the way of creating the tooling axis particularly the Bisecting method.

Before deisgn a mold we need ensure two things

1) tooling axis

2) draft analysis.

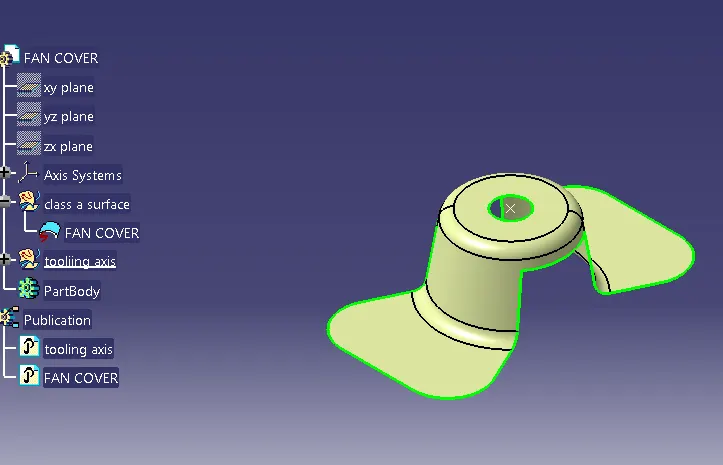

For fan cover

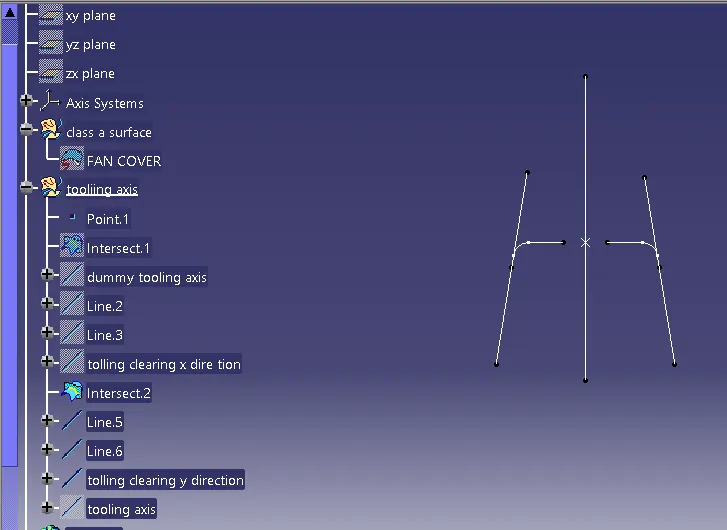

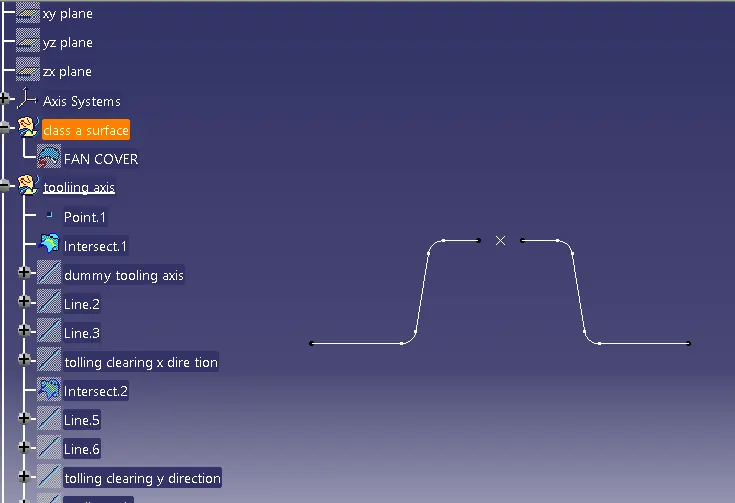

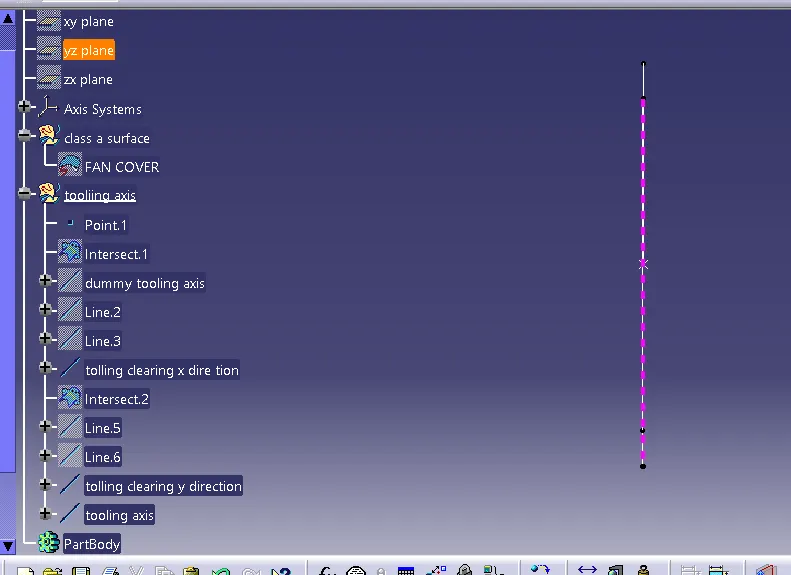

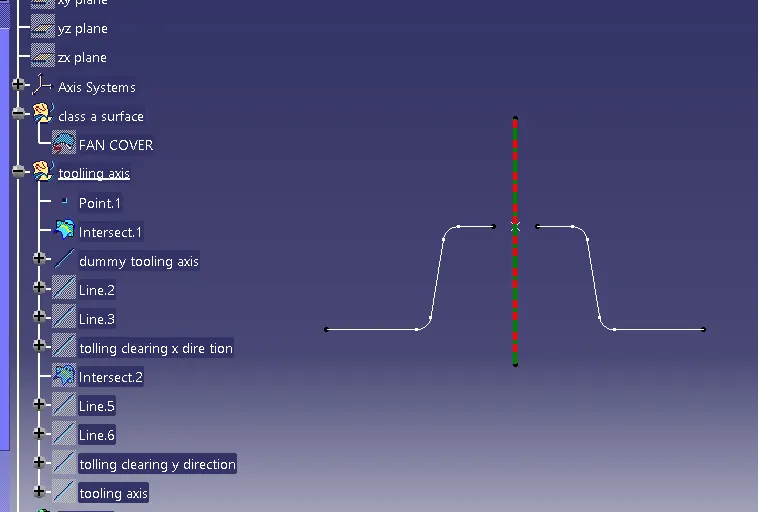

Tooling axis

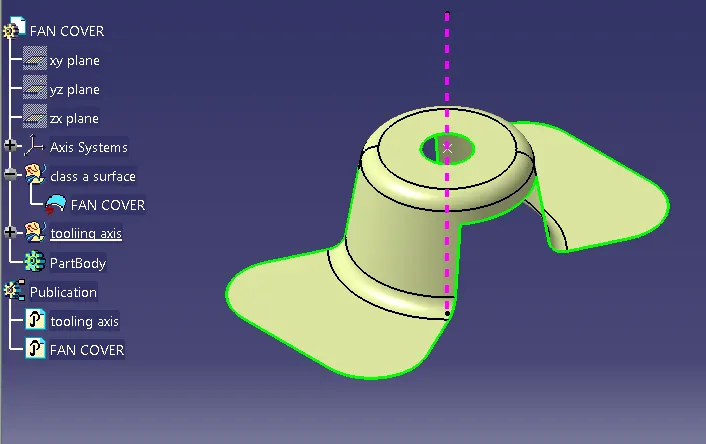

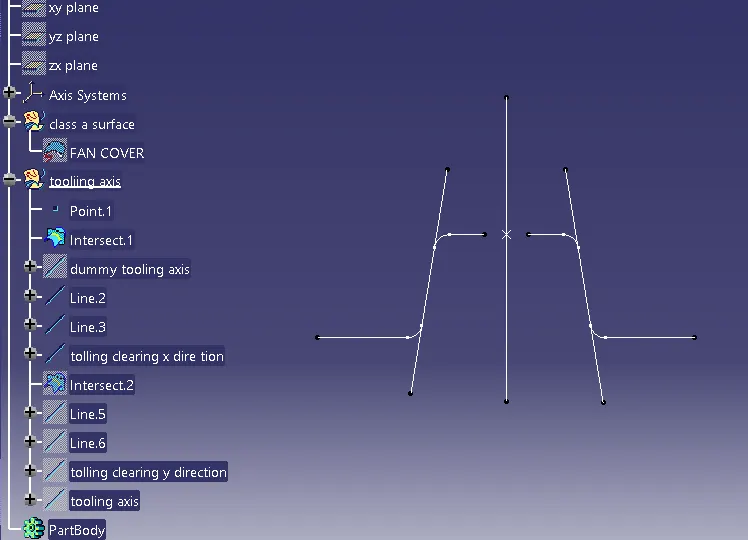

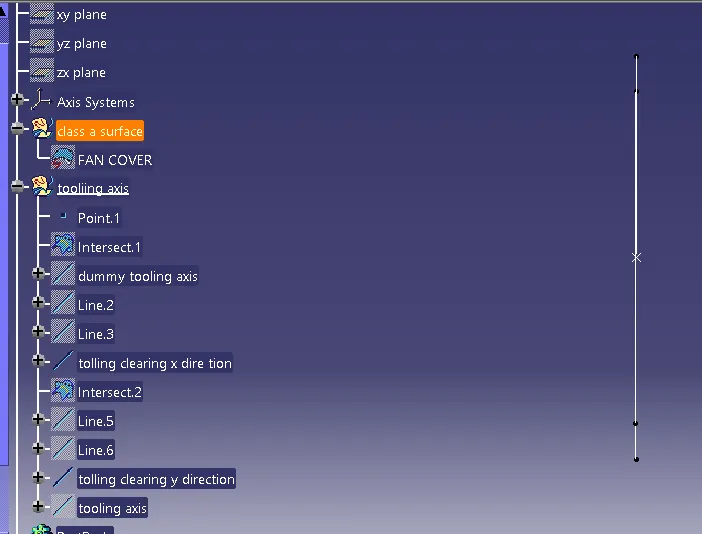

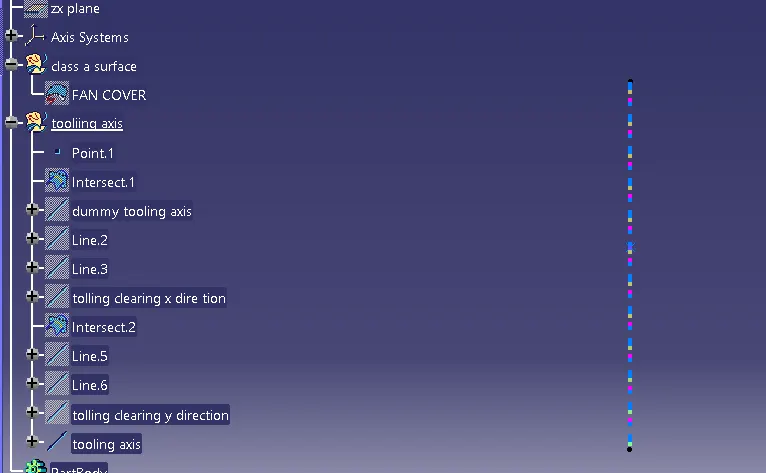

visually checked and decided the z axis as tooling axis for fan cover becasue it is the best possible way to reduce the cost of manufacturing .(it won't require any side core if we choose z axis as tooling axis

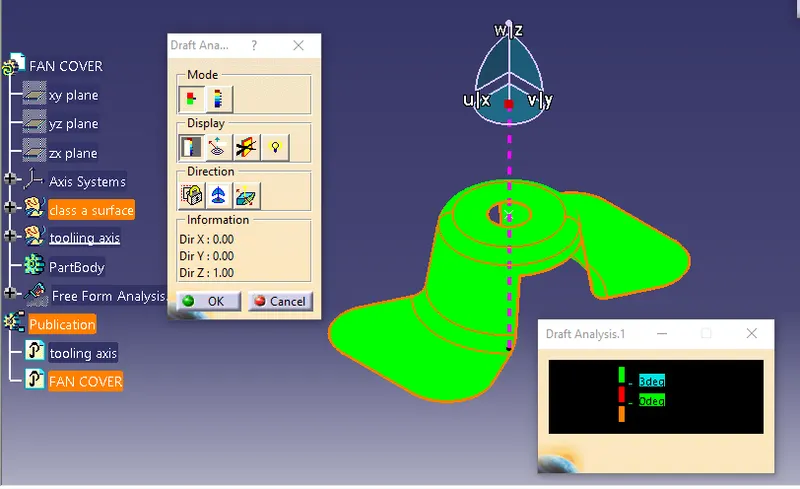

Draft analysis

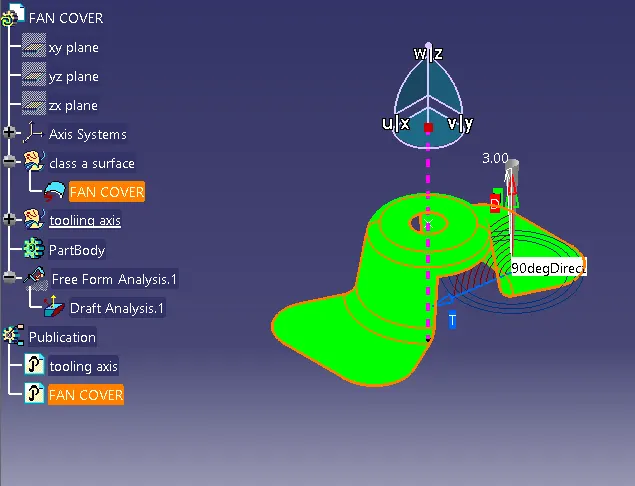

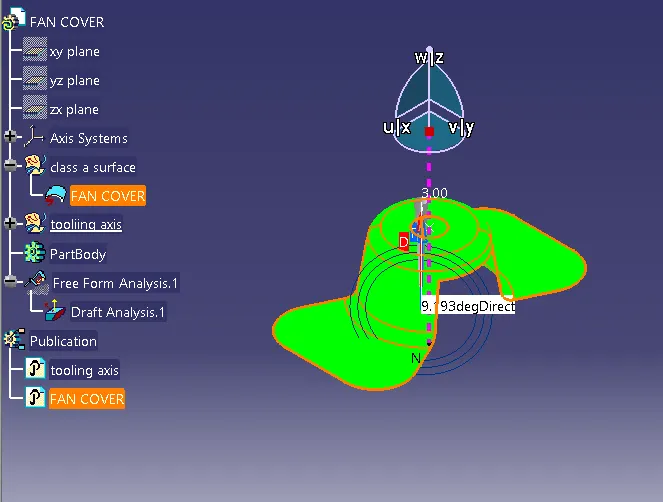

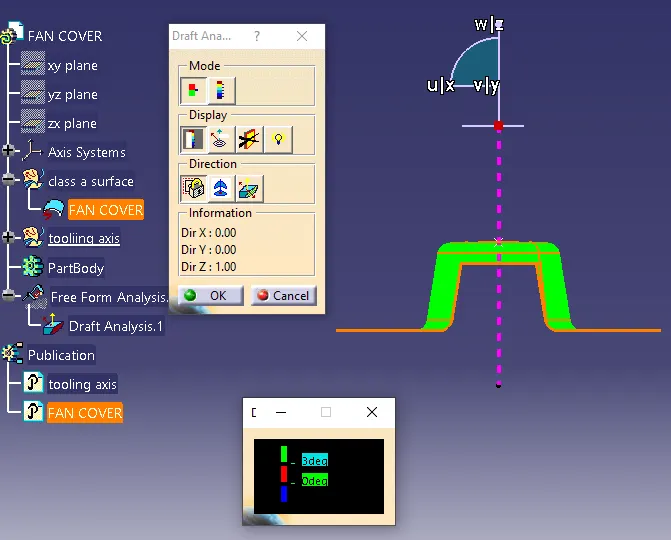

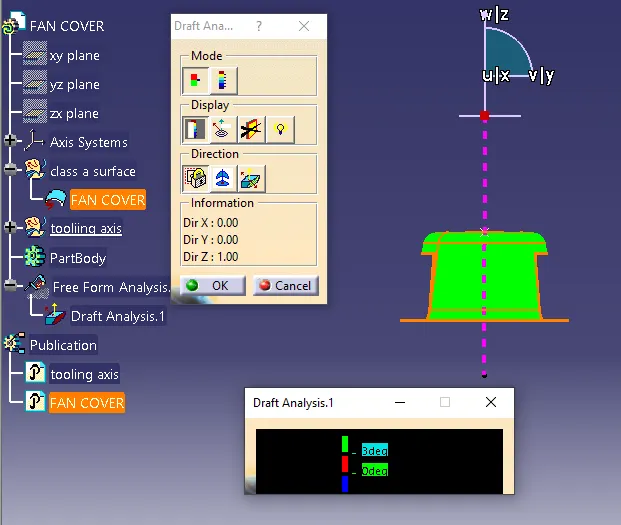

carried out draft analyis on fan cover the minimun draft angle to design/manufacture a mold for easy ejection is 3 degress on all faces .in fan cover the minmim anlge is 9.2 degree and more than 9.2 deg so the fan cover satisfying the minum draft angle.
