Week 9 - Project 1 - Door Applique Design with Engineering Features

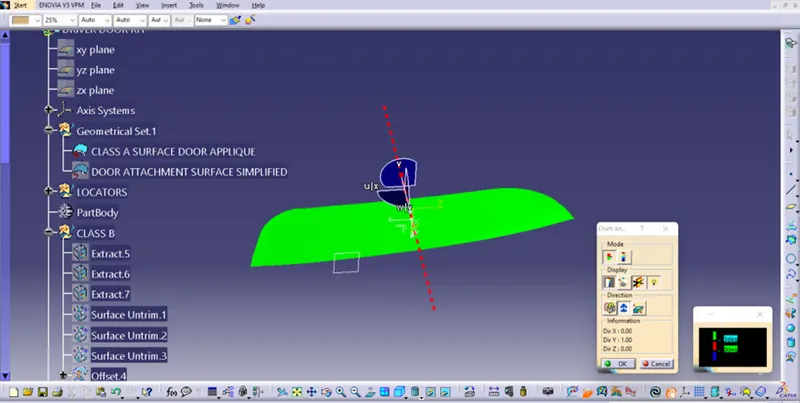

Drafting analysis of the Class A surface is shown in Figure

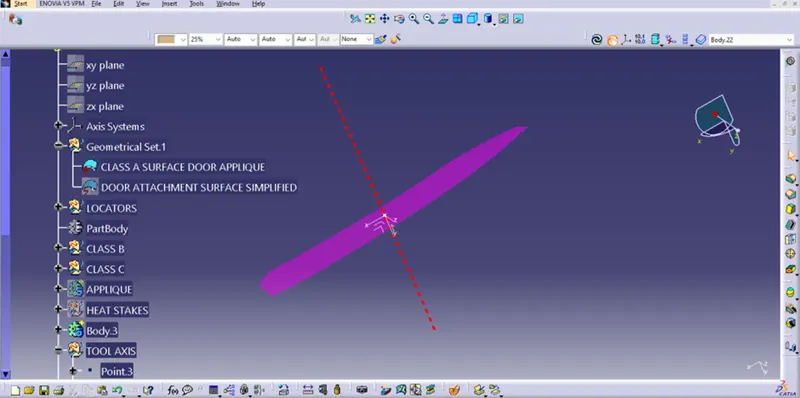

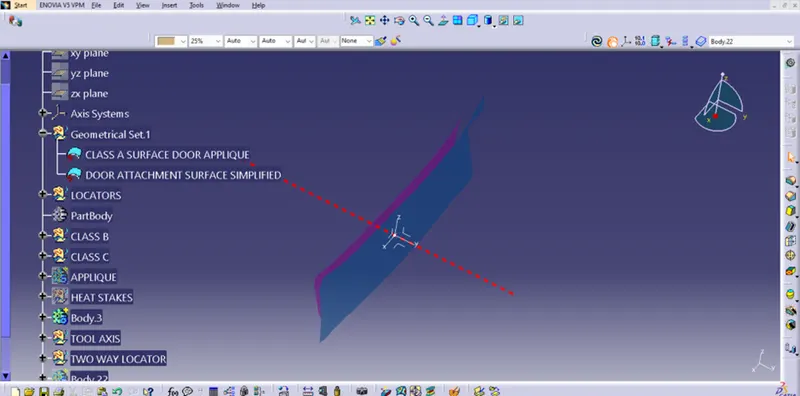

TOOLING AXIS FOR CLASS A SURFACE

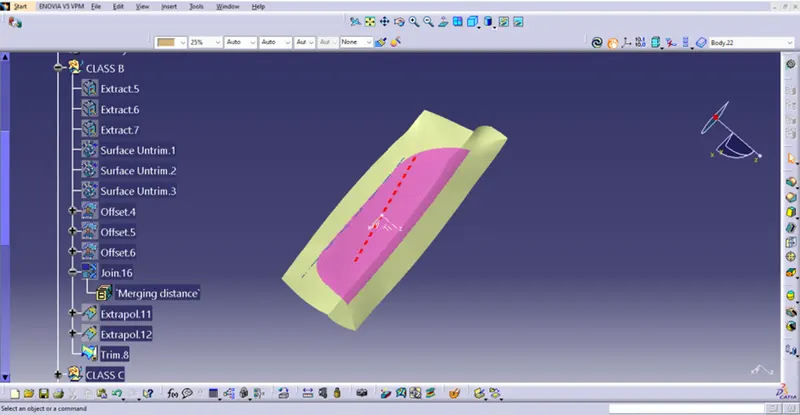

Class B surface with Class A surface. The class B surface are made by extract surface from the class A and further untrim, extrapolate and trim were performed for making an class B surface.

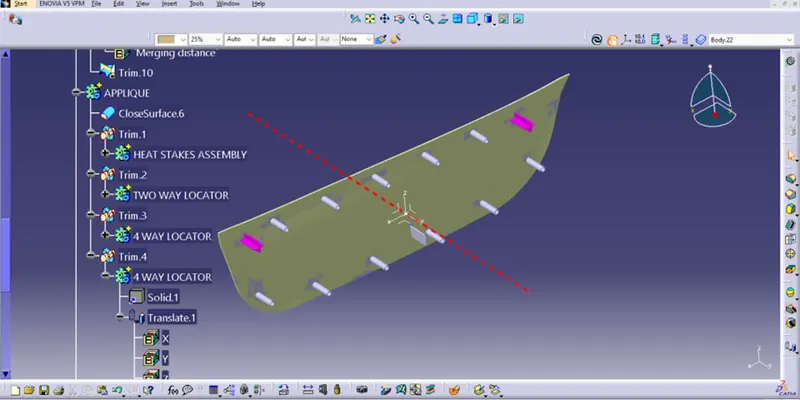

Final product of DRIVER DOOR RH APPLIQUE attached to the surface

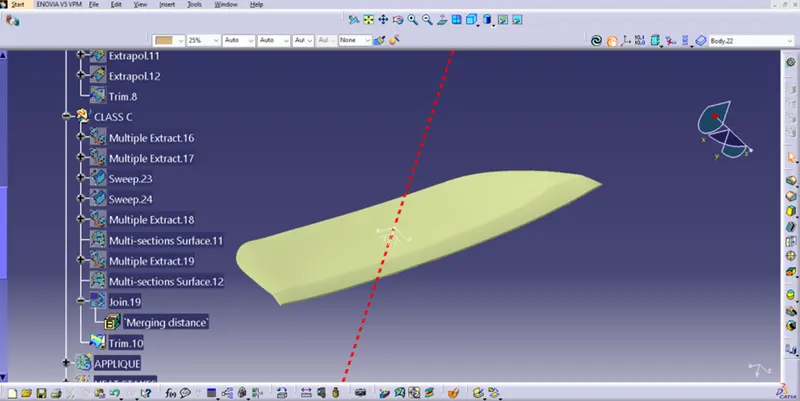

Final C surface and the C surface is proven to be a closed surface are shown in Figure

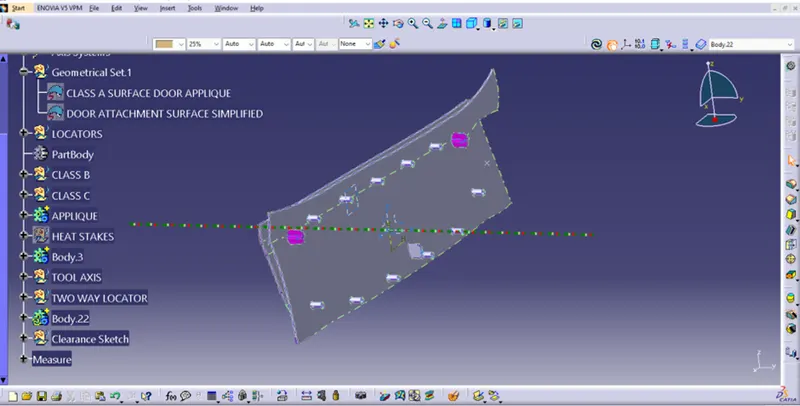

Heat stake, four way locker and two way locker assembly are shown in Figure

Attachment surface of DRIVER DOOR RH APPLIQUE

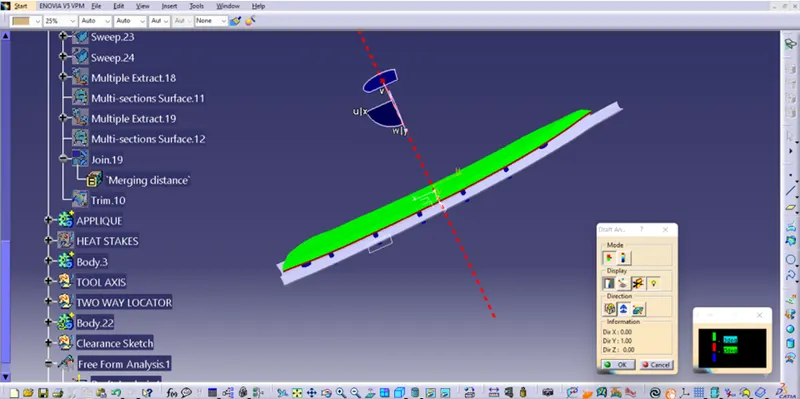

Draft analysis of the final surface were green color at the top surface indicate the surface are projected to be 3 degree with respect to the tool axis and blue color at the bottom indicates the under cut region
