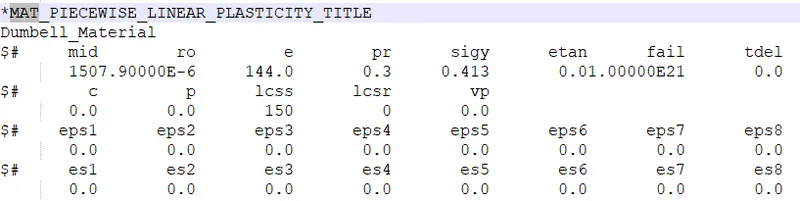

Week - 9 Material Modeling from Raw Data

Equivalent Plastic Strain = True Strain - True Stress/E

Please refer to the attached curve1.xls

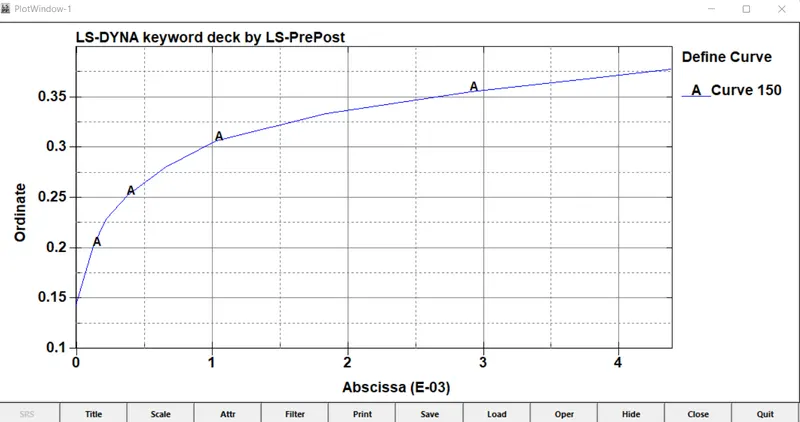

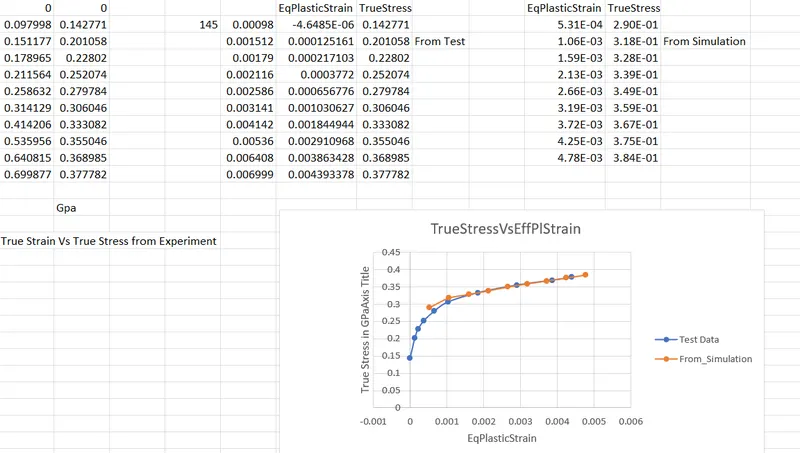

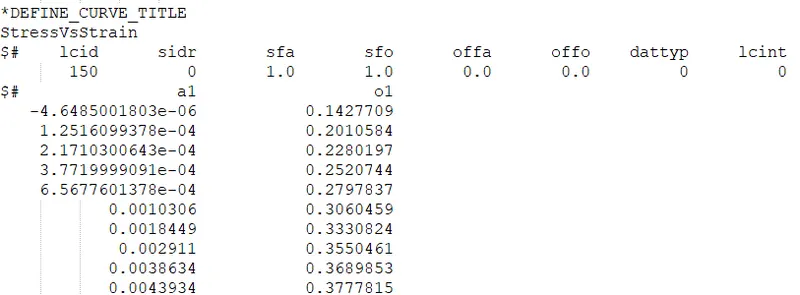

True Stress Vs Equivalent Plastic Strain from experiment

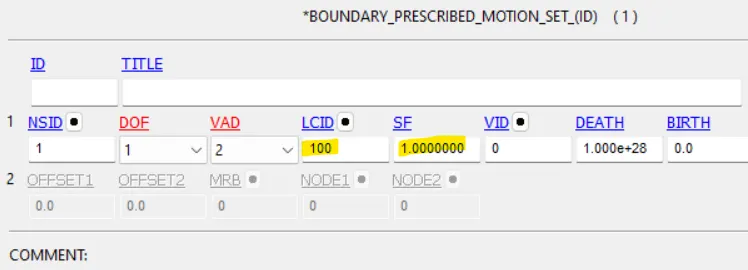

 The total extension = 1mm
