Week 9 Machining with Planer Challenge

Aim- To perfrom the explict dynamics of the Pmanar mechanism.

Procedure-

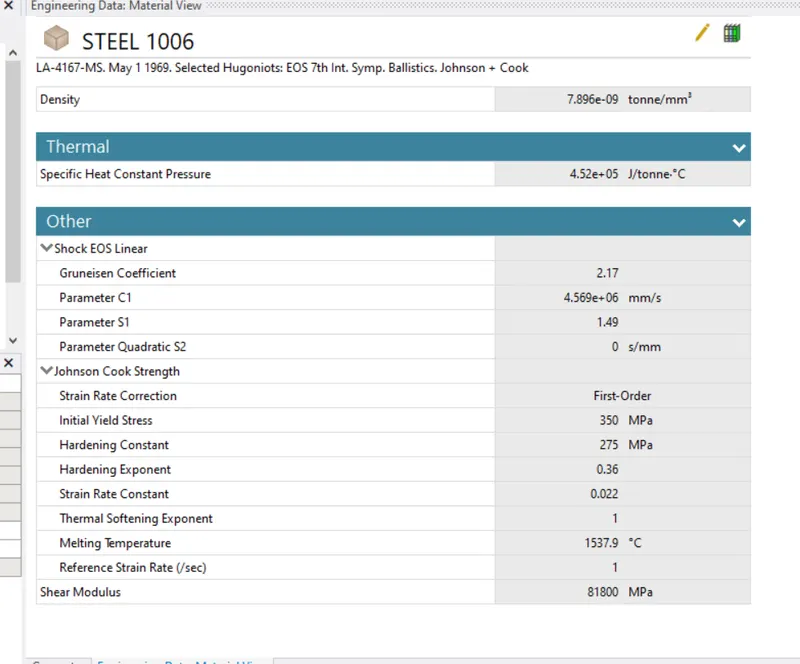

1. we apply the steel 1006 to the workpiece and we change stifness behaviour to the flrxible of the workpiece.

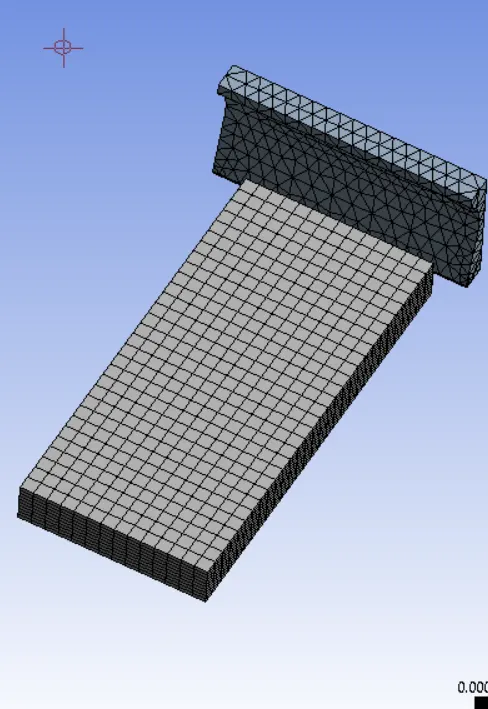

2.we will give tetrahydron method for the cutting tool and for the workpice we divide 4 edges of the workpiece in 10 didsion and and in general mesh we provide elemtal sixe of .5 mm

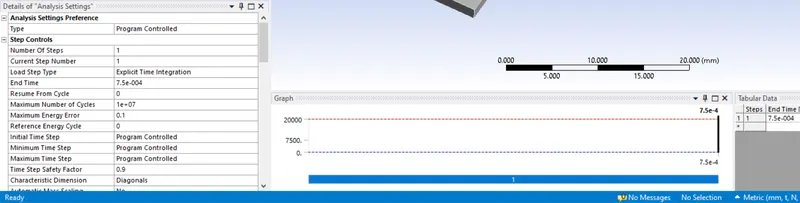

3.In the analusis setting we give the end time to 7.5e-04 amd maximum number of cycles to 1e+7 and rest all program controlled.

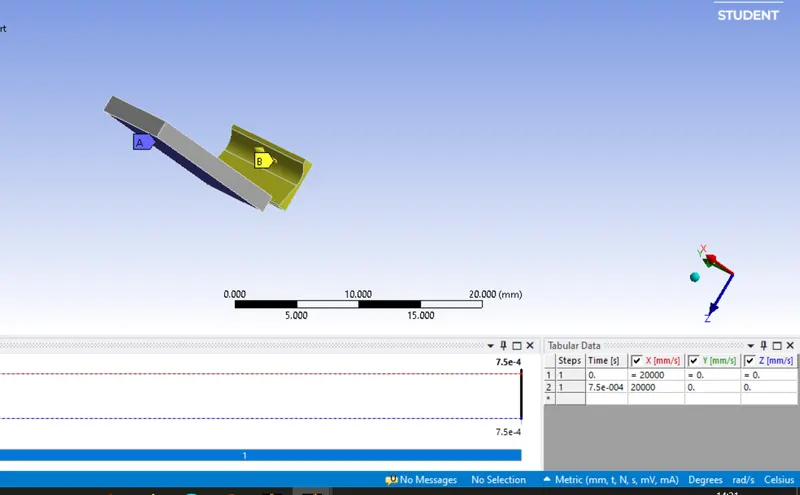

4.we provide velocity of 20000mm/sec in the x direction for the cutting tool and fixed support to the workpiece.

case 2 when velocirty is 15000mm/sec

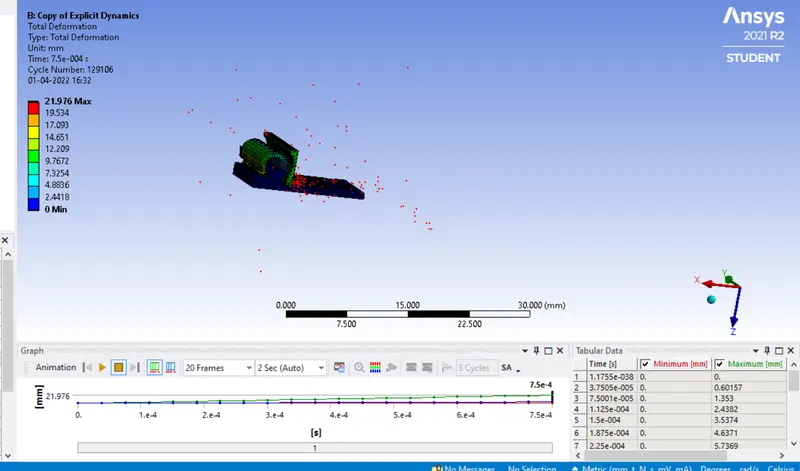

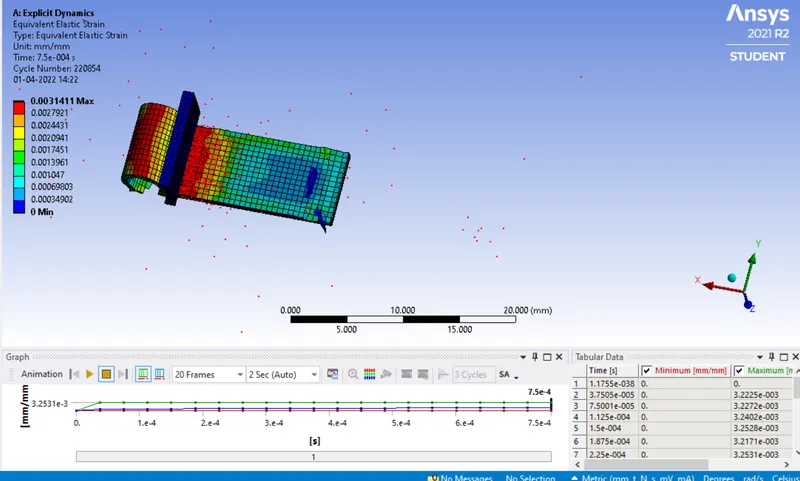

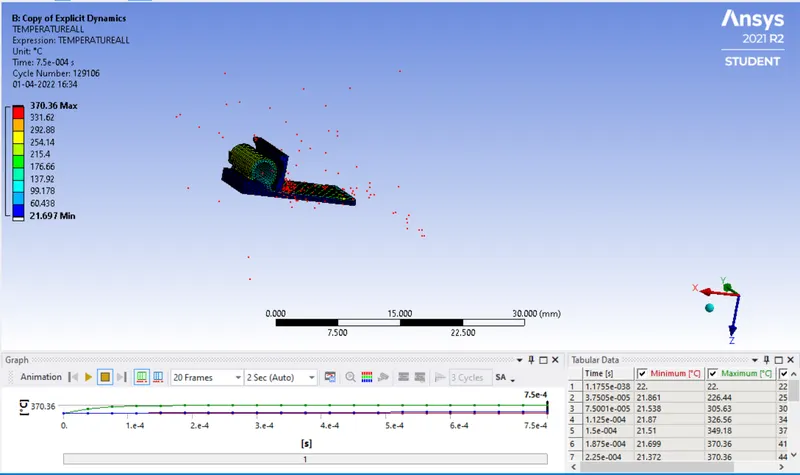

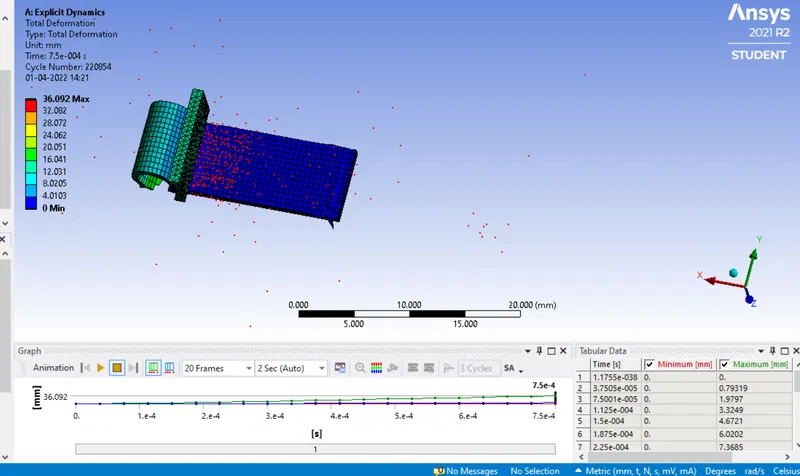

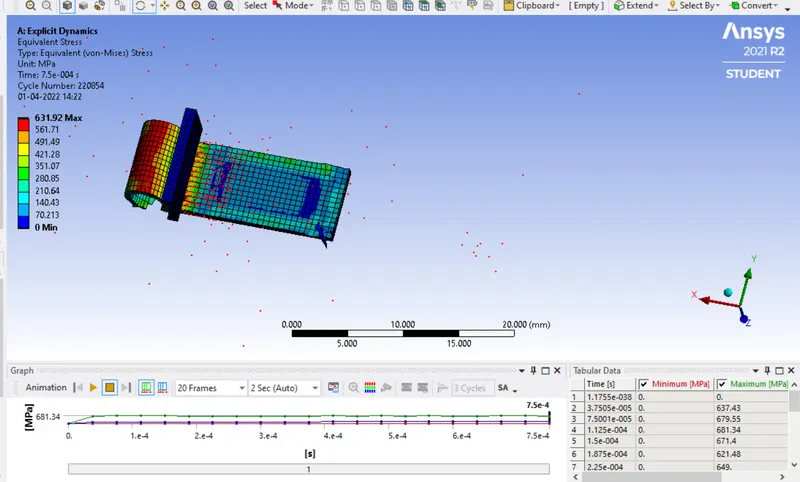

velocity(mm/sec)	Equivalent stress	Equivalent strain	Total deformation	Temperature

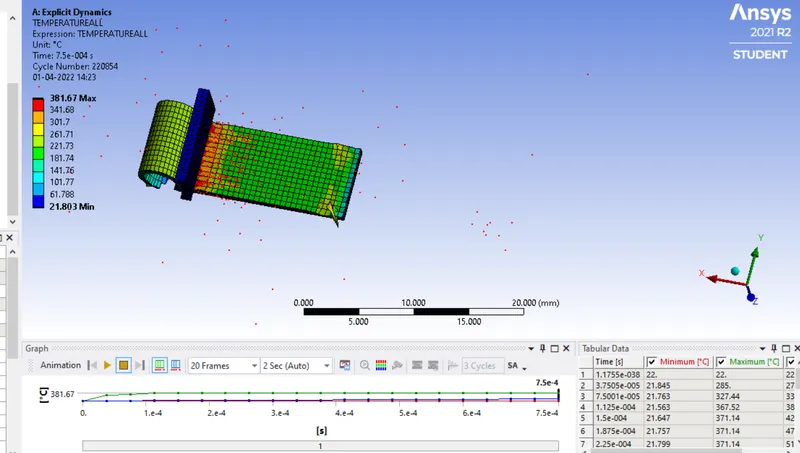

20000	631.92	0.003141	36.092	381 and 21.073

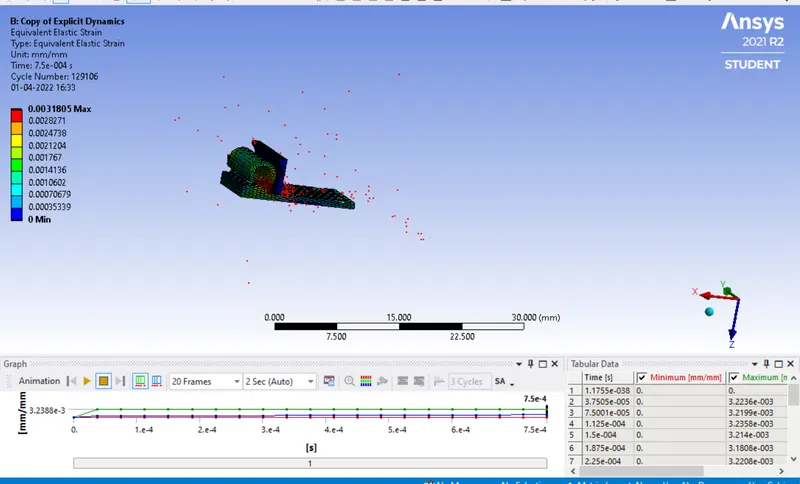

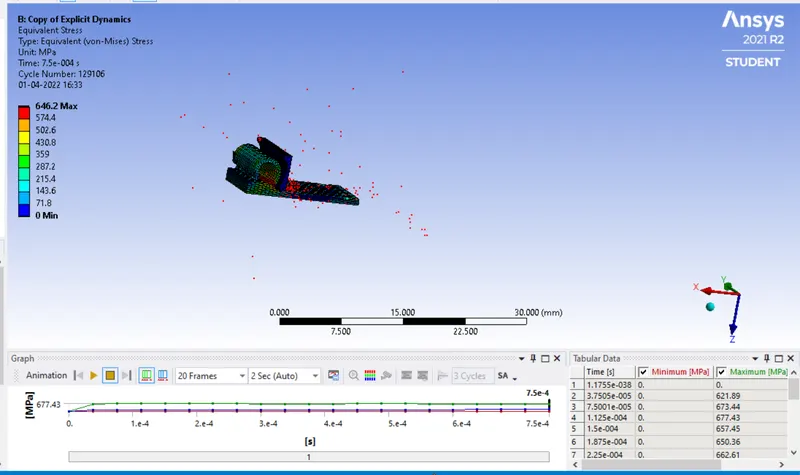

15000	646	0.00318	21.96	370 and21.697

conclusion- As velocity increases temerature of the workpiece increases and stredd decreses and less removal of workpiece at high velocity.
