Week 9-Creation of 1D Connectors Challenge

Objective:

To mesh the given model with satisfying the quality criteria and provide necessary connections.

Procedure:

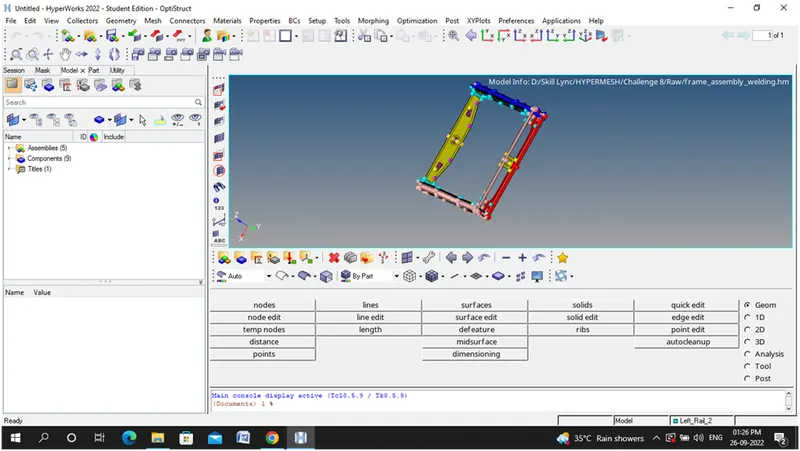

Step 1: Open the Model

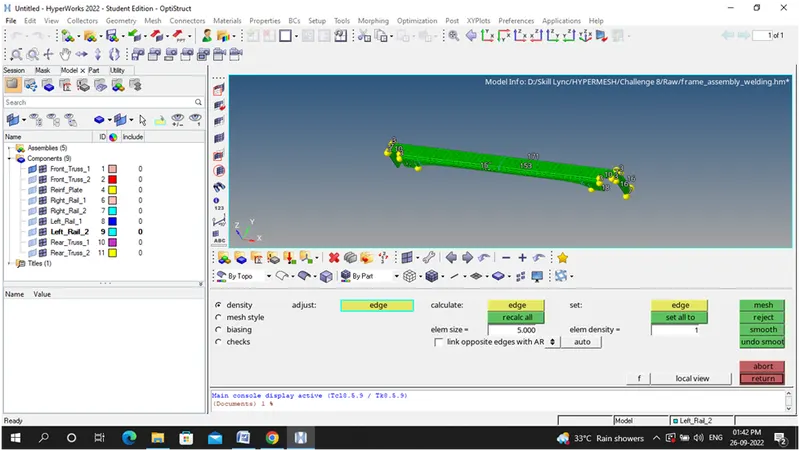

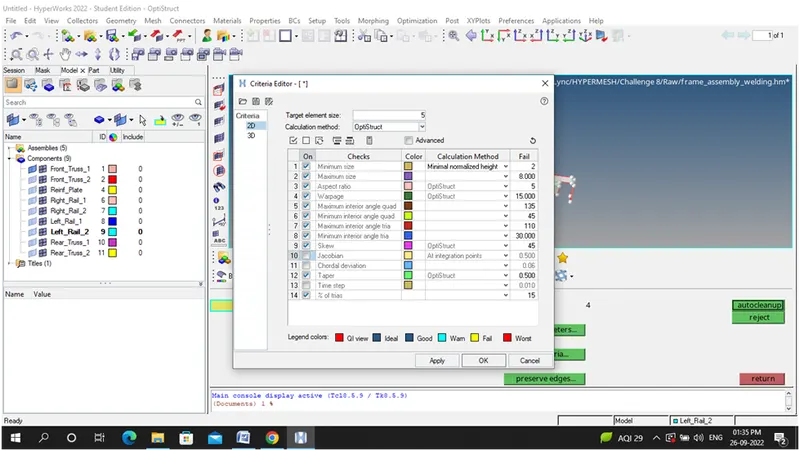

Step 2: Setting Quality criteria

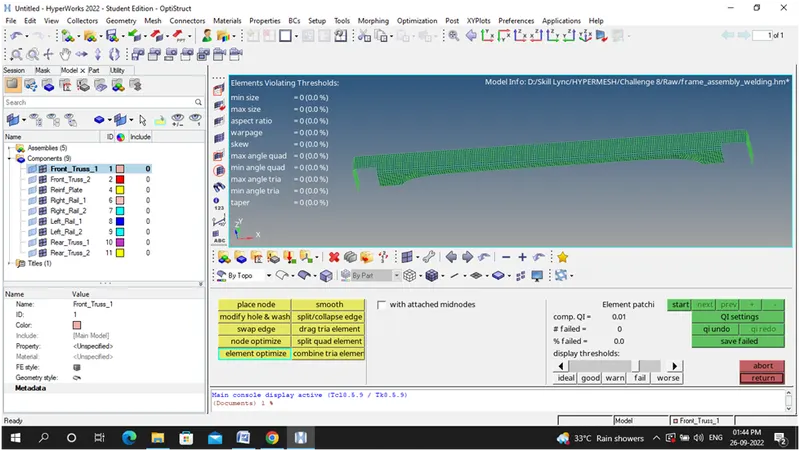

Step 3:Front Truss 1

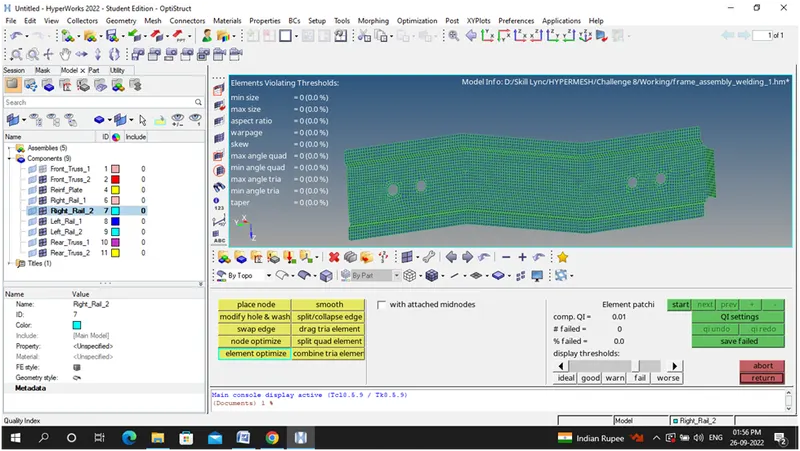

ii)Right rail 2

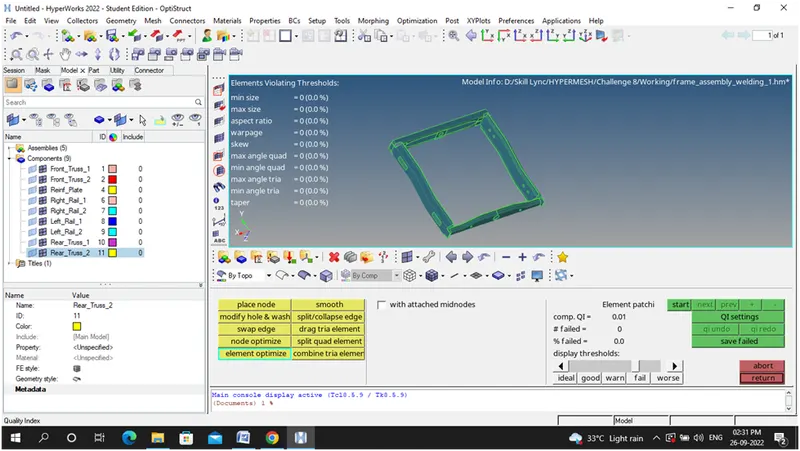

Step 4:  As seen the above steps similarly , Remaining  components meshed and satisfies the quality criteria.

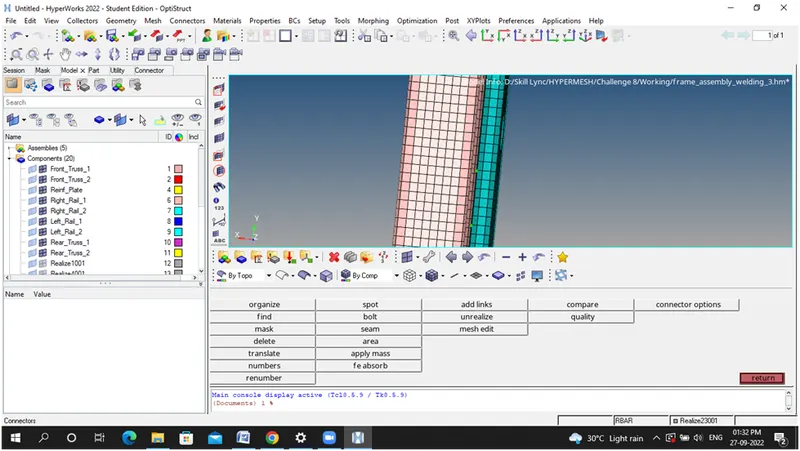

Step 5: Creating Connectors

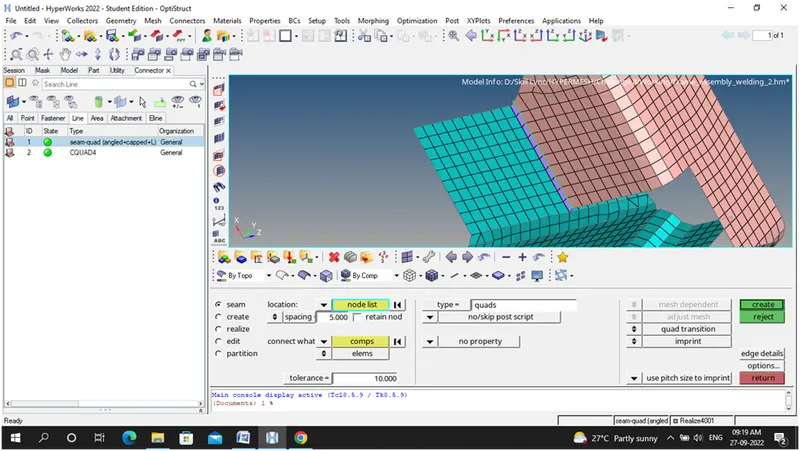

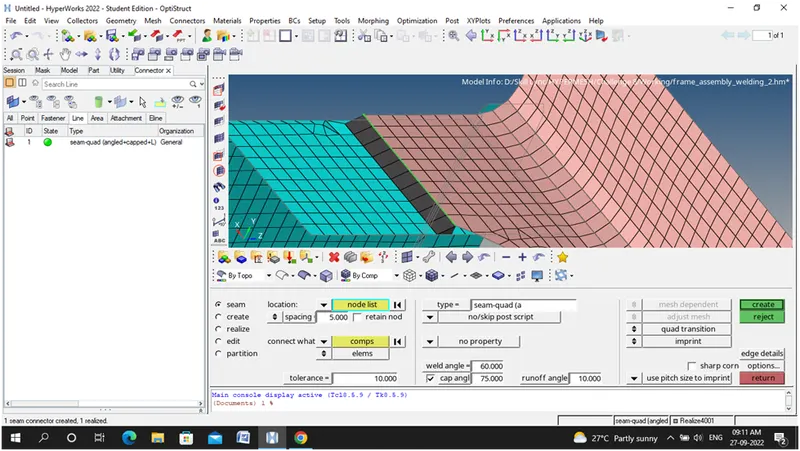

1.Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

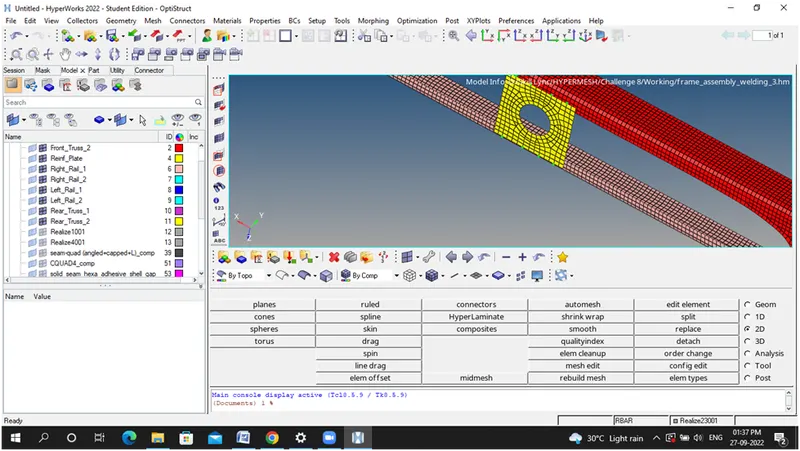

2. Left_Rail_2 & Front_truss_1:- Quad elements

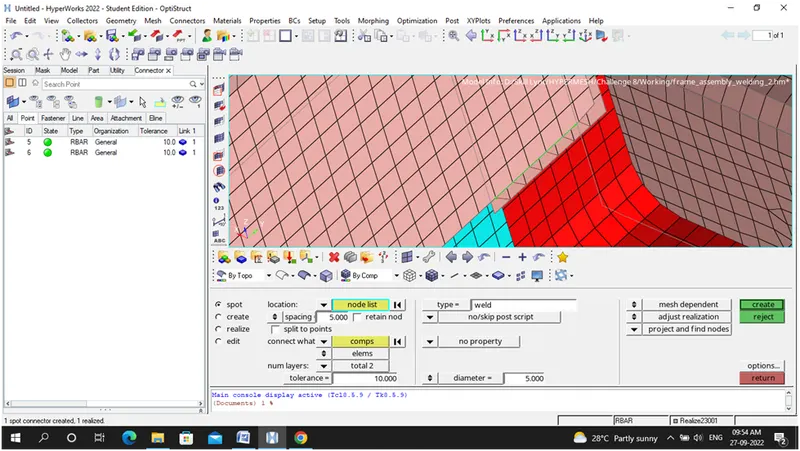

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weldwith 2 Layers and 5 mm Diameter

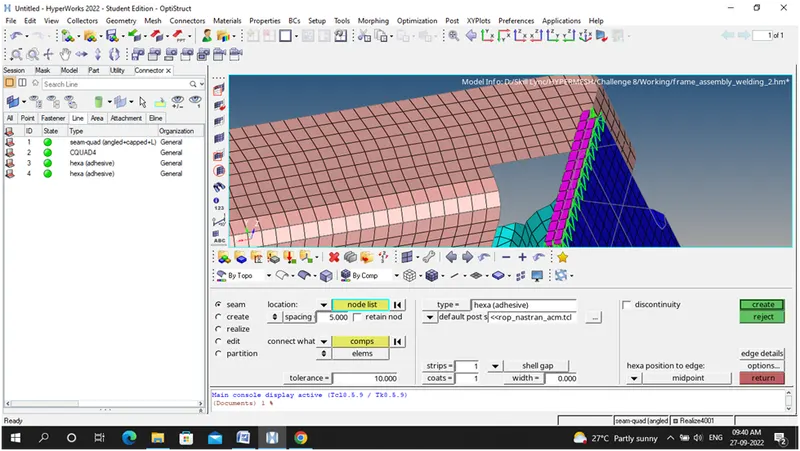

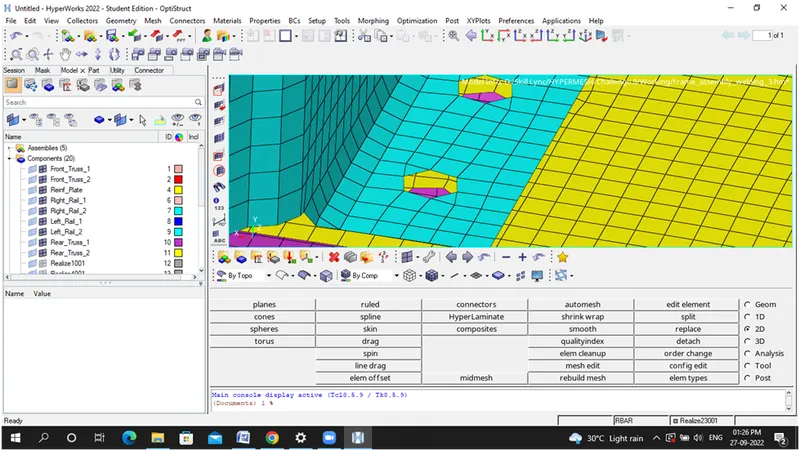

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

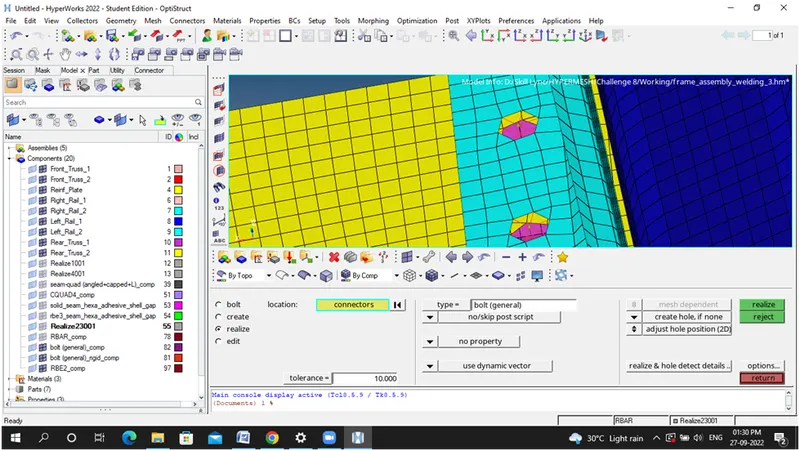

5.Rear_truss_2 & Right_Rail_2:- Bolt Connector

6.Rear_truss_2 & Left_Rail_2:- Bolt Connector

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

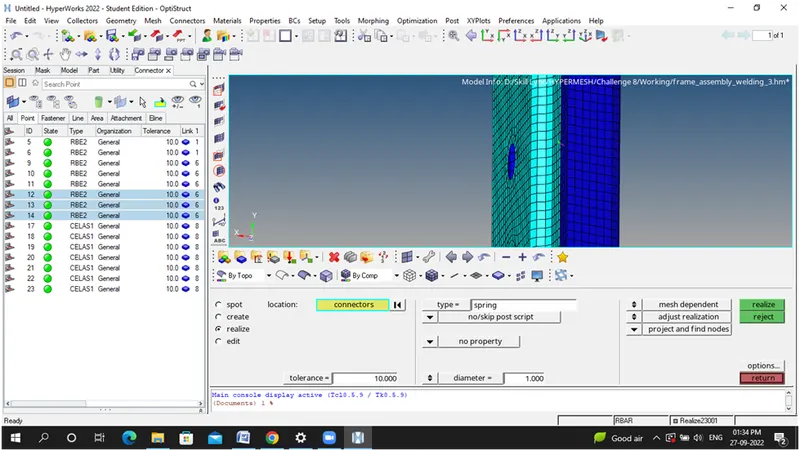

8. Left_Rail_1 & Left_Rail_2:- Spot-weld withSpring Elements

9. Rest all the component left Join them with suitable connectors – I preferred Spot Weld-Spring Elements

Conclusion:

            Successfully completed given model with proper meshing and provided with necessary connections.
