Week 9-Creation of 1D Connectors Challenge

OBJECTIVE:

To create the connectors between the assembly for the given frame.

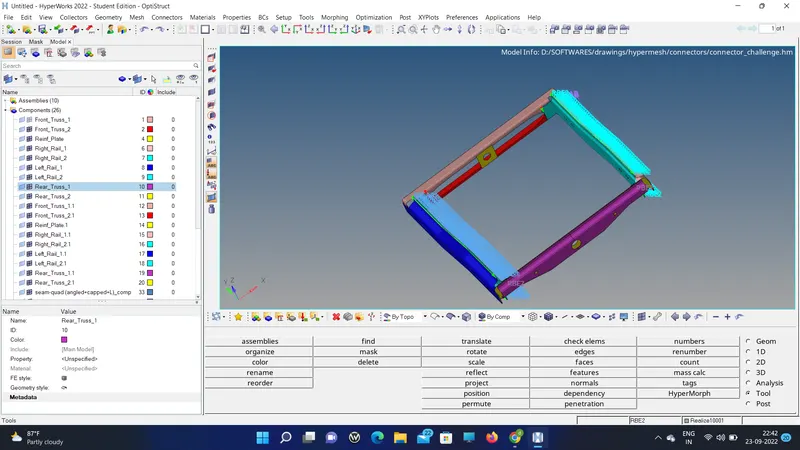

CAD MODEL:

PROCEDURE WITH REQUIRED IMAGES:

1. Import the model.

2. First go to the connectors in 2d panel and use the spot weld.

3. Then select the bolt connections.

5. Then create the spot weld with rigid and spot weld with spring element.

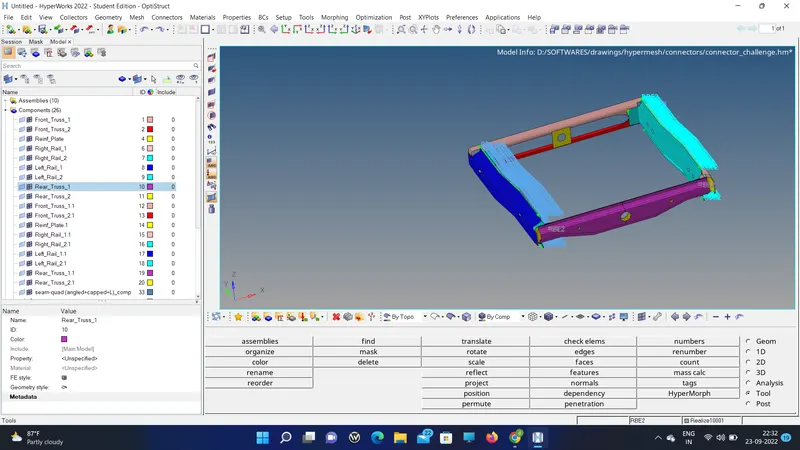

RESULT WITH IMAGE:

Thus the model is perfectly connected as per the instructions in the challenge.
