Week 8-3D Tetra Meshing Challenge

OBJECTIVE:

TO CREATE A TETRA MESH FOR HOUSING COMPONENT WITH GIVEN QUALITY CRITERIA.

CAD MODEL WITH IMAGE:

REQUIRED PROCEDURE WITH CAD MODEL:

1. MAKE A GEOMETRY CLEANUP IF REQUIRED

2. GENERATE THE SURFACE MESH THAT IS 2D SHELL ELEMENTS ON THE SURFACE.

3. THEN USE TETRA MESH TO CONVERT THE 2D TO 3D MESH.

4.

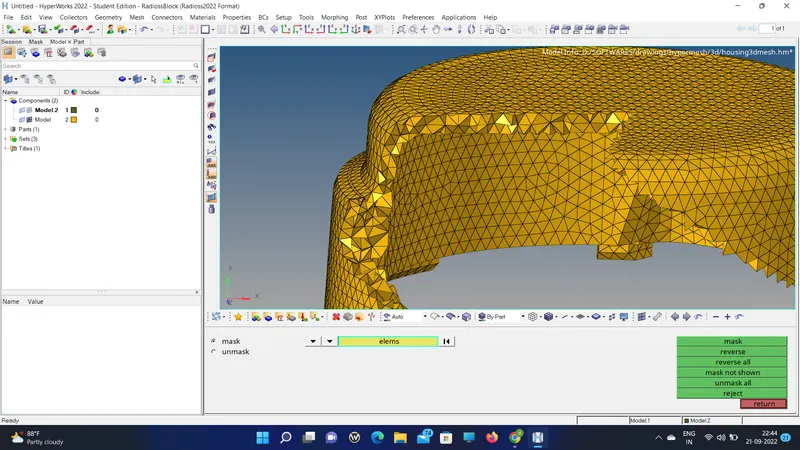

5. THEN FIND THE TET COLLAPSE AND REMESH IT AND CLEAR THE FAILURE.

6.

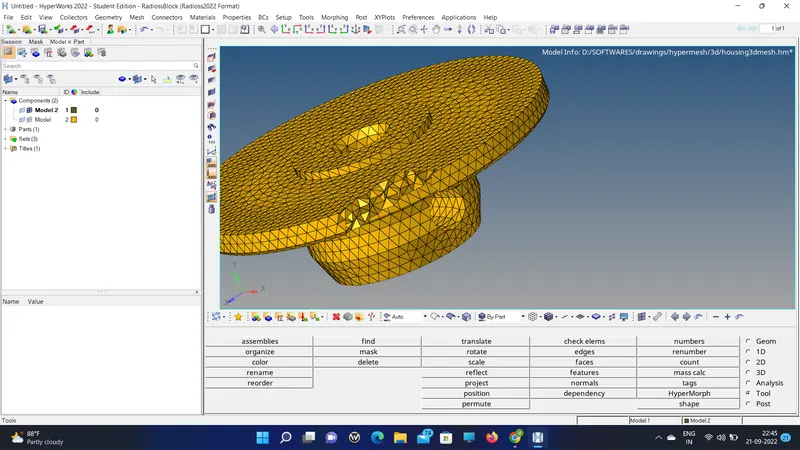

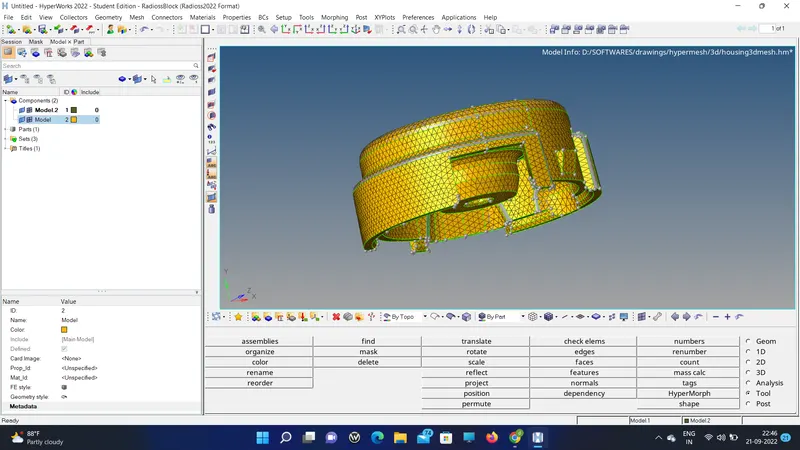

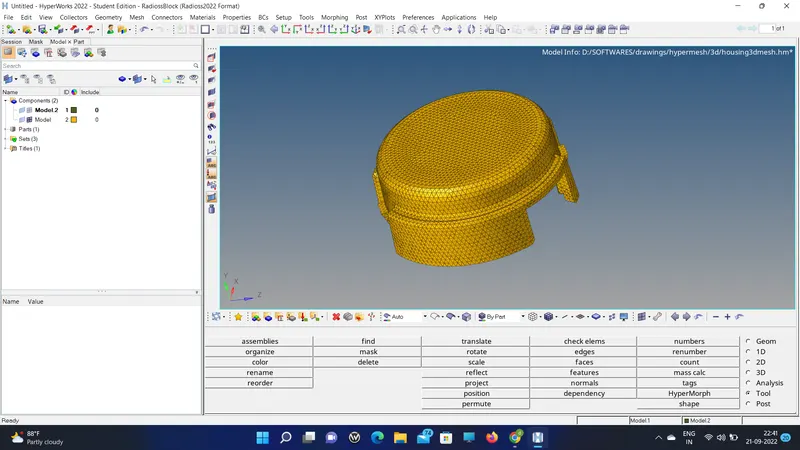

RESULT WITH FINAL CAD MODEL:

MODEL 2

OBJECTIVE:

GENERATE THE VOLUME TETRA MESH ON THE GIVEN COMPONENT.

CAD MODEL WITH IMAGE:

PROCEDURE WITH REQUIRED IMAGES:

1. DO THE GEOMETRY CLEAN AND SET THE CRITERIA REQUIRED IN CHALENGE.

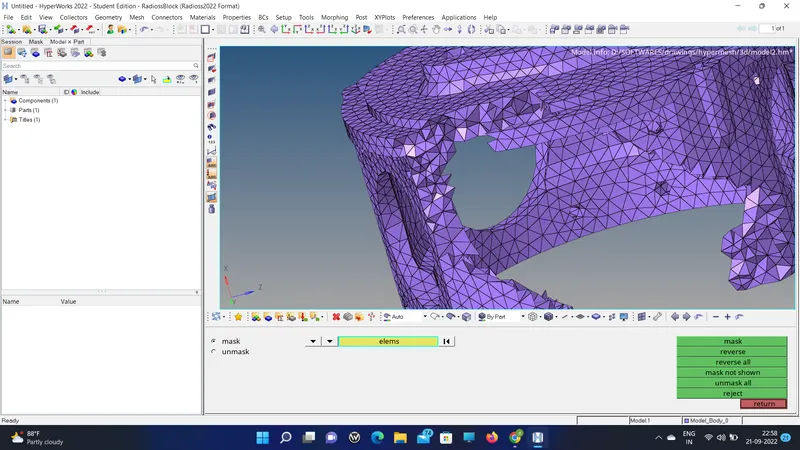

2. THEN DO VOLUME MESH AND FIND THE TET COLLAPSE.

3. DO REMESH IF ANY FOUND.

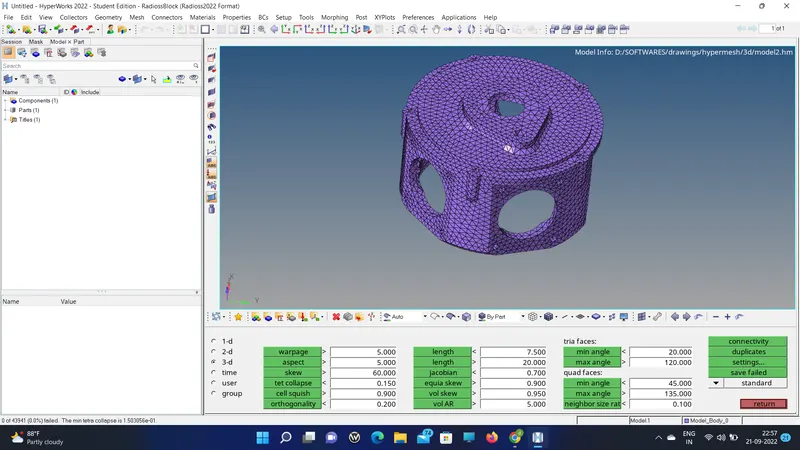

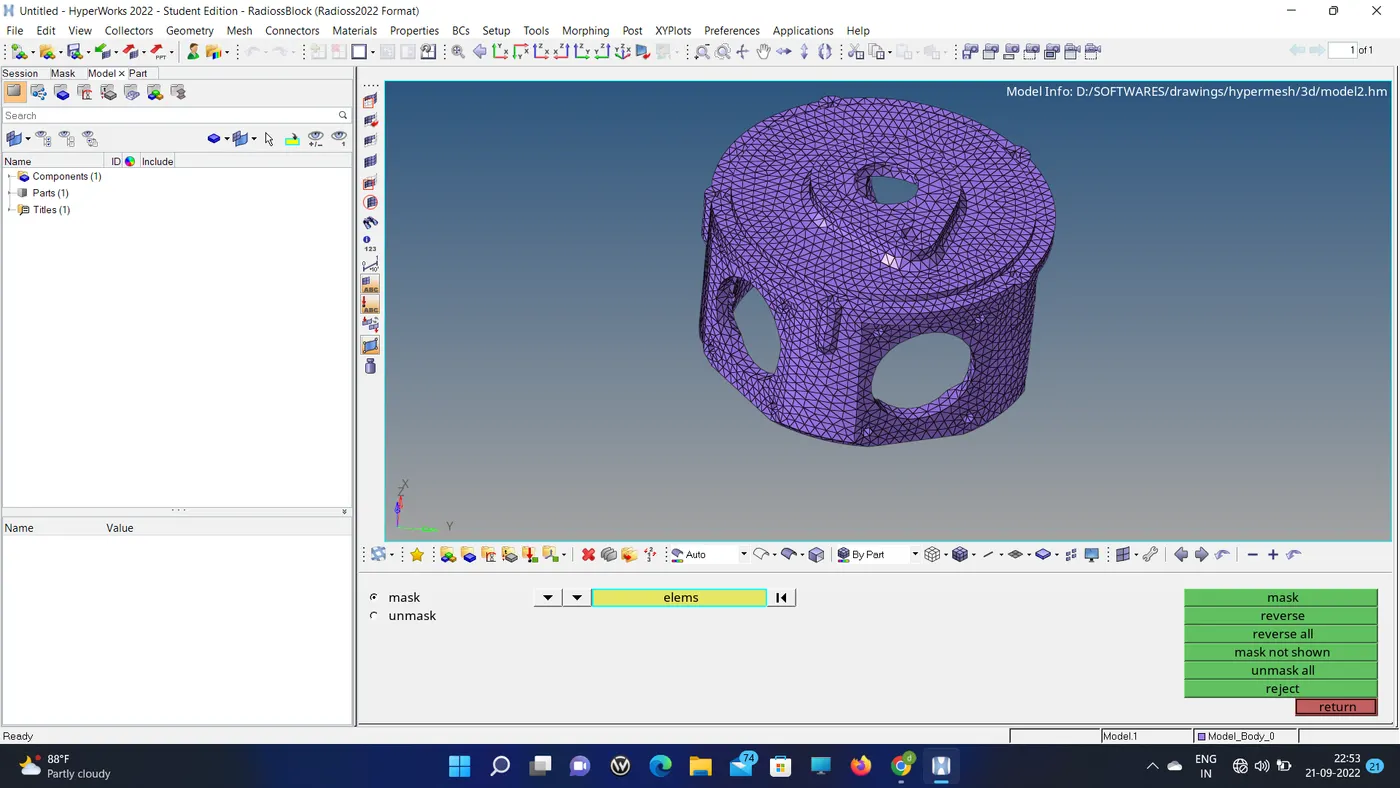

RESULT WITH FINAL IMAGE:

THUS THE MODEL 2 IS SUBMITTED WITH NO TET COLLAPSE.

TETRA MESHING OF TURBO CHARGER:

OBJECTIVE:

TO DO VOLUME TETRA MESH ON THE GIVEN COMPONENT WITH NO TET COLLAPSE.

CAD MODEL IMAGE:

PROCEDURE WITH CAD MODEL IMAGE:

1. DO VOLUME MESH SEPERATELY FOE EACH COMPONENT.

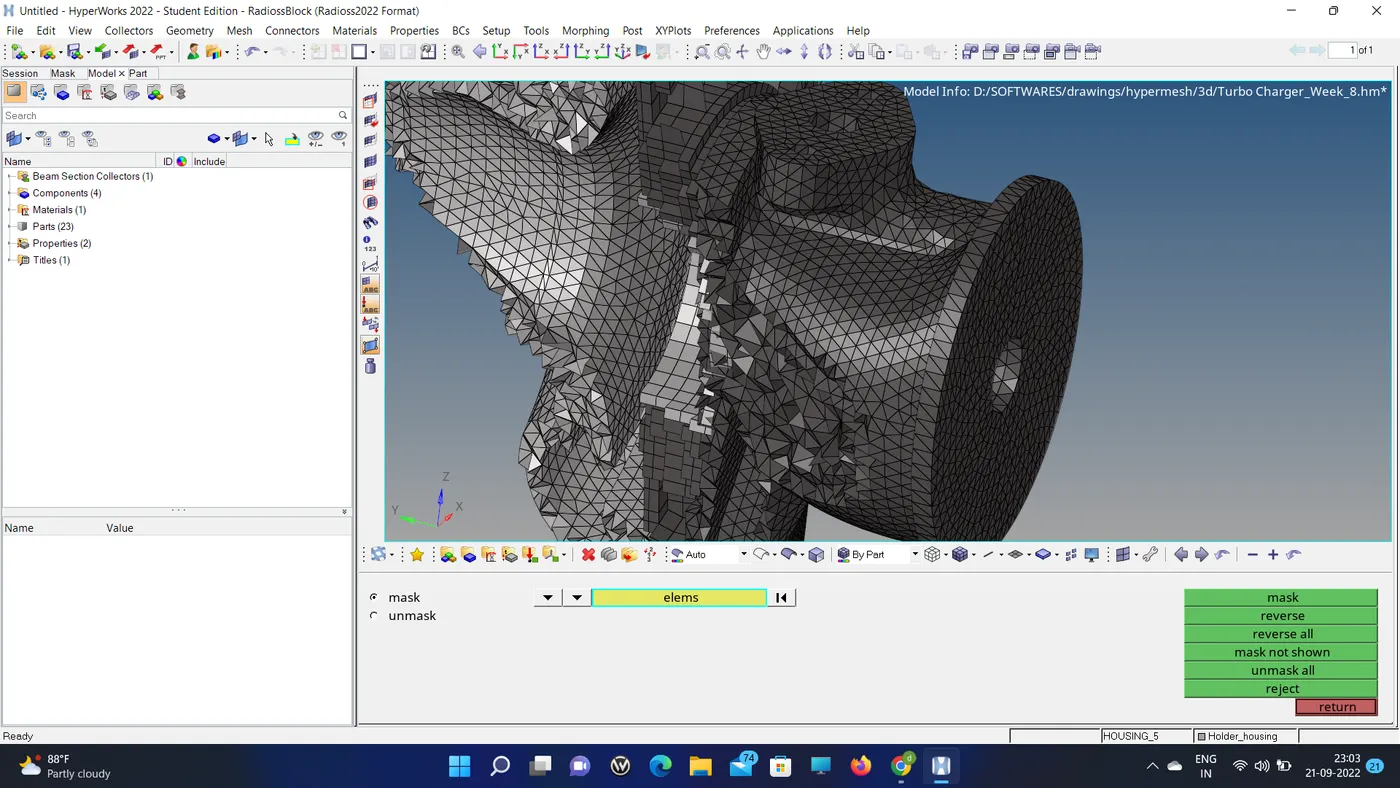

2. AND CHECK FOR THE TET COLLAPSE.

3. CLEAN UP IF ANY FOUND.

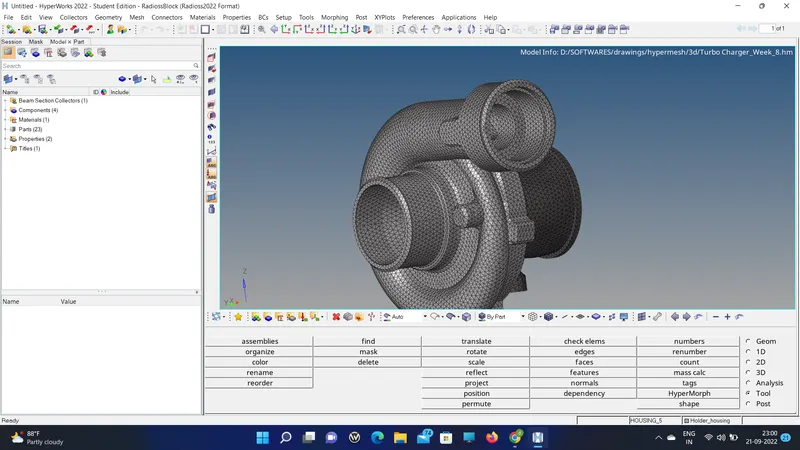

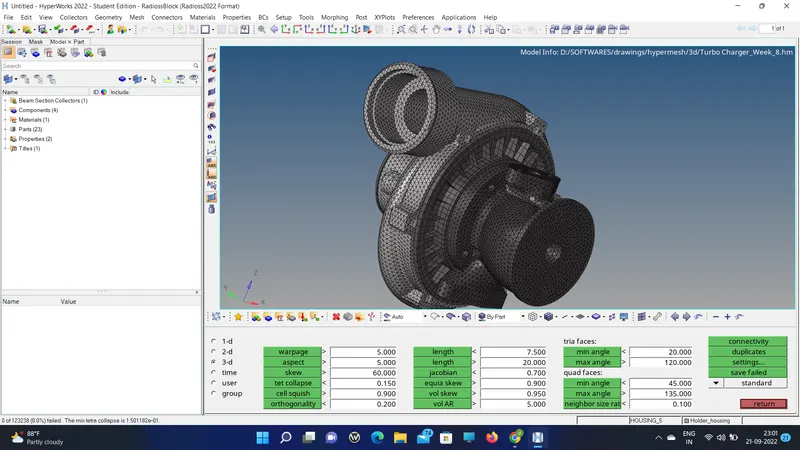

RESULT WITH FIANL IMAGE:

THUS THE TURBO CHARGE ASSSEMBLY IS SUCCESFULLY FINISHED VOLUME TETRA MESHING.
