Week 9-Creation of 1D Connectors Challenge

Aim - To clean up geometry, mesh the elements and attach connectors as per the given requirements.

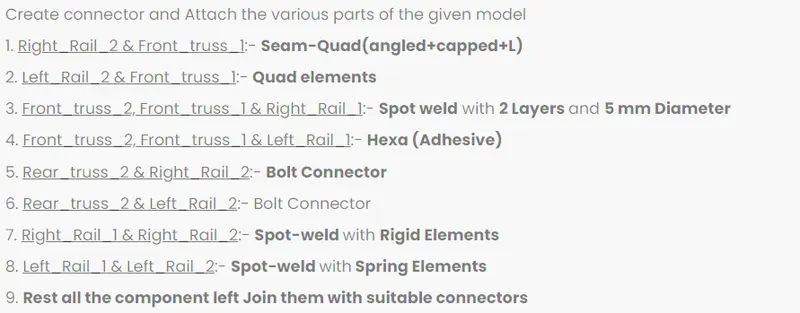

Requirements -

Procedure -

1. Open the model and clean up geometry :

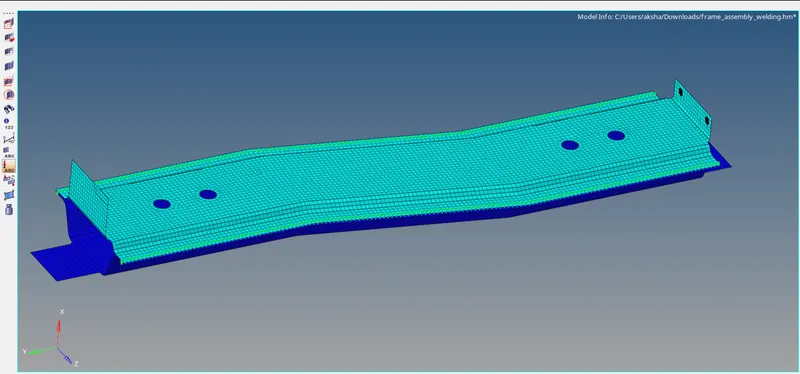

2. Mesh the given Model -

Apply connector as per requirement :

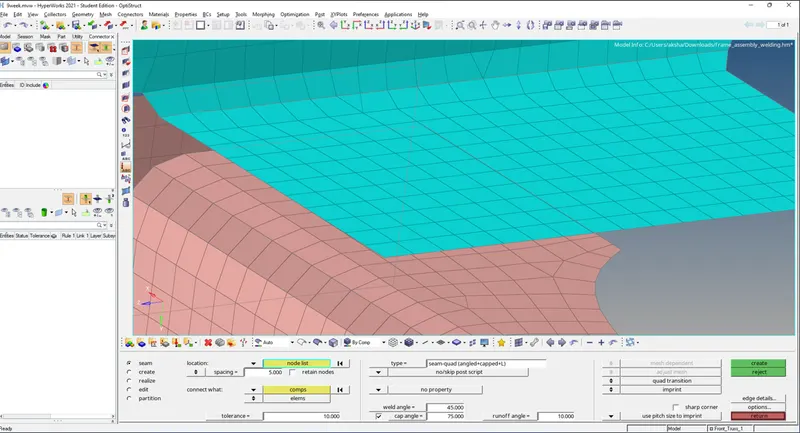

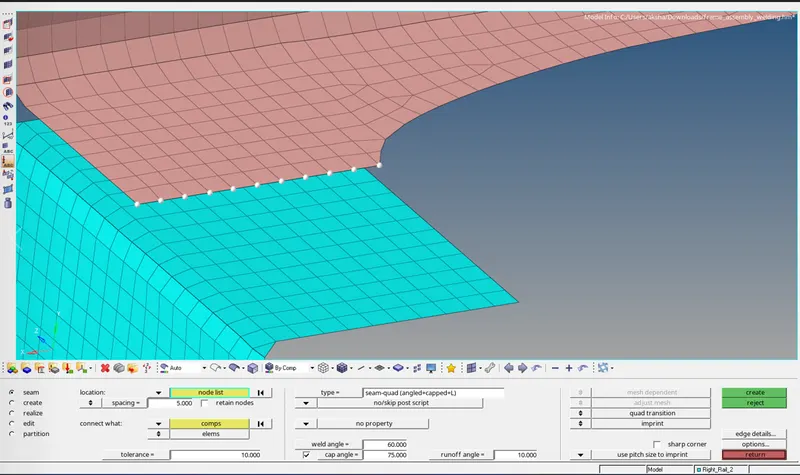

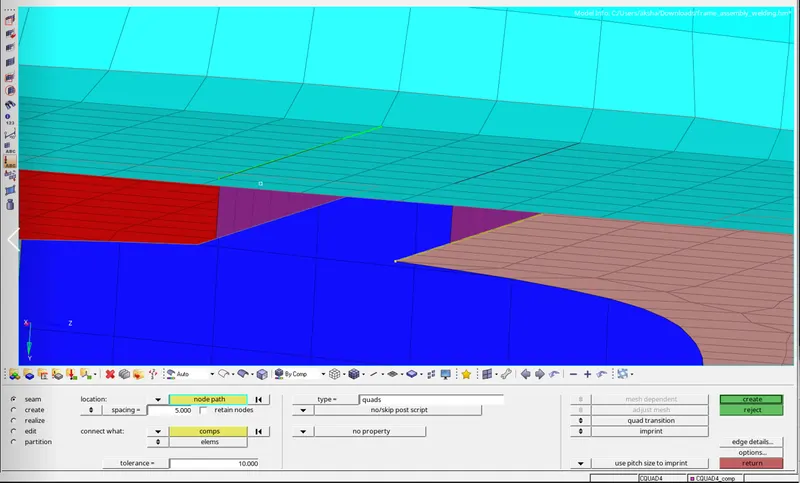

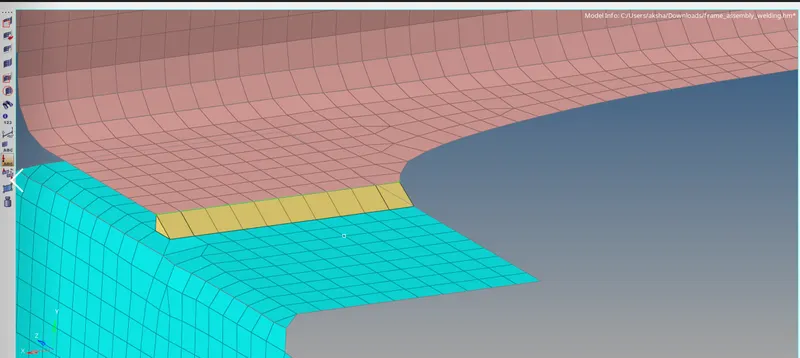

Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

Connect as shown :

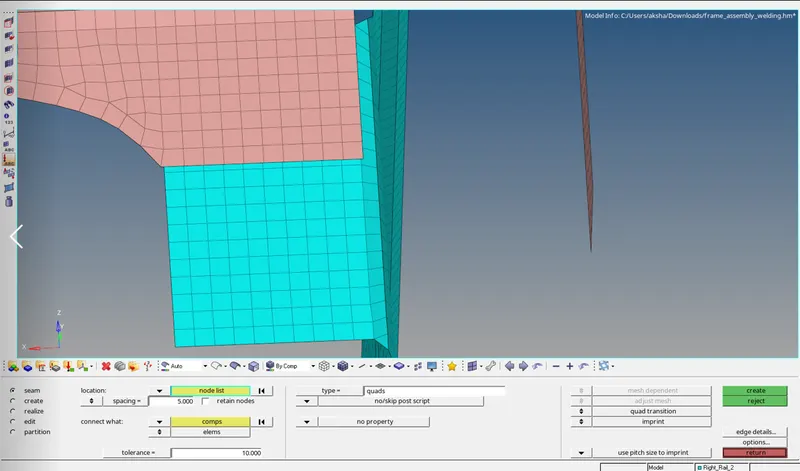

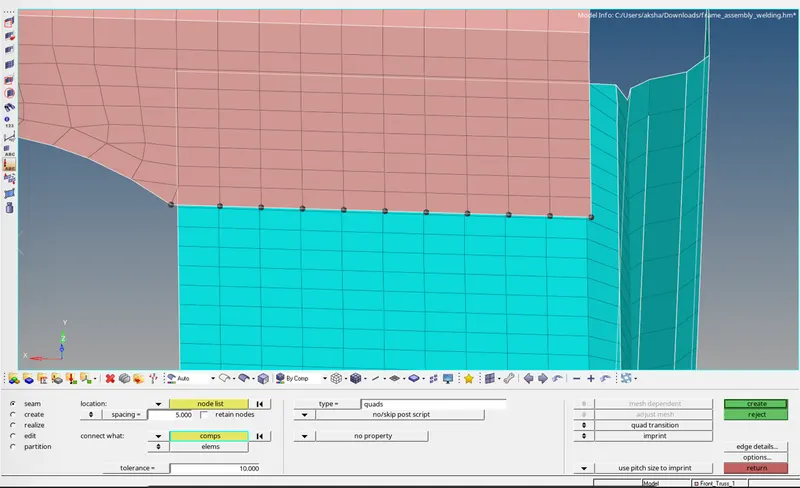

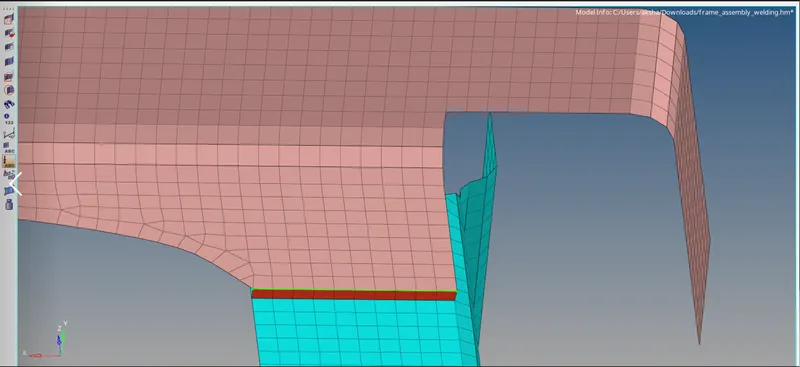

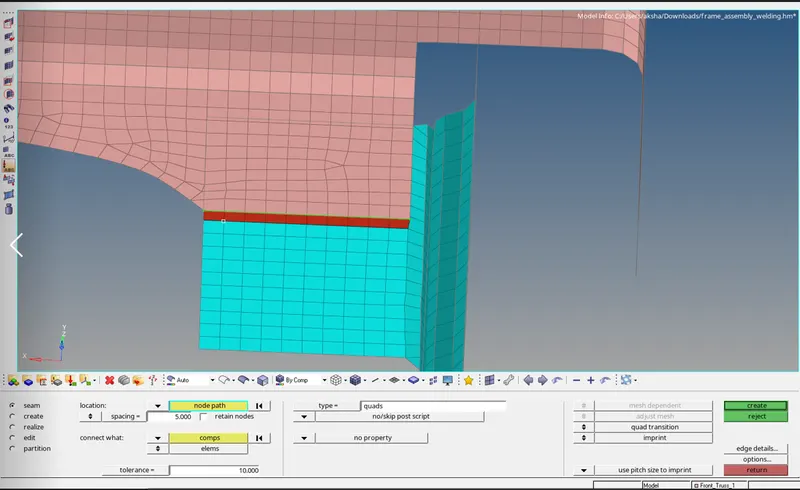

Left_Rail_2 & Front_truss_1:- Quad elements

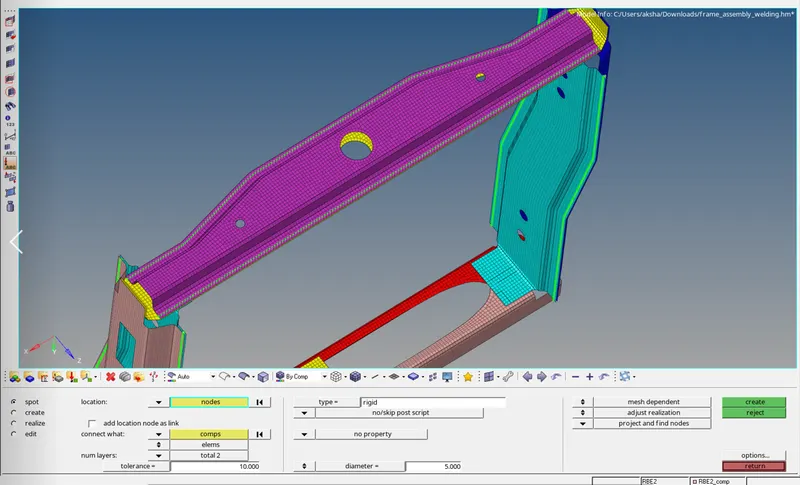

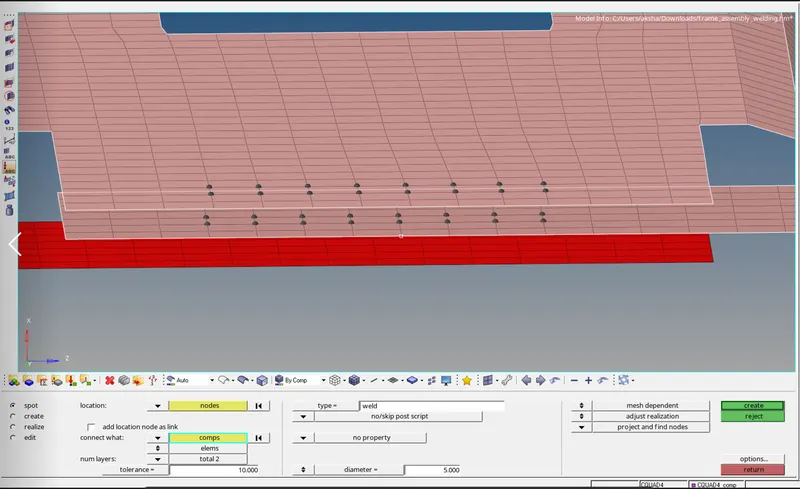

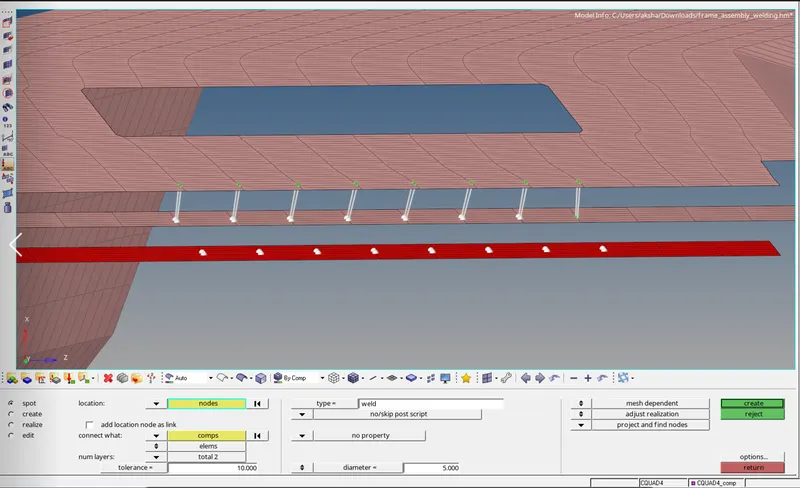

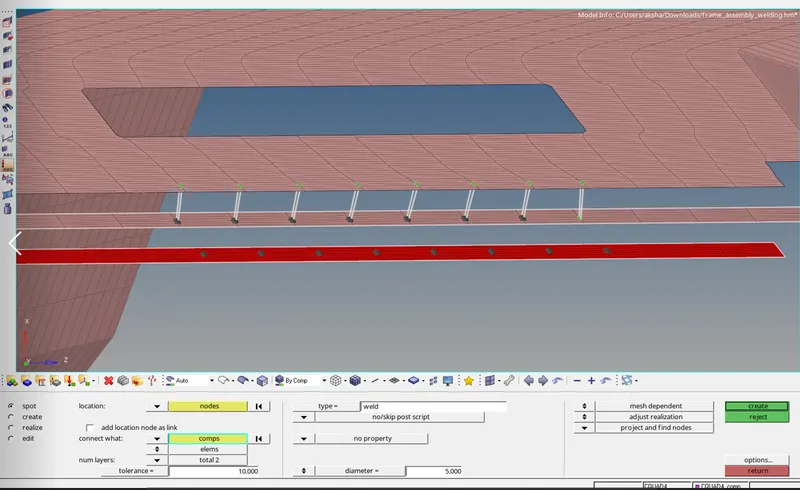

Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

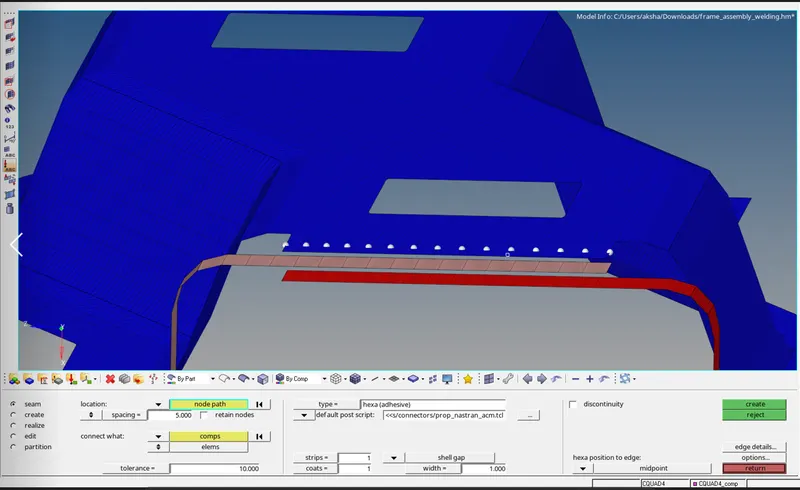

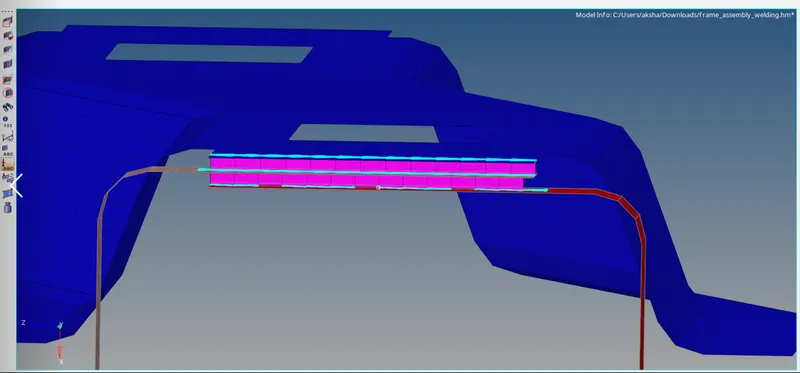

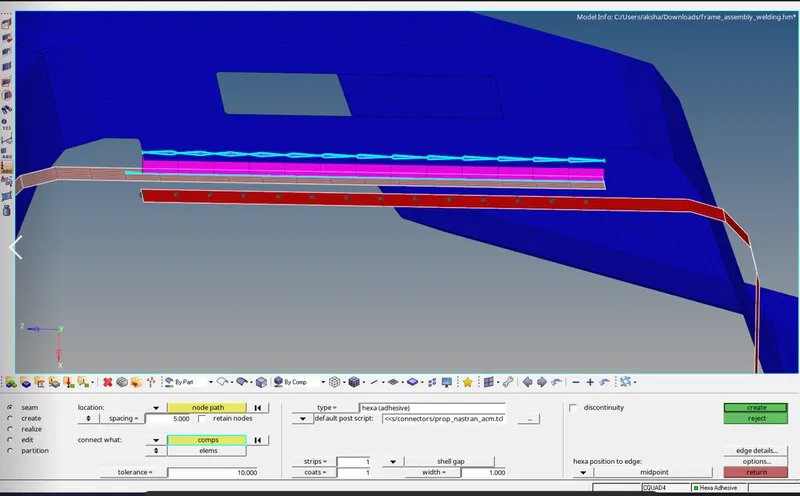

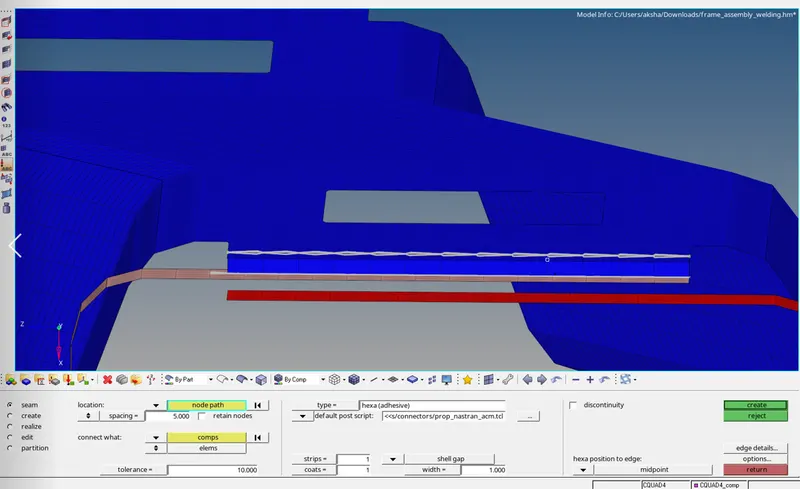

Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

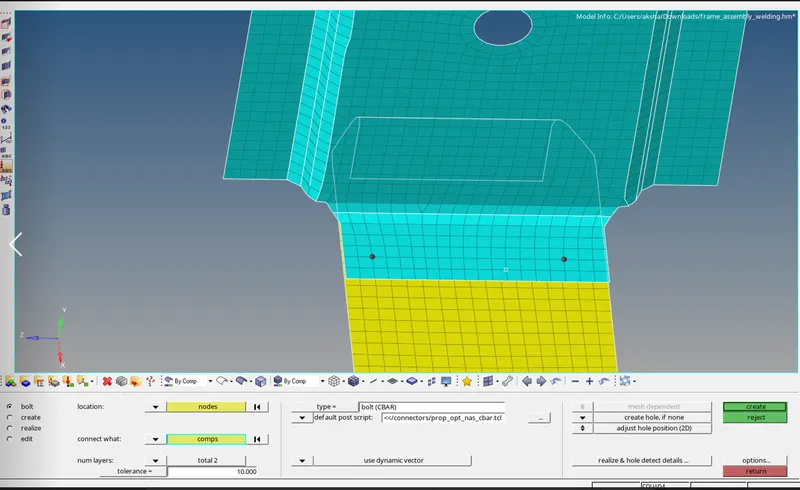

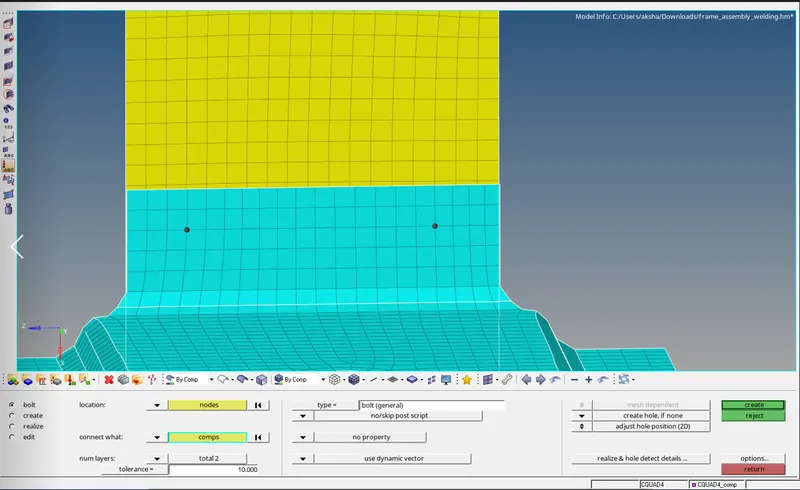

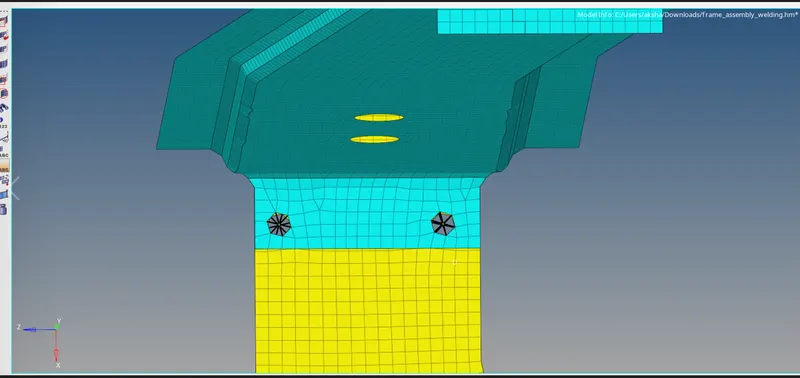

Rear_truss_2 & Right_Rail_2:- Bolt Connector

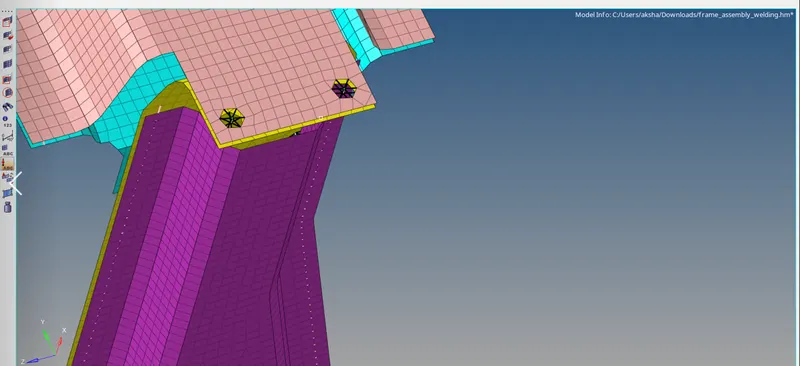

Rear_truss_2 & Left_Rail_2:- Bolt Connector

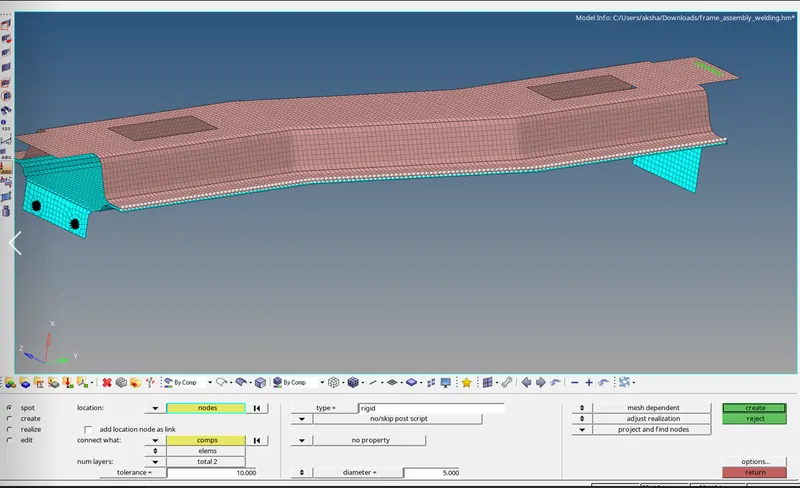

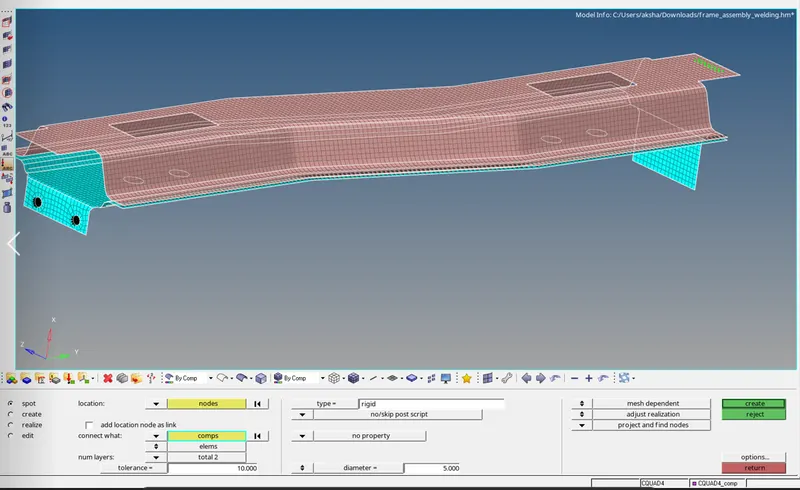

Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

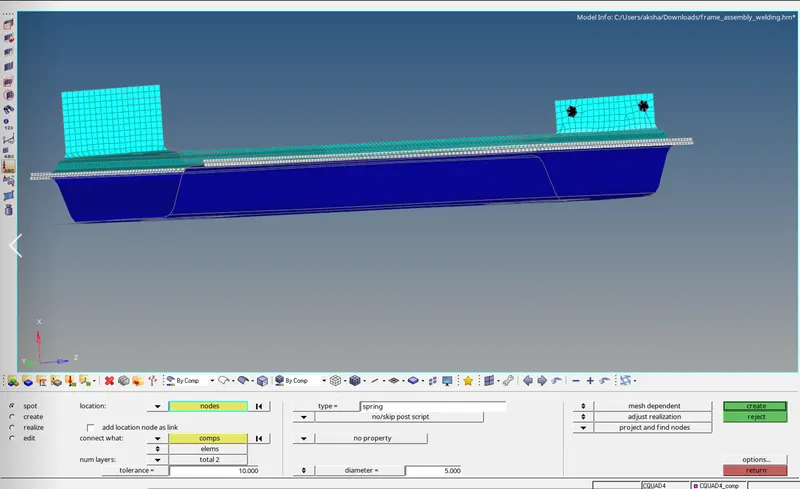

Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

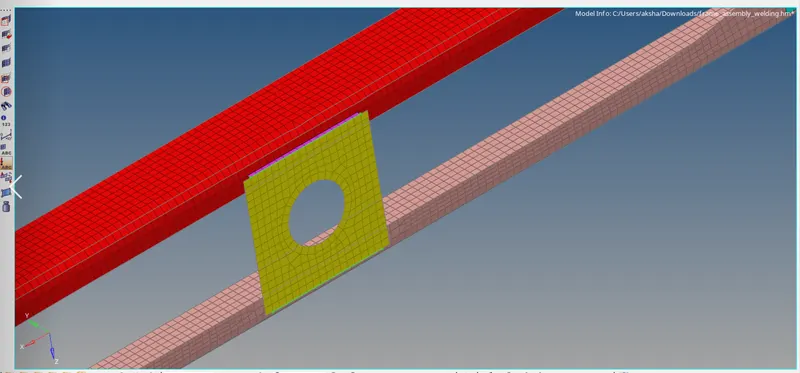

Rest all the components left Join them with suitable connectors

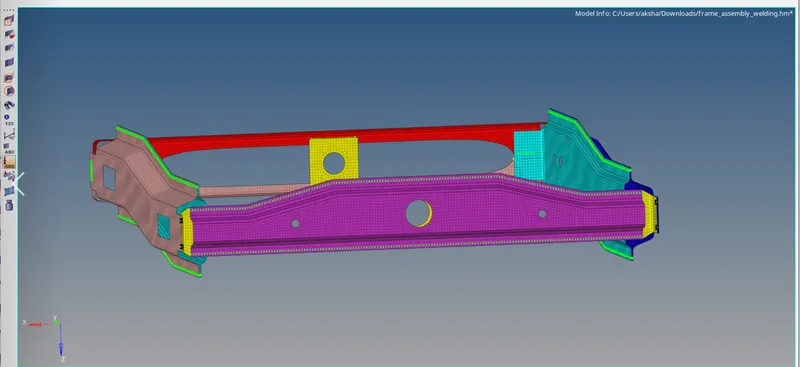

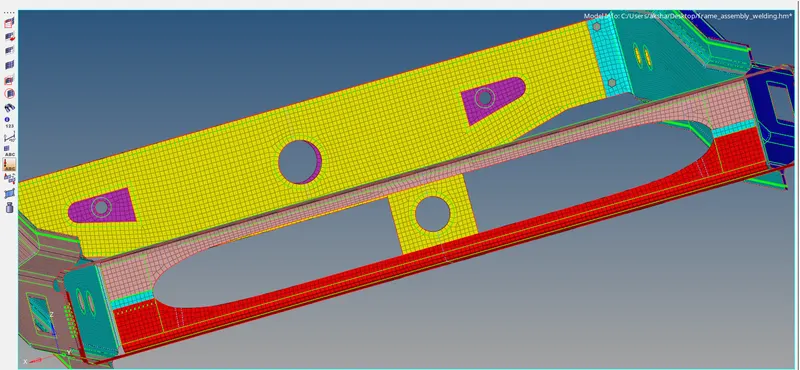

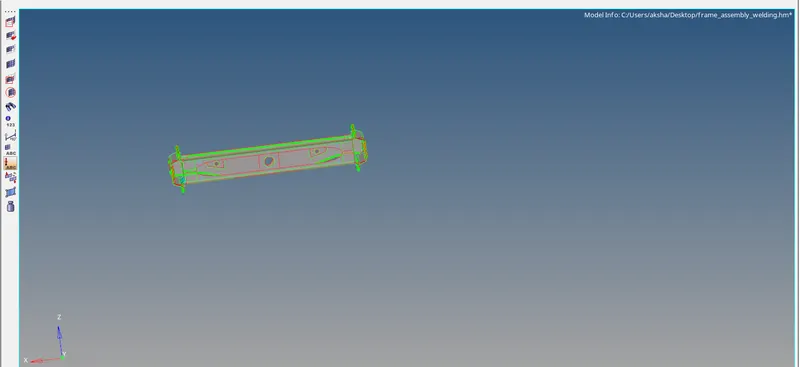

The final image of the model is as shown :

Learning Outcomes :

Learned different types of connectors.

Learned the debugging of connectors.

Learned the effect of mesh on connectors.

Result :

The model has successfully meshed and the connectors and deployed.
