Week 9-Creation of 1D Connectors Challenge

Objective

For this challenge, you will have to mesh the given geometry. Provided below are the quality parameters that you have to follow.

Target Element size - 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	30
10	Max angle Tria	110
10	Tria %	15

Create connector and Attach the various parts of the given model

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)
2. Left_Rail_2 & Front_truss_1:- Quad elements
3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weldwith 2 Layers and 5 mm Diameter
4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)
5. Rear_truss_2 & Right_Rail_2:- Bolt Connector
6. Rear_truss_2 & Left_Rail_2:- Bolt Connector
7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements
8. Left_Rail_1 & Left_Rail_2:- Spot-weld withSpring Elements
9. Rest all the component left Join them with suitable connectors

Step 1: - Import Cad model.

Step 2: - Meshing: - Mesh the all component with given quality criteria

Step 3: - Create a connectors to the parts as given.

1) Seam-Quad(angled+capped+L)

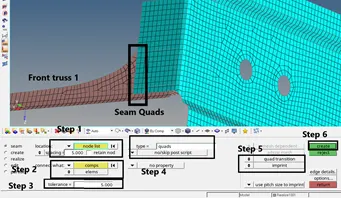

2) Quad elements

3) Spot weld with 2 Layers and 5 mm Diameter

4) Hexa (Adhesive)

5) Bolt Connector

6) Spot-weld with Rigid Elements

7) Spot-weld with Spring Elements

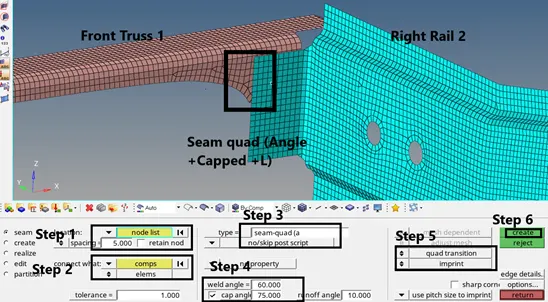

1) Seam-Quad(angled+capped+L)

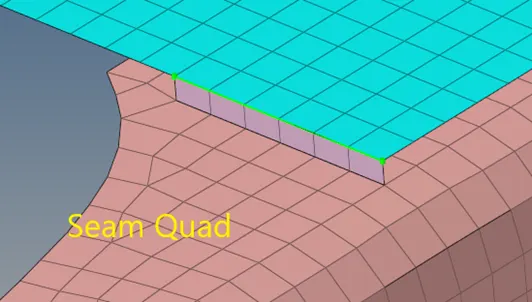

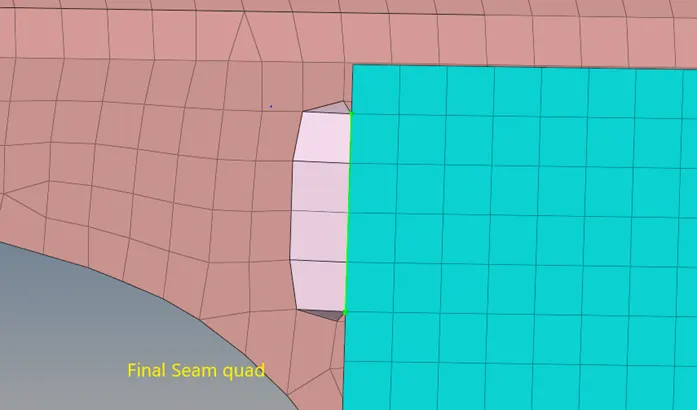

Seam quad connector was created in between Right_Rail_2 & Front_truss_1

2) Quad elements

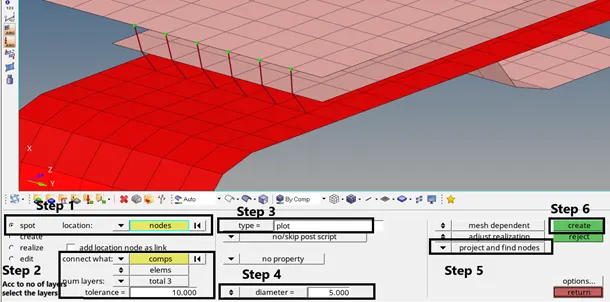

3) Spot weld with 2 Layers and 5 mm Diameter

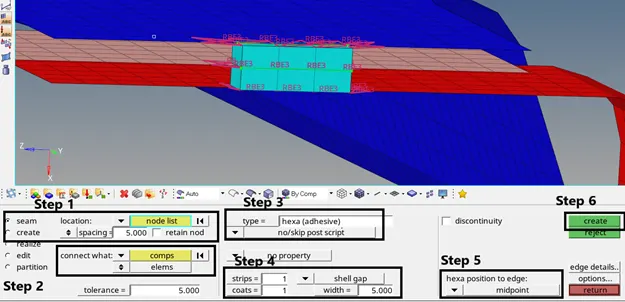

4) Hexa (Adhesive)

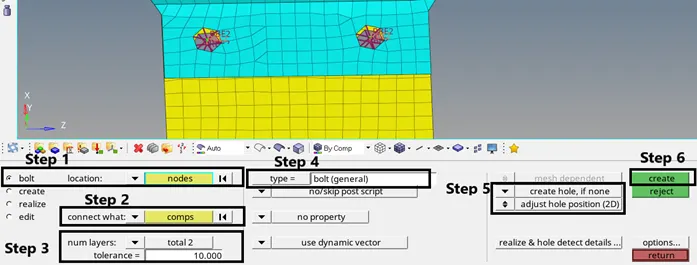

5) Bolt Connector

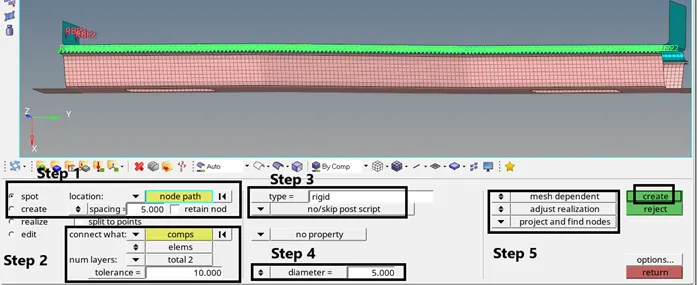

6) Spot-weld with Rigid Elements

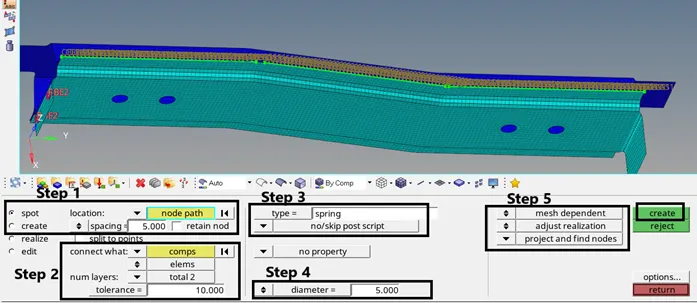

7) Spot-weld with Spring Elements

Result:-

All connectors are successfully created.
