Week 9-Creation of 1D Connectors Challenge

AIM:- create connectors in the given geometry to make connections between various parts.

Objective:-

Procedure:-

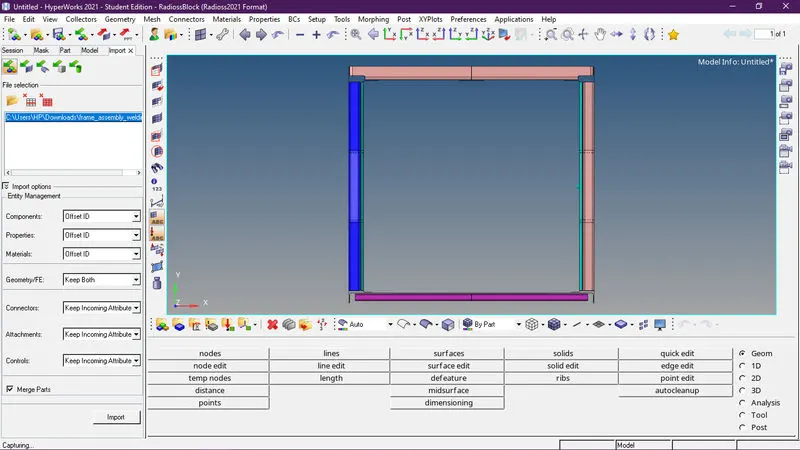

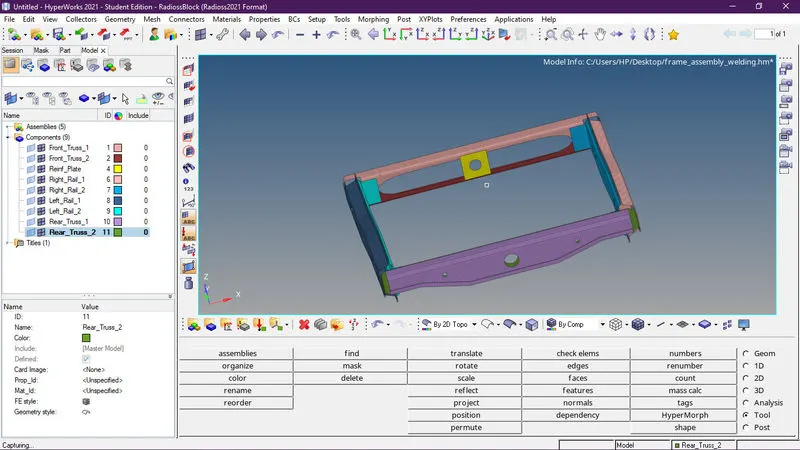

import the given model.

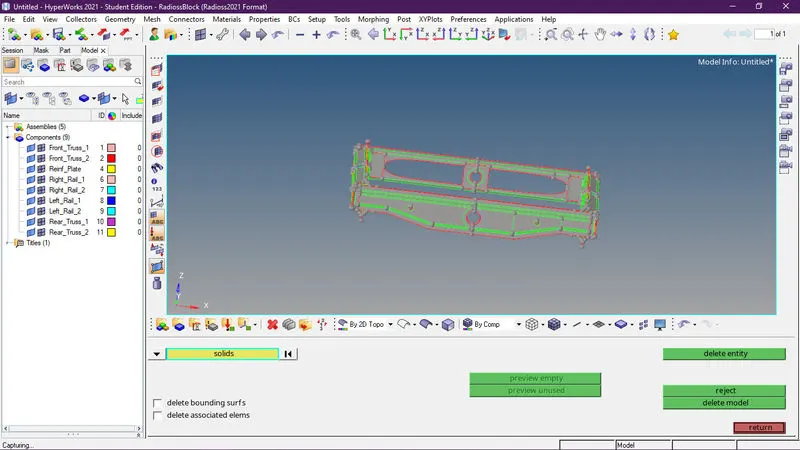

delete the solid in any presence.

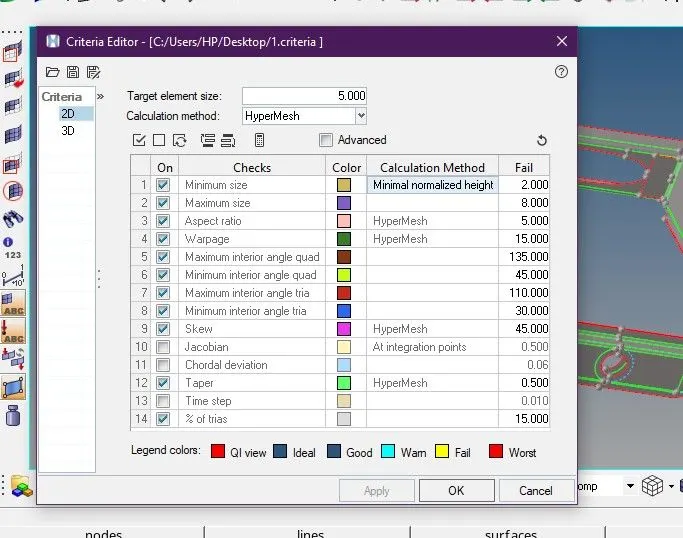

give the criteria. menu bar<preferences<criteria file setting

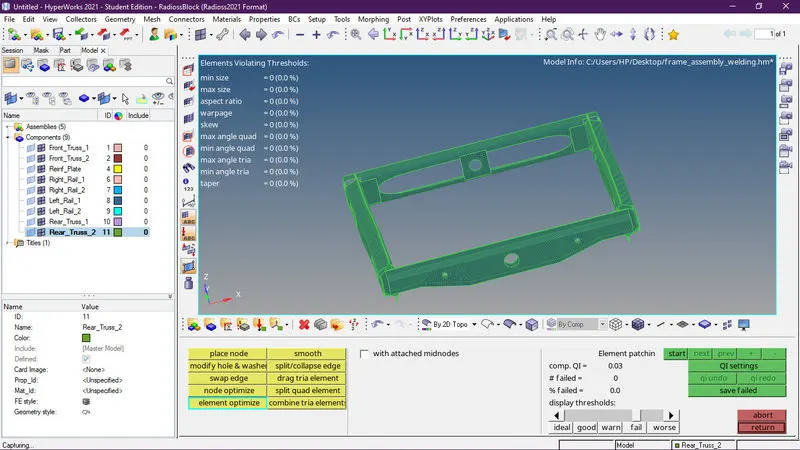

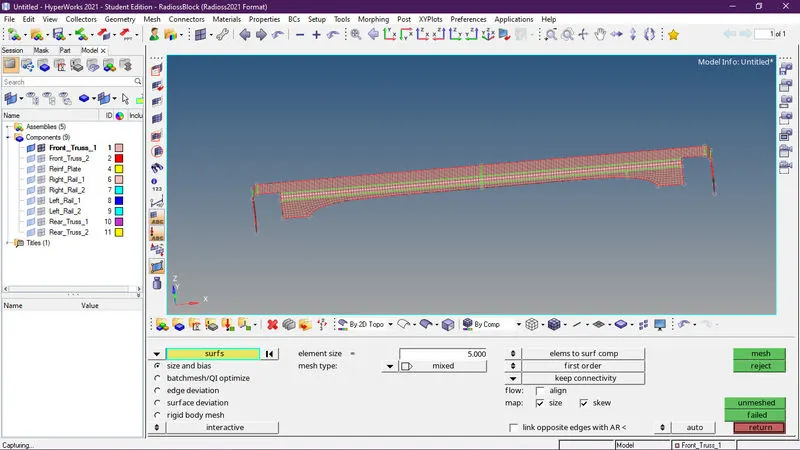

Mesh the parts one by one with the element size 5 and check the element quality.

create the connectors one by one:-

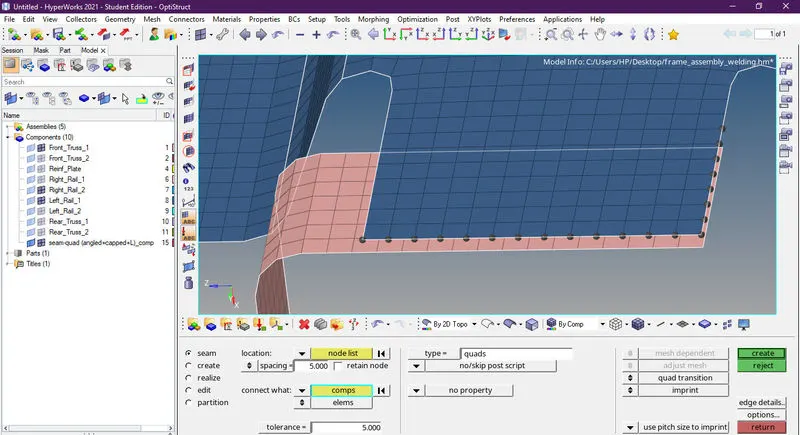

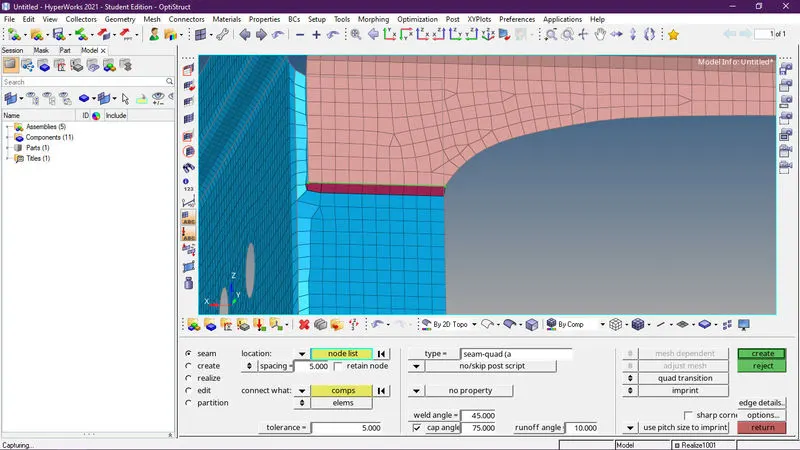

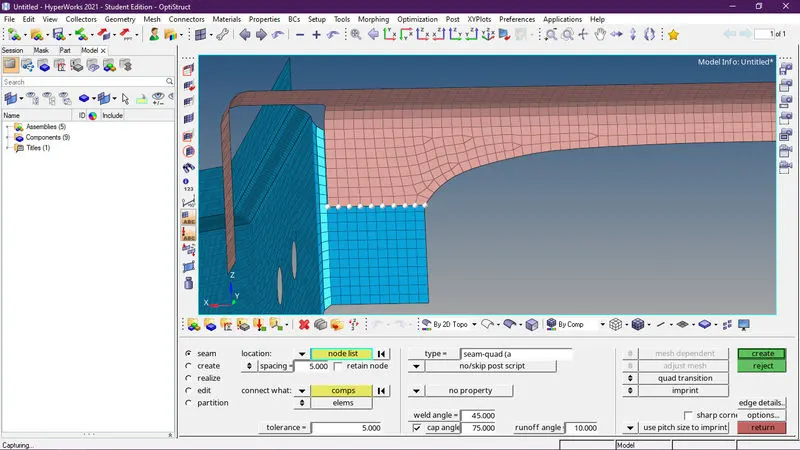

make Seam-Quad(angled+capped+L) in Right Rail 2 & Front truss 1. 1D < connector < seam < type[Seam-Quad(angled+capped+L)]

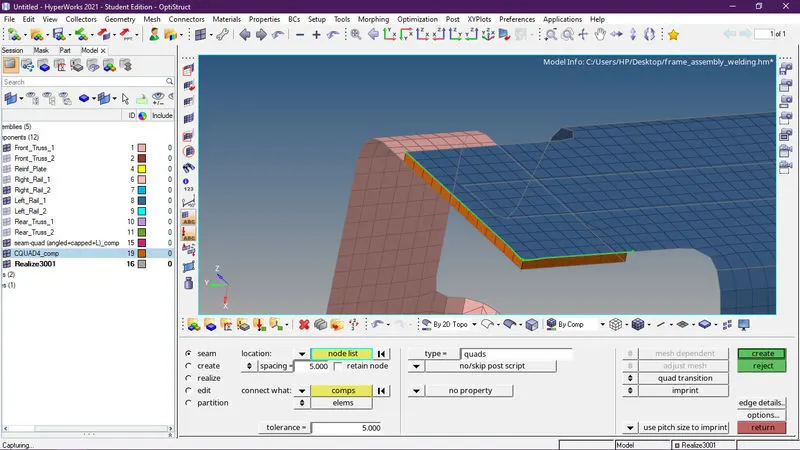

make Quad elements in left Rail 2 & Front truss 1. 1D < connector < seam < type[Quad]

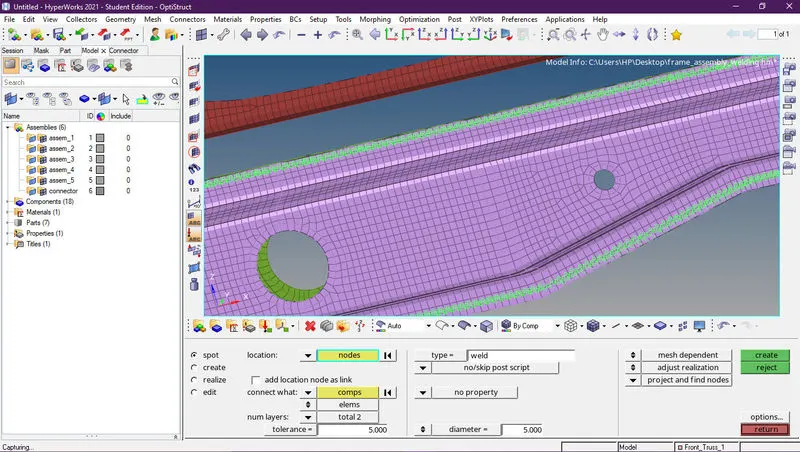

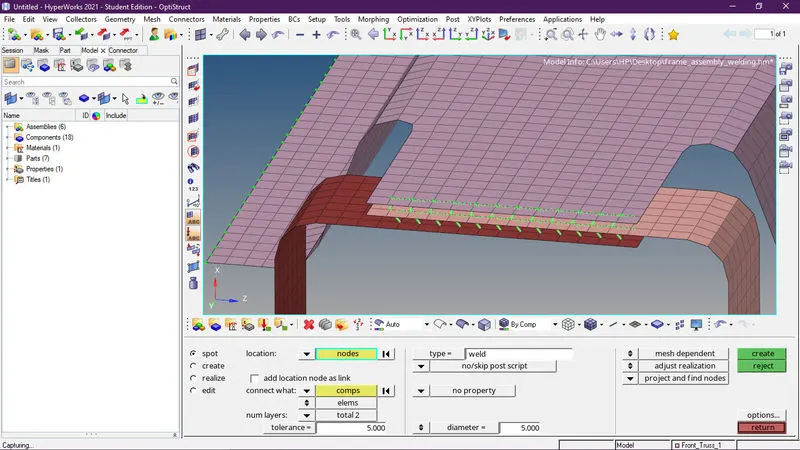

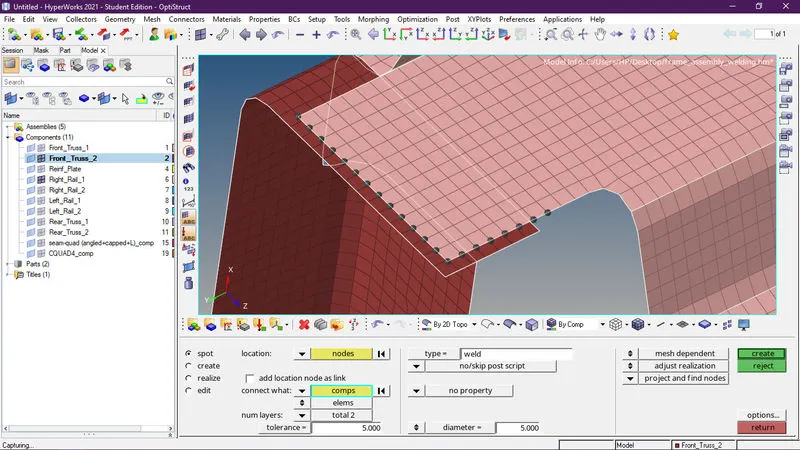

make spot weld with 2 layers and 5 mm diameter in Front truss 2, Front truss 1 & Right Rail 1 . 1D < connector < spot < type[weld]

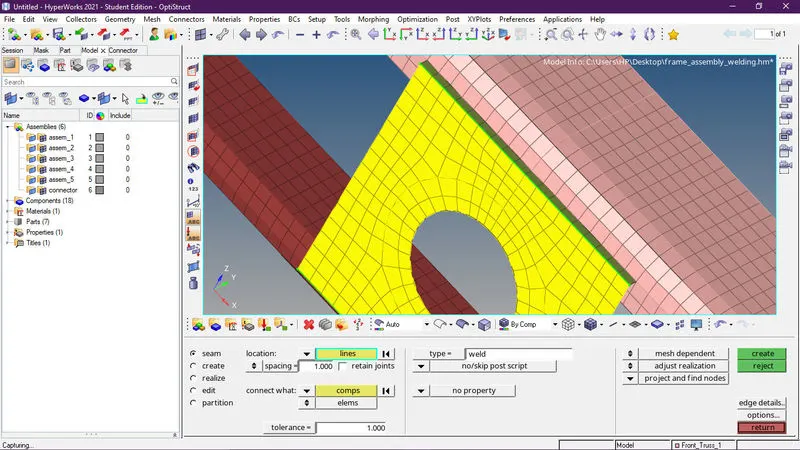

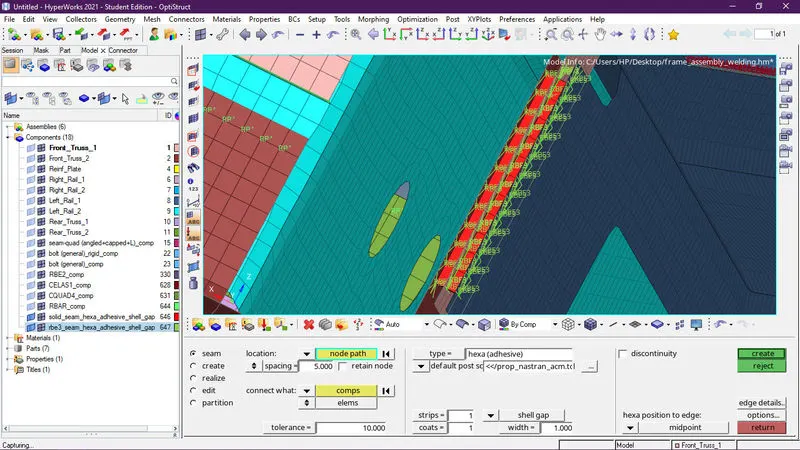

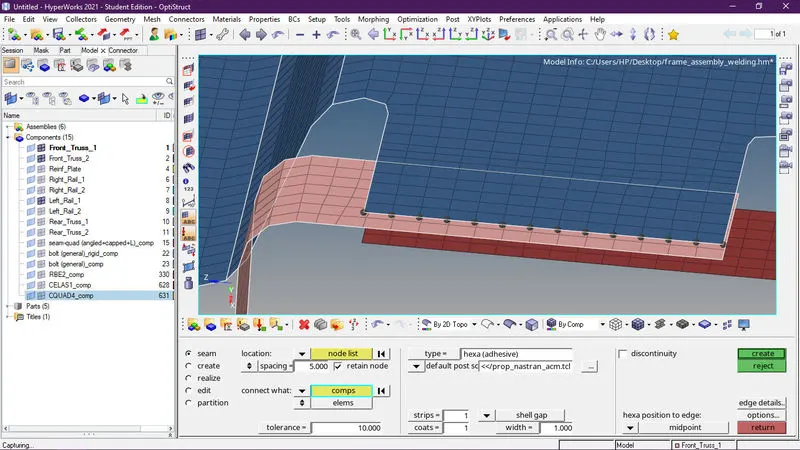

make in Hexa (Adhesive Right) in Front truss 2, Front truss 1 & Left Rail 1. 1D < connector < seam < type[Hexa (Adhesive Right)]

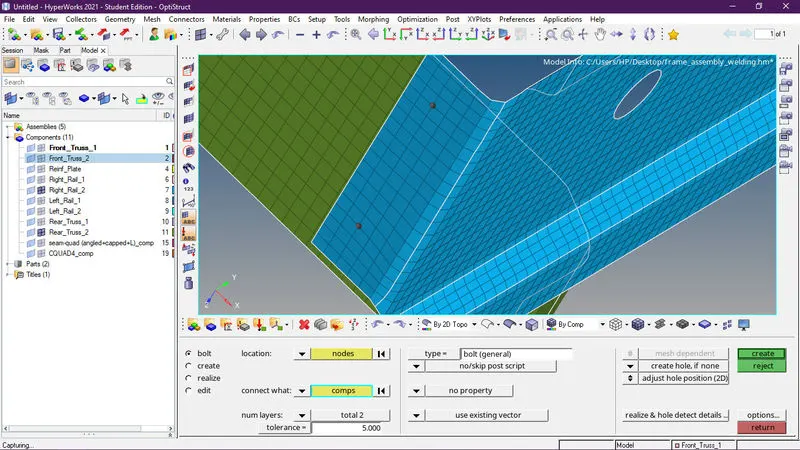

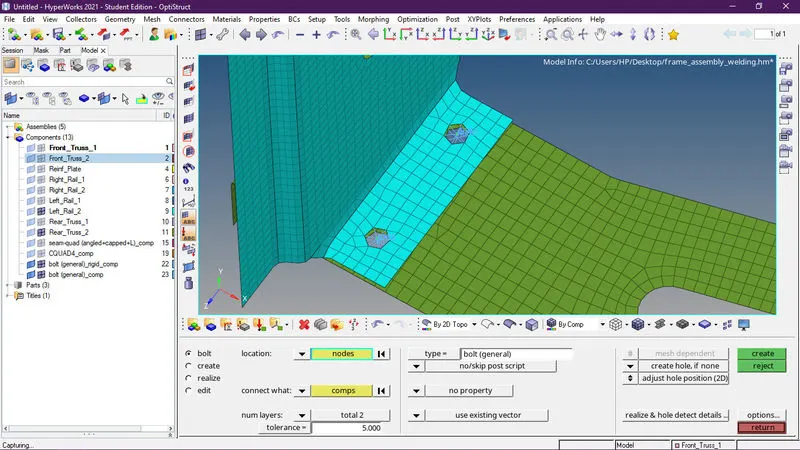

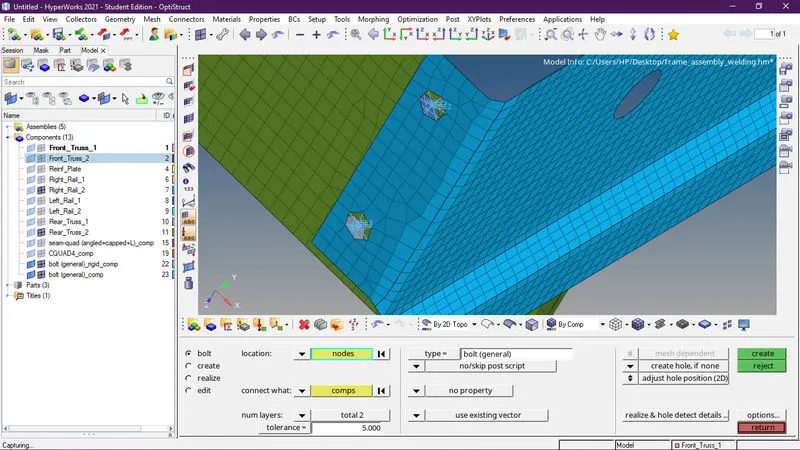

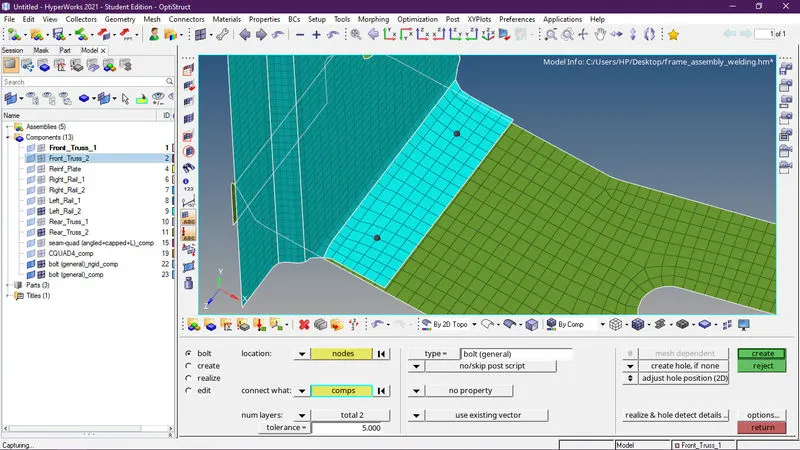

make bolt connector in Rear truss 2 & Right Rail 2 . 1D < connector < bolt< type[bolt(general)]
make bolt connector in Rear truss 2 & left Rail 2 . 1D < connector < bolt< type[bolt(general)]

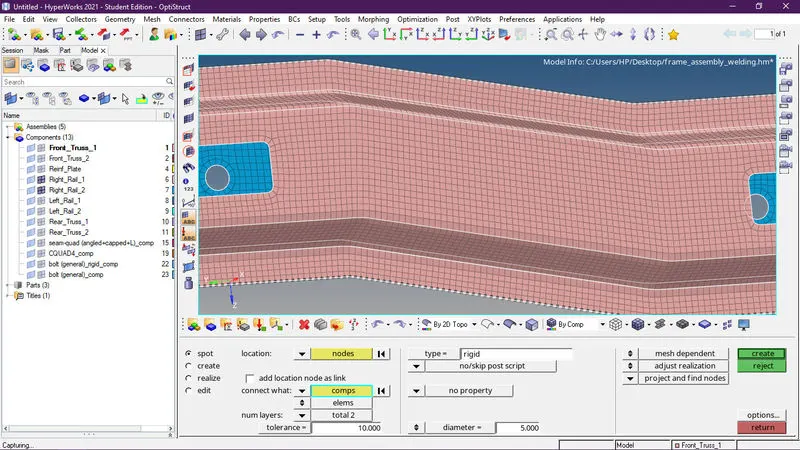

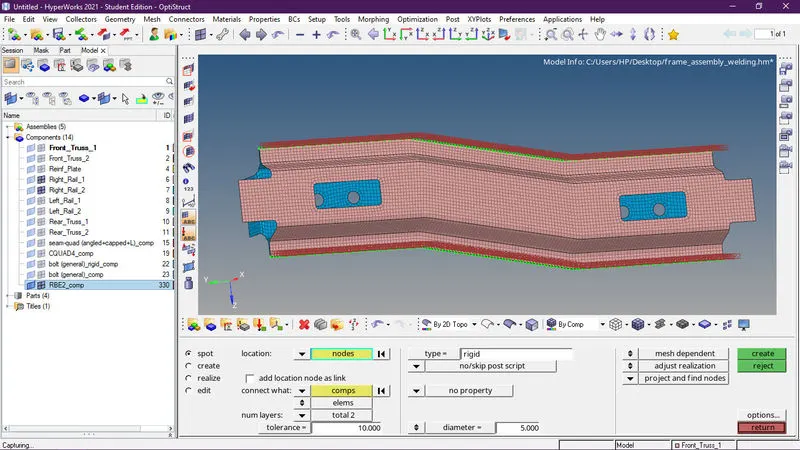

make spot weld with rigid elements in Right Rail 2 & Right Rail 1 . 1D < connector < spot < type[rigid]

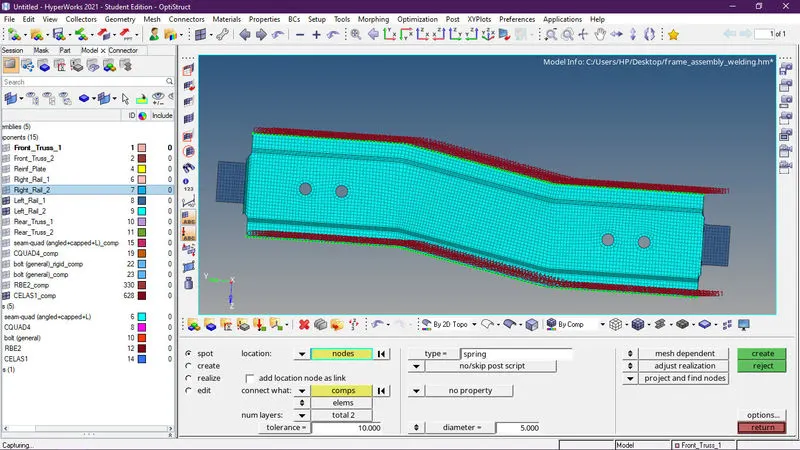

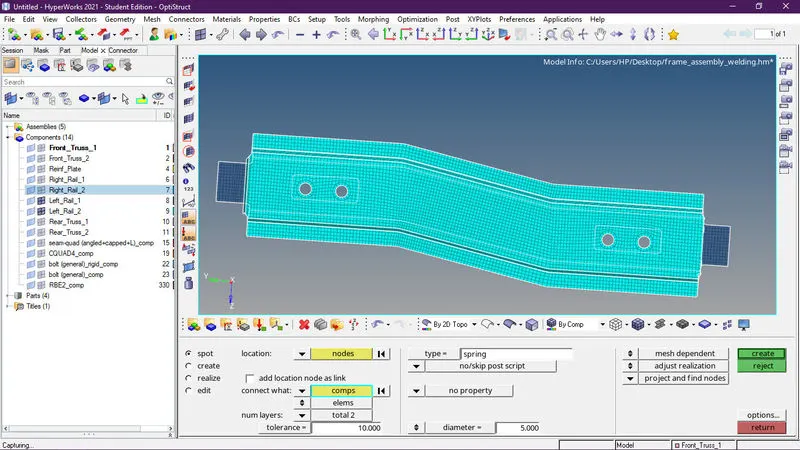

make spot weld with spring elements in Left Rail 2 & Left Rail 1 . 1D < connector < spot < type[spring]
make rest all the components left Join them with suitable connectors.

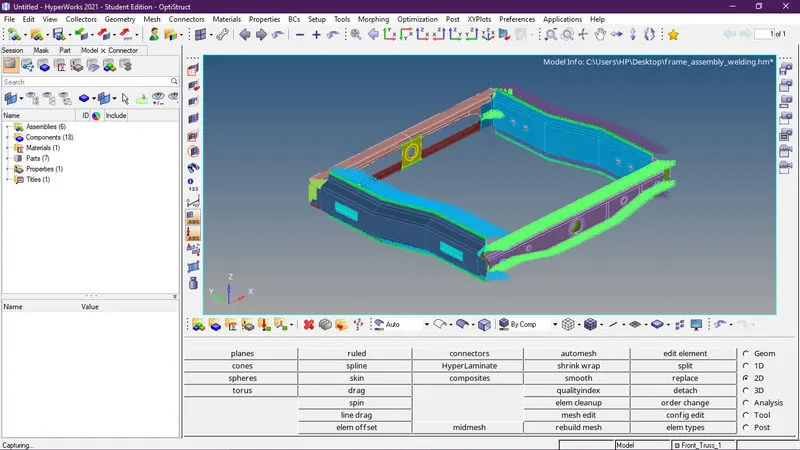

final complete model.

Result:- All the parts are connected with the connectors and successfully realized for the given model.
