Week 6-Meshing of Hood Challenge

AIM:- mesh the hood for crash and safety simulation.

Procedure:-

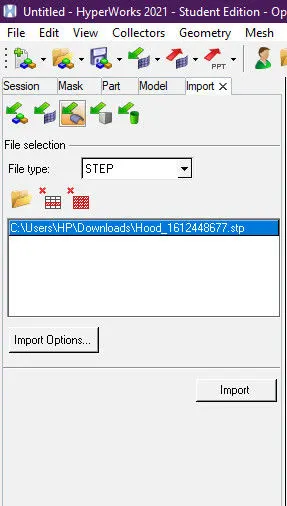

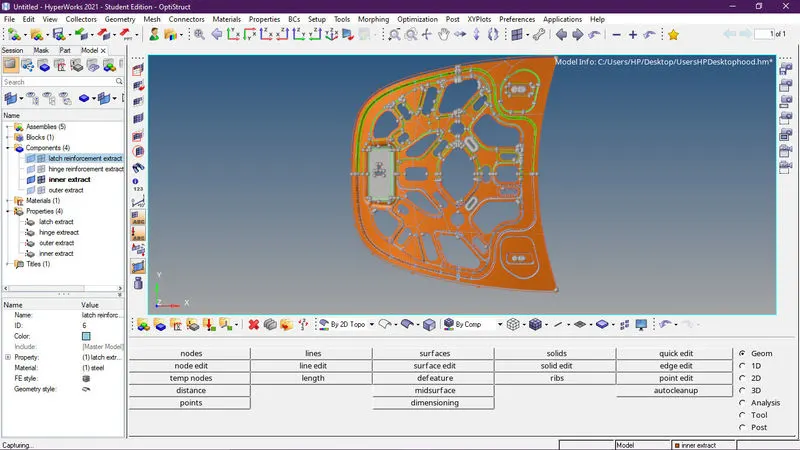

• import the geometry.
•

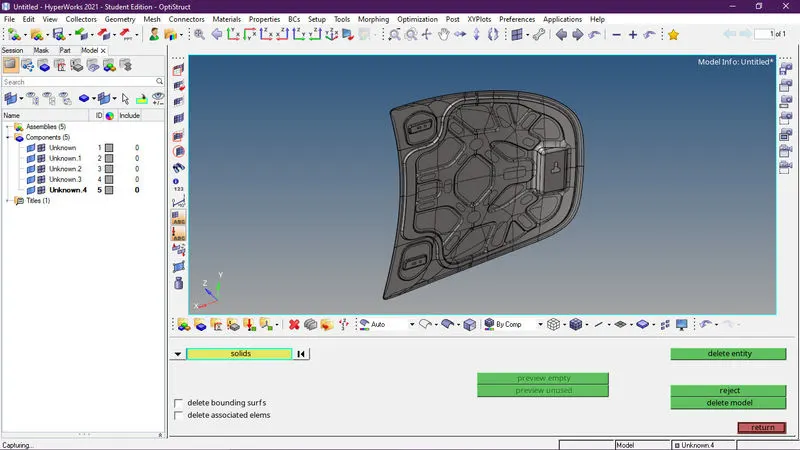

• delete the solid of the geometry.
•
• measure the thickness of the component.

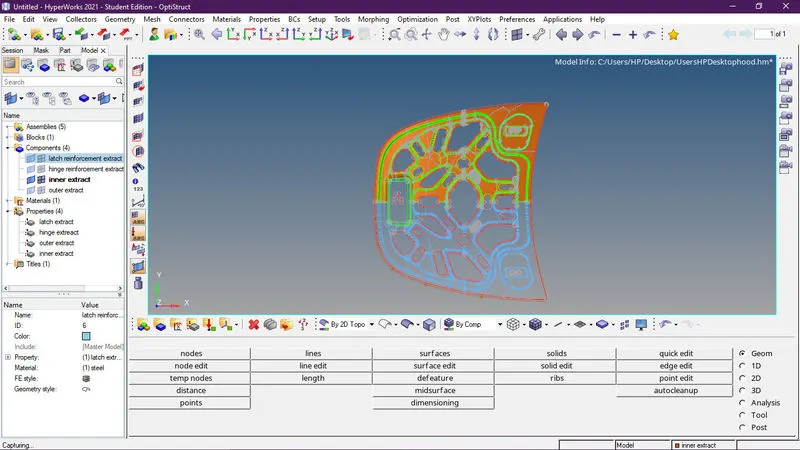

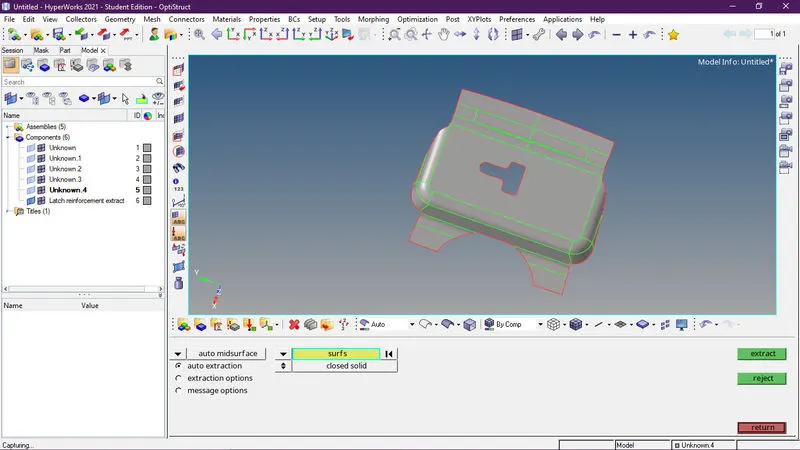

• after deleting the solid create mid-surface and name it according to part.
•

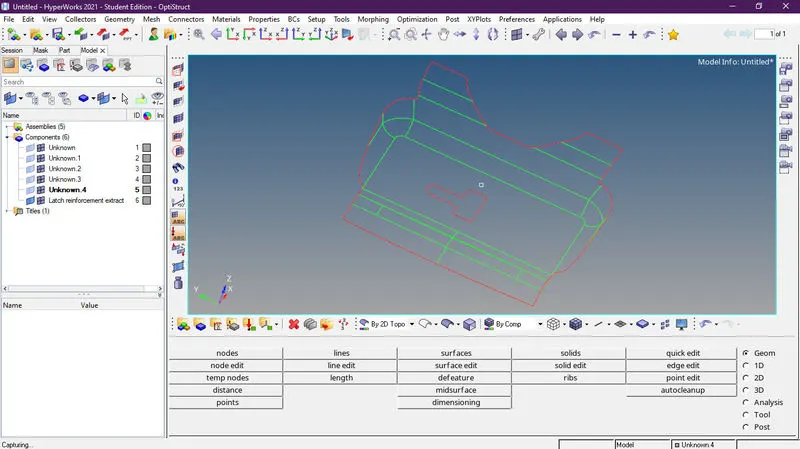

• clear the geometric error.
•

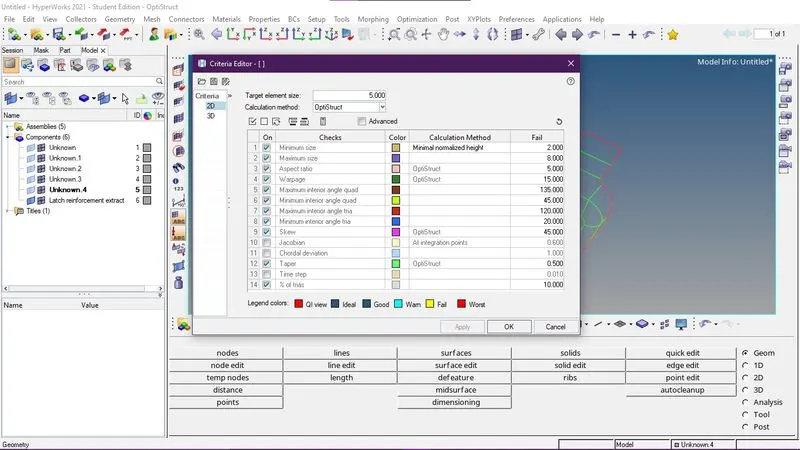

• give the Quality Criteria. preferences < criteria file setting
•

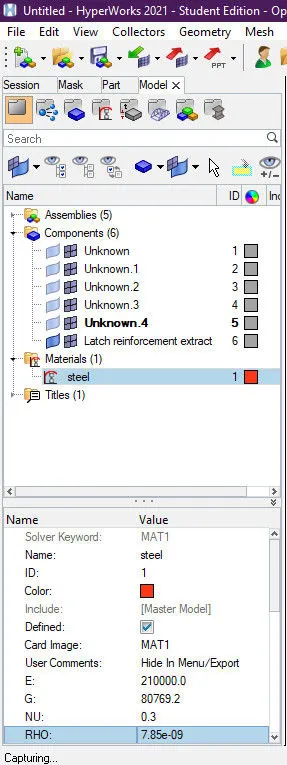

• give material name steel. and property to each part respectively with their thickness.
•

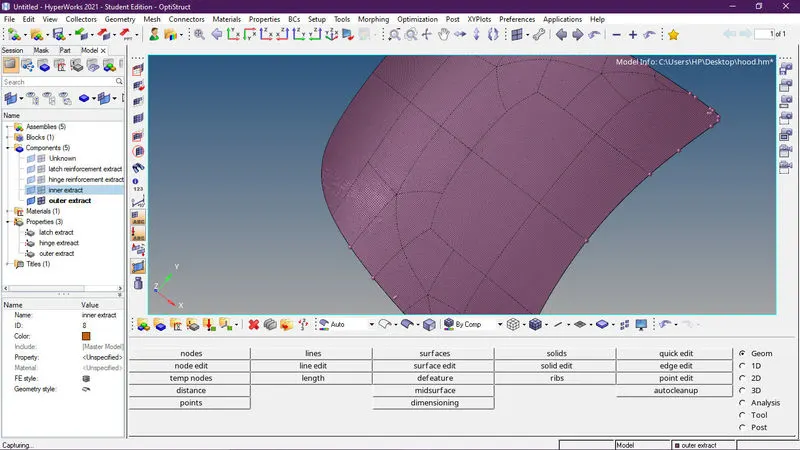

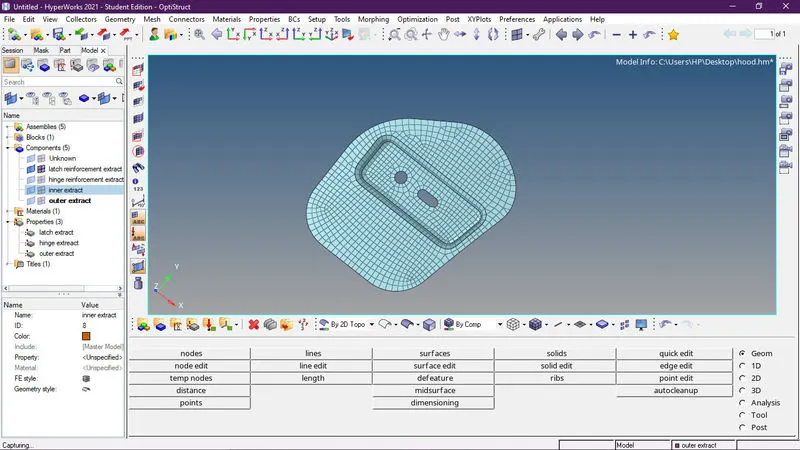

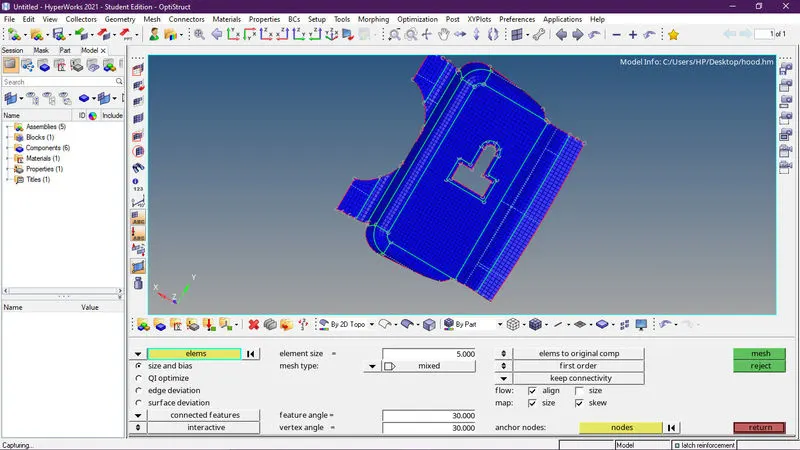

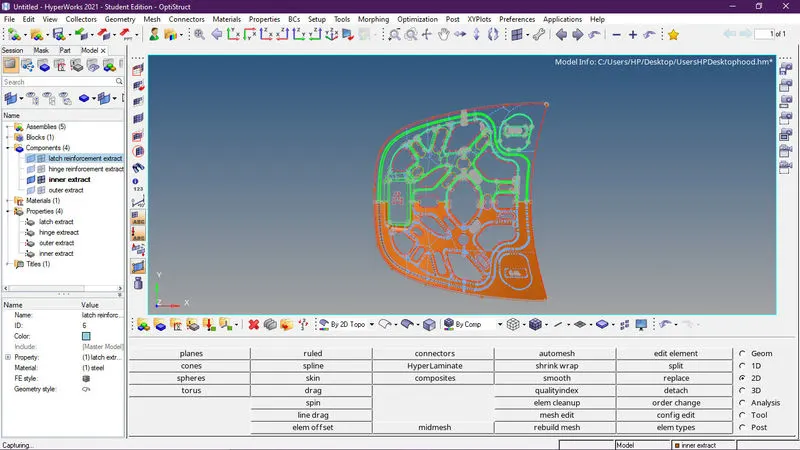

• mesh the component
•
•
•
•
•
• suppress the other half area of geometry. gemo
•

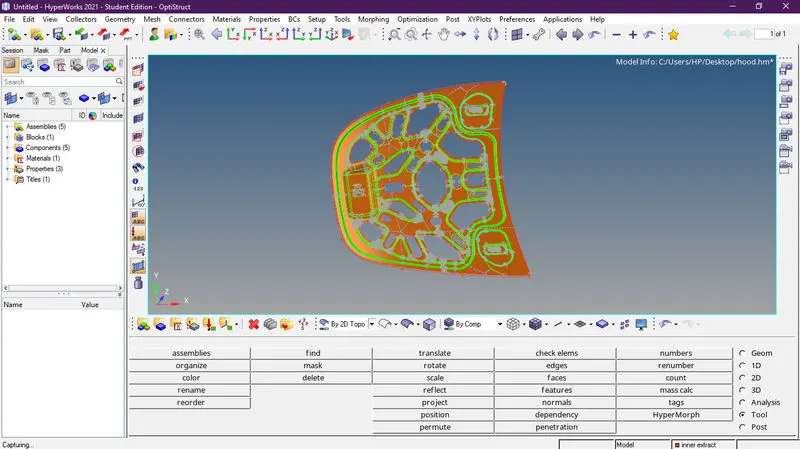

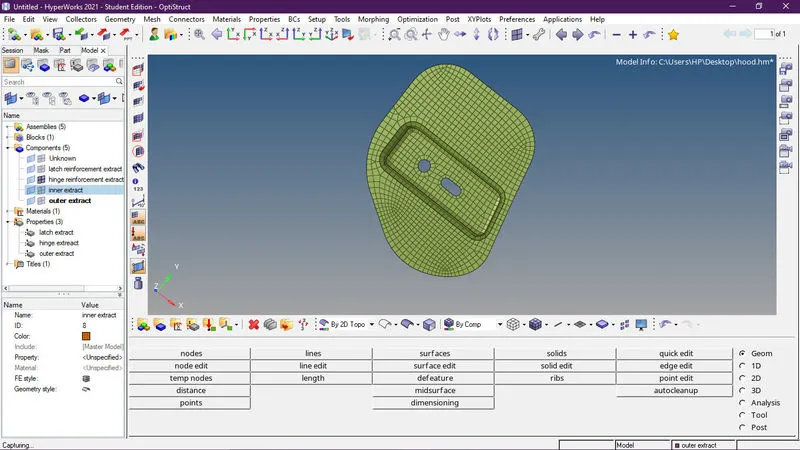

• reflect the element to other elements and cleanup elements.
•
•
