Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM:-Mesh the following component and assign thickness with the given Quality Criteria.

Objective:-

• Remove the geometric error.
• mid surface the component.
• mesh all components by given criteria.
• assign thickness.

Procedure:-

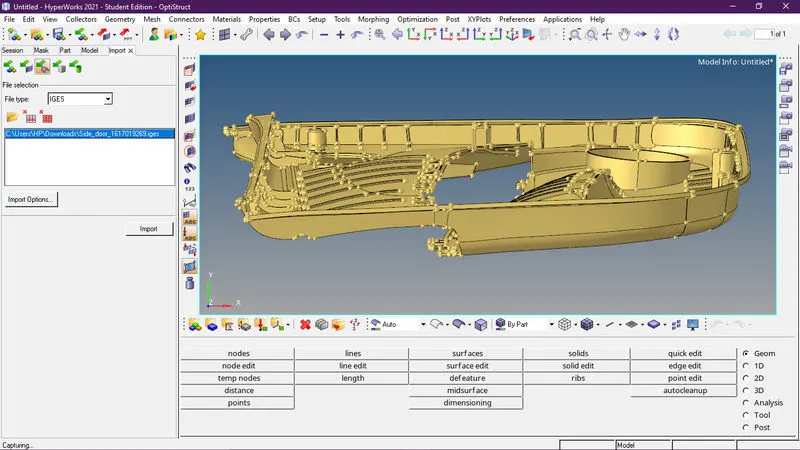

• Import the geometry. import solver < desk<impor geometry
•

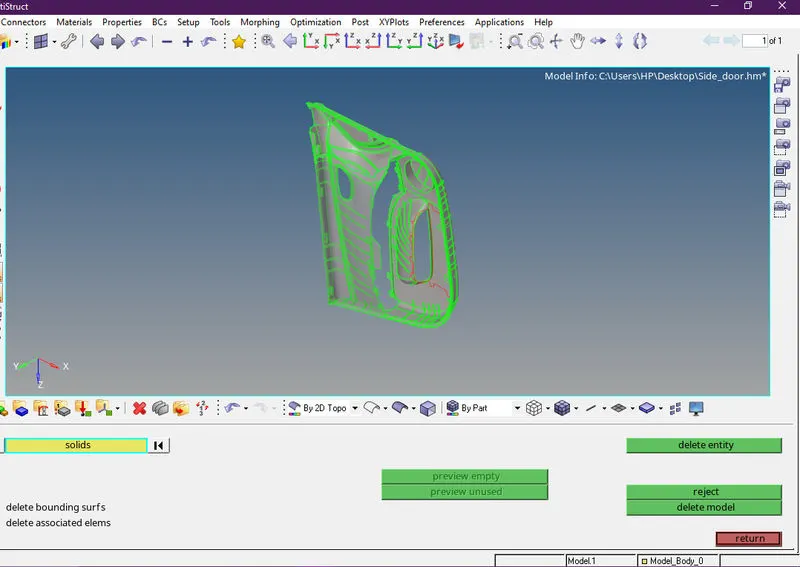

• Delete the solid from geometry. delete <solids<delete entity.
•

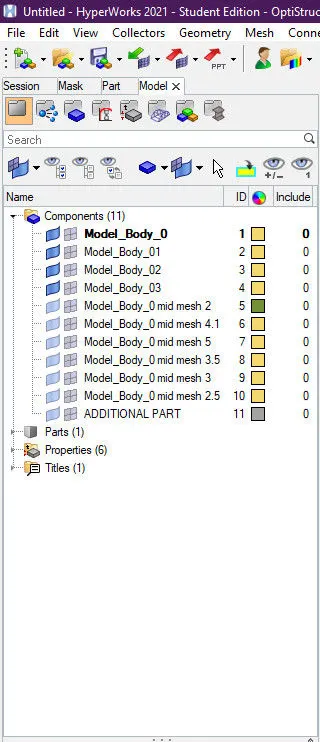

• create components for each component of geometry for manual mid-surfacing.
•
• clear the geometric error.

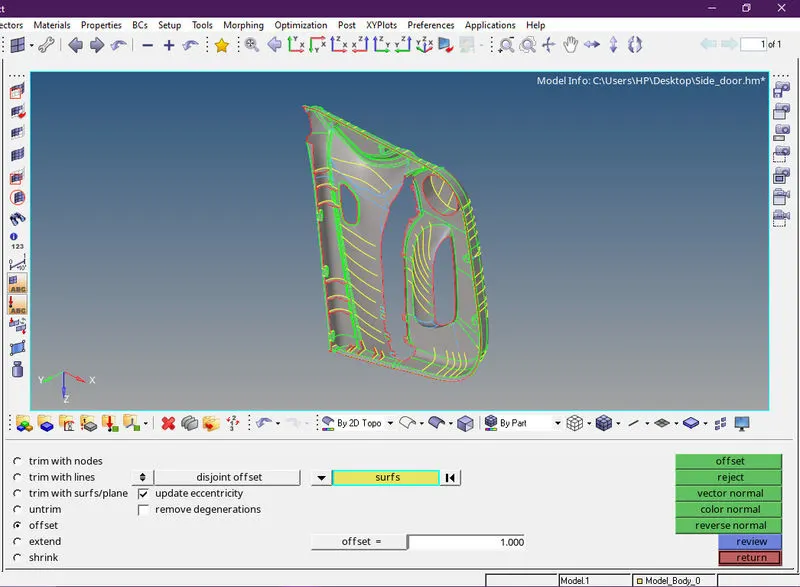

• manually mid-surface the pannel due to variable thickness.
•
•

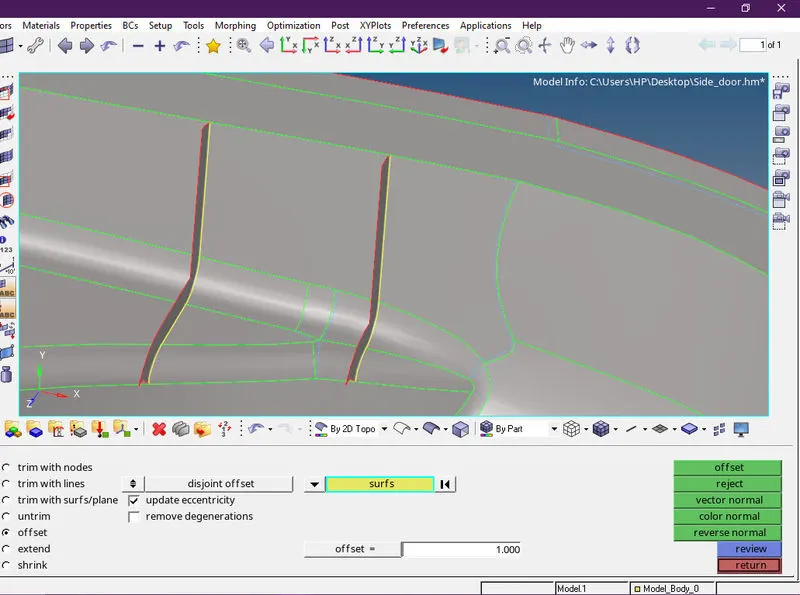

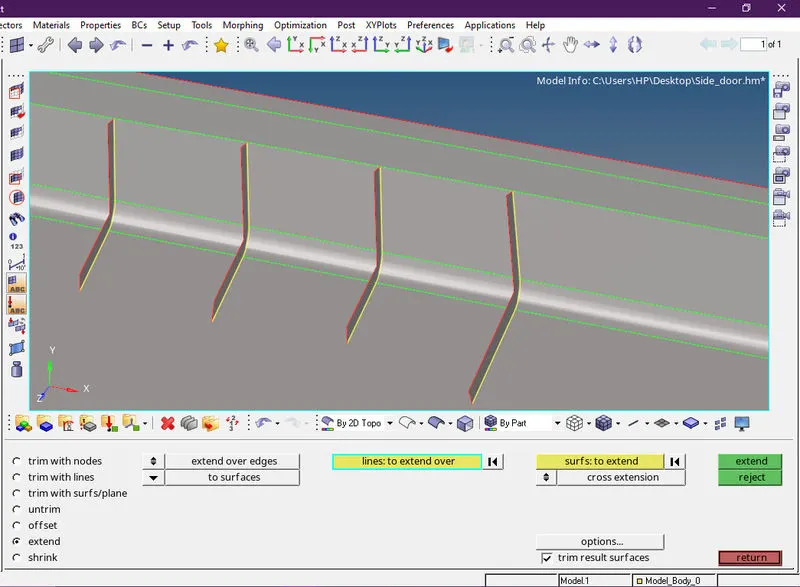

• extend the rib to make connectivity with the body.
•

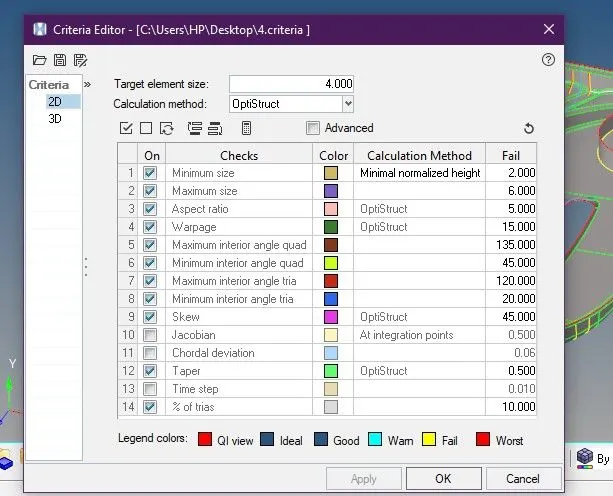

• give the criteria that are given.
•

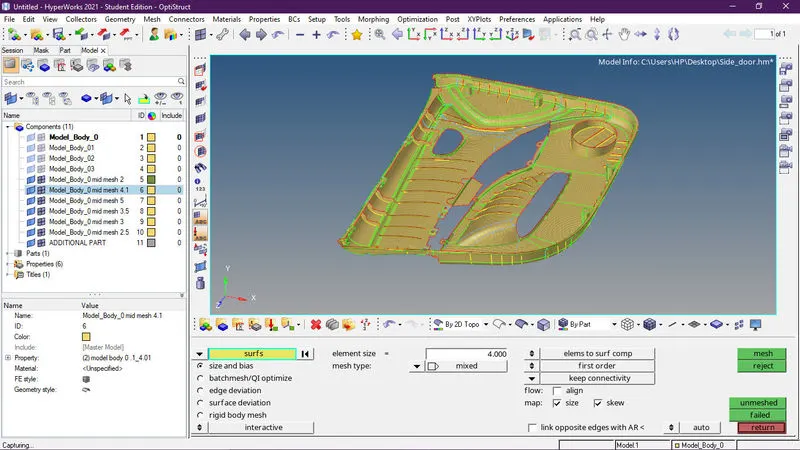

• Mesh the components one by one with the element size 4.
•

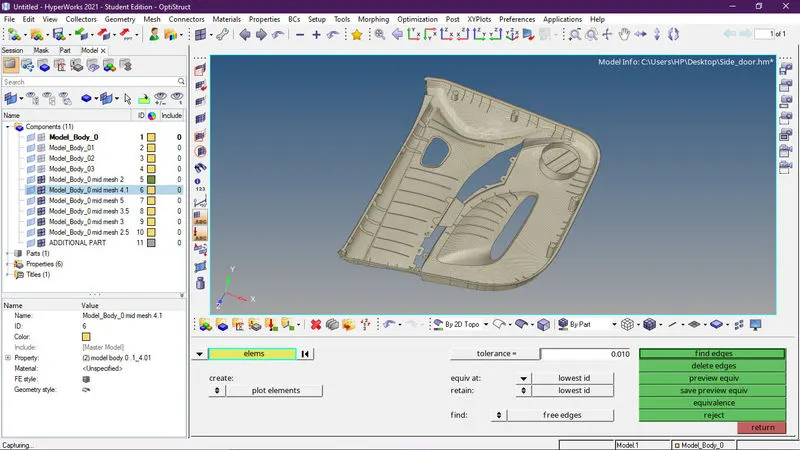

• find free edges and distract elements and give them equivalence.
•

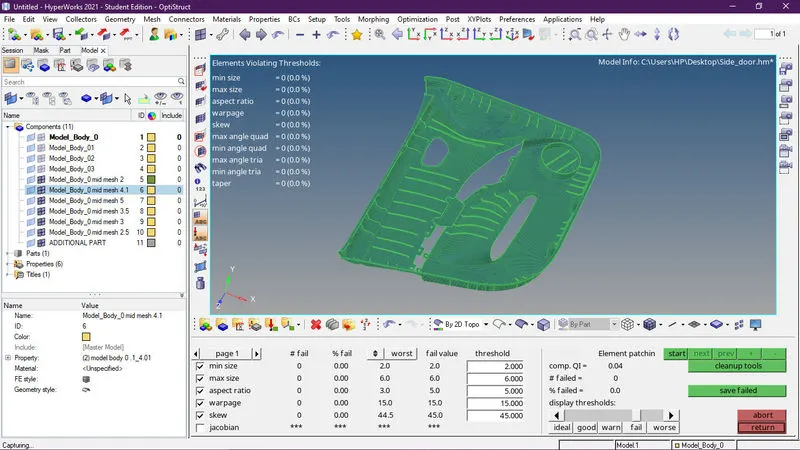

• check the quality index.
•
• Result:-the geometry has been mid-surfaced and meshed with the proper mesh flow and quality as possible and the components that did not contribute to the mesh have been deleted.
