Week 9 Challenge
Given data:
Roof slope 1:10
Bay spacing = 5 m
Live load = 75 kg/m^2 = 0.735 kn/m^2=0.735 x 5 =3.675 kN/m
Dead load = 5kg/m^2 + 25 kg/m ^2=30kg/m^2=0.294kN/m^2=0.294 x 5 =1.47 kN/m
AIM:
To design a 3 hinged pitched roof frame of a steel building and draw bending moment ,shear force and axial force diagrams of the frame.
Procedure:
step 1:

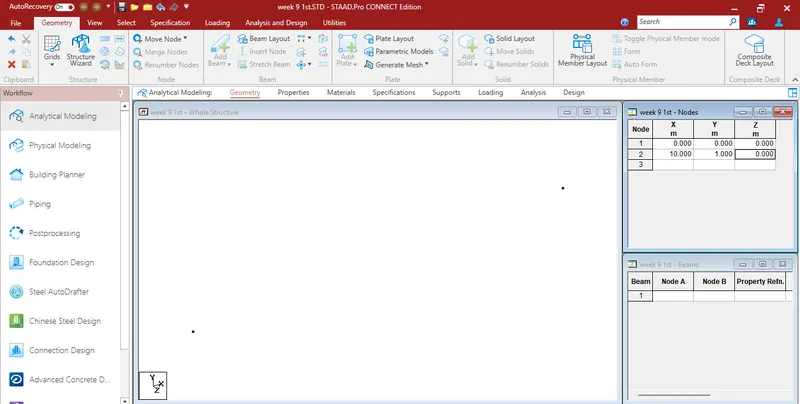

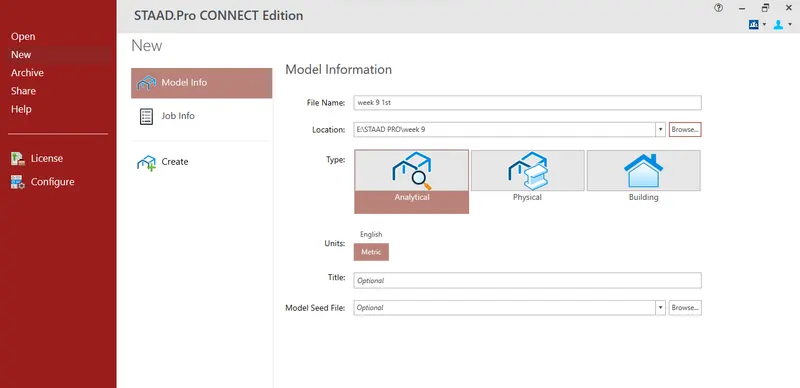

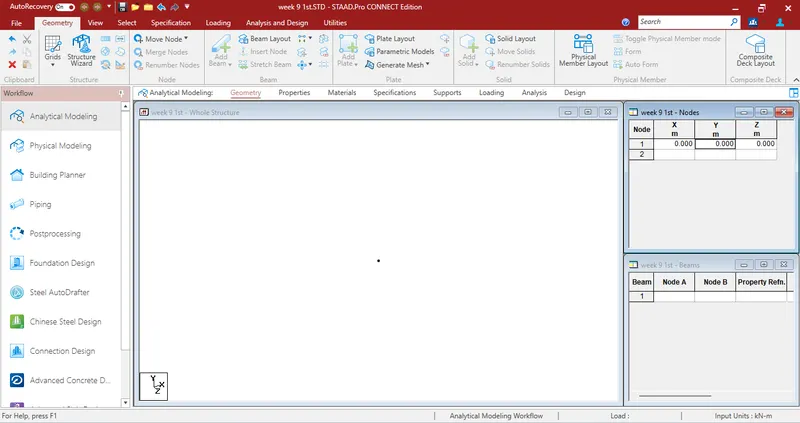

open staadpro software and create a new model as shown below

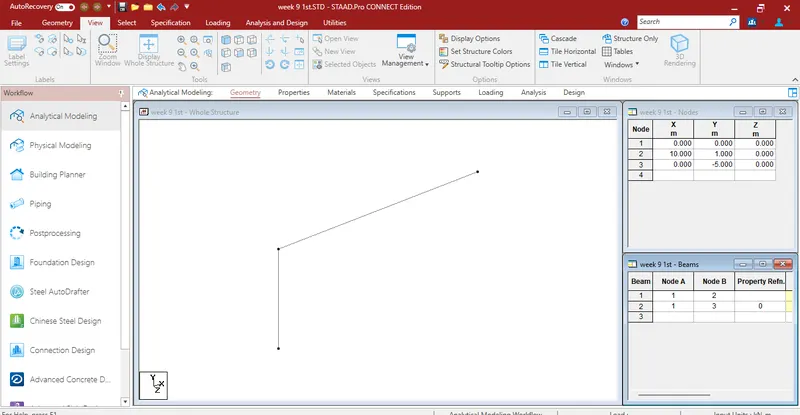

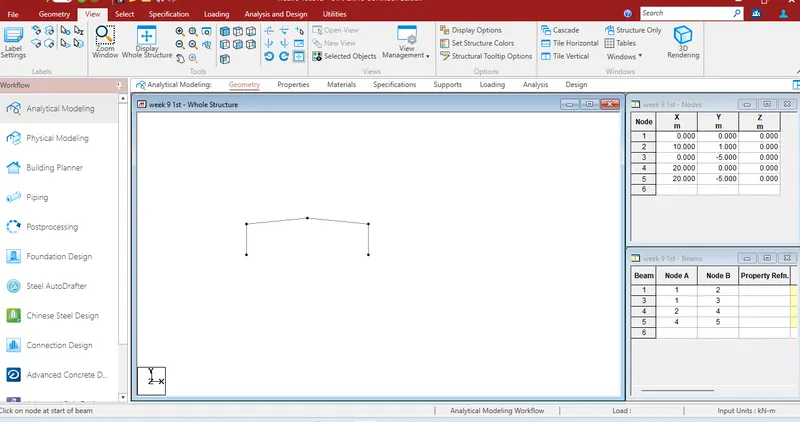

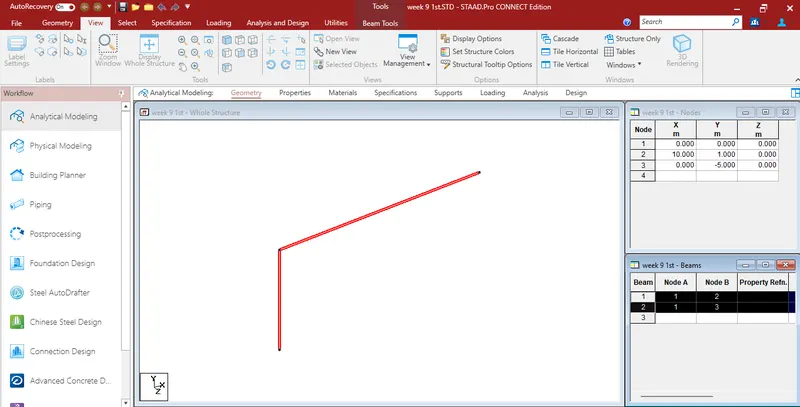

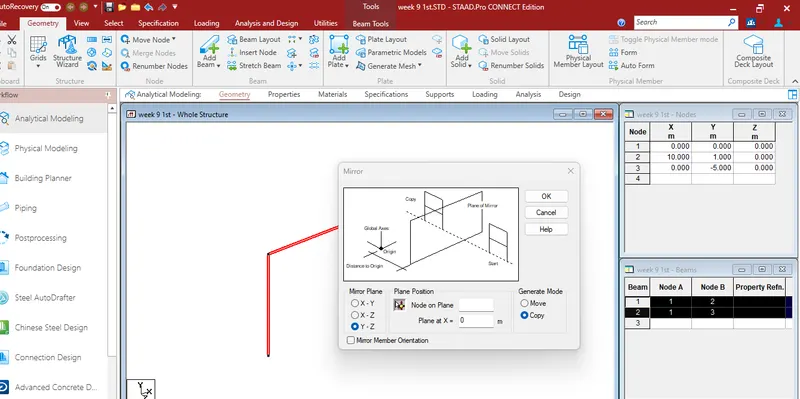

using nodes and beams option draw the frame as shown below.
step 2:

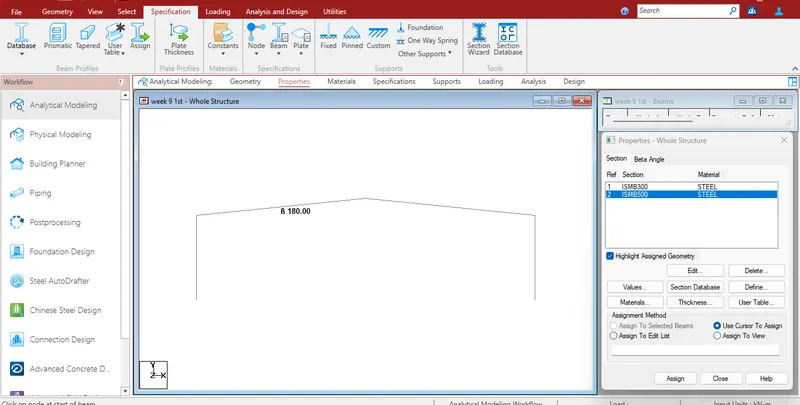

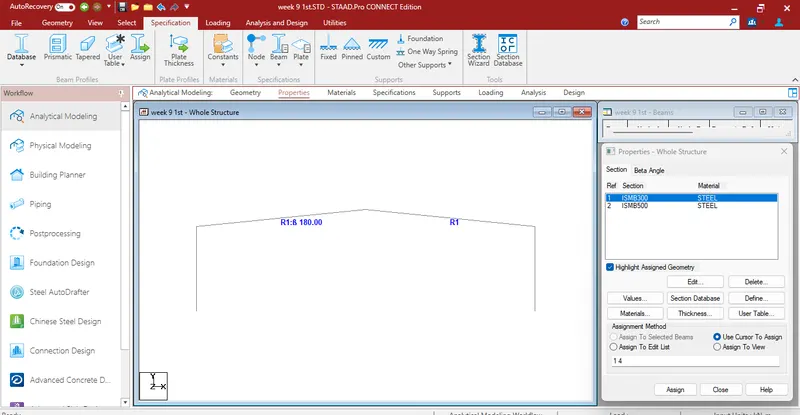

Define section properties in the properties Tab.

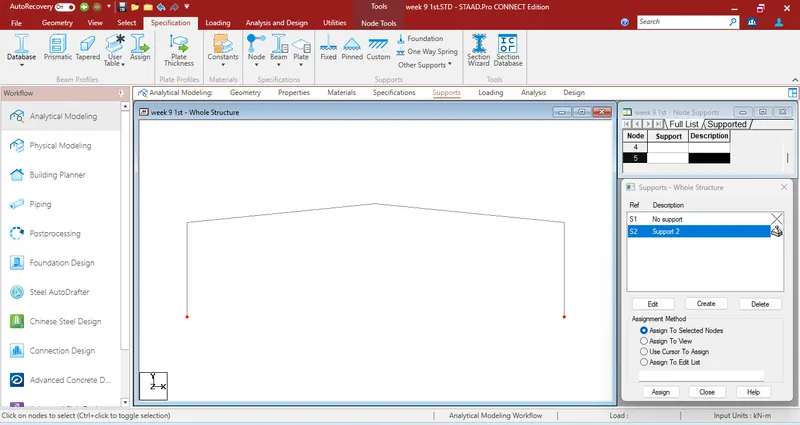

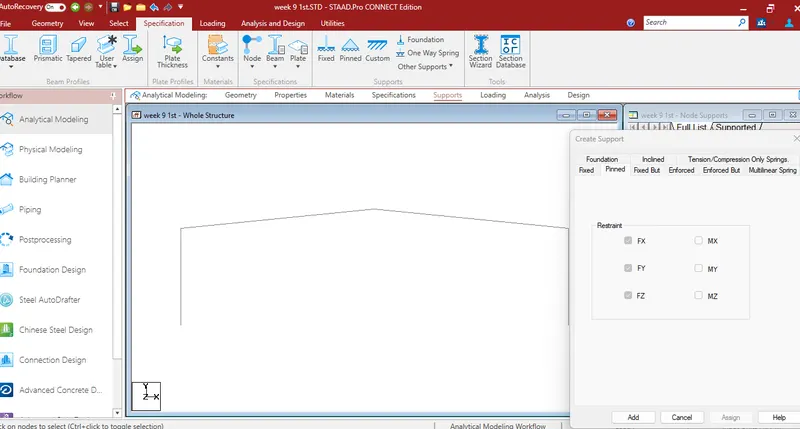

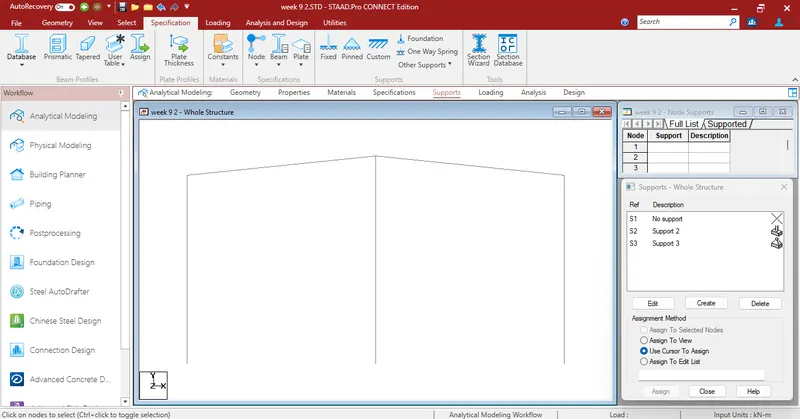

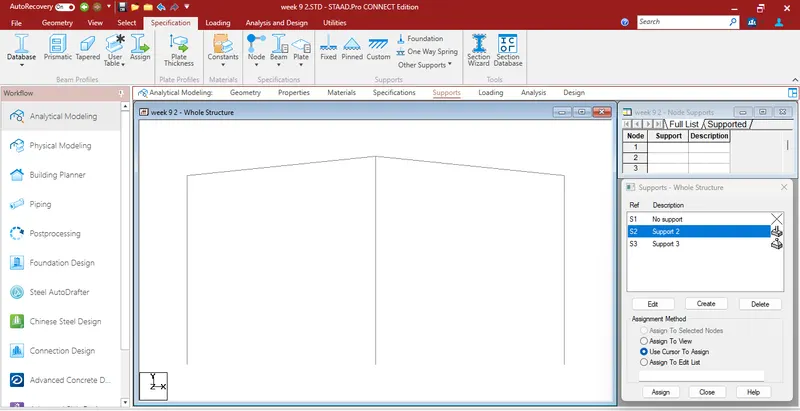

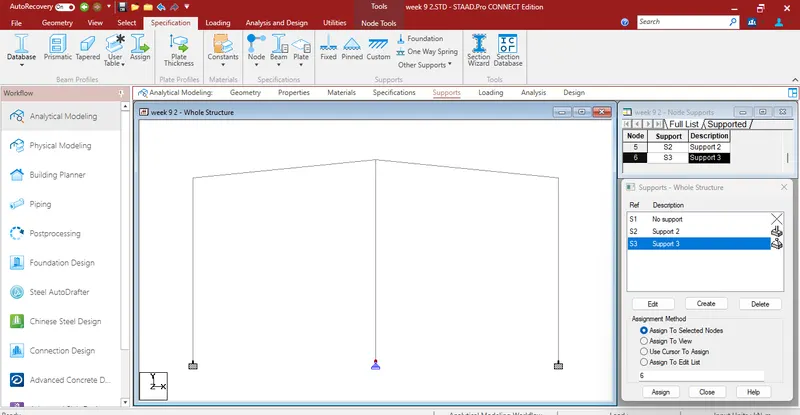

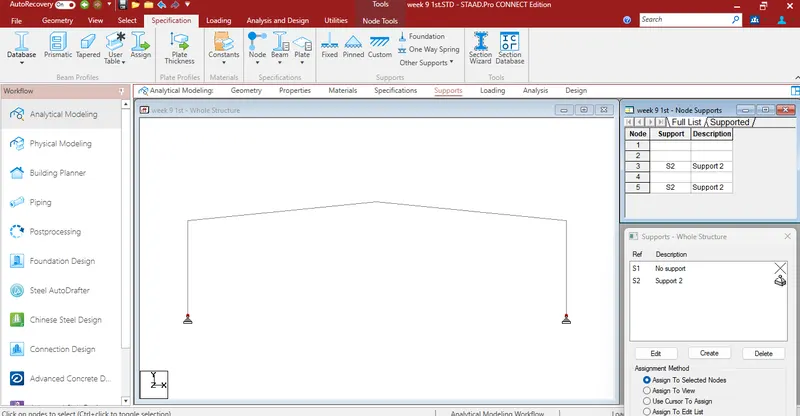

now create and assign the pinned support
step 3:

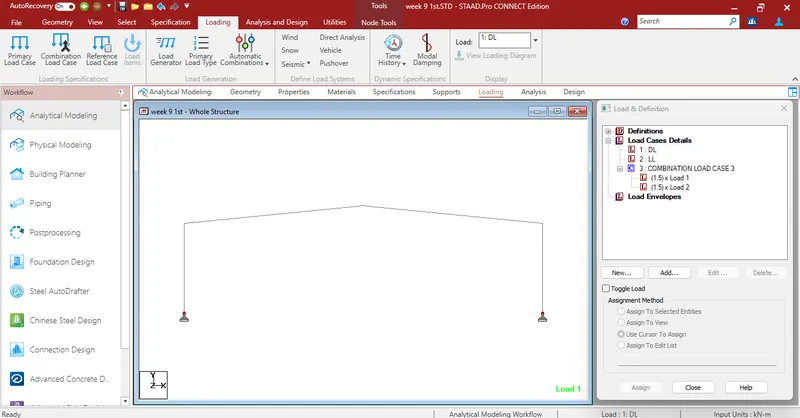

Add Dead load ,live load and load combination to the members.

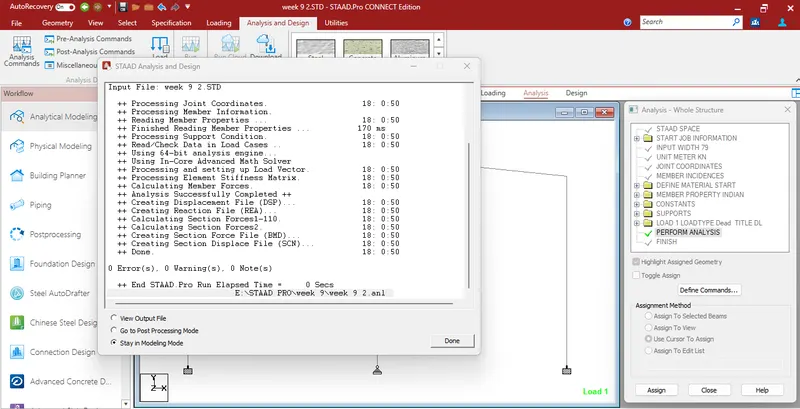

output shows 0 Error and 1 warning

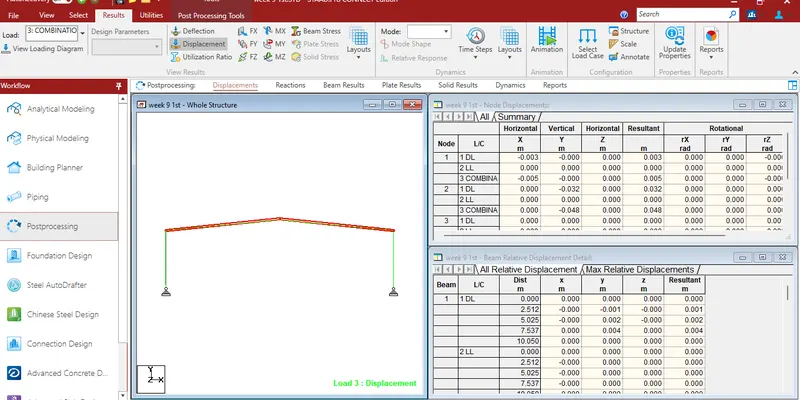

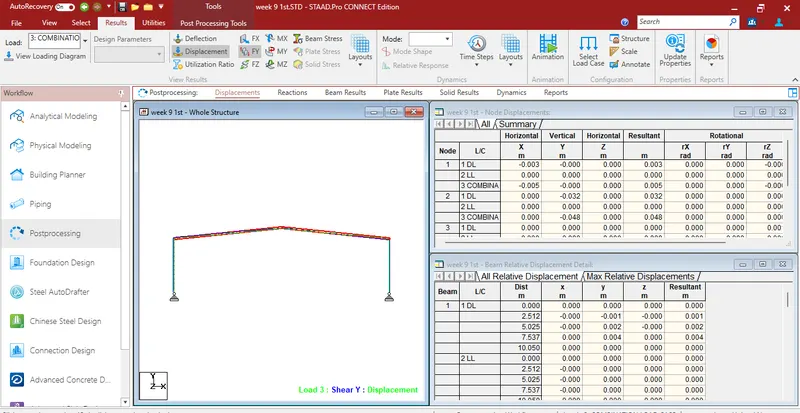

Result:
The given frame was analysed and the bending moment ,shear force and axial force diagram created.
bending moment diagram
shear force diagram
axial force diagram
2)
AIM:
to draw Bending moment diagram for the frame given using staad pro
procedure:
step 1:

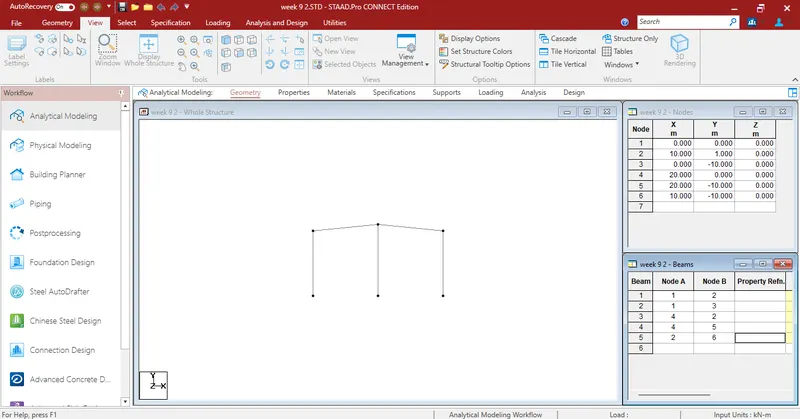

draw the frame using nodes and beams option
step 2:

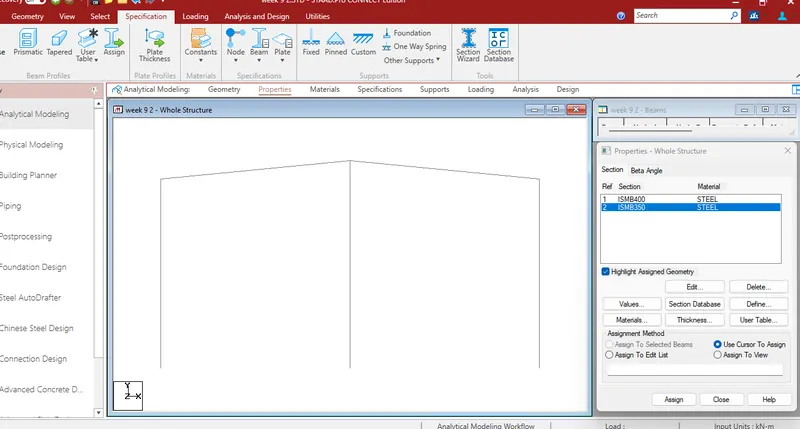

Define and Assign the section.
step 3:

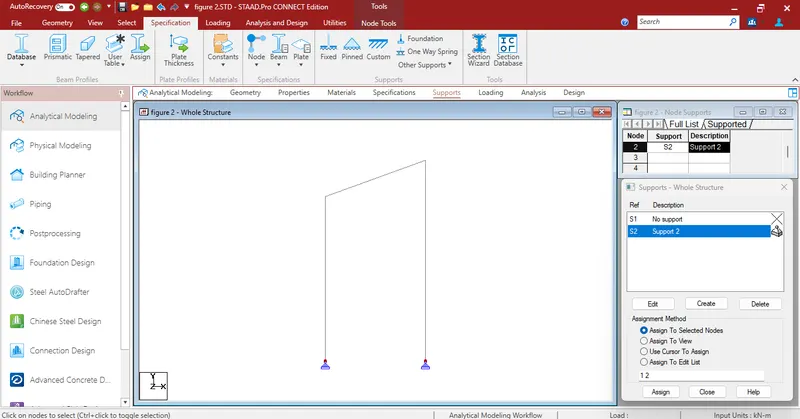

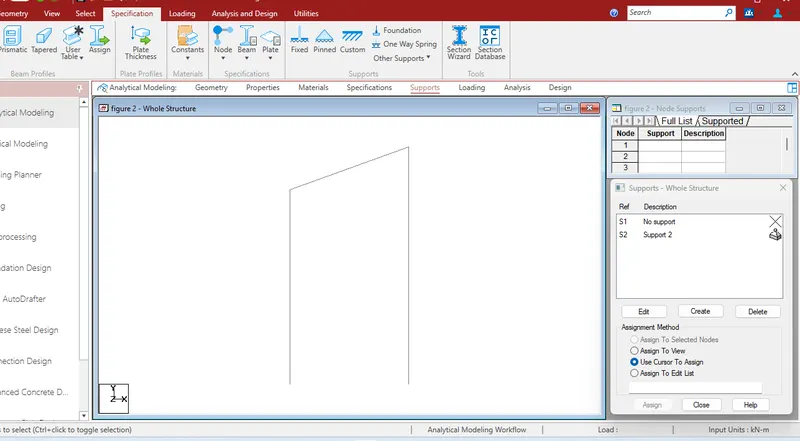

Then create and design the support to the frames
step 4:

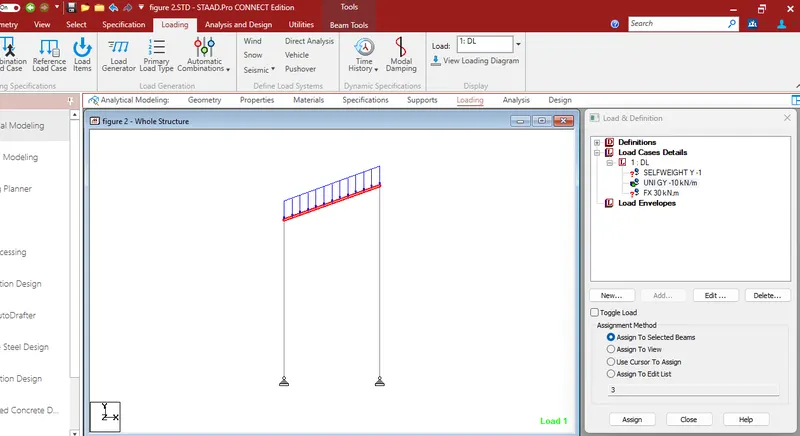

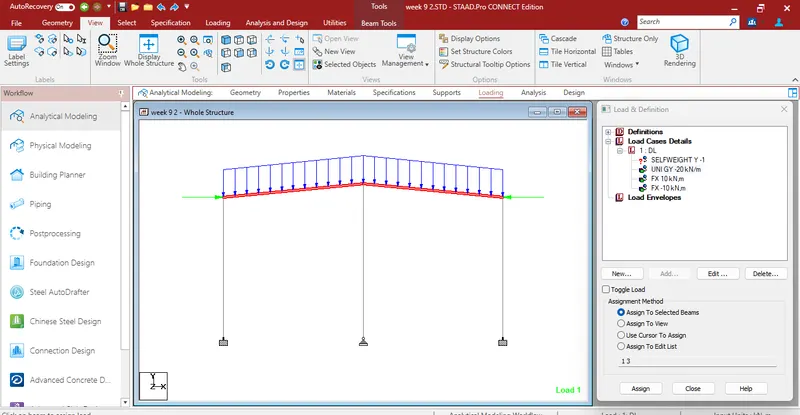

Add load cases given and assign to frame members.
STEP 5 :

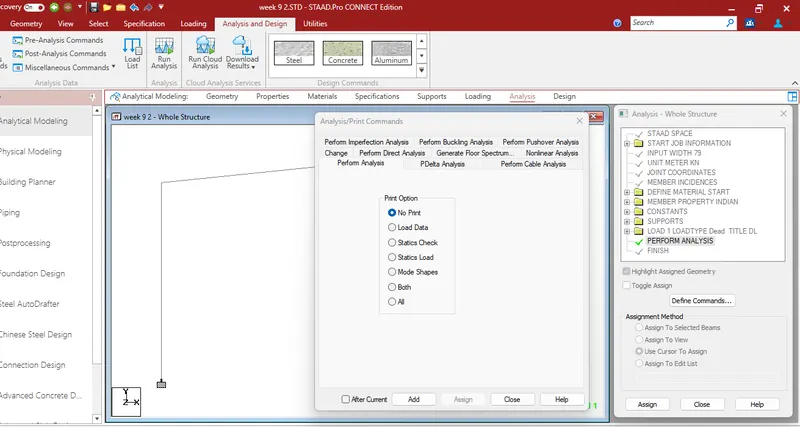

go to analysis tab ,define perform Analysis
Then click Run Analysis

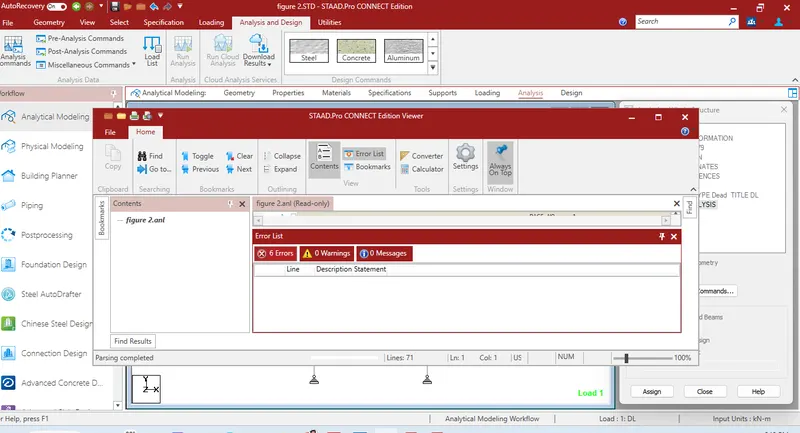

output shows 0 error and 0 warnings
result:
Bending moment diagram was drawn for given frame successfully.
figure 2)
Aim:
To draw Bending moment diagram for the frame given using STAAD Pro
Procedure:
step 1:

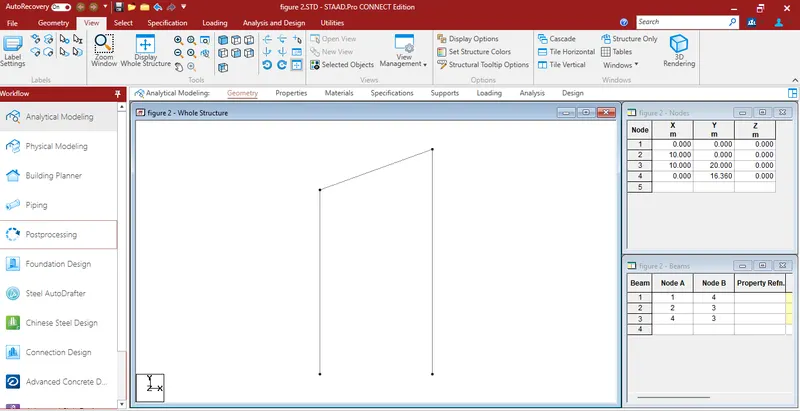

Draw the frame using Nodes and Beams option.
step 2:
Define and analysis the section properties to the member.
step 4:
Add Load cases given and assign to the frame members

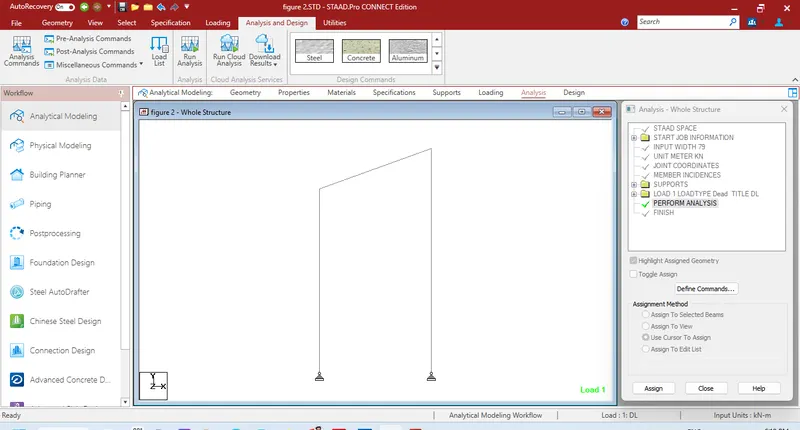

STEP 5:

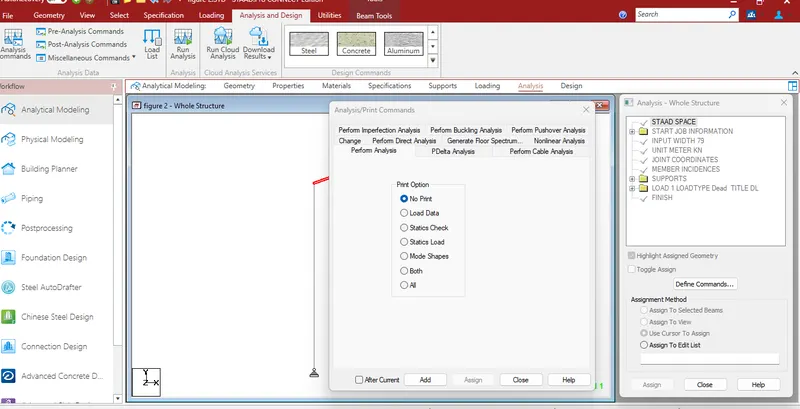

go to Analysis tab ,define perform analysis
then click run analysis
output shows 0 error and 1 warnings
result:
bending moment diagram was drawn for given frame succesfully
figure 3:
AIM:
To draw Bending moment diagram for the frame given using STAAD Pro
Procedure:
step 1:
draw the frame using Nodes and Beams option
define and assign the section properties to the member.

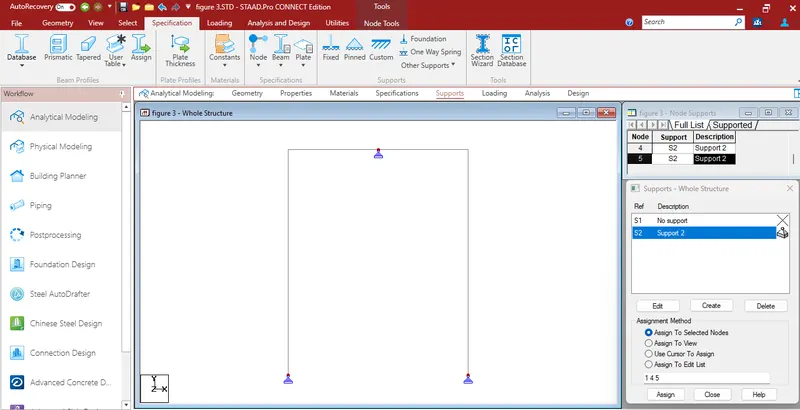

then create and assign the frames
step 2:

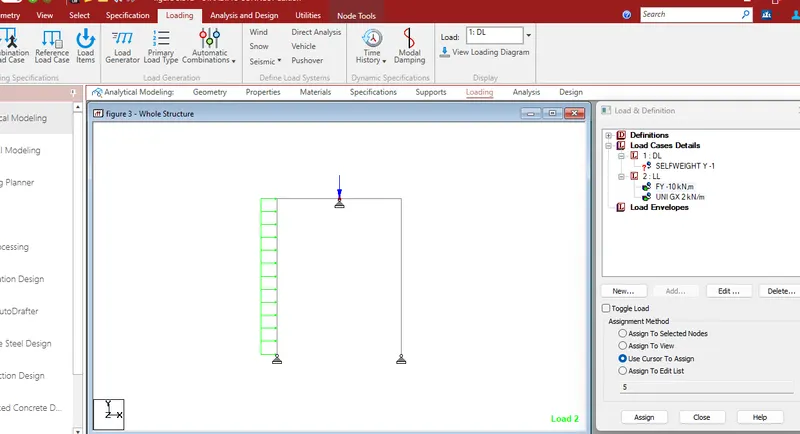

Add load cases given and assign to the frame members.
STEP 3:

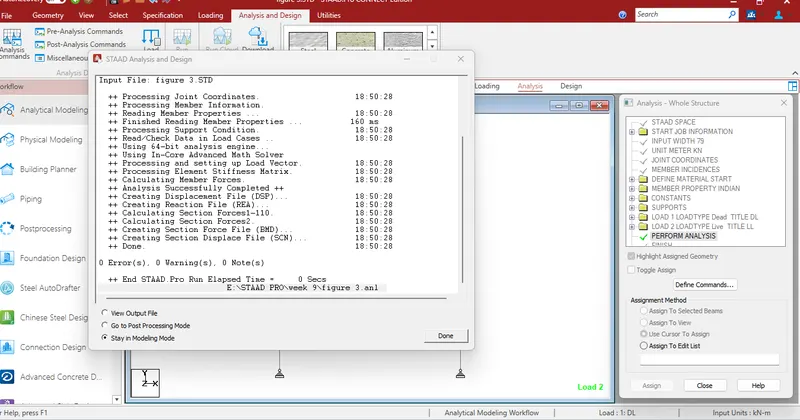

GO TO analysis tab,define perform analysis.
then click run analysis
output shows 0 errors and 0 warnings
result:
bending moment diagram was drawn for given frame succesfully

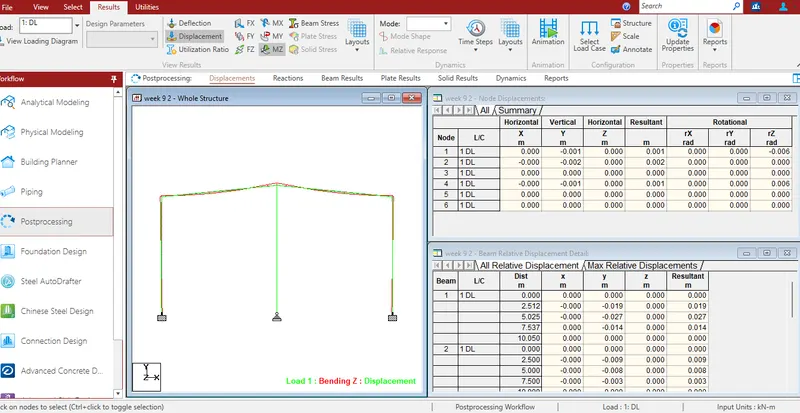

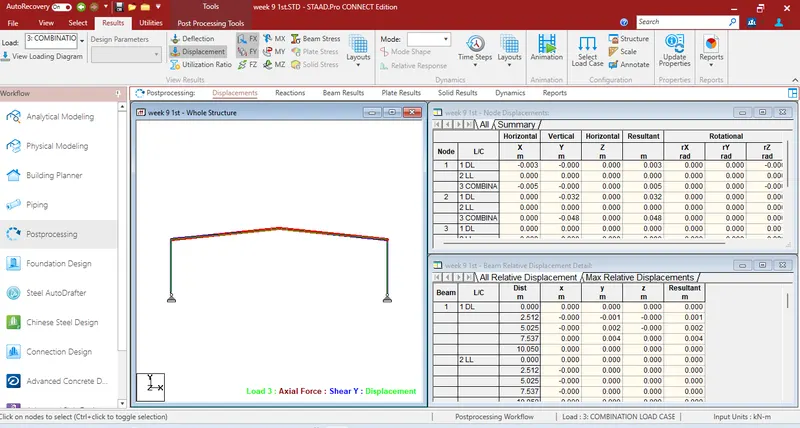

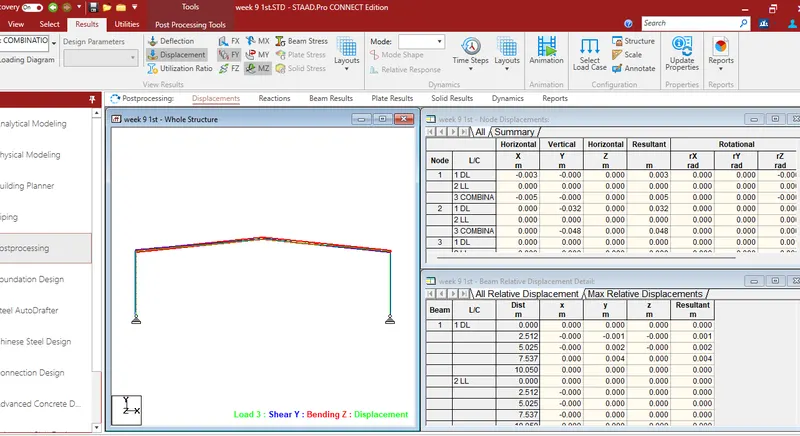

3deflection of frame present result staadpro
figure 1
the lateral deflection A=0.090 mm
vertical deflection at mid section of beam b& c =27.846 mm
figure 2
the lateral deflection A=1003 mm
vertical deflection at mid section of beam a& b =1005 mm

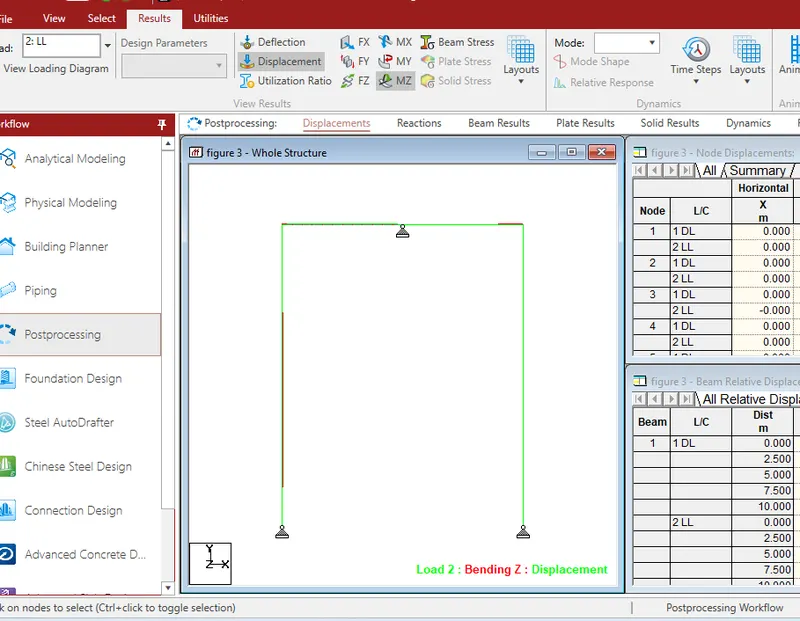

figure 3
the lateral deflection A=0.051 mm
vertical deflection at mid section of beam b =0 mm
