Week 9 - Challenge 3 - Bumper

Bumper Design

Objectives

• Create a plastic component of certain thickness (2.5mm) using the given Class A surface
• Create a proper tooling axis for the component
• Perform Draft analysis for both the Class A and the final component

Tooling Axis

Tooling axis is the direction in which the mould and the cavity opens. There are two methods in creating the tooling axis

• Bisecting method
• Point-direction method

For this component Point-direction method is used to create the tooling axis

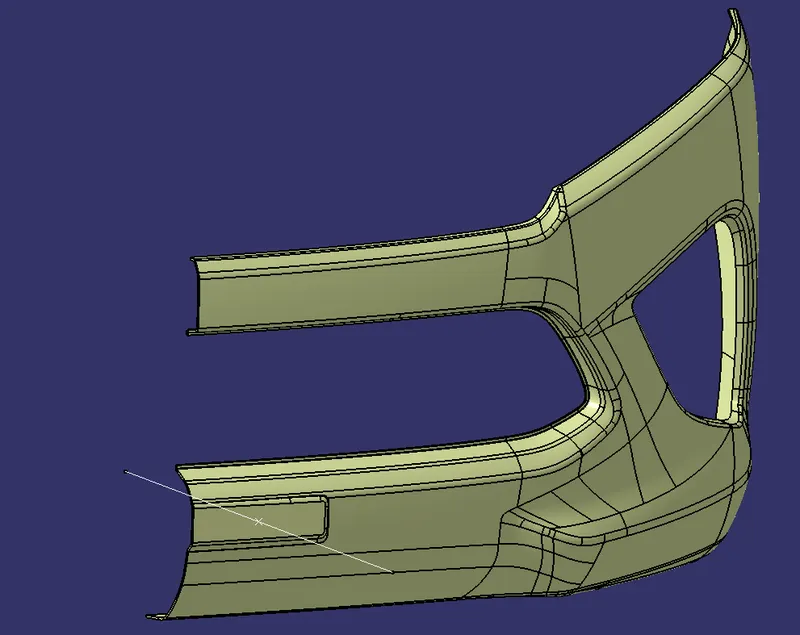

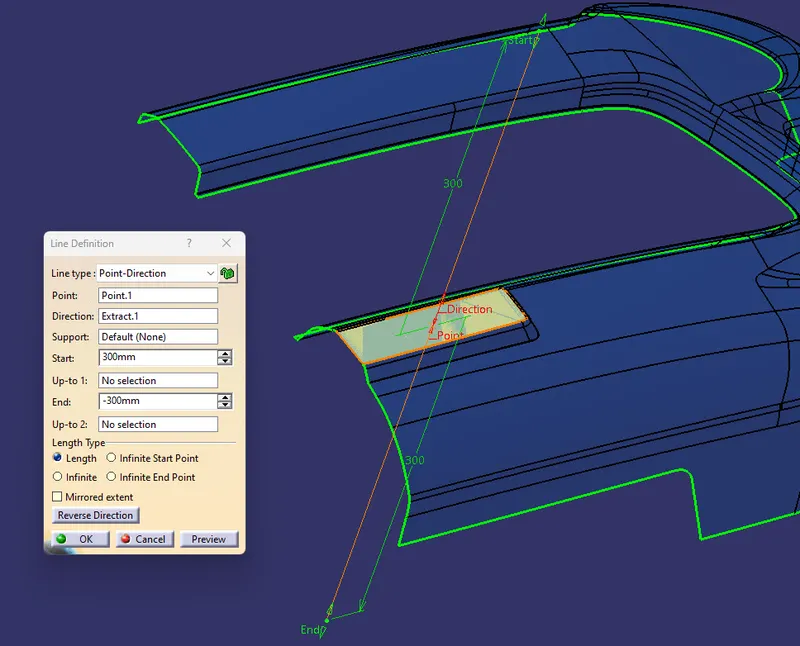

Point-direction method of creating tooling axis

• First a reference point is created on an extracted surface of the given Class A surface
• A line is created using a point and the direction
• The extracted surface is used to guide the tooling axis along its direction
• To differentiate the appearance of the tooling axis its display properties are customized and then published

Draft analysis

A draft of minimum 3 degree must be provided on both core and cavity sides in a component for smooth ejection and for good surface quality. As the plastic shrinks and sticks onto the molding surfaces as it cools, walls of the plastic part should have a minimum draft so that it ejects or breaks free from the molding surfaces easily and without any drag.

Advantages of draft in injection molding

• Reduces the possibilities of part damage caused by friction during ejection process
• Reduces wear and tear in mold
• Helps to obtain uniform,smooth and unscratched surface
• Decreases overall cooling time by eliminating the need for unusual ejection setups

Nominal Values of Draft angles

• 3 Degree is a nominal draft angle
• 5 degree is possible but increases the manufacturing cost
• 7 degree considered for textured surfaces of parts

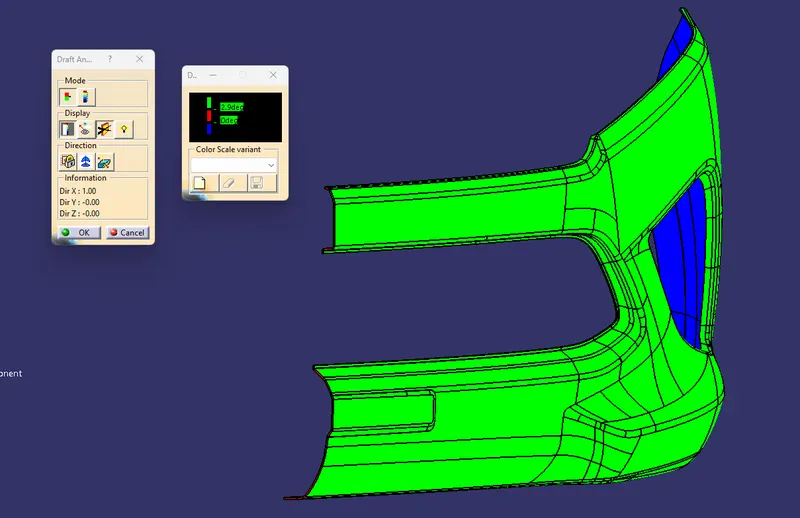

Performing Draft analysis

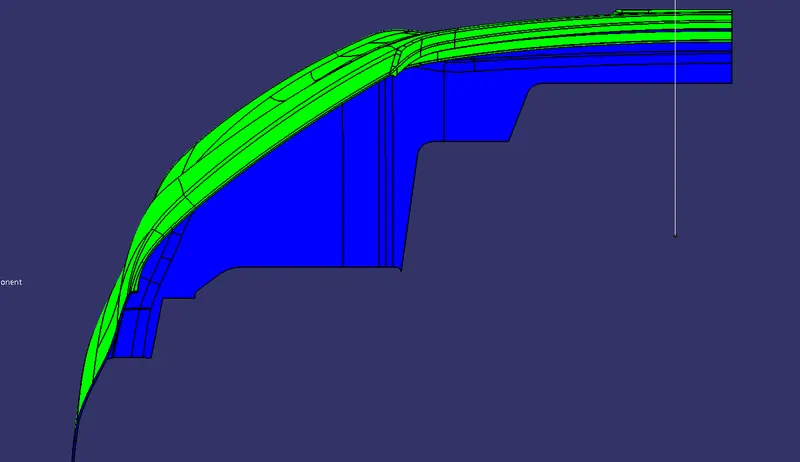

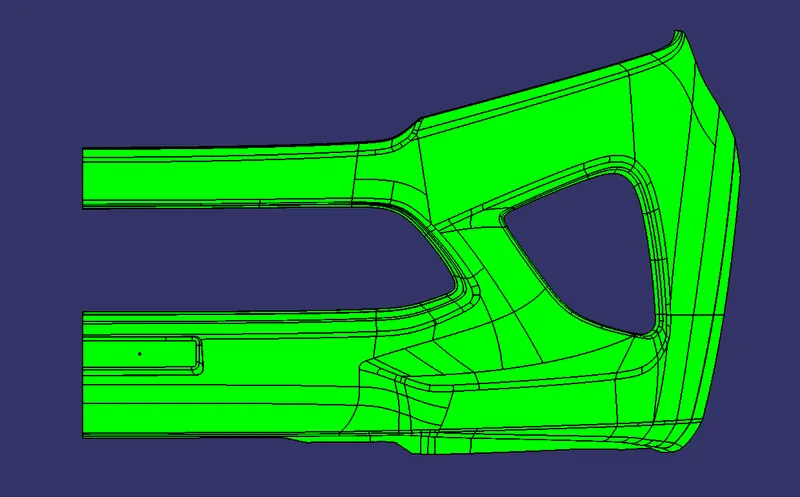

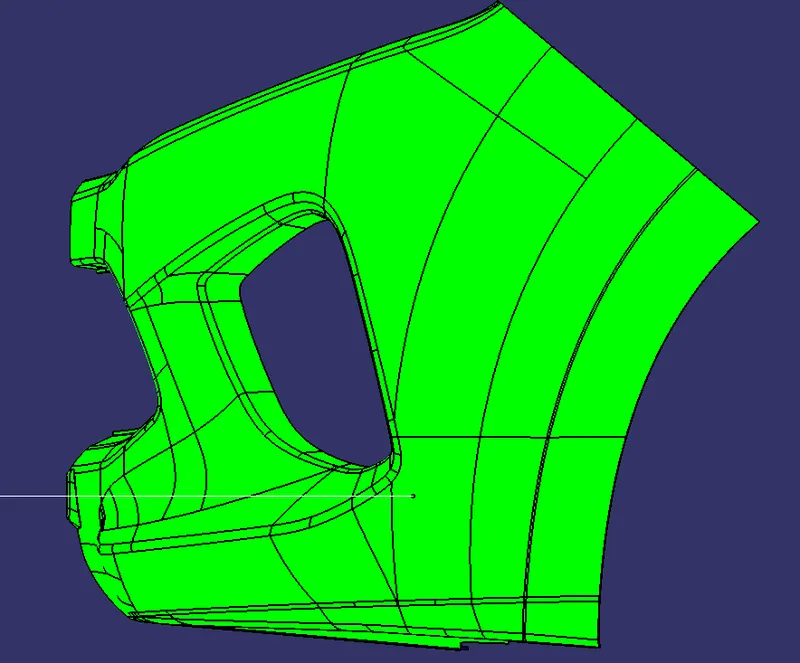

• Draft analysis is performed for both the given Class A surface and the component created out of it
• First the component is view mode is changed to material mode

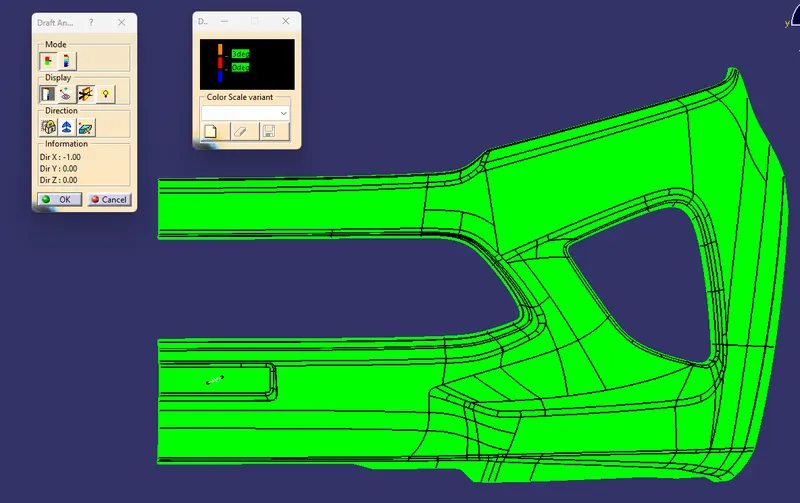

• Selecting the “Feature Draft Analysis” command in the “Analysis” toolbar enables various parameters for performing draft analysis
• The compass is enabled and placed in the tooling axis and its direction is inverted along the tooling direction of the component
• The component is selected for draft analysis, the color code is customized according to the requirements using the Color Scale option.
• To view the angle at various points “analyses under the running point command is used”

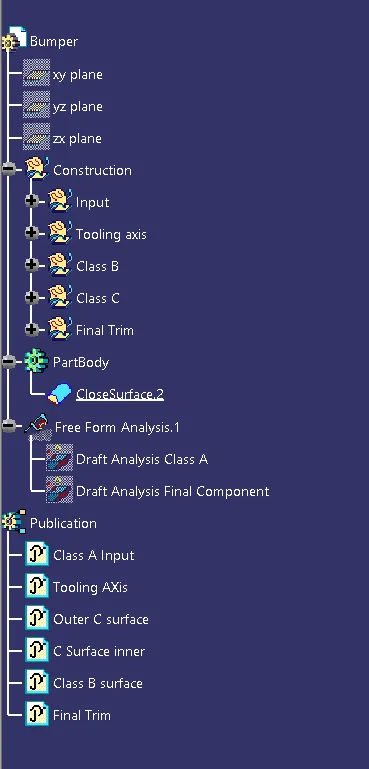

Creating the component

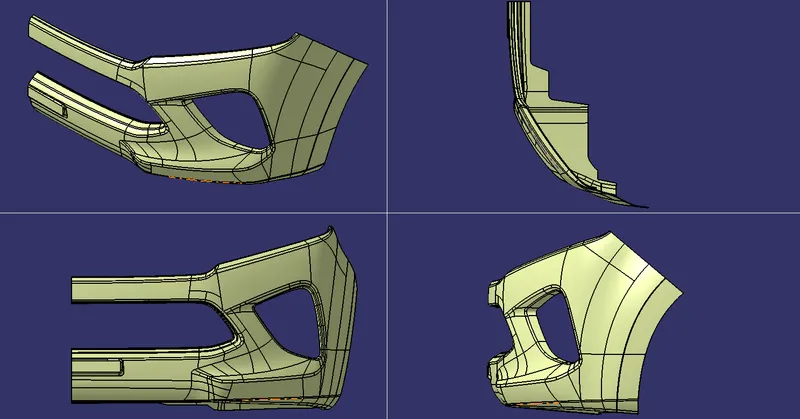

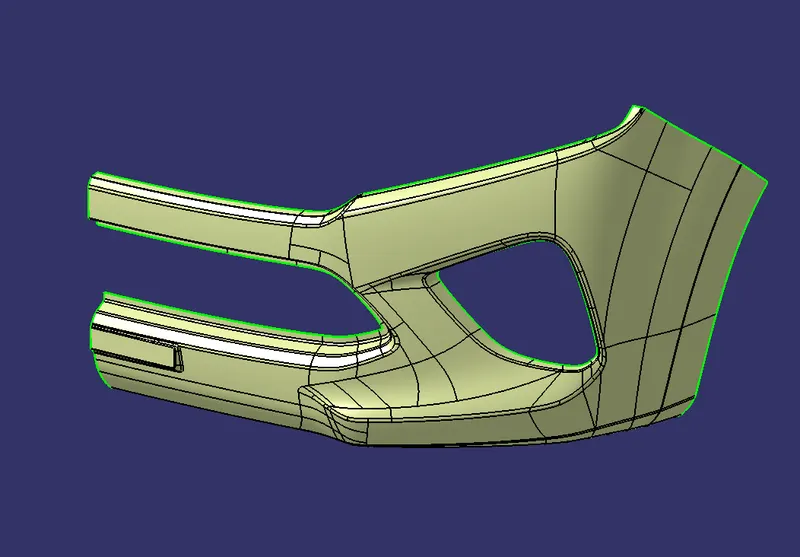

Input Class A

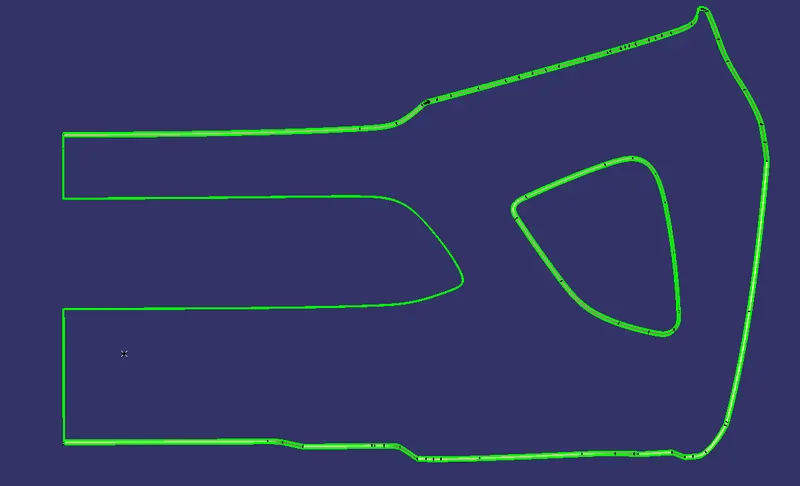

• As the first step the draft analysis is performed and the surface is checked for any open boundaries

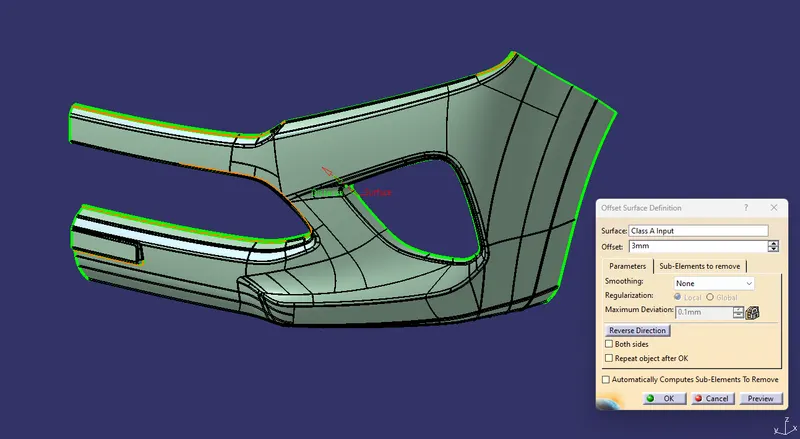

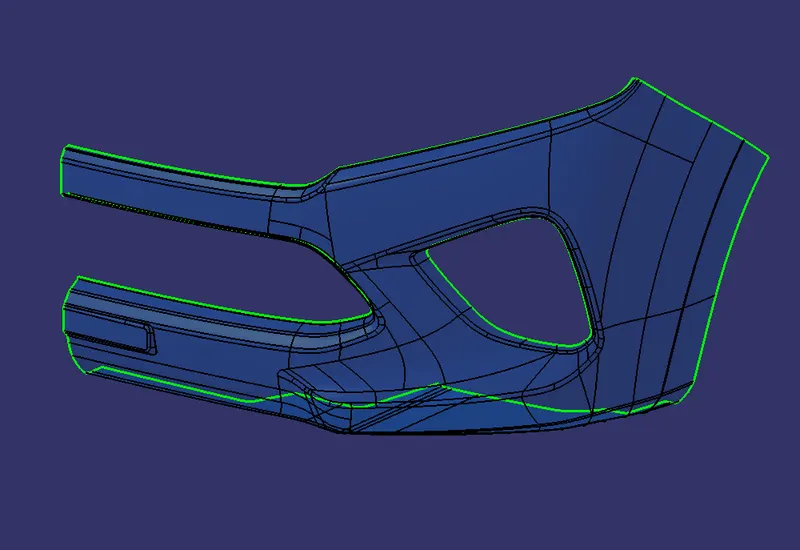

Class B

• The entire class A surface is offset to a certain distance (2.5mm)
• The offset results in some discontinuity and patches on the surface
• Using various commands such as “Multi-section surface, Extrapolate surface, Sweep, Trim, and Join” those problems were solved and a proper Class B surface is created

Class C

• The Boundaries of the Class A surface are extracted at various locations
• Using the boundaries , surfaces are swept along a certain degree with respect to the tooling axis
• Using trim tool the edges are trimmed and the surface is joined together

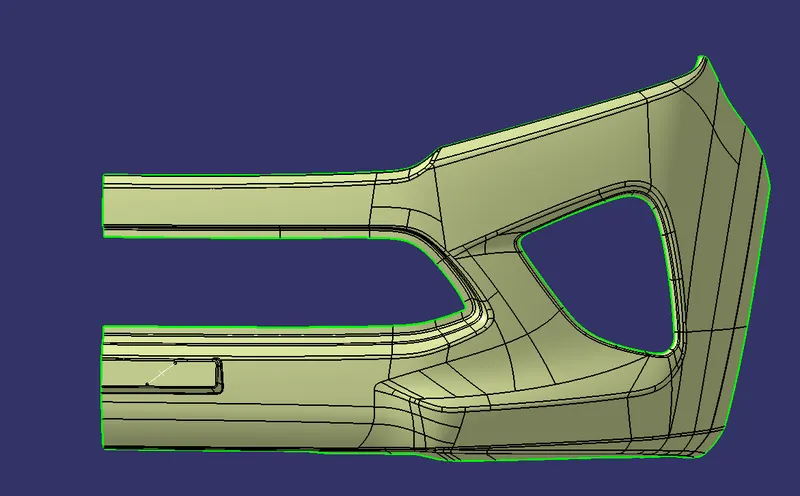

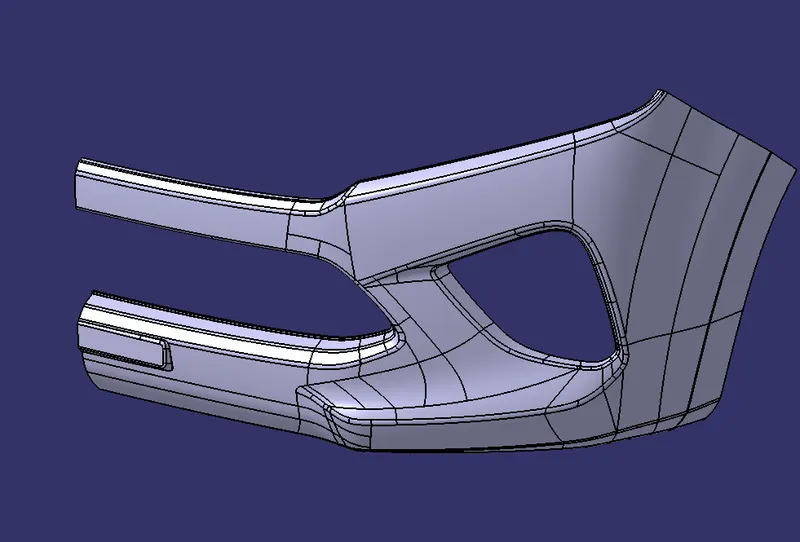

Final trim

• Using Join command the class A and the Class C surfaces are joined together
• Then the Class B surface is trimmed and merged with the joined surface using trim tool

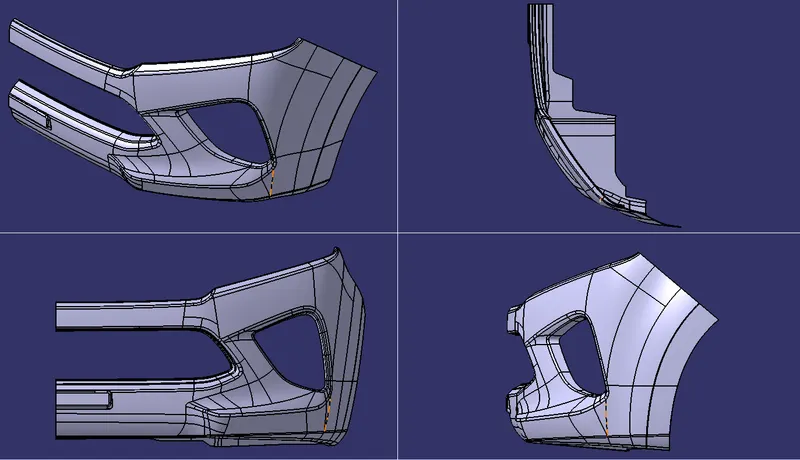

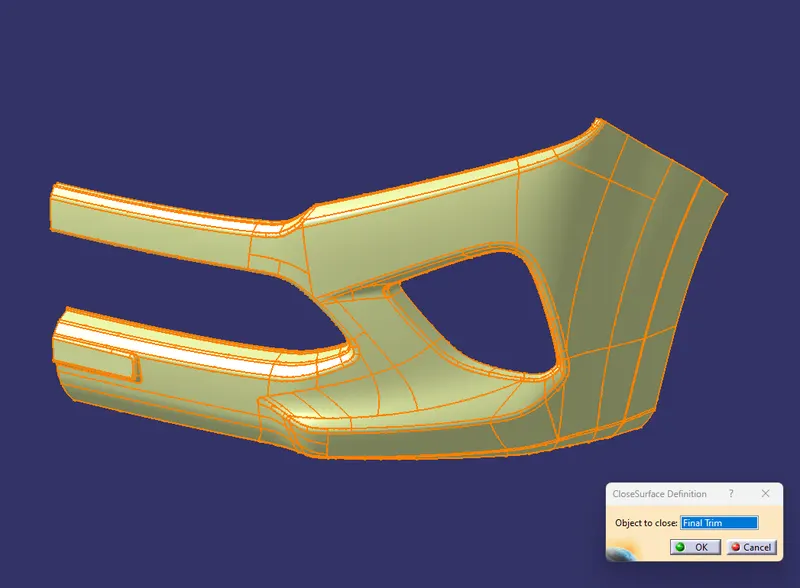

Creating Solid Component

• With the help of Closed Surface command in the part workbench a solid component is created

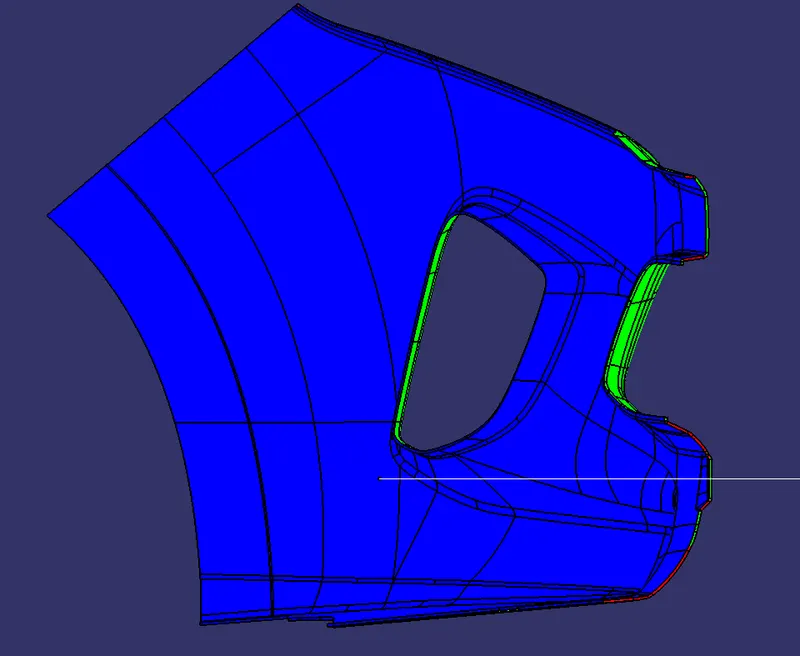

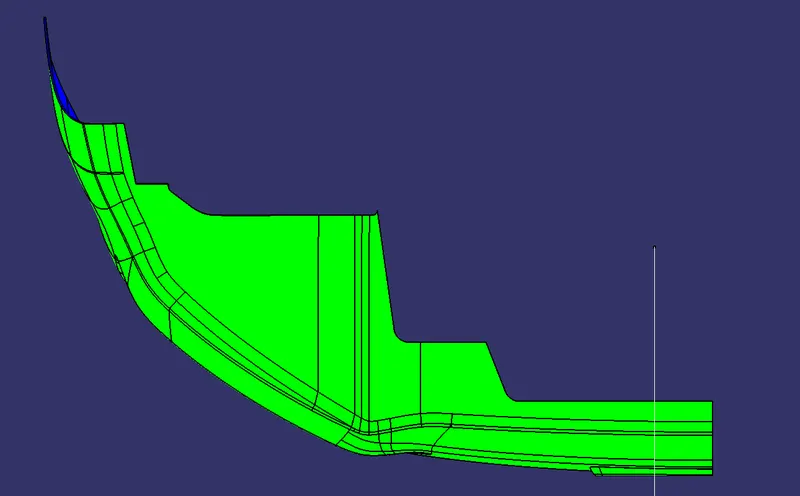

Draft Analysis of final component
