Week 9 - Challenge 3 - Bumper

BUMPER

The Main Aim is to create a 3mm thick model from the provided Class A surface

Initially tooling axis is created and draft analysis was done for the provided A surface

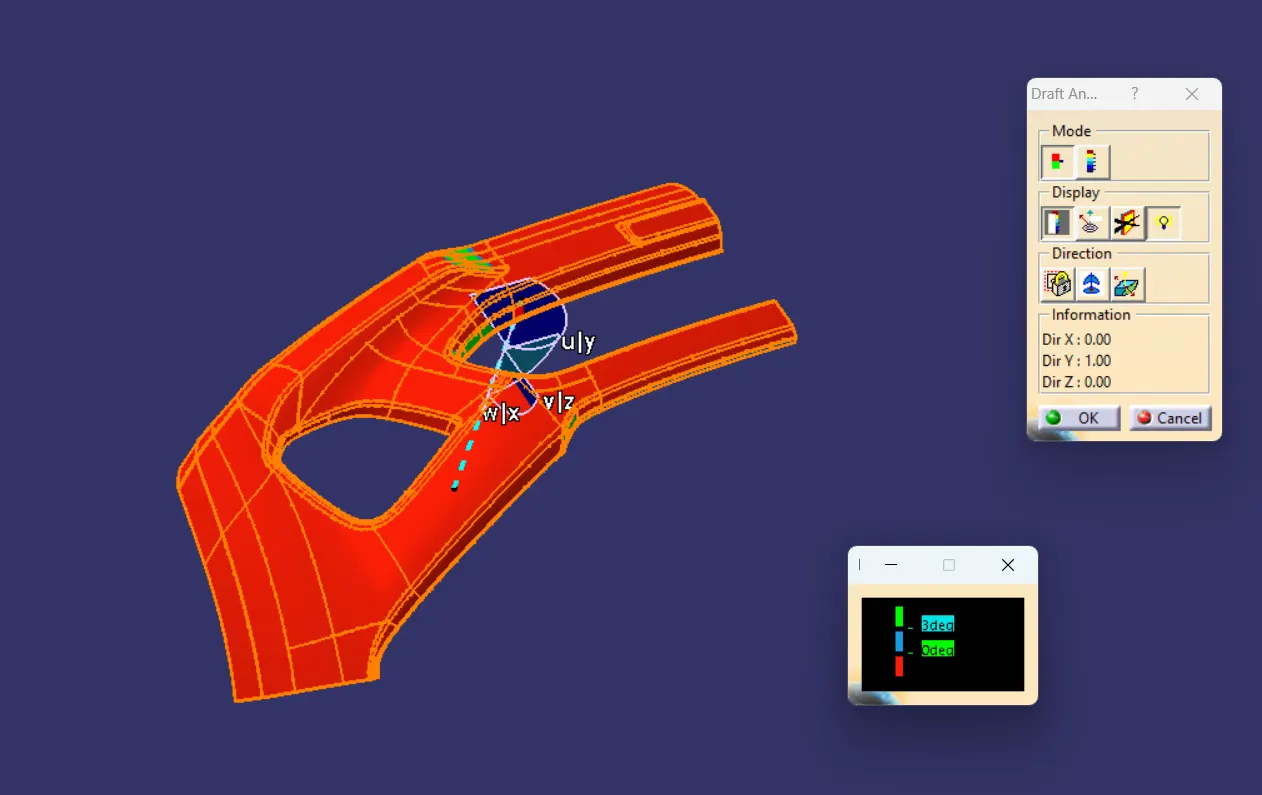

Tooling Axis :

A Surface Draft Analysis :

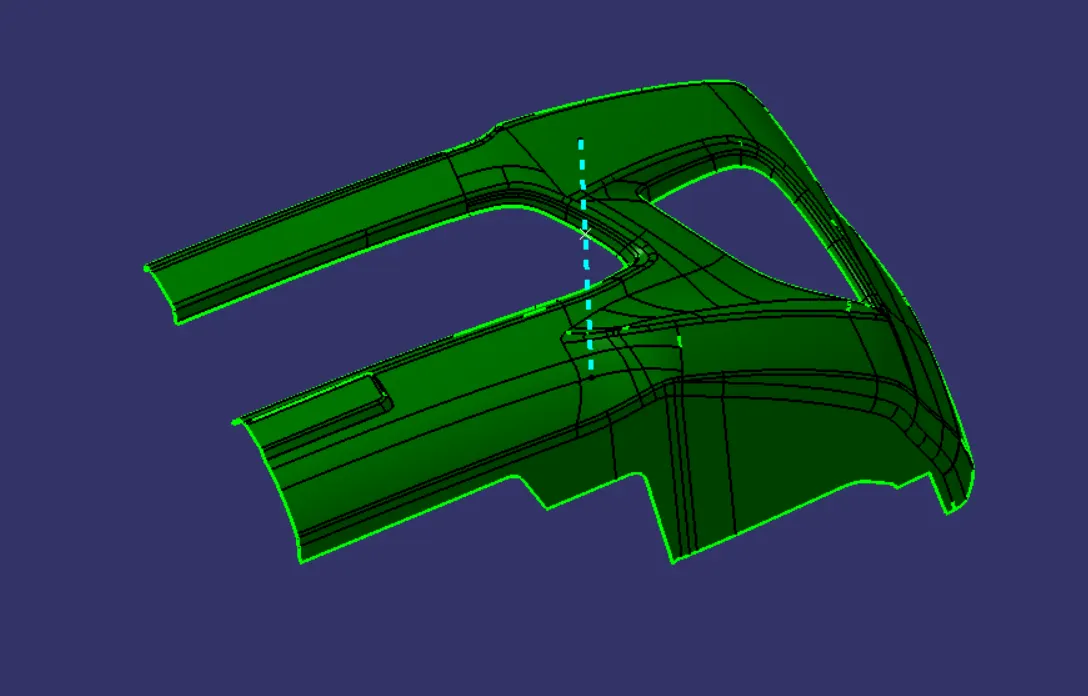

Offsetted the A surface to 3mm to create the B surface

The Proper changes were done on the offseted surface to complete the B surface

Class C surface was created from A Surface using Sweep command

Then required changes are done in the C surfaces to make proper intersection with B surface

Trimmed the A,C surface with B surface and formed combined A,B & C surface

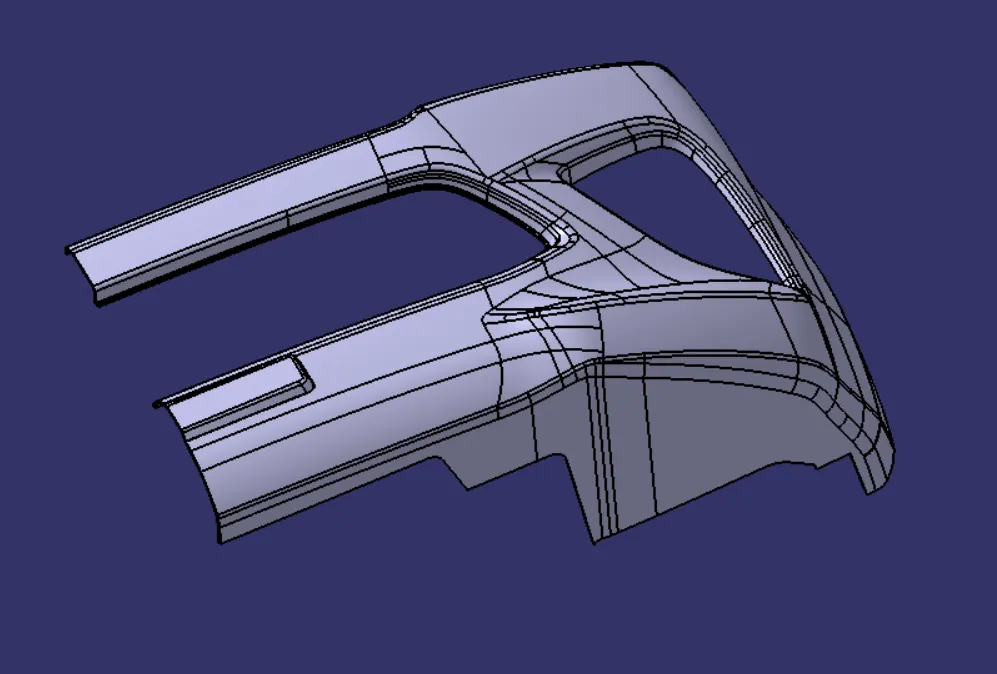

Then in the Part design Closed part is given to form the final Output that is 3mm thick plastic part.

Then draft analysis is done for the final output.

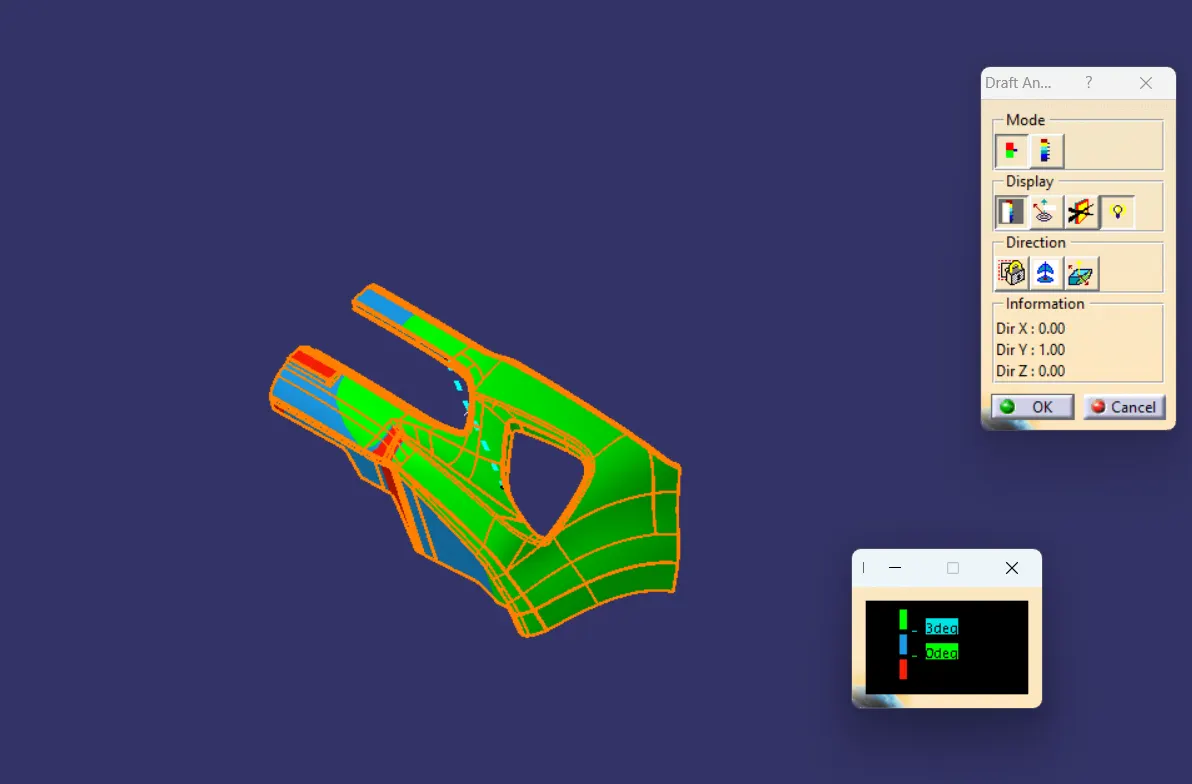

Final product Draft Analysis:
