Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)
Drill Handle Cover-
- The main aim is to create a 2.5 mm thick model from the provided Class A surface

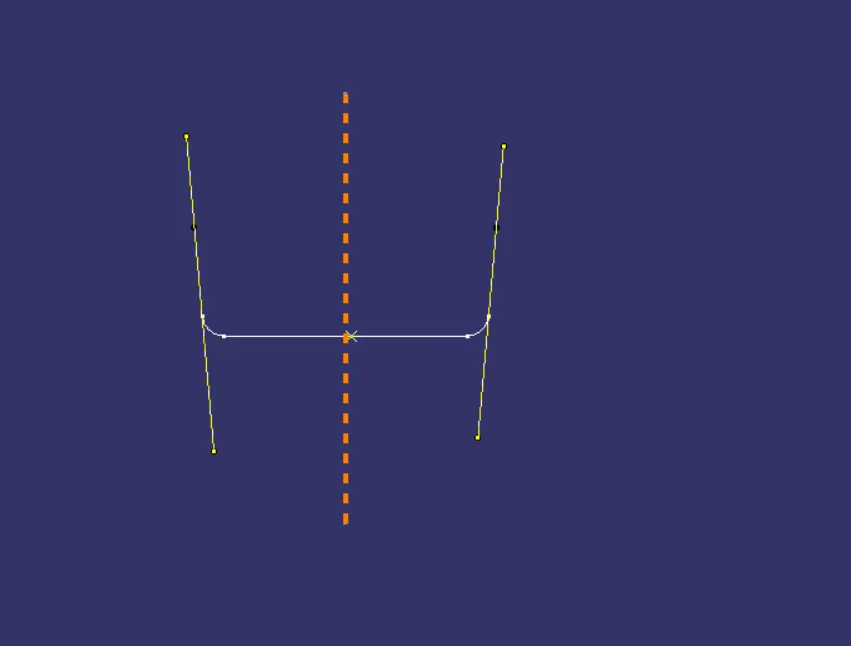

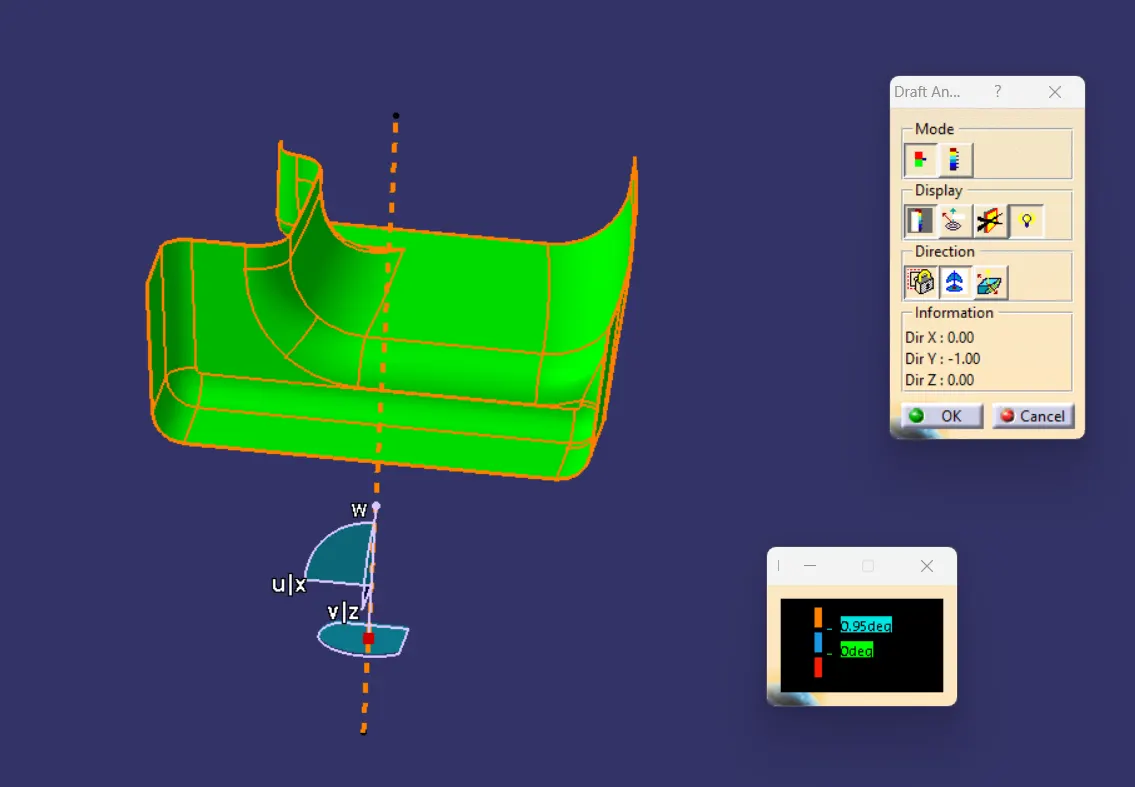

- Initially tooling axis is created following bisecting method and draft analysis was done for the provided A surface
- Extracted each part of the A surface and untrimmed it .
- Offseted each of of the extracted surfaces to 2.5 mm to create the B surface
- The Proper changes were done on the offseted surface to complete the b surface
- Class C surface was done from A suface keeping tooling in mind as the draft was give towards the A surface as the A surface will not came in contact with any of the mold flow from the tool
- Then A and C surfaces was together trimmed
- Trimmed the A-C surface with B surface and final surface is formned

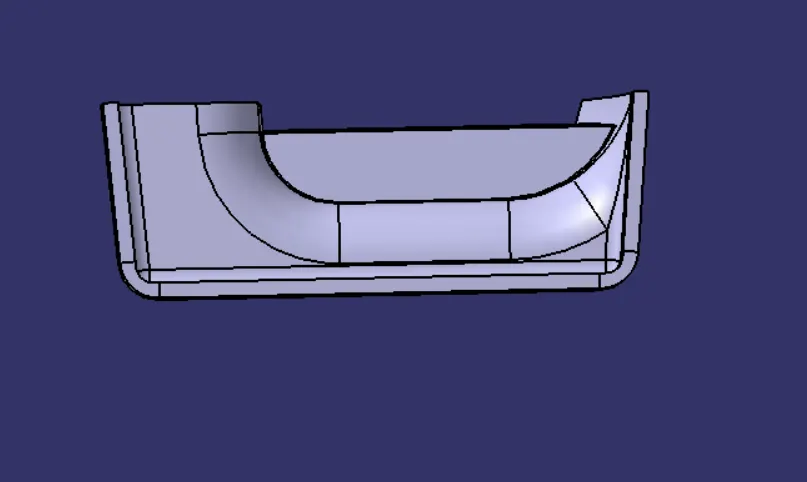

- Then in the part design Closed part is given to form the final Output that is 2.5 mm thick plastic part
- Skethches were done for the rib

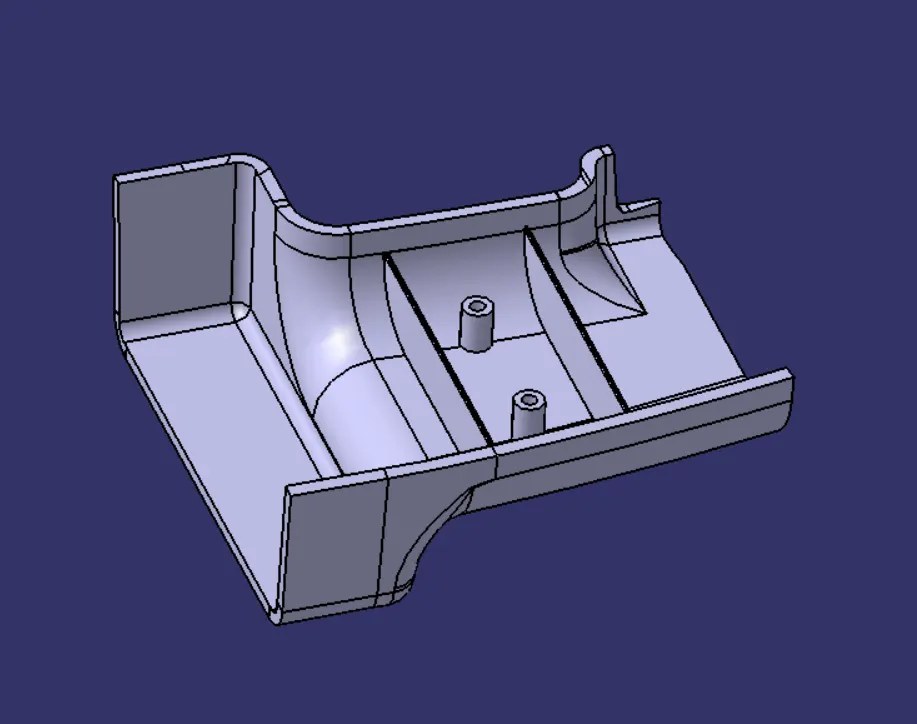

- Rib is designed with proper thickness, draft etc.
- Sketches for the screw boss were done.

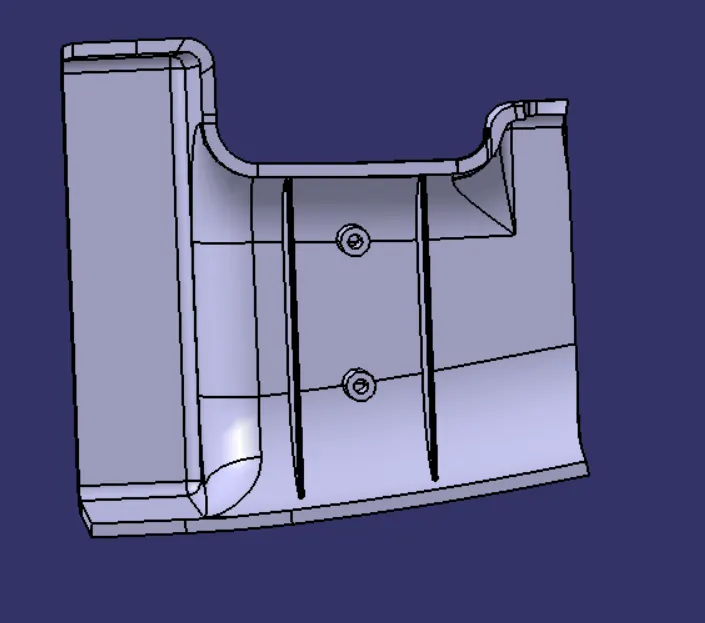

- Extruded the screw boss, proper draft is provided
- Necessary fillets were provided to the part.

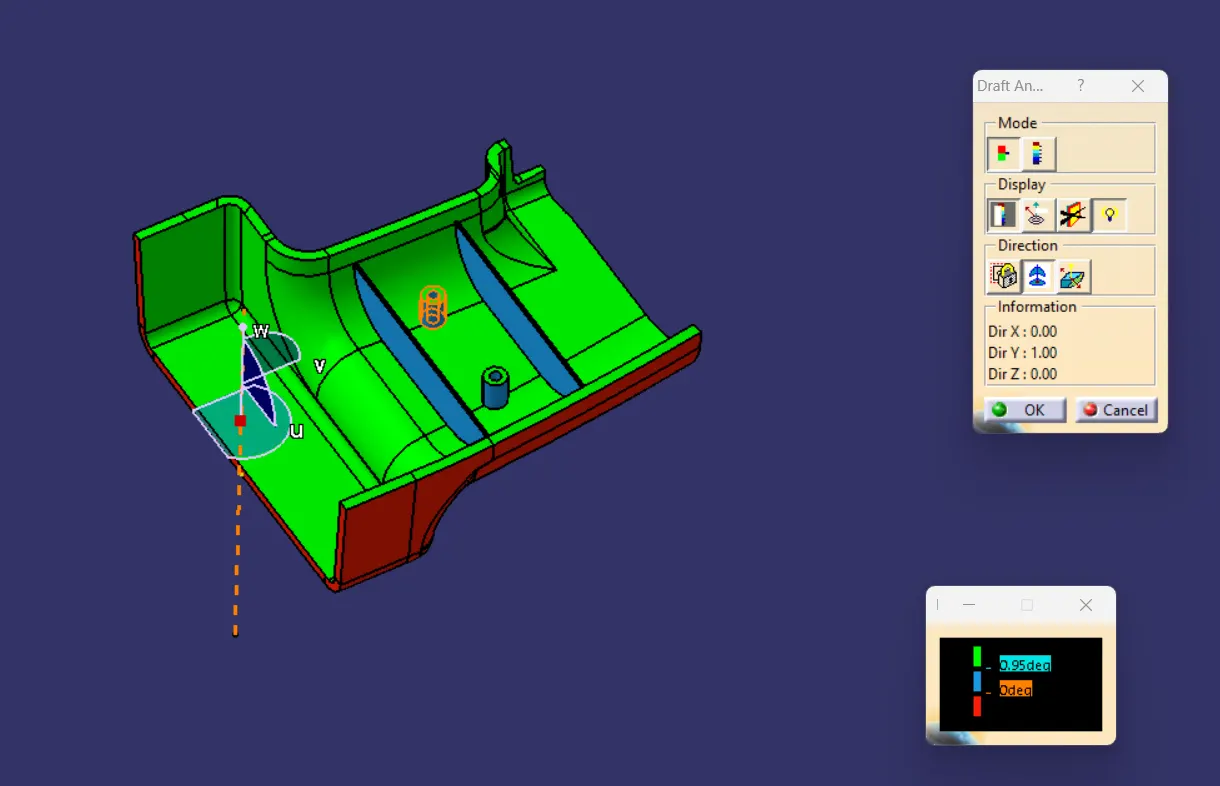

- Final Draft Analysis were done.
