Week 9 - Challenge 3 - Bumper

AIM

Create the Bumper Plastic component through the given Class-A surface.

INTRODUCTION

A bumper is a structure attached to or integrated with the front and rear ends of a motor vehicle, to absorb impact in a minor collision, ideally minimizing repair costs.

OBJECTIVE

• To design Bumper as per automotive industry Standard.
• Create tooling axis for the given CLASS-A surface.
• Create B and C Class surfaces.
• Create final surface model and convert it into solid body.
• Perform draft analysis for both Class-A surface and Final part body.

TOOLING AXIS

• Tooling axis represents the opening and closing of the mold core and cavity during the manufacturing of the components. A plastic product designer should consider the best tooling direction to cutdown the cost of the component very less.

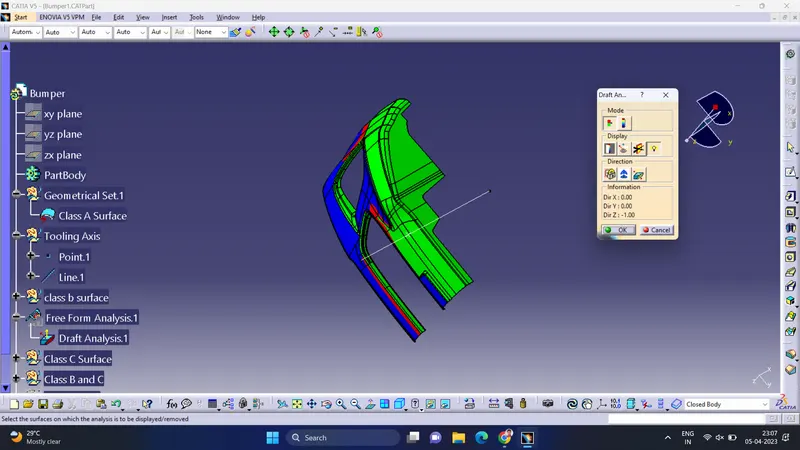

DRAFT ANALYSIS

• The Draft Analysis is a command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values.

• Draft analysis is done after determining the tooling axis, draft analysis is used to check whether the minimum draft (3 degrees) is maintained or not.

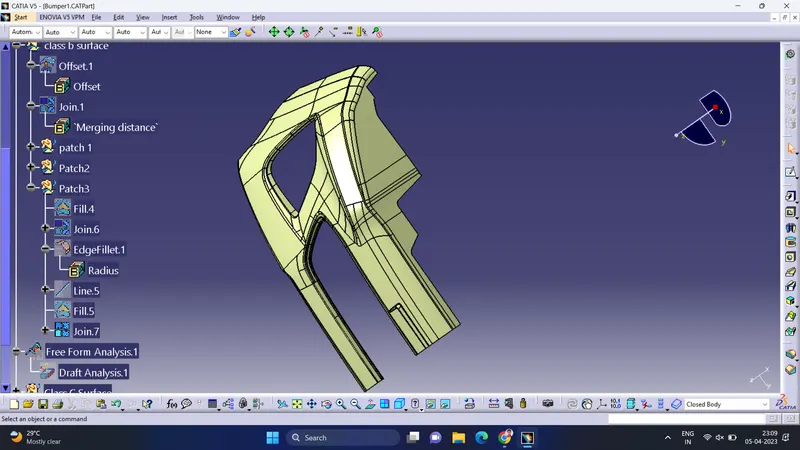

CLASS B SURFACE

• A surface below a certain thickness from the class-A surface is class-B surface. This is the surface that contains engineering aspects of a model.

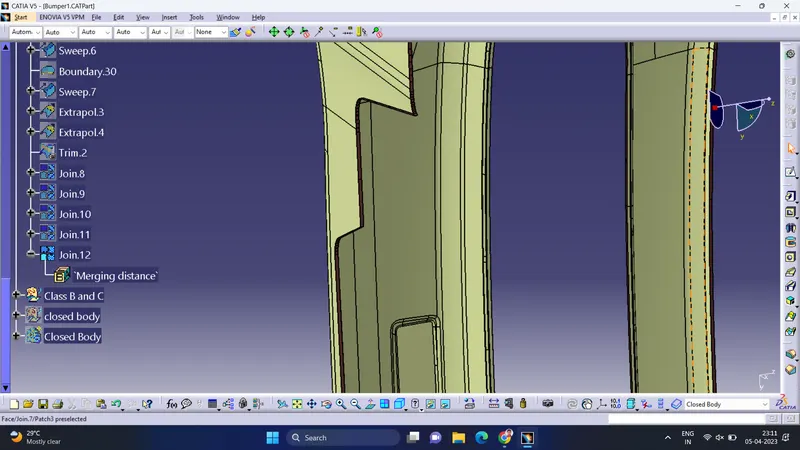

CLASS C SURFACE

• Surface that joins class-A and class-B surfaces is class-C surface. Class C is often specified for interior surfaces not readily visible, surfaces that will be covered by another part when assembled

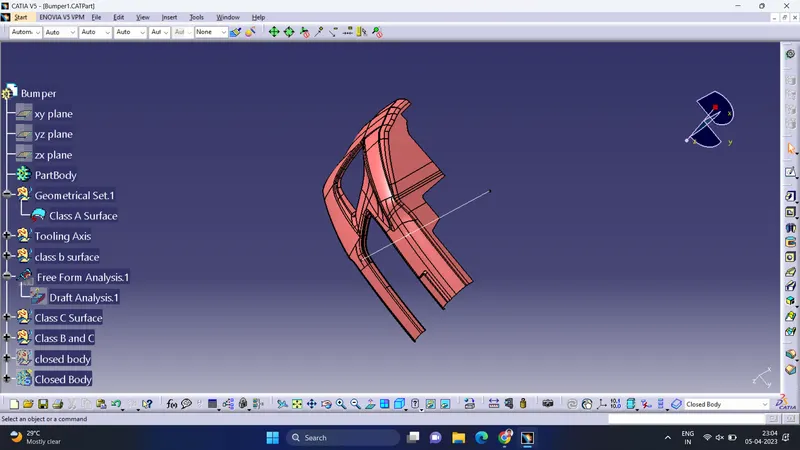

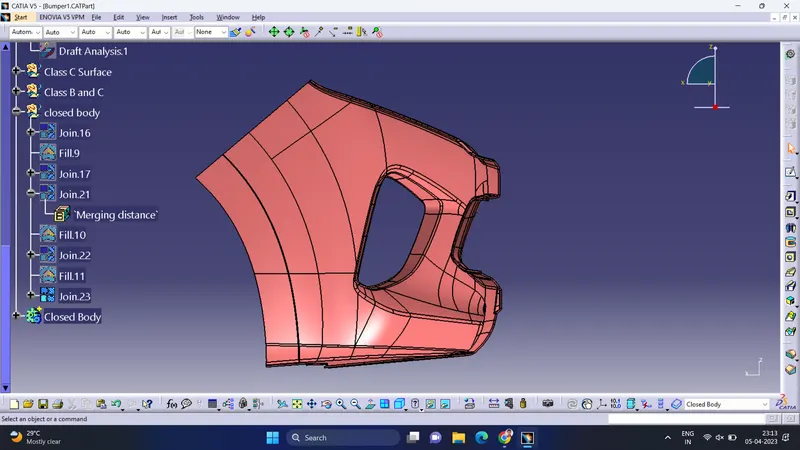

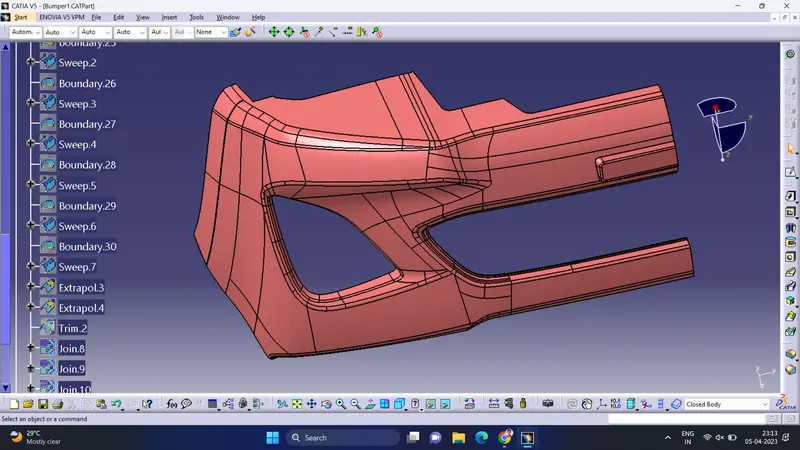

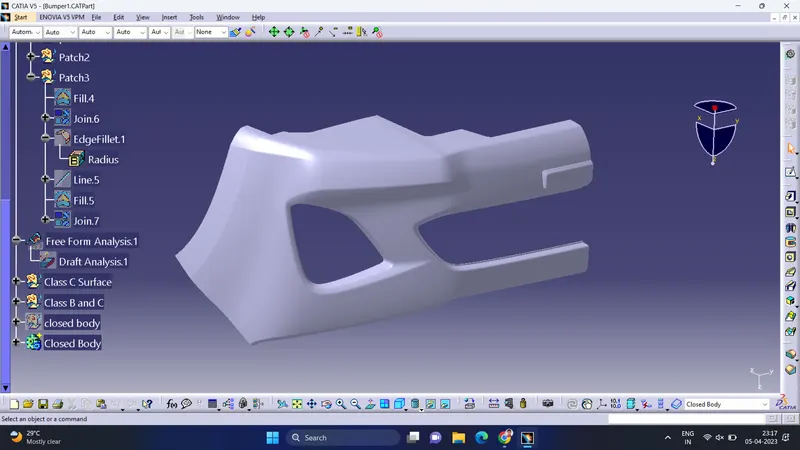

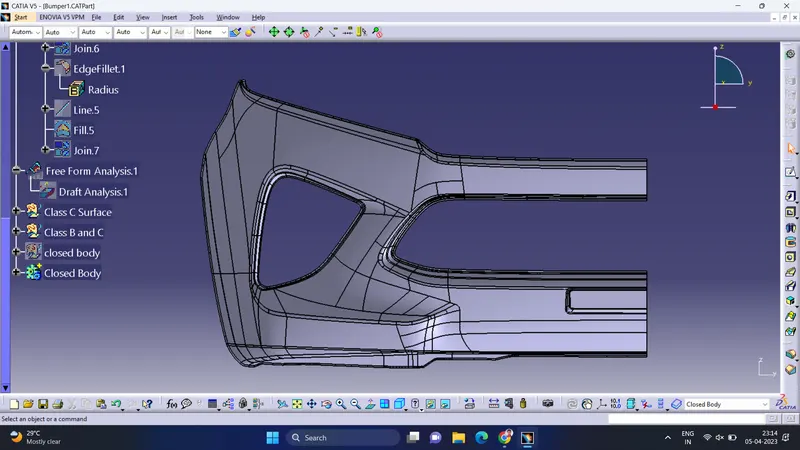

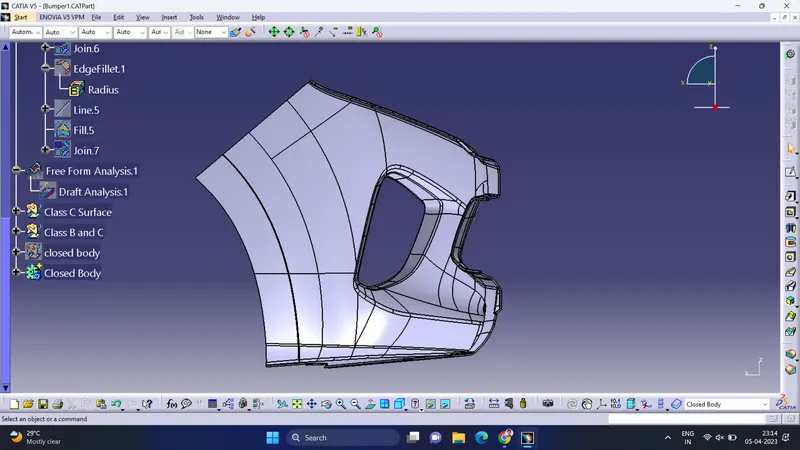

FINAL OUTPUT -
