Week 9 - Challenge 3 - Bumper

TREE STRUCTURE

DRAFT ANALYSIS

<!--[endif]-->

CLASS A

<!--[endif]-->

CLASS B

<!--[endif]-->

CLASS C

<!--[endif]-->

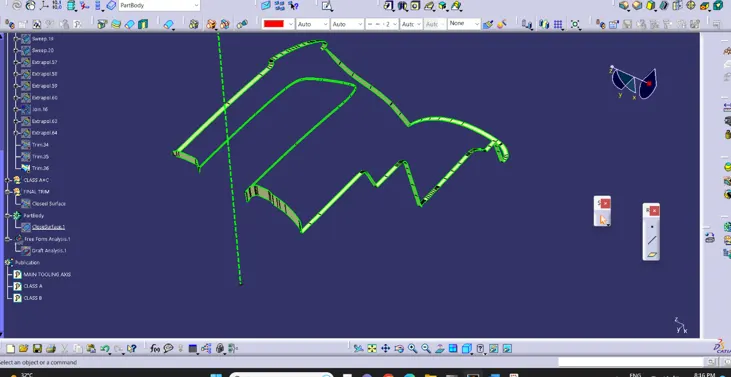

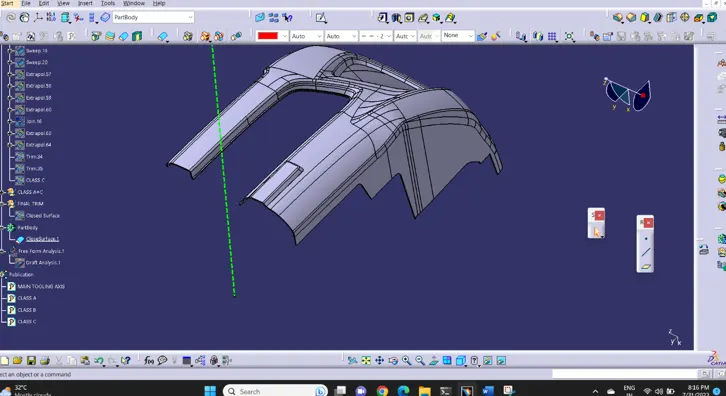

CLOSED SURFACE

<!--[endif]-->

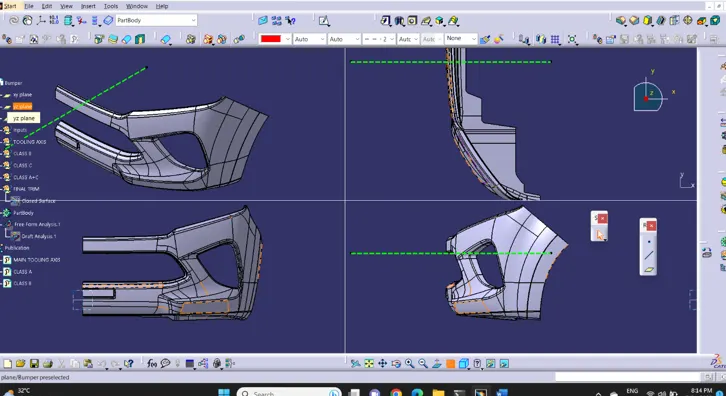

Tooling Axis

First, we determine a dummy tooling axis based on axis which requires lesser work and easier to design core and cavity

In bumper, we have good visibility of all surfaces at x axis.So we chose X axis as a Main tooling axis.



Draft analysis

 Once the tooling axis is obtained, Publish both Tooling axis and Surface A.

Define Material in customize parameters

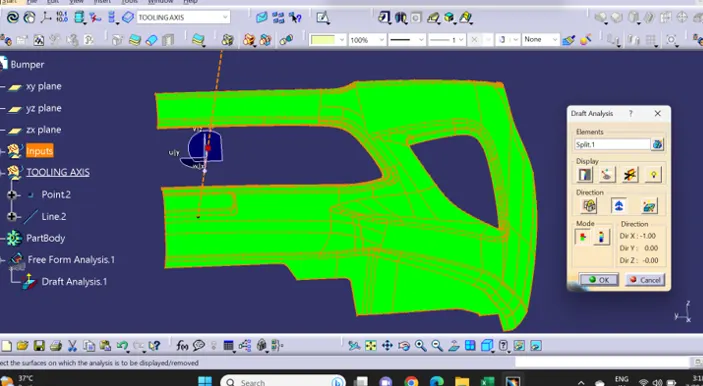

Click on insert à AnalysisàDraft Anlaysis

Once the Draft analysis window opens check for the compass image.

Drag and drop the compass into the surface create

Locate the compass accordingly to the component

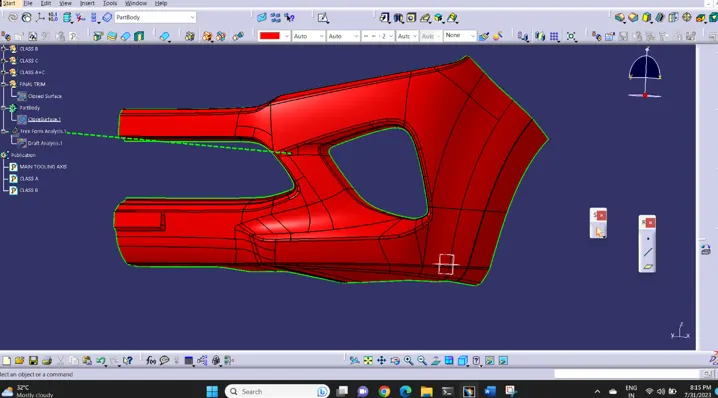

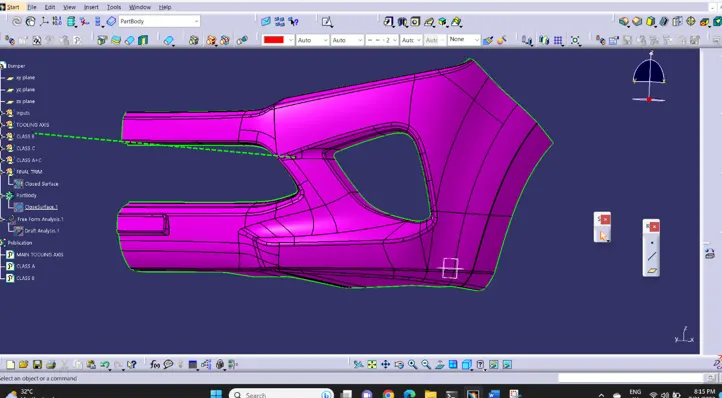

Click on the component and measure Draft Angle



Trimmed additional Surfaces and corrected deviation
