Week 9 Challenge

Bumper

Aim:

To create the Bumper Plastic component through the given Class-A surface.

Steps:

Given Class A:

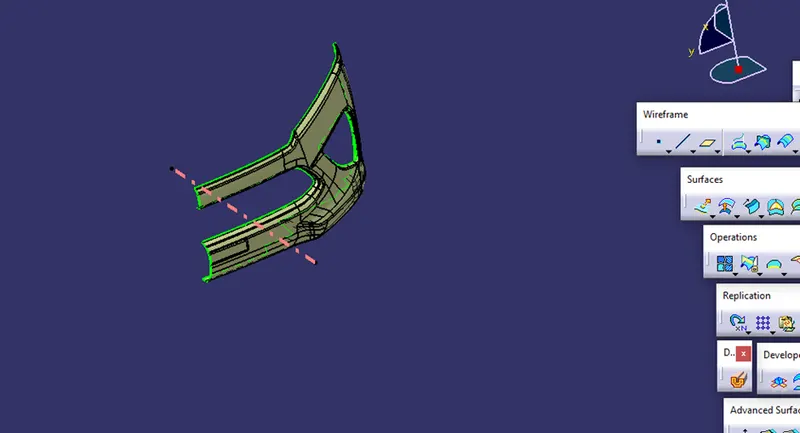

Tooling Axis:

Considering the Ejection from the cavity of the mold after manufacturing the component, it must have a nominal 3-degree draft angle.

The tooling direction is created by considering the above factor. And hence the tooling axis is created along X axis.

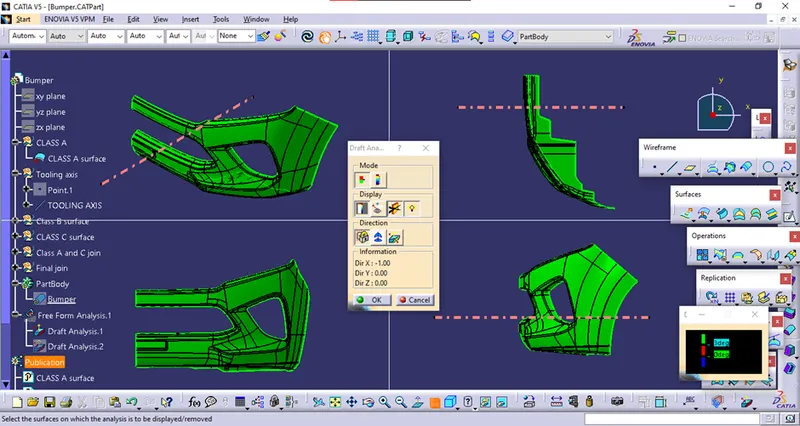

Draft Analysis of Class A:



CREATION OF CLASS B SURFACE:

Class B surface has been created by offsetting the Class A surface.

There were some fillet errors while creating offset. Those errors were corrected by extracting and creating separate fillets.



CREATION OF CLASS C SURFACE

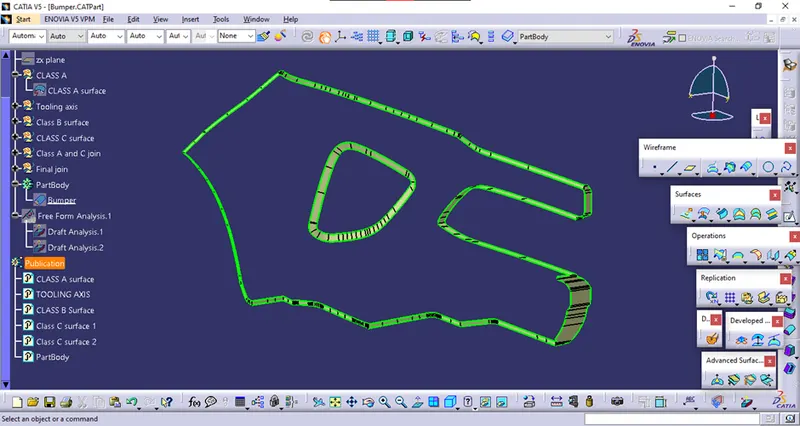

The required outer edges of the A-Surface were extracted using Multiple Extract.

Then by using the sweep command the Class C surface was created.

Then, using extrapolate command, the edges were intersected between the surface corners, which eases the trimming operation.

Now the required portion of the C – the surface was trimmed out.

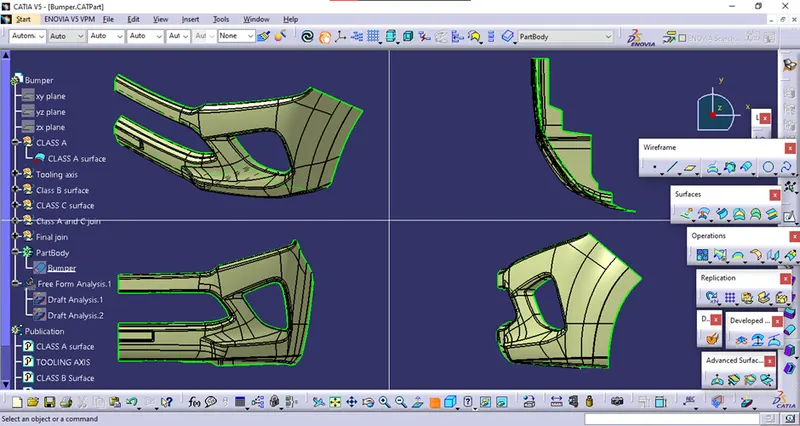

CREATION OF CLOSED SURFACE

Now the class – A and Class- C surfaces were joined together by removing the gaps in between.

Then the exact surface of the Bumper was trimmed from the above-resulted trim surface with the class-B surface.

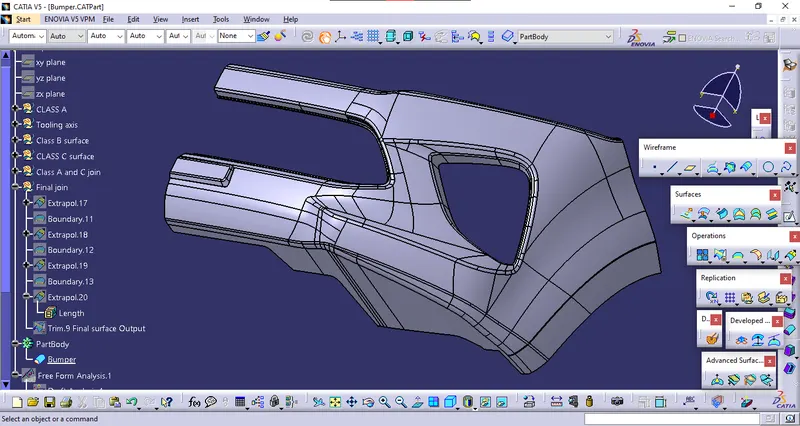

Then, by defining the part body by using the Closed Surface command in Part Design, the component's solid body is created.

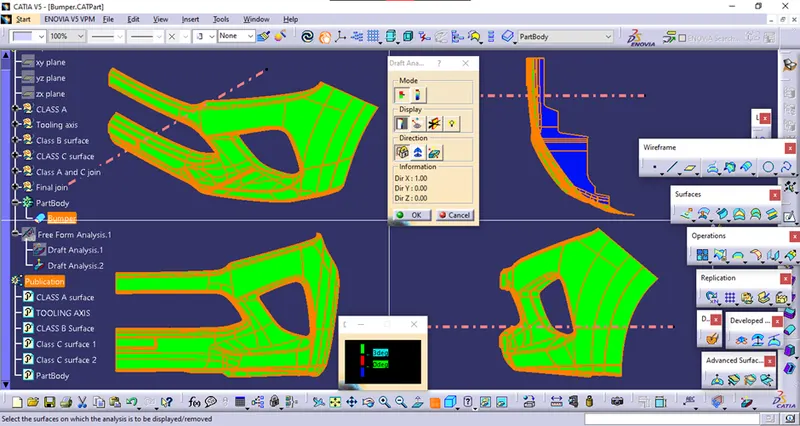

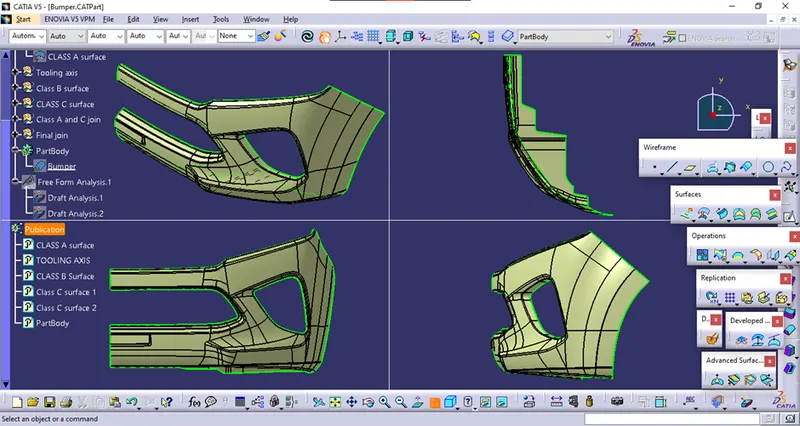

Draft analysis of Class A surface

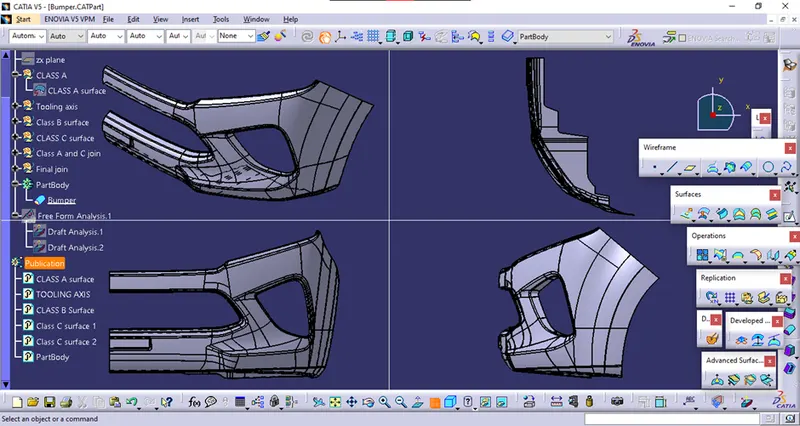

Screenshots:

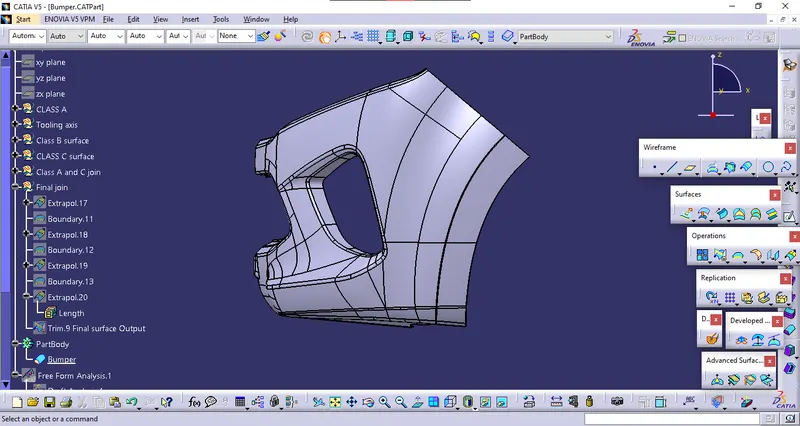

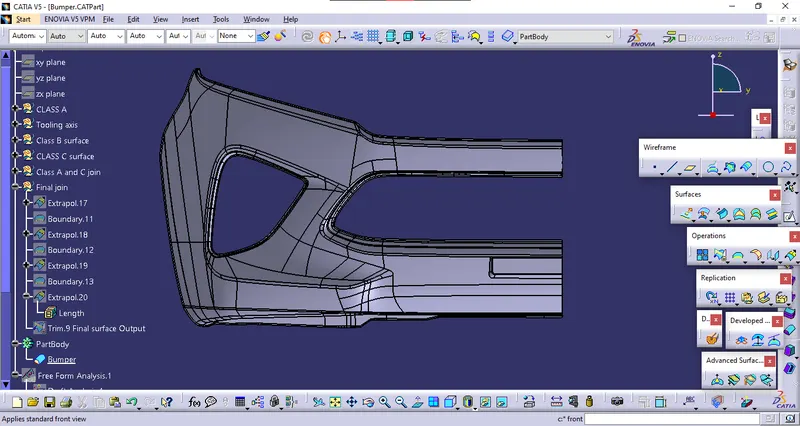

Isometric View

Front View

Top View

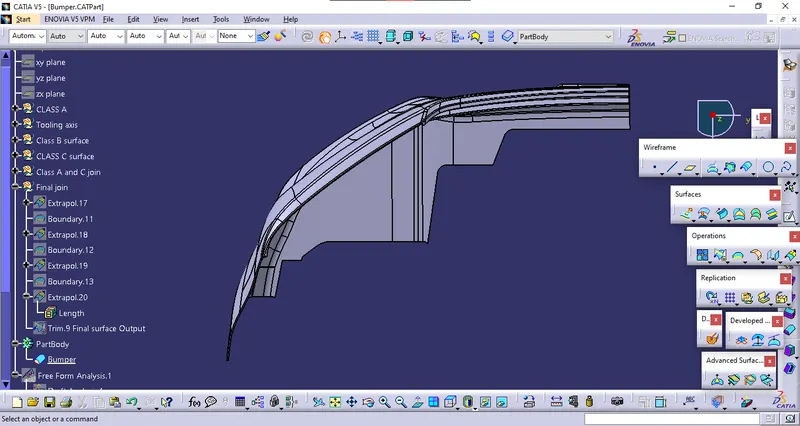

Side View
