Week 10 Challenge

Dog House

Aim:

Create the Dog House for the Door Trim considering the design rules.

Steps:

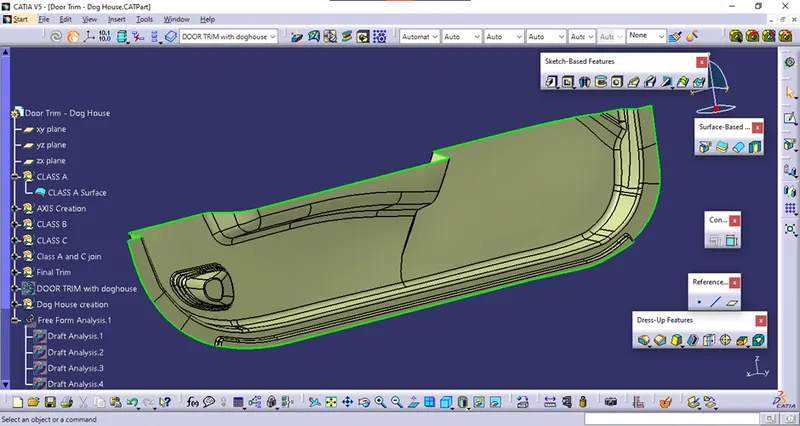

Given Class A:



Tooling Axis:

Considering the Ejection from the cavity of the mold after manufacturing the component, it must have a nominal 3-degree draft angle.

The tooling direction is created by considering the above factor. And hence the tooling axis is created along Y-axis.

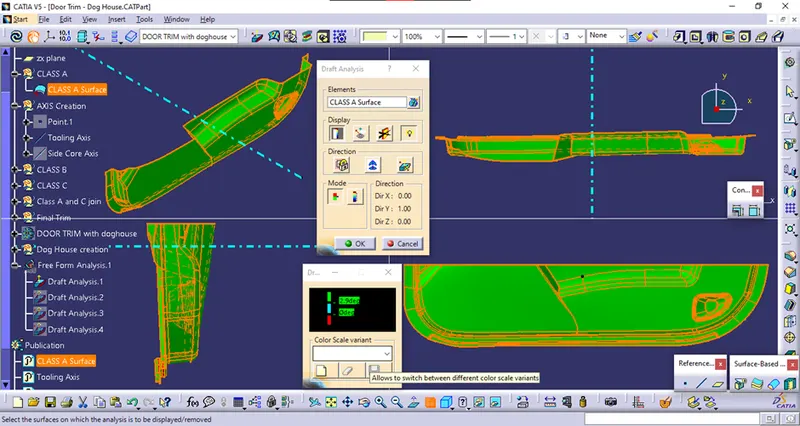

Draft Analysis of Class A:

To make the red zones into green, positive draft side draft angle was decreased from 3 to 2.9 degrees.



CREATION OF CLASS B SURFACE:

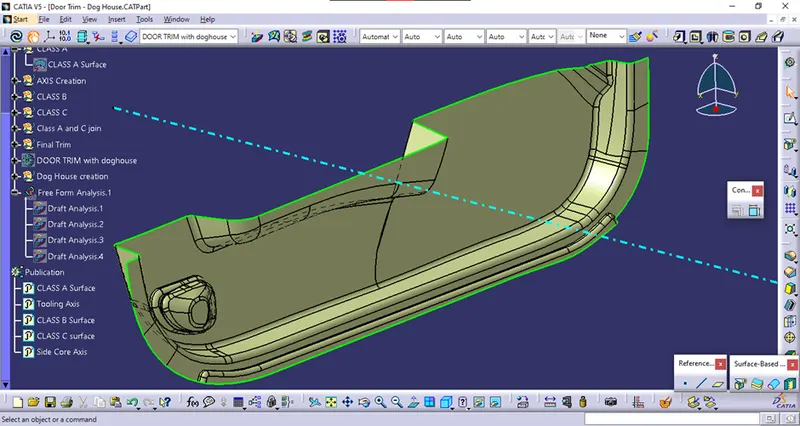

Class B surface has been created by offsetting the Class A surface.

There were some fillet errors while creating offset. Those errors were corrected by extracting and creating separate fillets.

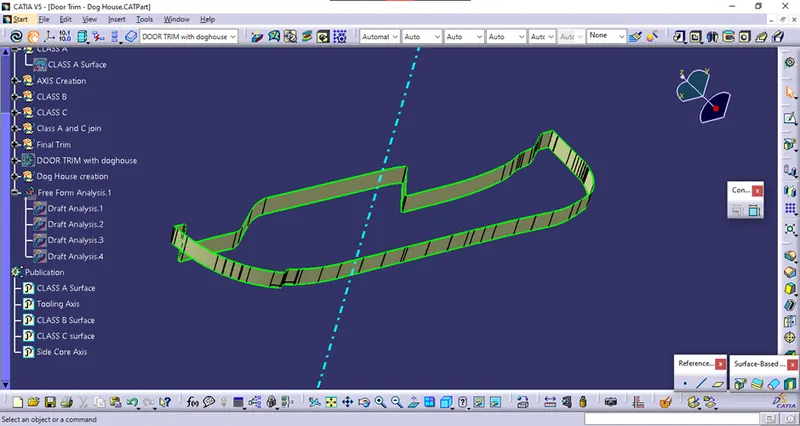

CREATION OF CLASS C SURFACE

The required outer edges of the A-Surface were extracted using Multiple Extract.

Then by using the sweep command the Class C surface was created with appropriate draft angle.

Then, using extrapolate command, the edges were intersected between the surface corners, which eases the trimming operation.

Now the required portion of the C – the surface was trimmed out.



CREATION OF CLOSED SURFACE

Now the class – A and Class- C surfaces were joined together by removing the gaps in between.

Then the exact surface of the Bumper was trimmed from the above-resulted trim surface with the class-B surface.

Then, by using the Closed Surface command in Part Design, the component's solid body is created.

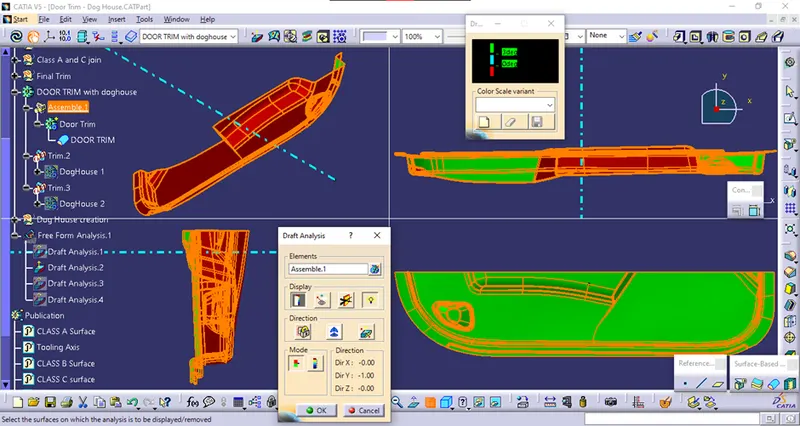

Draft analysis of Door Trim:

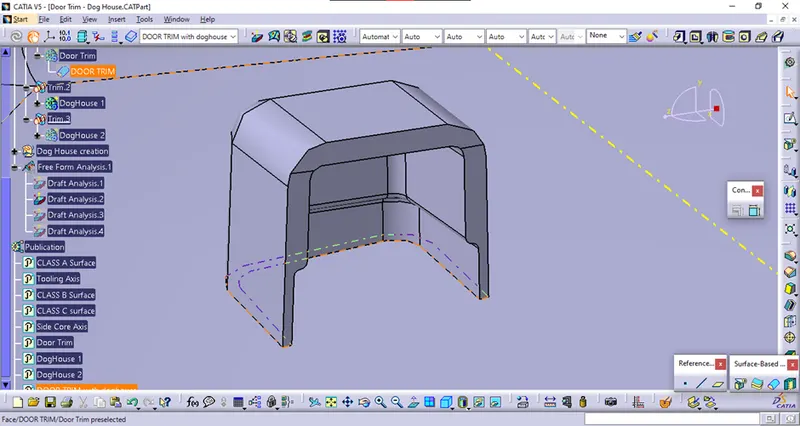

Dog House:

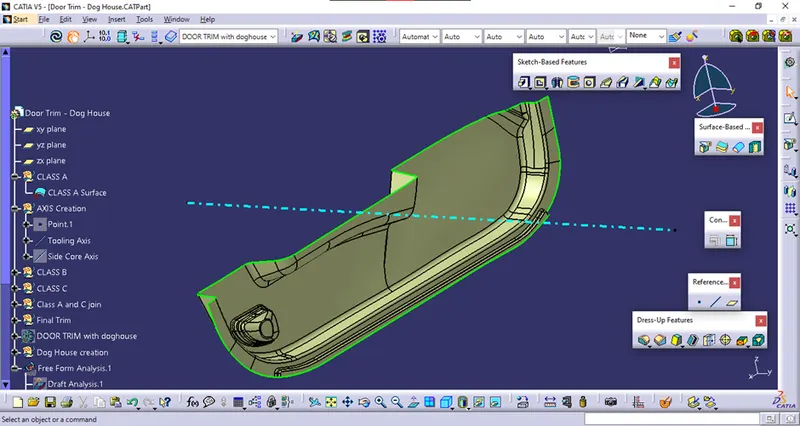

Side core axis is created in the X direction on the same point as the main tooling direction created.

Dog House was created by following the design rules.



Draft analysis of Dog House:

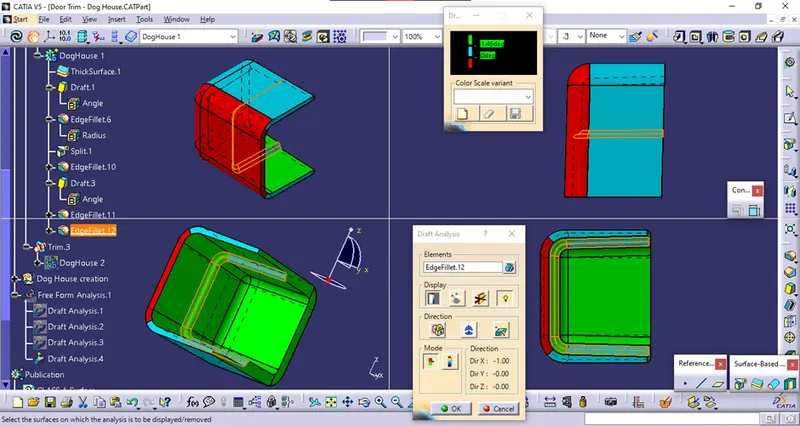

Outer Draft: (Main Tooling Axis)

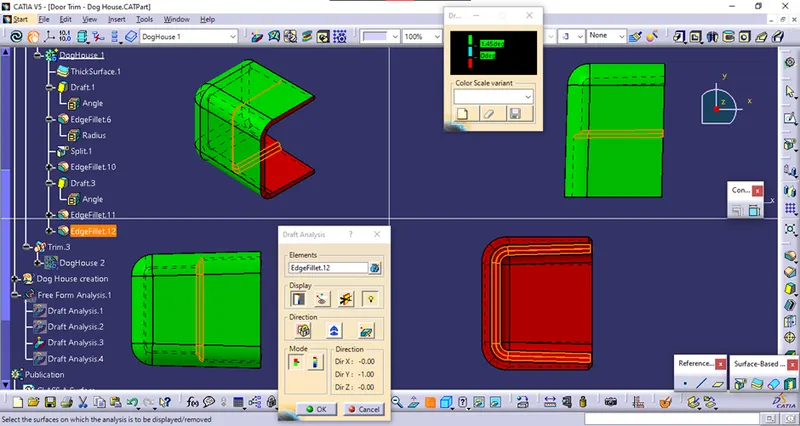

Inner Draft: (Side Core Tooling Axis)

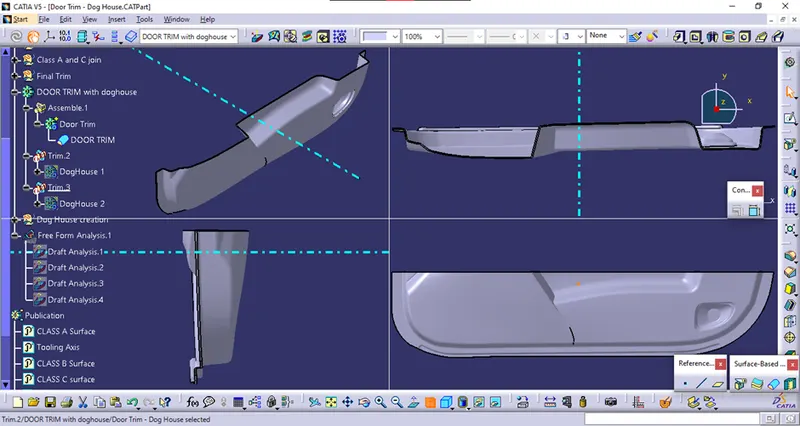

Screenshots:

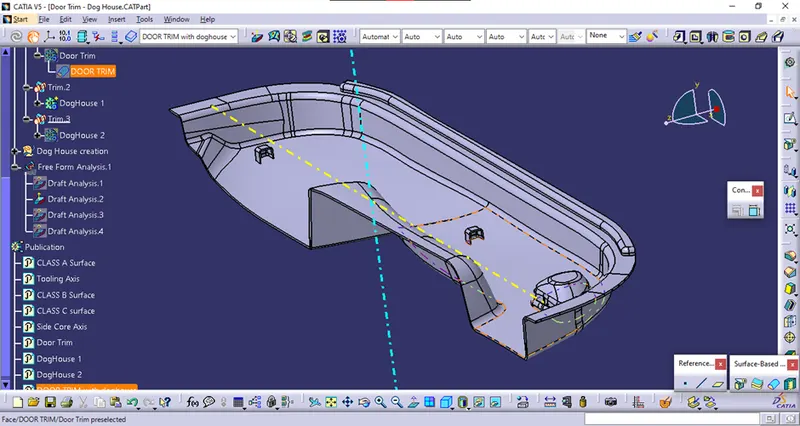

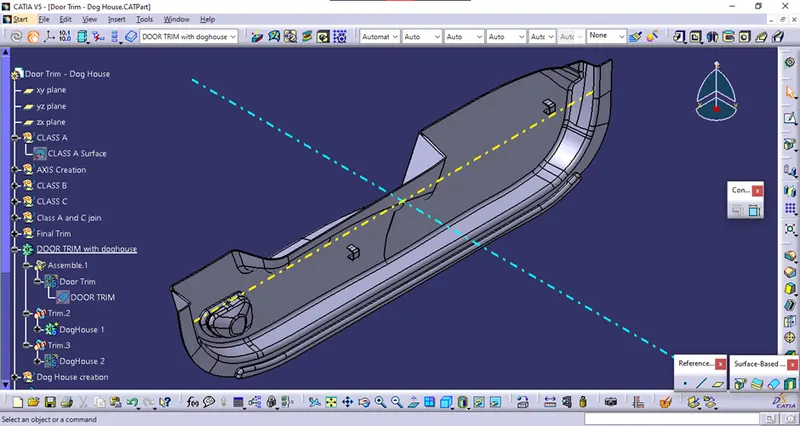

Isometric View

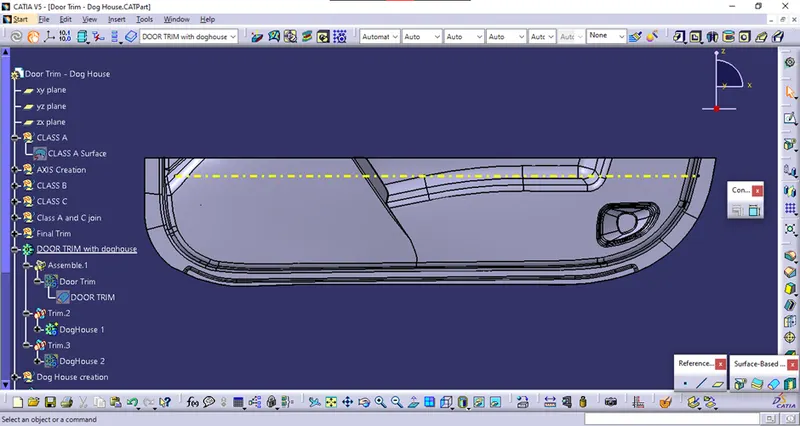

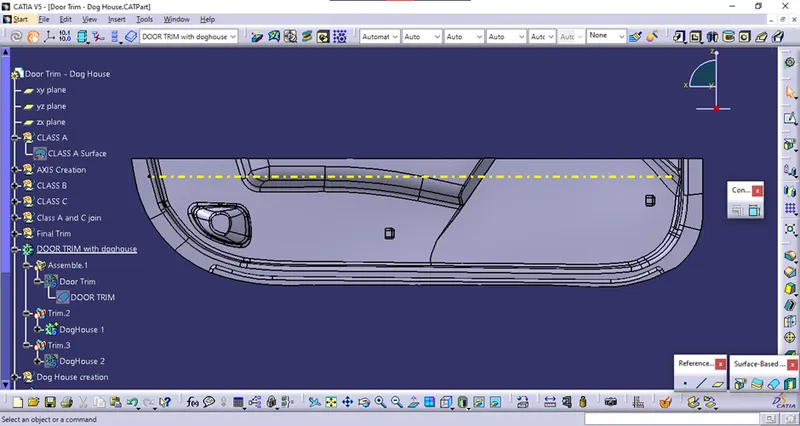

Front View

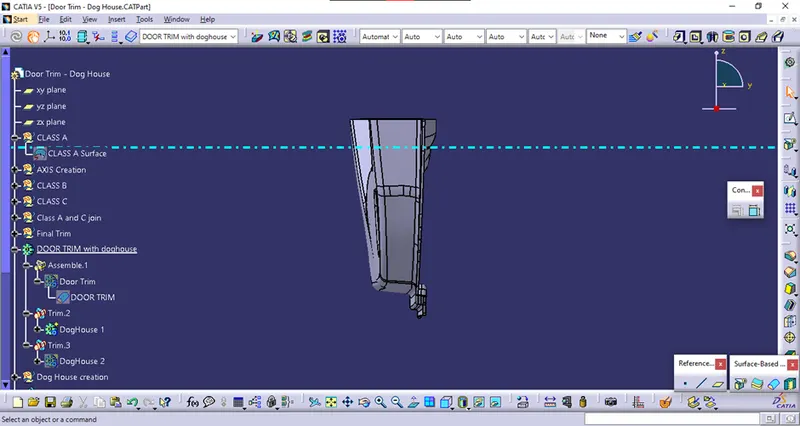

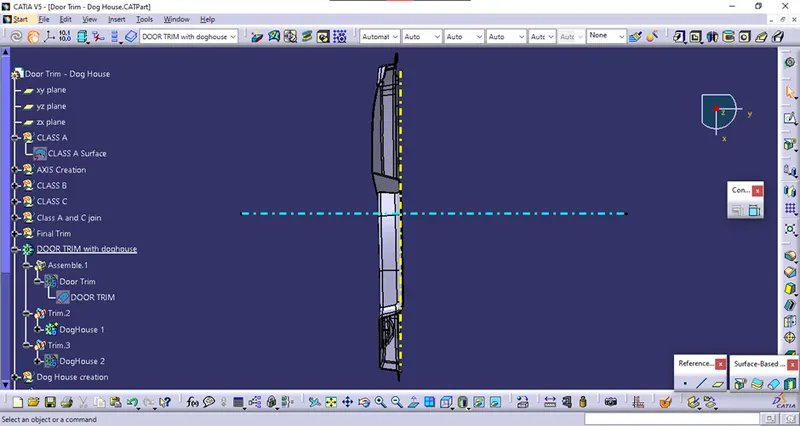

Right View



Left View



Top View
