Week 9 - Challenge 3 - Bumper

AIM :

* To make a model from the provide surface

INTRODUCTION

* Class - A surface made by the designer which is given as an input plastics modeler to work on

* Class - B surface below a certian thickness from the class A- surface is class B surface

INPUT GIVEN :

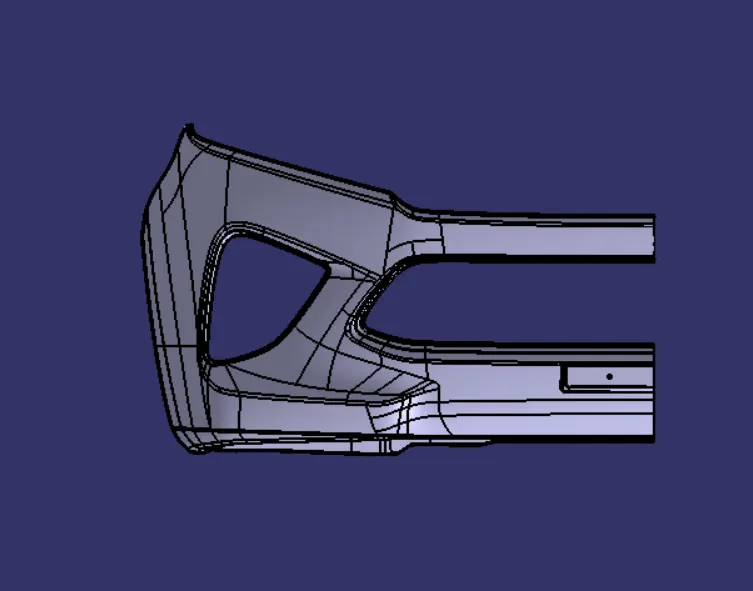

* A - Surface

* Thickness of components is 3.00 mm

* Draft angle is 3 degree

METHODOLOGY :

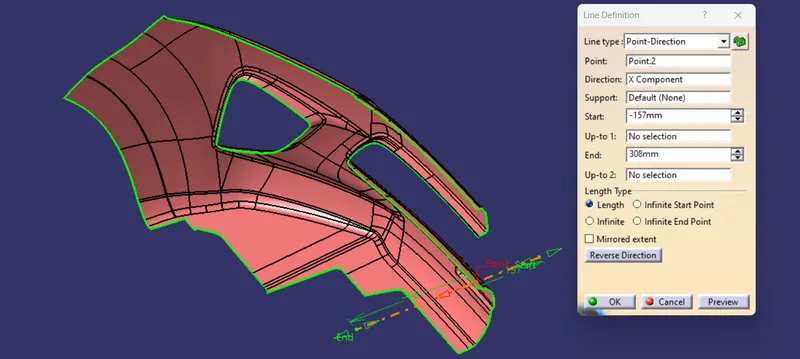

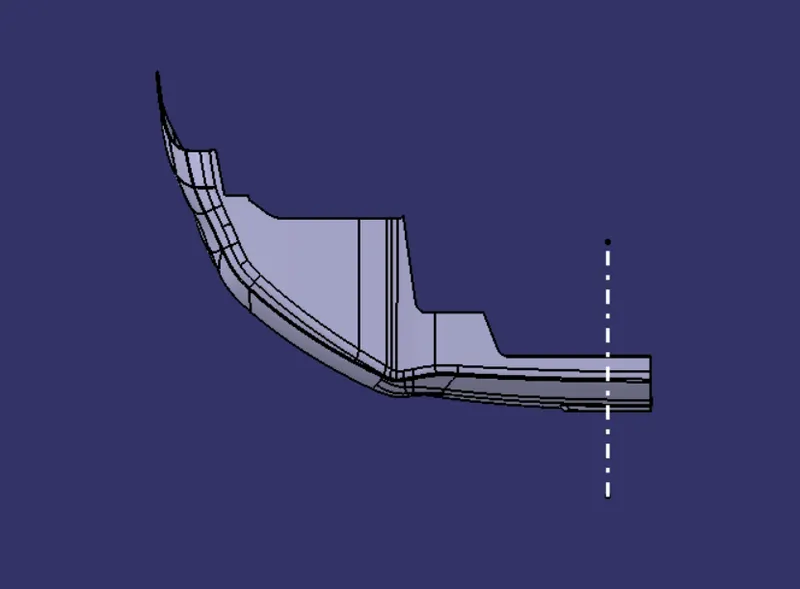

* Tooling axis

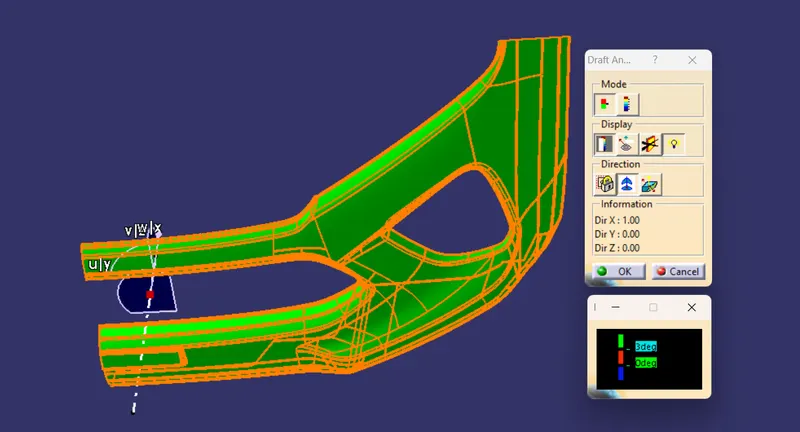

* Draft analysis

* Class B- surface

* Class C- surface

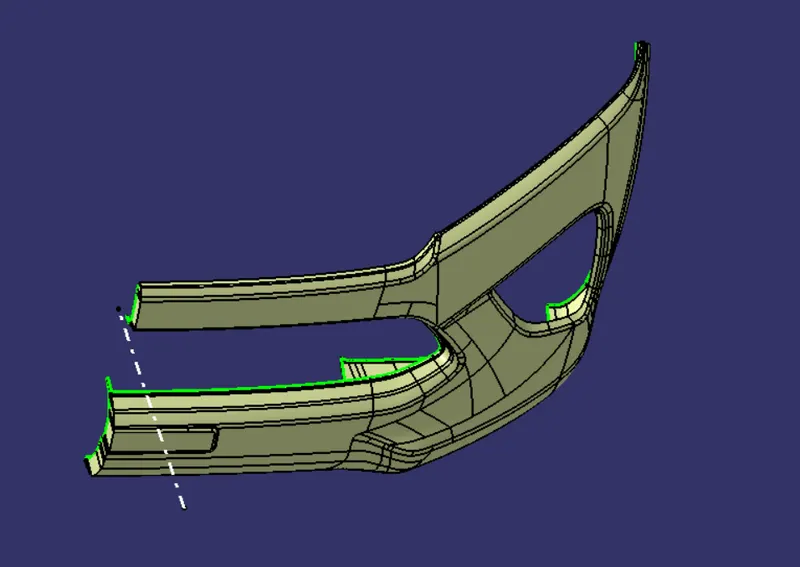

* Making a solid model surface

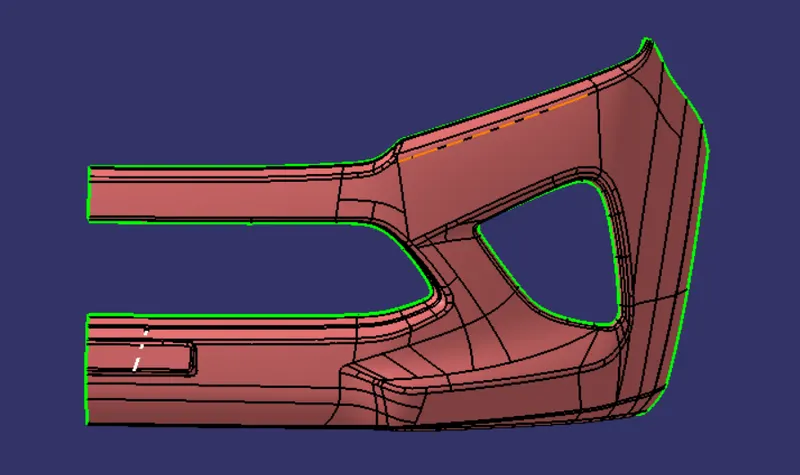

* Extract

* Un - trim

* Extrapolate

* Offset

* Edge fillet

* Sweep
