Week 9 - Challenge 3 - Bumper

BUMPER

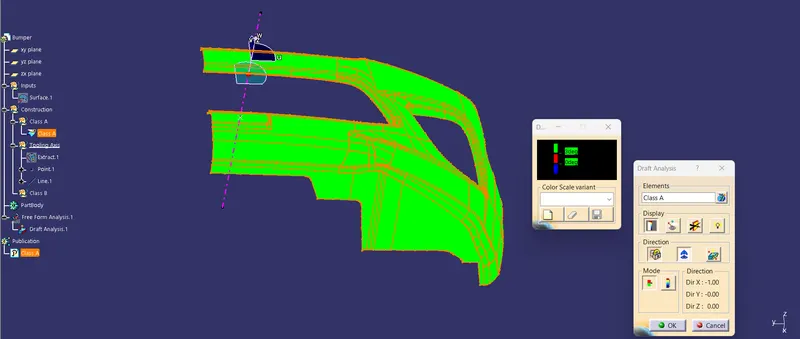

Draft Analysis of Class A:

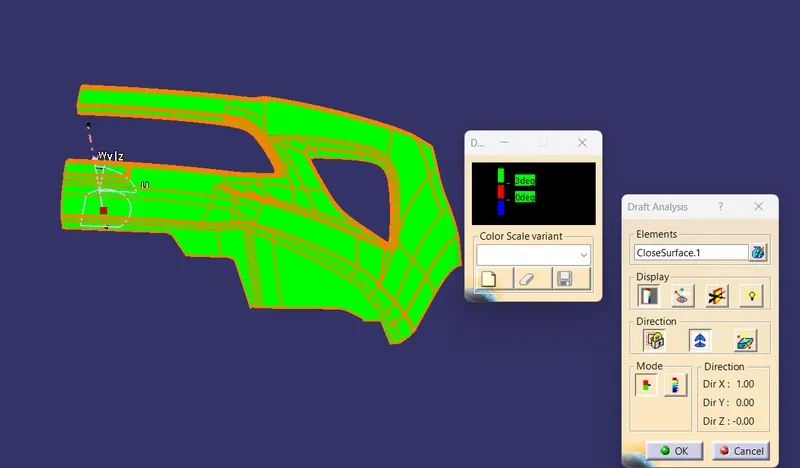

Draft Analysis of Final Output:

Publications:

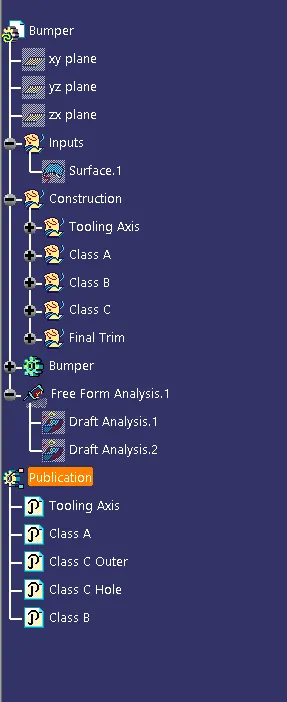

Tree:

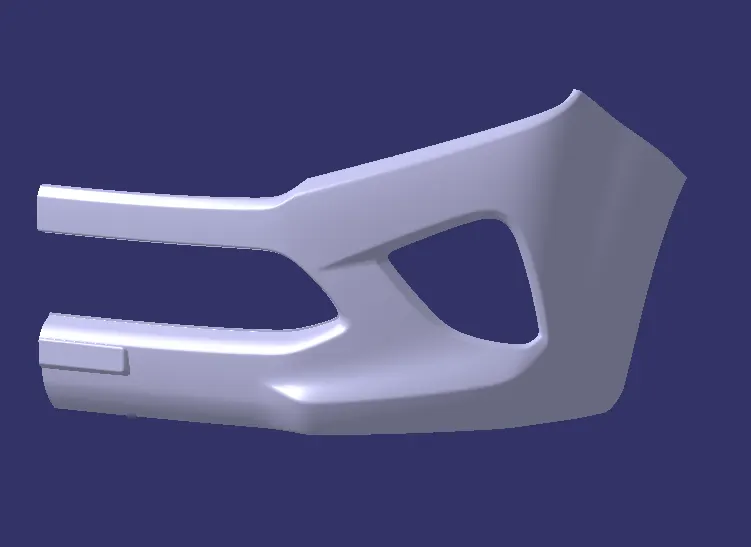

Final Product:

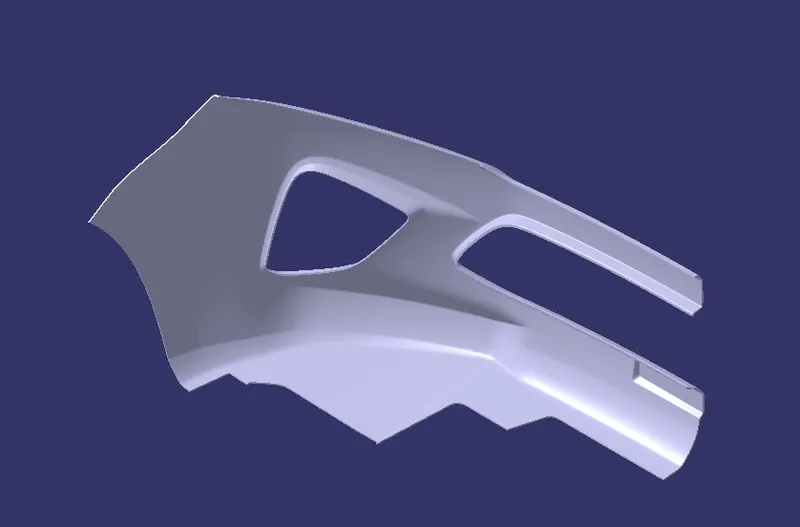

Isometric View:

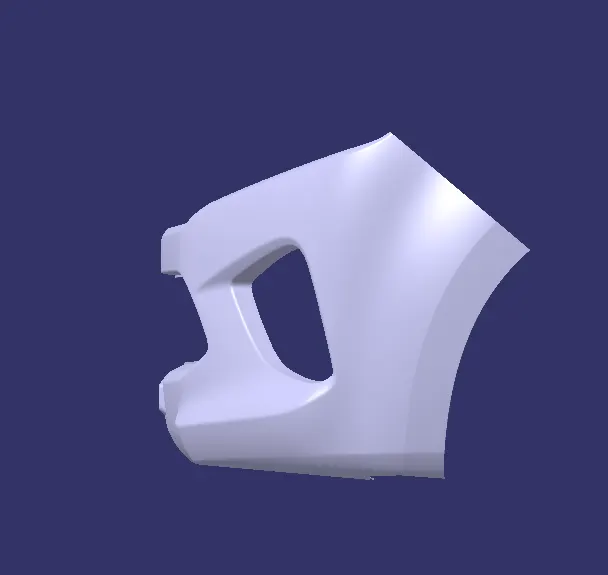

Front view:

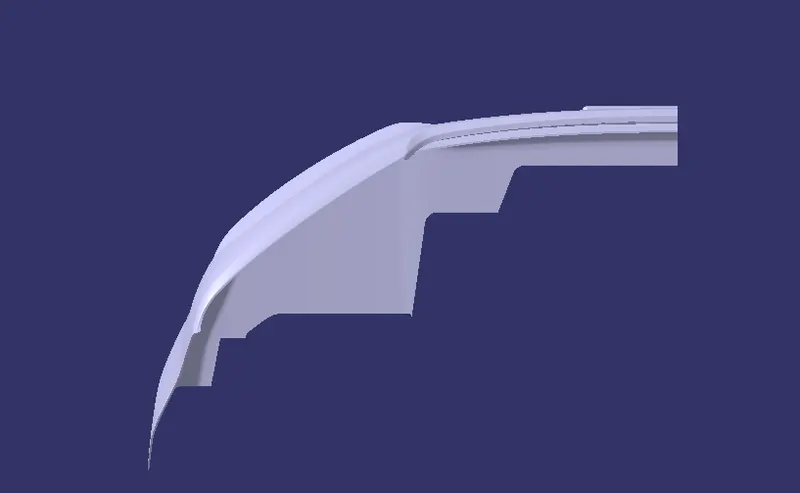

Top View:

Side View:

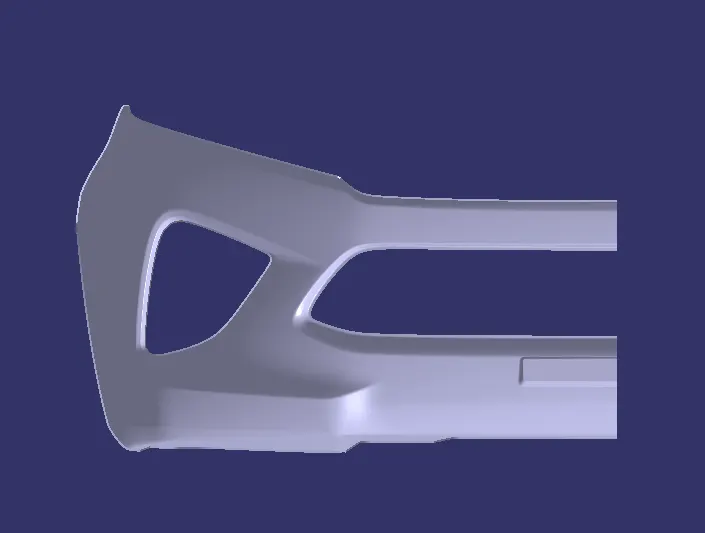

Actual Front View W.r.t Product:

Report:

From the class A, the number plate holding surface is normal to the (Z) vertical axis, hence it should clear the draft analysis. The tooling axis was made with respect to this and drft analysis was performed. From the analysis output, it came clear that the class A is clearing 3 degree draft everywhere. Then Class B, Class C surfaces were made. The edges of each surfaces were extrapolated so as to perform trim operation (join operation didn't worked as it produced open edges). After creating a close surface, the final product was made using closed surface command in the Part workbench.
